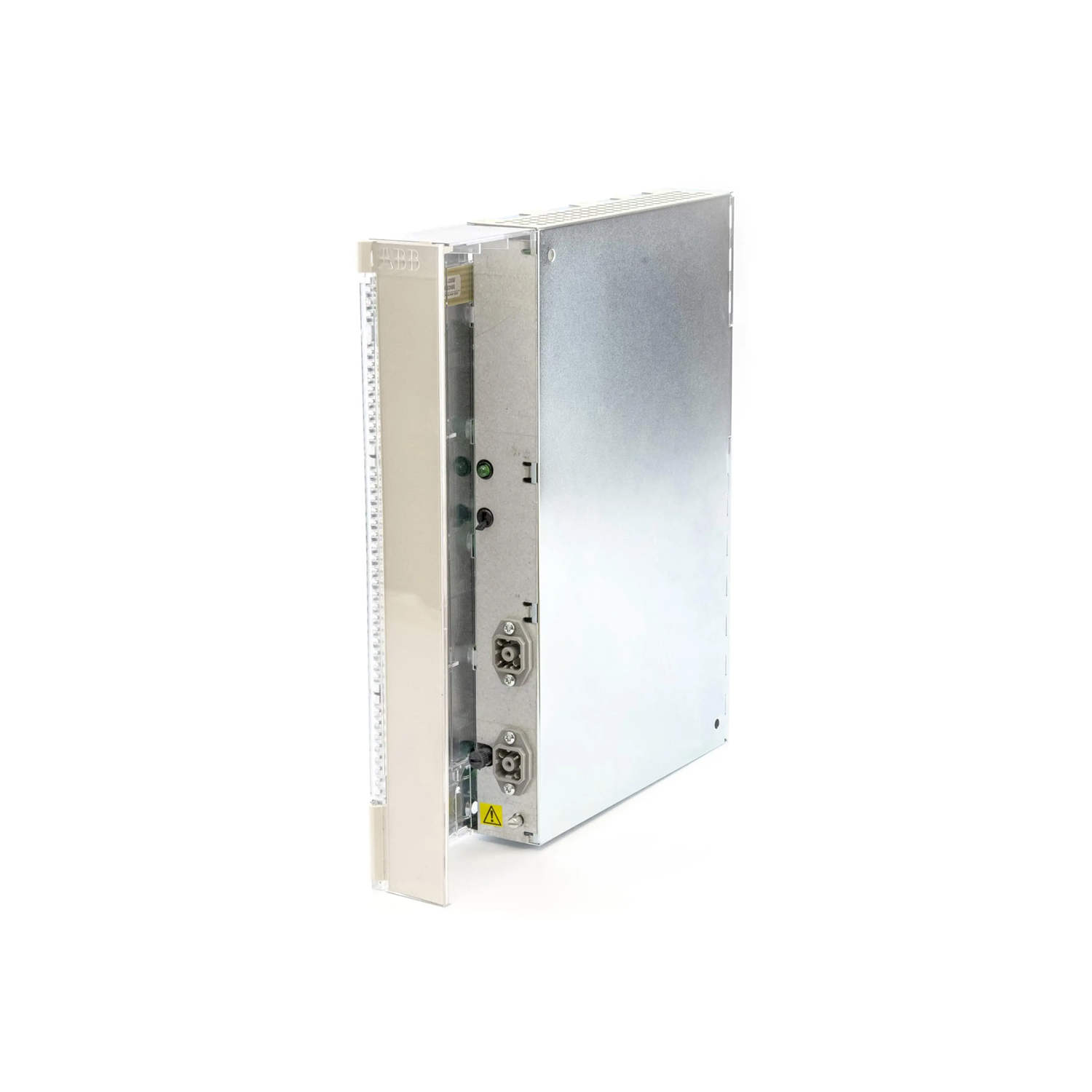

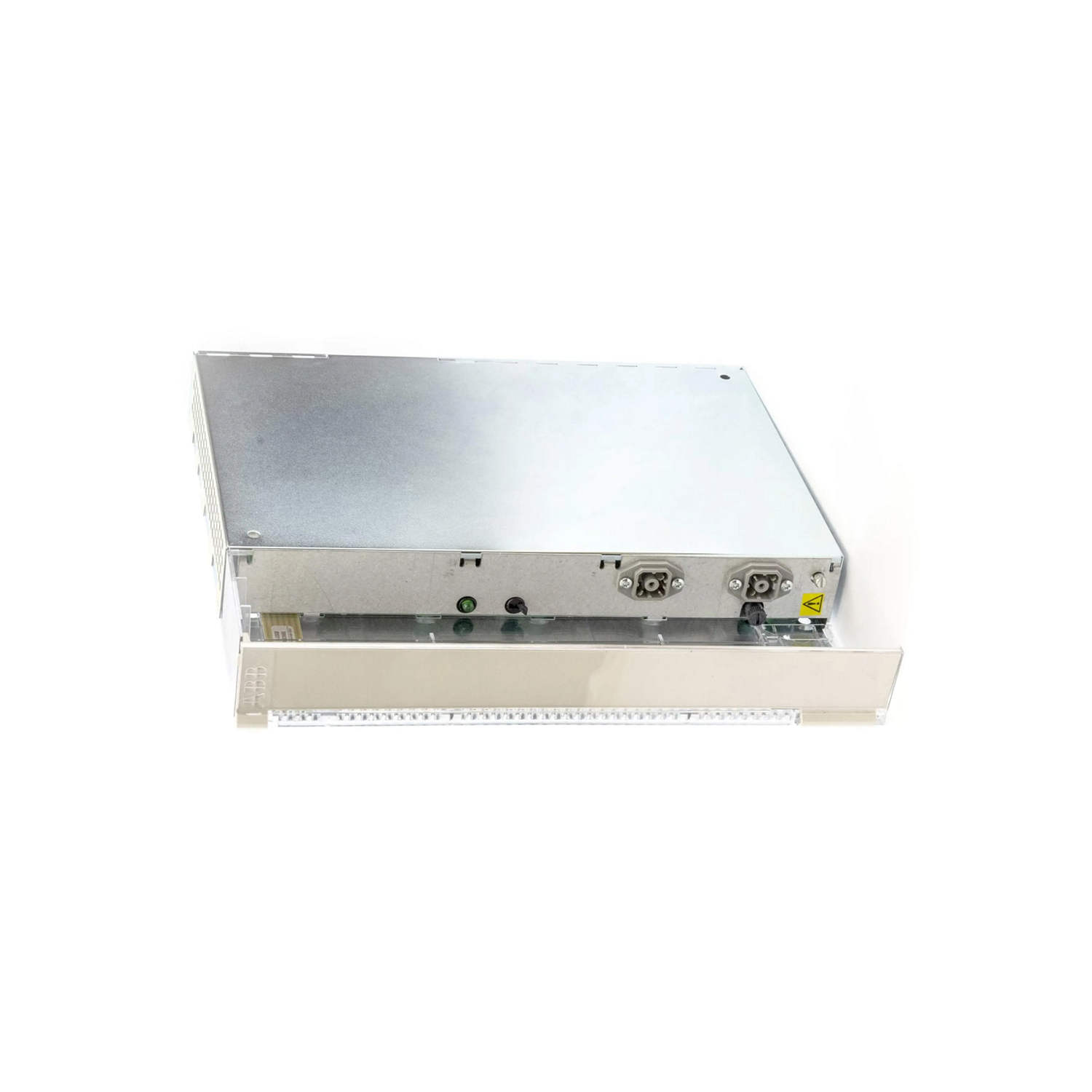

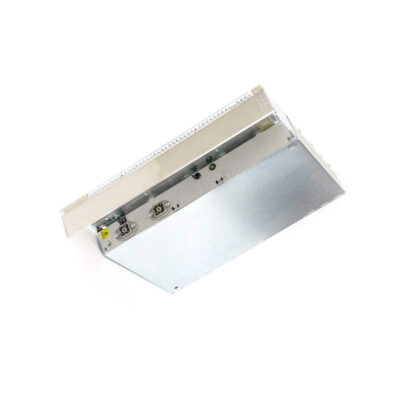

ABB SA610 is a power supply engineered for AC110, AC160 and MP90 systems, converting 110/120/220/240 VAC or 110/220/250 VDC input to a 24VDC, 60W output. When a process control cabinet requires a stable 24VDC rail across legacy AC and DC supply arrangements, this module provides the exact input flexibility needed without external conversion hardware.
What input and output specifications define the SA610 power supply?
The unit accepts a wide input range: 110/120/220/240 VAC and 110/220/250 VDC. Its output is fixed at 24VDC with a 60W rating. These verified parameters allow direct integration into control systems where mains voltage varies or where a DC bus is already present. The dual AC/DC input capability reduces the need for separate power conversion stages in mixed-supply environments.
Key technical parameters
- Input voltage: 110/120/220/240 VAC, 110/220/250 VDC
- Output: 24VDC, 60W
- Product type: Power Supply
- Compatibility: AC110, AC160 and MP90 systems
- Dimensions (D x H x W): 252 mm x 273 mm x 40 mm
- Net weight: 1.7 kg
- RoHS: Following EU Directive 2011/65/EU
- WEEE category: 5. Small Equipment (No External Dimension More Than 50 cm)
How does This unit address common power supply failure modes?
Power supplies often fail due to input voltage mismatch or inadequate output headroom. This unit mitigates these risks by accepting both AC and DC inputs across a broad range. Its 24VDC, 60W output provides a defined power ceiling for connected loads. During maintenance, verify input wiring matches the selected voltage and confirm load current does not exceed the 60W rating. Periodic inspection of terminal connections and environmental conditions supports long-term reliability.
Integration and installation considerations
The module is designed for panel mounting within ABB Advant Master Process Control System architectures. Because the input supports multiple AC and DC levels, ensure the correct terminals are used for the available supply. The compact 40 mm width allows dense cabinet layouts. For precise wiring guidance, refer to the official ABB documentation or contact AutoDCSTech with your exact requirements for precise matching.
Why specify the ABB unit for legacy control systems?
Engineered for AC110, AC160 and MP90 platforms, this power supply maintains compatibility with established process control infrastructure. Its engineering-grade precision in voltage handling and output regulation supports continuous operation. The unit is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f) and (j) therein, referencing 3BSE088609. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | SA610 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Switzerland |
