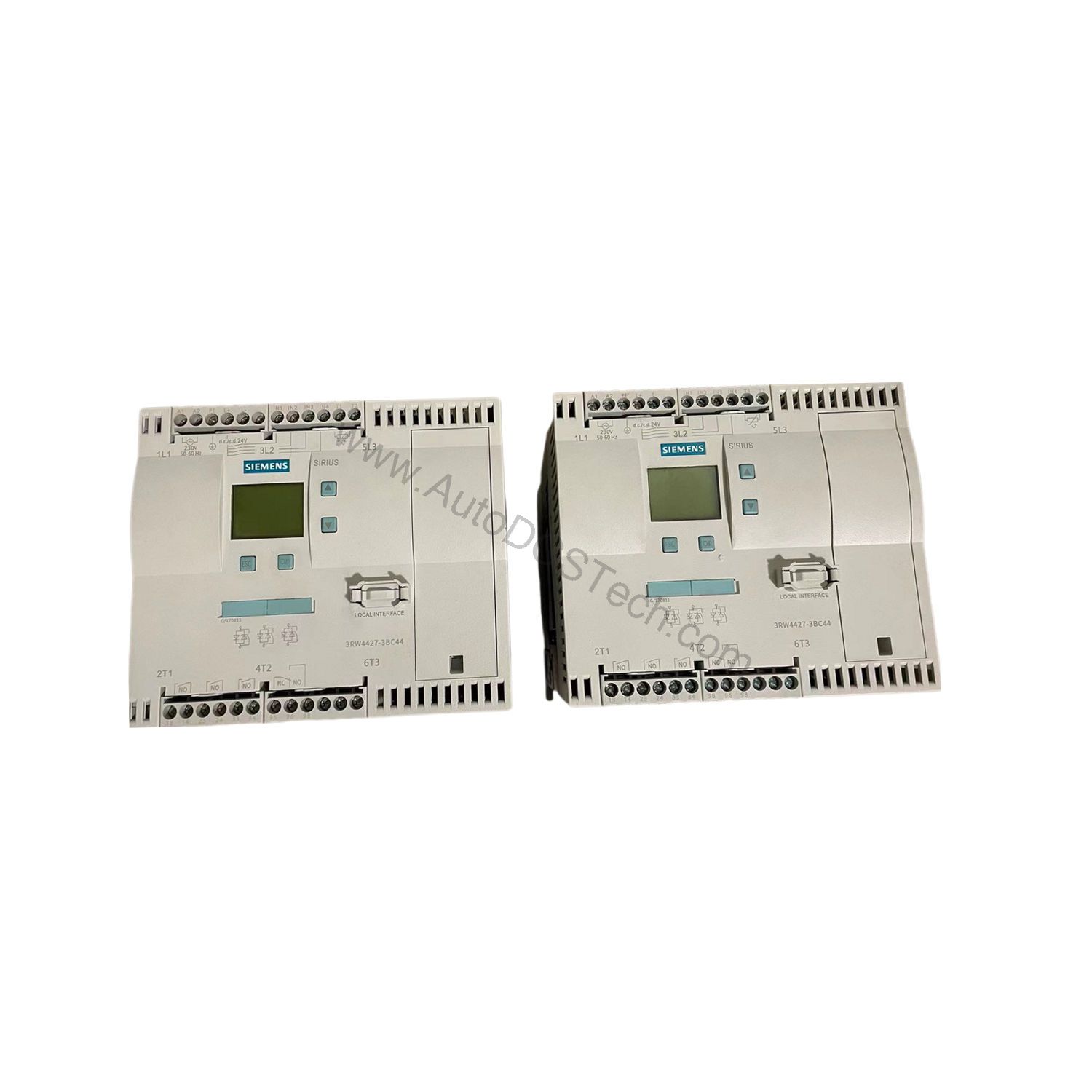

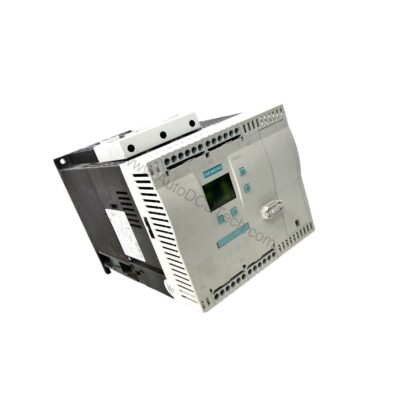

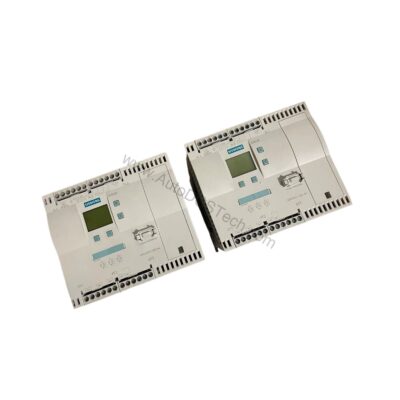

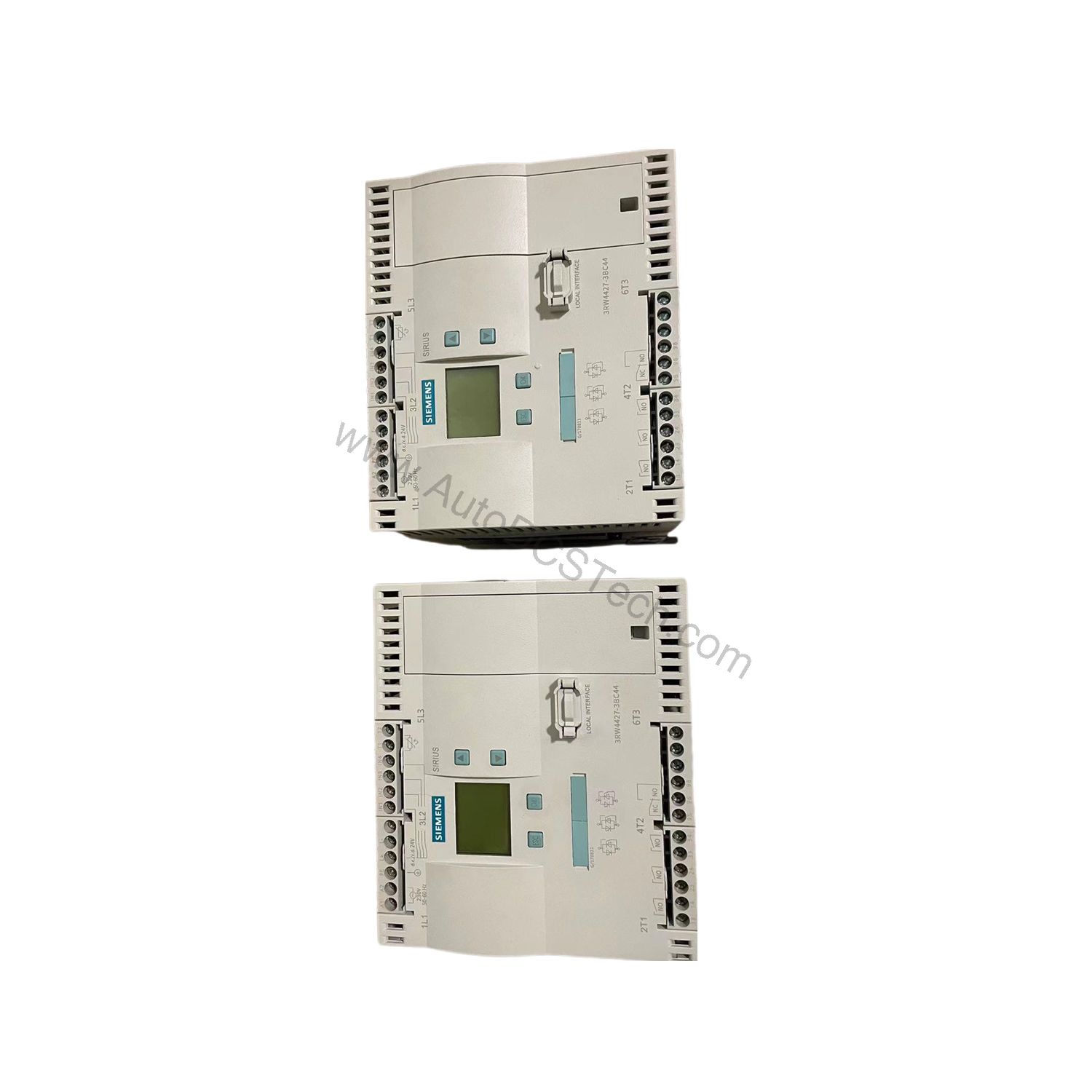

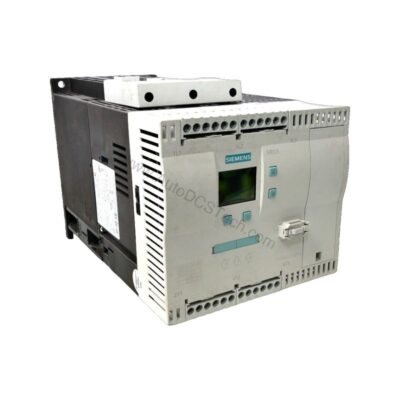

Introduction to the Siemens 3RW4423-1BC44 Soft Starter
When motor starting demands precision and reliability, the 3RW4423-1BC44 from Siemens SIRIUS series provides a robust solution. This soft starter is engineered for high-feature applications, offering adjustable current limitation and integrated motor protection. With a rated operational current of 36 A at 40 °C in standard circuit, it handles a wide range of three-phase motors.
For inside-delta circuits, the device supports up to 62 A at 40 °C, making it versatile for different motor configurations. The operating voltage spans 200-460 V AC, accommodating various supply systems. This model includes screw terminals for straightforward wiring, simplifying installation in industrial panels.
Key Features and Technical Specifications
The 3RW4423-1BC44 integrates several protective functions that enhance motor longevity and system uptime. Its intrinsic device protection and motor overload protection are built-in, reducing the need for external relays. Additionally, it evaluates thermal resistor motor protection, enabling accurate temperature-based monitoring.
- Rated current (standard circuit, 40 °C): 36 A
- Rated current (inside-delta circuit, 40 °C): 62 A
- Operating voltage: 200-460 V AC
- Control supply voltage: 230 V AC (50/60 Hz)
- Rated power (400 V, standard circuit): 18.5 kW
- Rated power (400 V, inside-delta): 30 kW
- Operating frequency: 50-60 Hz
- Ambient temperature (operation): up to 60 °C
- Degree of protection: IP00
- Dimensions (W x H x D): 170 x 192 x 270 mm
One distinctive feature is the integrated bridging contact system, which reduces power losses after starting. This is particularly beneficial for applications with frequent starts, as it minimizes heat generation and improves energy efficiency.
Applications and Use Cases
The 3RW4423-1BC44 is suitable for a variety of industrial motor control tasks, including pumps, fans, compressors, and conveyors. Its adjustable current limitation allows fine-tuning to match specific load characteristics, reducing mechanical stress on driven equipment.
For example, in a pumping station, the soft starter gradually ramps up voltage, preventing water hammer and extending pump life. Similarly, in conveyor systems, controlled acceleration reduces belt wear and product damage. The inside-delta circuit capability enables higher power handling, making it ideal for larger motors where space is limited.
Installation and Setup
Mounting the 3RW4423-1BC44 is straightforward with screw fixing. The device can be rotated ±90° on a vertical mounting plane, providing flexibility in panel layout. Maintain the specified clearances: 100 mm above, 5 mm to the sides, and 75 mm below for proper airflow and heat dissipation.
Electrical connections are made via box terminals for the main circuit and screw-type terminals for auxiliary circuits. Conductor cross-sections range from 2.5 to 70 mm² depending on the clamping point and conductor type. Always follow the manufacturer's wiring diagram and torque specifications to ensure reliable connections.
Maintenance and Reliability
Routine inspection is essential to maintain the 3RW4423-1BC44's performance. Check terminal tightness periodically, as thermal cycling can loosen connections. Keep the unit free from dust and moisture, especially in harsh environments.
The device's integrated protection features reduce the risk of motor burnout, lowering maintenance costs and unplanned downtime. With proper care, the soft starter can provide years of reliable service, contributing to overall system availability.
Compatibility and Integration
This soft starter is designed for three-phase squirrel-cage motors and supports both standard and inside-delta circuits. It includes three normally open auxiliary contacts and one changeover contact, allowing integration with control systems for status feedback.
The control supply voltage is 230 V AC, which is common in industrial control panels. The device can be used with a wide range of motor powers, from 7.5 kW at 230 V to 30 kW at 400 V in inside-delta configuration. Always verify motor data against the device's rated current and voltage to ensure proper matching.
Troubleshooting and Common Issues
If the motor fails to start, check the control supply voltage and ensure it is within tolerance (±15% for 60 Hz). Verify that the motor overload protection setting matches the motor's rated current, adjustable from 7 A upward. A fault signal is displayed on the integrated display, aiding diagnosis.
Should the device trip frequently, inspect the load for mechanical issues or excessive starting time. Also, confirm that the ambient temperature does not exceed the rated limits. For persistent problems, consult the Siemens manual or contact AutoDCSTech for technical support.
Product Support and Availability
The Siemens 3RW4423-1BC44 is available through AutoDCSTech. Contact our team for current stock and delivery options. We provide genuine parts and reliable service to support your industrial automation needs.
Availability & Condition at AutoDCSTech
| Part Number | 3RW4423-1BC44 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
