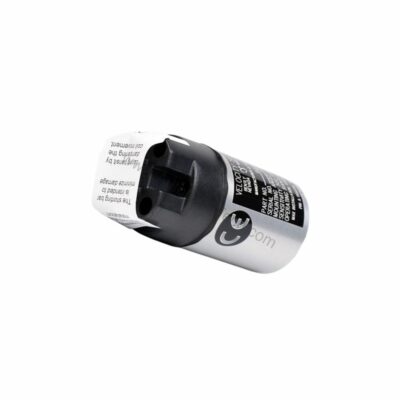

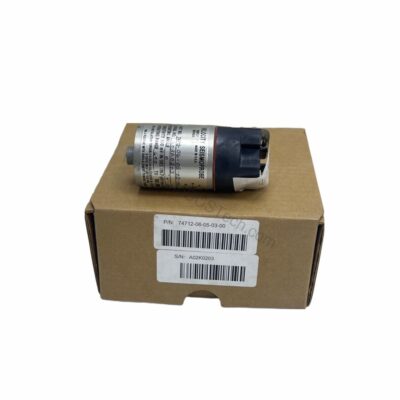

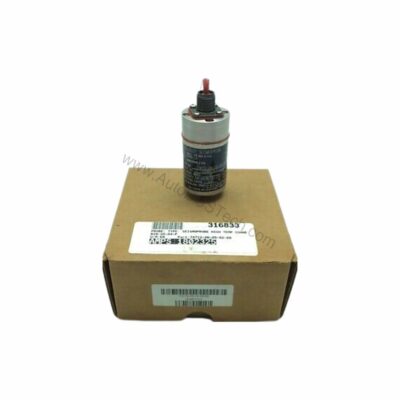

9200-06-01-10-00 Bently Nevada Two-Wire Velocity Seismoprobe Transducer

Introduction to the Bently Nevada 9200-06-01-10-00

In the evolving landscape of industrial machinery protection, accurate vibration measurement has become a cornerstone of predictive maintenance. The 9200-06-01-10-00 from Bently Nevada is a two-wire velocity seismoprobe transducer engineered to deliver consistent performance in demanding environments. This model, part of the 9200 series, offers a sensitivity of 20 mV/mm/s (500 mV/in/s) with a ±5% tolerance when properly terminated and oriented at the angle of calibration.

Designed for durability, the 9200-06-01-10-00 operates across a temperature range of -29°C to +121°C (-20°F to +250°F) and is dust and moisture resistant. Its anodized aluminum A204 case and neoprene gasket ensure long-term reliability in industrial settings.

Key Features and Technical Specifications

The 9200-06-01-10-00 is built to provide precise velocity measurements for rotating machinery. Below are the core specifications:

• Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at calibration angle.
• Dynamic operating range: 2.54 mm (0.100 in) peak-to-peak maximum displacement.
• Velocity range: 25 mm/s (1 in/s) at +22°C casing vibration at 100 Hz with a 10 kΩ load.
• Coil resistance: 1.25 kΩ ±5%.
• Locked coil inductance: 125 mH, typical.
• Operating and storage temperature: -29°C to +121°C (-20°F to +250°F).
• Relative humidity: To 95% noncondensing; 100% non-submerged when ordered with integral cable.
• Case and adapter material: Anodized aluminum A204.
• Gasket material: Neoprene.
• Height: 102 mm (4 in) typical (depending on connector option).
• Diameter: 41 mm (1.6 in) typical.
• Weight: 300 grams (10.5 ounces) typical.

One distinctive feature is the two-wire configuration, which simplifies wiring and reduces installation complexity. This is particularly advantageous in retrofit applications where existing cabling may be limited.

Applications and Use Cases

The 9200-06-01-10-00 is suitable for monitoring vibration on pumps, motors, fans, and other rotating equipment. In addition, the transducer's wide temperature range allows deployment in both indoor and outdoor environments, from process plants to power generation facilities.

For example, in a chemical processing plant, the 9200-06-01-10-00 can be mounted on a cooling tower fan to detect imbalance or bearing wear before catastrophic failure occurs. Similarly, in a water treatment facility, it can monitor pump vibration to optimize maintenance schedules and reduce unplanned downtime.

Installation and Setup

Proper installation is critical to achieving accurate measurements. The 9200-06-01-10-00 features a circular mounting base with an M10x1 stud, allowing secure attachment to the machine surface. The connector option is top mount with no cable, so users must provide their own cabling or order an integral cable version if needed.

When installing, ensure the transducer is oriented at the angle of calibration to maintain sensitivity accuracy. The calibration load is 10 kΩ across terminals A and B, and the output is taken across pins A and B. Always follow the manufacturer's guidelines for torque and mounting surface preparation to avoid signal distortion.

Maintenance and Reliability

Routine maintenance of the 9200-06-01-10-00 is minimal due to its robust construction. However, periodic inspection of the mounting integrity and cable condition is recommended. The neoprene gasket helps protect against moisture and dust, but over time, gaskets may degrade; therefore, inspect them regularly and replace if signs of wear appear.

Given its temperature rating and humidity resistance, the transducer is well-suited for harsh environments. Still, avoid exposing the unit to temperatures beyond -29°C to +121°C to prevent damage to internal components.

Compatibility and Integration

The 9200-06-01-10-00 is designed to work with Bently Nevada monitoring systems and can also interface with third-party data acquisition systems that accept velocity inputs. Its two-wire configuration is compatible with standard signal conditioning equipment. For detailed integration guidance, consult the official Bently Nevada documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 9200-06-01-10-00 is available from AutoDCSTech as a new, original factory-packed unit with a 12-month warranty. Our team is ready to assist with technical questions and ensure you receive the right transducer for your application.
