84661-20 Bently Nevada 20 ft Interconnect Cable

Introduction to the Bently Nevada 84661-20

When signal integrity matters in rotating machinery monitoring, the 84661-20 from Bently Nevada provides a dependable link between sensors and monitoring systems. This interconnect cable is engineered for industrial environments where reliability is non-negotiable. With a 20-foot length, it offers flexibility in equipment layout while maintaining signal quality.

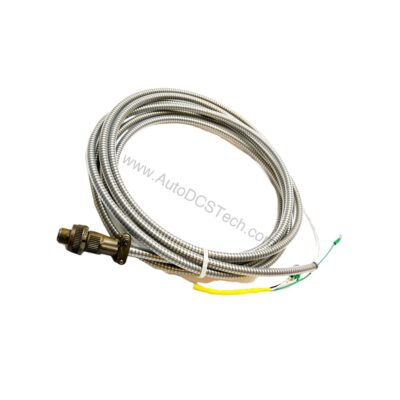

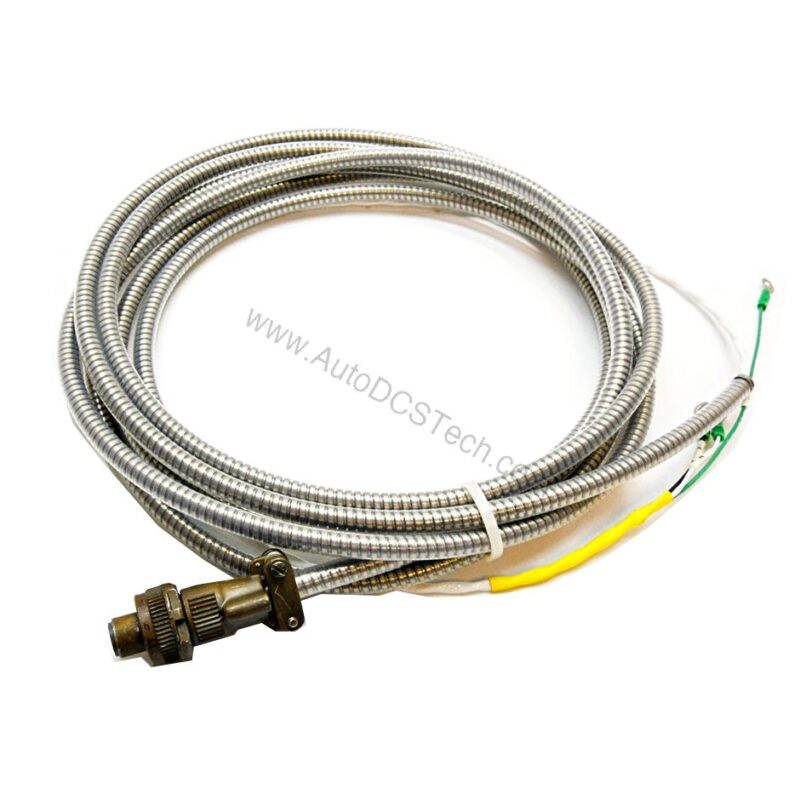

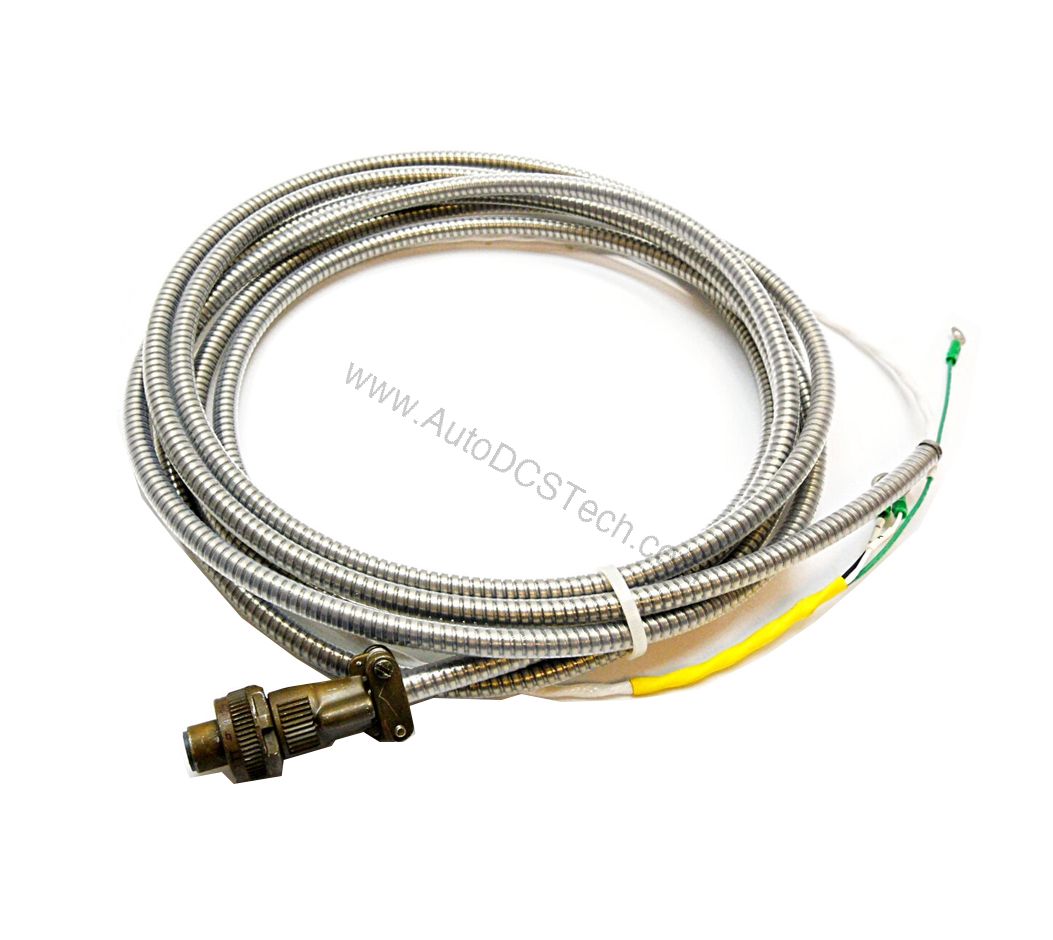

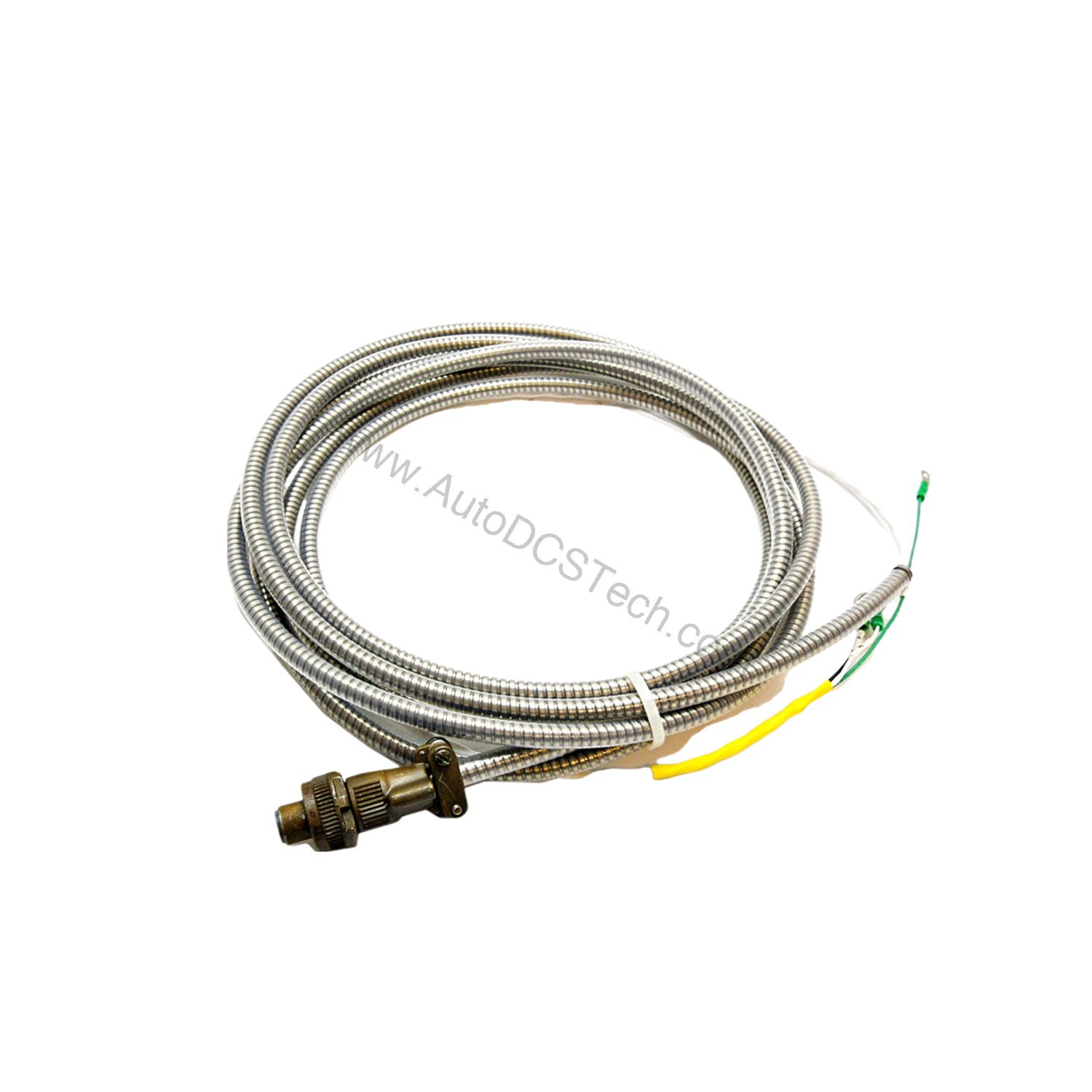

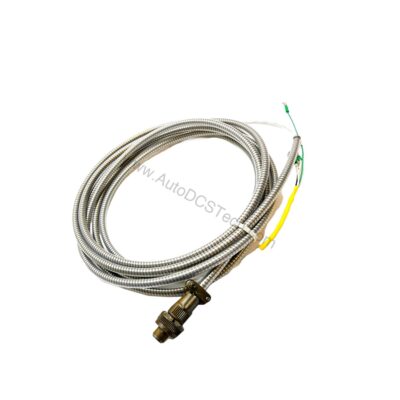

As a two-conductor twisted, shielded 22 AWG armored cable, the 84661-20 is built to resist electrical interference and mechanical wear. The moisture-resistant female connector at one end and terminal lugs at the other simplify installation and ensure a secure connection. This cable is part of Bently Nevada's family of interconnect accessories, designed to support vibration monitoring and protection systems.

Key Features and Technical Specifications

The 84661-20 delivers robust performance through its construction and design. Below are the core specifications that define its capabilities:

• Manufacturer: Bently Nevada
• Product Number: 84661-20
• Product Type: Interconnect Cable
• Length: 20 feet (6.1 m)
• Minimum Length: 3.0 ft (0.9 m)
• Maximum Length: 96 ft (29 m)

The cable uses a two-conductor twisted pair configuration with shielding and 22 AWG conductors. The armor provides additional mechanical protection, making it suitable for harsh industrial settings. The two-socket moisture-resistant female connector at one end and terminal lugs at the other end ensure a reliable, weatherproof connection.

One distinctive feature is the cable's flexibility in length options. While this specific model is 20 feet, the series supports lengths from 3.0 ft to 96 ft, allowing you to choose the exact length needed for your installation. This adaptability reduces the need for extension cables or excess slack, simplifying cable management.

Industry Applications and Use Cases

The 84661-20In these environments, accurate signal transmission is critical for predictive maintenance and machine protection.

For example, in a turbine monitoring application, the cable connects a proximity probe to a monitoring rack. The shielded twisted pair minimizes electromagnetic interference, ensuring that the signal remains clean over the 20-foot run. The armored jacket protects against physical damage in high-traffic areas, reducing downtime due to cable failure.

Moreover, the moisture-resistant connector makes it suitable for outdoor or washdown areas where humidity or water exposure is a concern. This feature extends the cable's lifespan and maintains signal integrity in challenging conditions.

Installation and Setup

Installing the 84661-20 is straightforward. The female connector at one end plugs directly into compatible Bently Nevada sensors or extension cables. The terminal lugs at the other end connect to the monitoring system's terminal block. Ensure that the connector is fully seated and the lugs are tightened to the specified torque to prevent loose connections.

When routing the cable, avoid sharp bends and excessive tension. The armored construction provides durability, but proper routing will extend its service life. Use cable ties or clamps to secure the cable along its path, preventing movement that could cause wear over time.

For installations requiring longer runs, Bently Nevada offers cables up to 96 feet. Verify the total length needed before ordering to avoid signal degradation or the need for additional connectors.

Maintenance and Reliability

Regular inspection of the 84661-20 ensures long-term reliability. Check the connector for signs of corrosion or damage, especially in humid environments. Inspect the cable jacket for cuts or abrasions that could expose the shielding or conductors.

Because the cable is armored, it resists many common causes of failure, such as rodent damage or accidental impact. However, periodic visual checks are recommended as part of routine maintenance. If any damage is found, replace the cable promptly to avoid signal issues.

The moisture-resistant connector reduces the risk of water ingress, a common failure point in industrial cables. This design feature contributes to the cable's overall reliability and helps minimize unplanned downtime.

Compatibility and Integration

The 84661-20 is designed for use with Bently Nevada monitoring systems. It connects sensors such as proximity probes, velocity transducers, or accelerometers to monitors like the 3500 series or other compatible racks. The terminal lugs allow for secure connections to standard terminal blocks, making integration straightforward.

While specific compatibility details are not provided in the available data, the cable is part of Bently Nevada's interconnect product line, ensuring it meets the manufacturer's standards for signal transmission. For exact compatibility with your system, consult the official Bently Nevada documentation or contact AutoDCSTech.

Troubleshooting and Common Issues

If you experience signal loss or intermittent readings, first check the connector seating. A loose connection can cause intermittent signals. Ensure the female connector is fully engaged and the lugs are tight.

Next, inspect the cable for physical damage. Although armored, the cable can be damaged if subjected to excessive force or sharp objects. Look for cuts, kinks, or crushed sections that could break the conductors or short the shielding.

If the cable has been exposed to moisture, verify that the connector's moisture-resistant seal is intact. Over time, seals can degrade, allowing water to enter. If moisture is suspected, dry the connector and test the cable with a multimeter for continuity and isolation.

For persistent issues, refer to the Bently Nevada installation manual or contact AutoDCSTech for technical support.

Product Support and Availability

The 84661-20 is available through AutoDCSTech, a trusted supplier of industrial automation parts. For current pricing and lead times, contact our sales team. We are ready to assist with your order and provide technical support.
