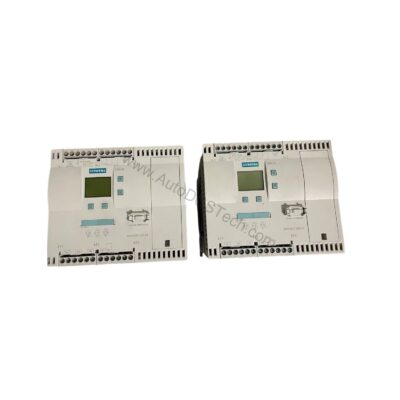

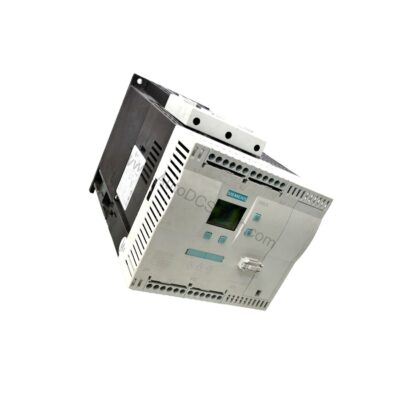

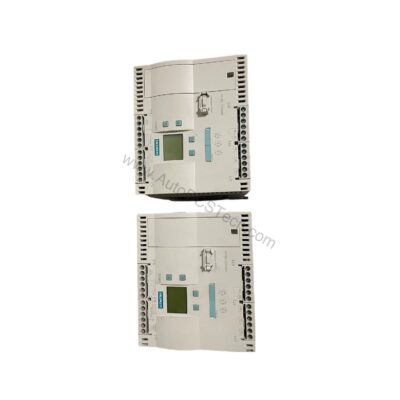

3RW4422-1BC44 29A 15kW Soft Starter | Siemens

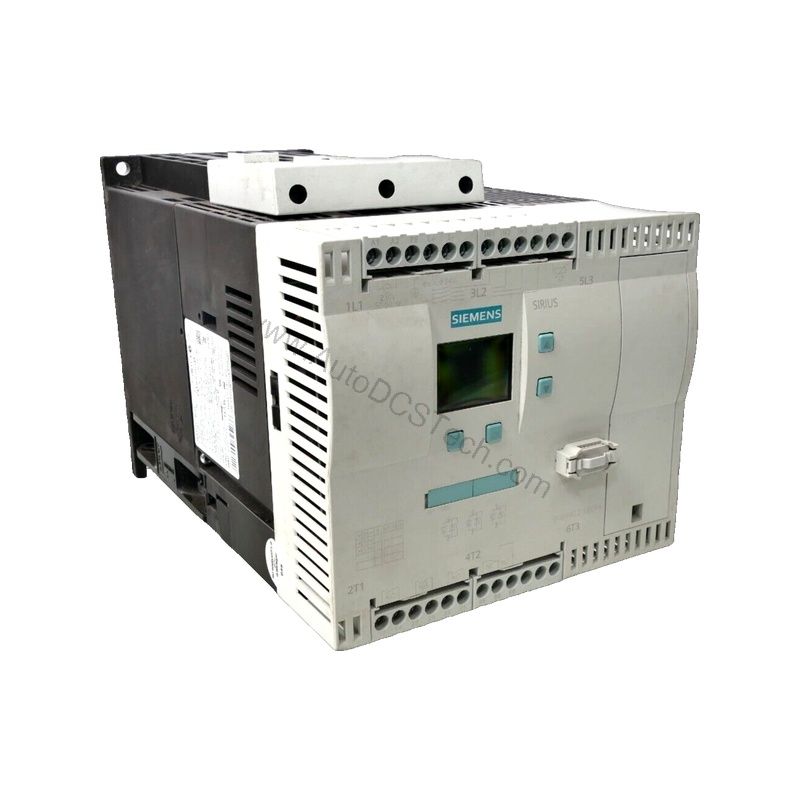

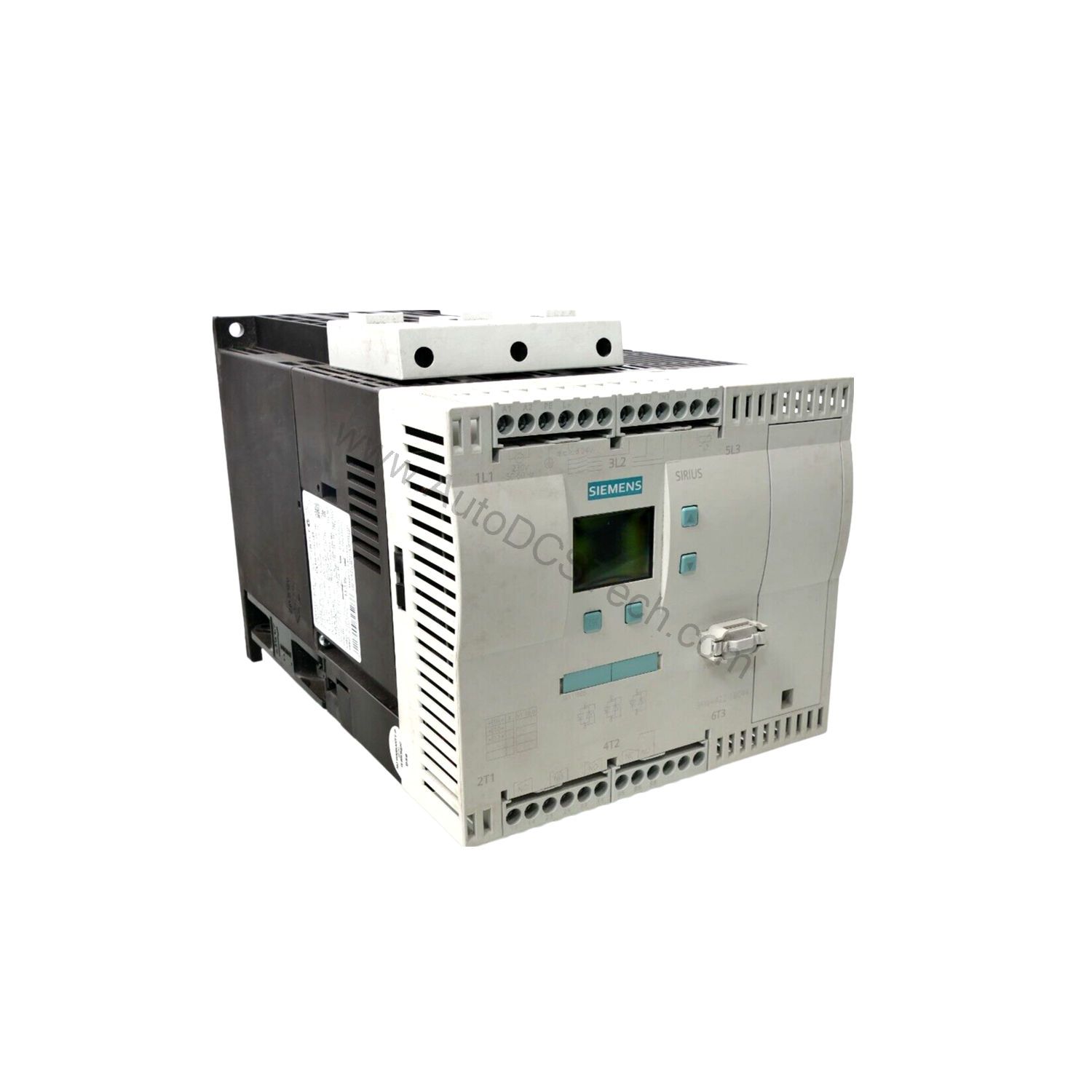

Introduction to the Siemens 3RW4422-1BC44 Soft Starter

When motor startup stresses threaten your production uptime, the 3RW4422-1BC44 from Siemens provides a controlled, reliable solution. This SIRIUS soft starter is engineered for three-phase motors, offering smooth acceleration and deceleration to reduce mechanical wear and electrical stress. With a rated operating current of 29 A at 40 °C in a standard circuit, it handles motors up to 15 kW at 400 V. For inside-delta configurations, it supports 50 A and 22 kW, making it versatile for various industrial applications.

Key Features and Technical Specifications

The 3RW4422-1BC44 integrates essential protective functions to safeguard your motor and system. It includes intrinsic device protection, motor overload protection, and evaluation of thermistor motor protection, ensuring comprehensive monitoring. The device also features an adjustable current limitation and an external reset option for operational flexibility.

• Operating voltage: 200–460 V AC (standard and inside-delta circuits)
• Control supply voltage: 230 V AC at 50/60 Hz
• Rated operating current: 29 A (standard, 40 °C), 50 A (inside-delta, 40 °C)
• Mechanical power output: 15 kW (standard, 400 V), 22 kW (inside-delta, 400 V)
• Integrated bypass contact system and thyristors for efficient operation
• Motor brake output included
• Adjustable motor current for overload protection: 5 A minimum
• Power loss: 8 W typical at operating current

Addressing Engineering Pain Points

Reducing Mechanical Stress

Direct-on-line starting can cause torque spikes that damage couplings and driven equipment. The 3RW4422-1BC44 ramps up voltage gradually, minimizing mechanical shock. This extends the life of your machinery and reduces maintenance frequency.

Preventing Overload Failures

Motor overload is a common cause of unexpected downtime. With built-in motor overload protection and thermistor evaluation, this soft starter continuously monitors motor conditions. It trips before damage occurs, keeping your operations running smoothly.

Simplifying Installation

Wiring and mounting are straightforward with screw terminals for main and control circuits. The device supports a wide range of conductor cross-sections, from 2.5 mm² to 70 mm² for main contacts, accommodating various installation requirements. Its compact dimensions (170 mm width, 192 mm height, 270 mm depth) fit easily into control panels.

Applications and Use Cases

The 3RW4422-1BC44 is suitable for pumps, fans, compressors, and conveyor systems where controlled starting is critical. In pump applications, it prevents water hammer by gradually increasing pressure. For conveyors, it reduces belt slippage and product spillage. Its inside-delta capability makes it ideal for high-inertia loads, offering up to 22 kW at 400 V.

Installation and Setup

Mount the soft starter on a vertical surface; it can be rotated ±90° or tilted ±22.5° front/back. Ensure proper spacing for heat dissipation: 100 mm above, 5 mm at the sides, and 75 mm below. Use the provided box terminals for main connections and screw terminals for auxiliary circuits. Follow the wiring diagram in the manual to connect the control supply voltage (230 V AC) and motor leads correctly.

Maintenance and Reliability

Regular inspection is key to long-term reliability. Check terminal tightness and look for signs of overheating or dust accumulation. The integrated bypass contact system reduces power dissipation during continuous operation, lowering thermal stress. With a typical power loss of only 8 W, the device runs cool, extending component life. Ambient temperature range is up to 60 °C during operation, with derating above 40 °C.

Compatibility and Integration

This soft starter works with standard three-phase induction motors and can be integrated into existing control systems via its auxiliary contacts (3 NO, 1 CO). It accepts control supply voltages of 230 V AC at 50 or 60 Hz, making it compatible with common industrial power networks. The device is designed for use in environments up to 5000 m altitude, with environmental category 3K6/3C3/3S2/3M6.

Common Issues and Troubleshooting

If the motor does not start, check the control supply voltage and wiring. Ensure the current setting is appropriate for your motor's full-load current. If the device trips on overload, verify that the motor is not mechanically jammed. For thermistor faults, inspect the motor's thermal sensor circuit. Always consult the Siemens manual for detailed diagnostics.

Availability and Support

The 3RW4422-1BC44 is available from AutoDCSTech. Contact our team for current stock and lead times. We provide technical support to help you select and integrate the right soft starter for your application.
