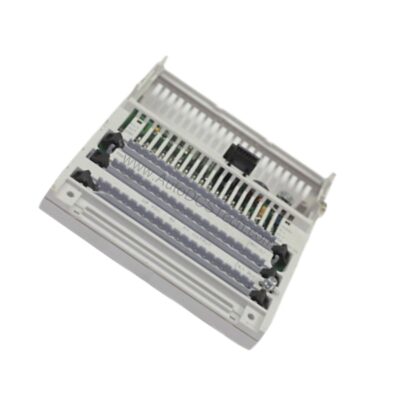

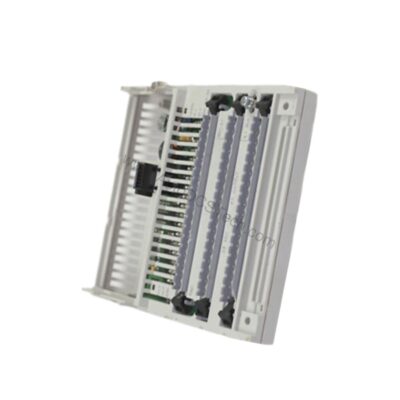

3500/94M-07-00-00 4.7W VGA Display Module

Key Features and Technical Specifications of the 3500/94M-07-00-00

The 3500/94M-07-00-00 is engineered for precise video and touch screen signal routing. Below are the core specifications extracted from the official datasheet:

• Power Input: +24 Vdc ± 6% (range 22.5 to 25.5 Vdc)
• Maximum Power Consumption: 4.7 watts
• VGA Inputs: 4 video image channels
• RS232 Inputs: 4 touch screen control data channels
• VGA Output: 1 video image channel
• RS232 Output: 1 touch screen control data channel
• Status Indicator: OK LED for proper operation
• Mounting Option: 07 = Router box, no display

The 4.7-watt power envelope is particularly notable—it ensures minimal heat generation, which is critical in densely packed control cabinets. This low power draw also reduces the load on your 24 Vdc power supply, contributing to overall system efficiency.

Real-World Applications of the 3500/94M-07-00-00

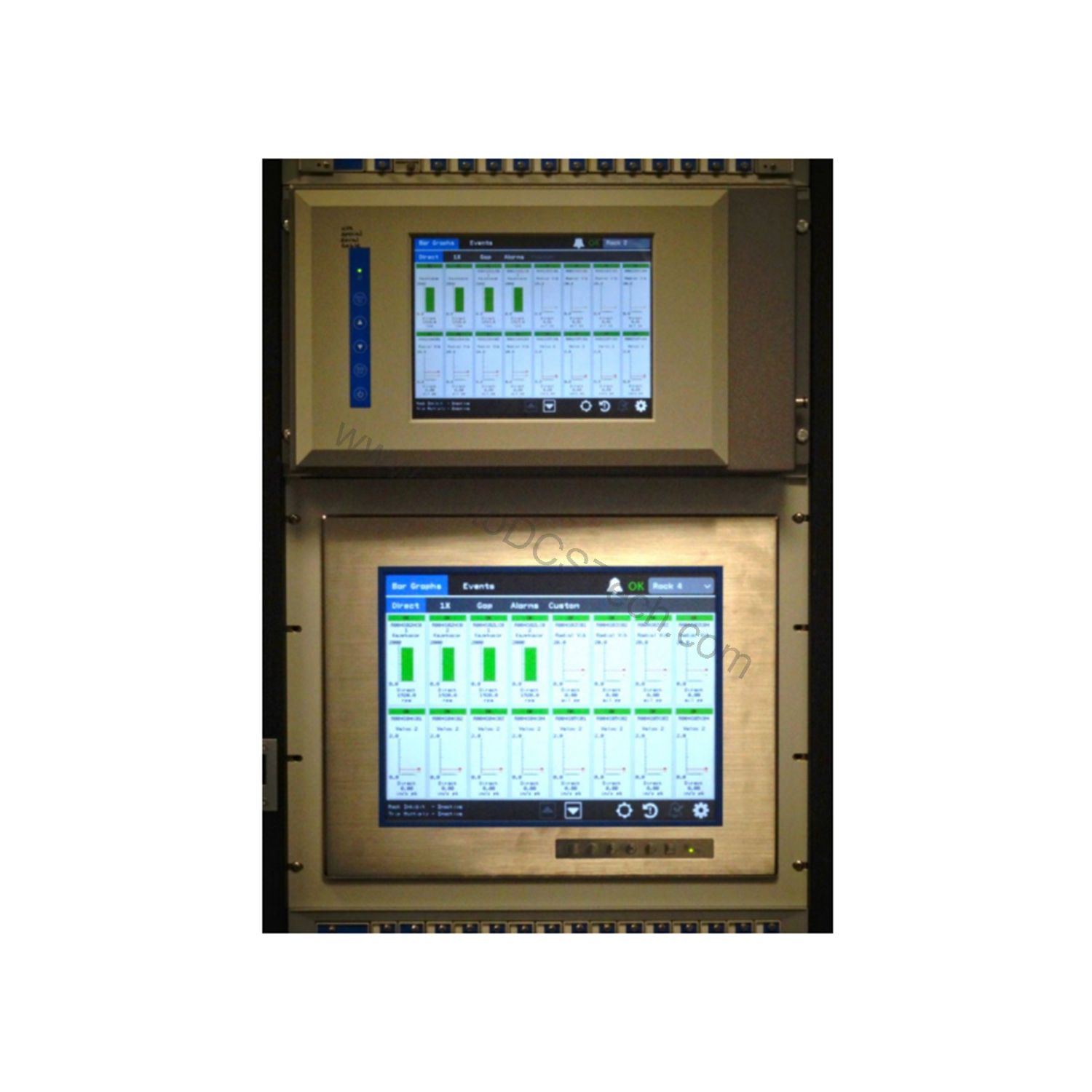

In a typical machinery protection setup, multiple 3500 racks monitor vibration, temperature, and other critical parameters. The 3500/94M-07-00-00 excels in such environments by enabling a single display to cycle through or view data from up to four racks. For example, a plant with four turbine monitoring racks can install router boxes in each rack and use one central display, reducing operator fatigue and simplifying alarm response.

Additionally, the RS232 touch screen control data inputs allow operators to interact with the monitoring system directly from the display, making it easier to acknowledge alarms or navigate menus. This integration is especially valuable in high-stakes industries like power generation, oil and gas, and chemical processing, where rapid decision-making is essential.

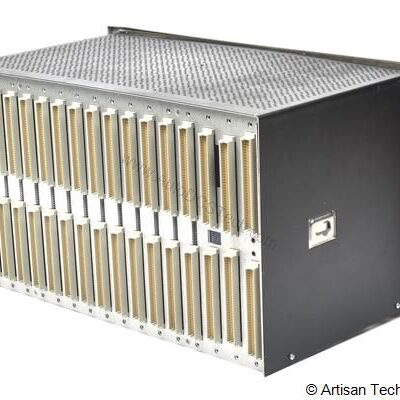

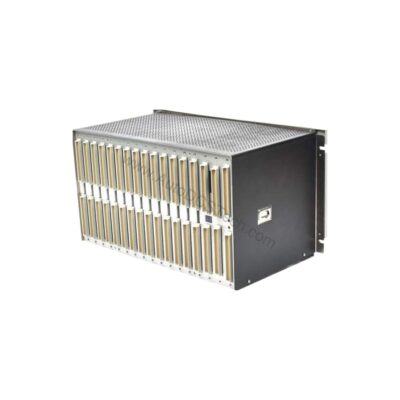

Installation and Setup Guidance

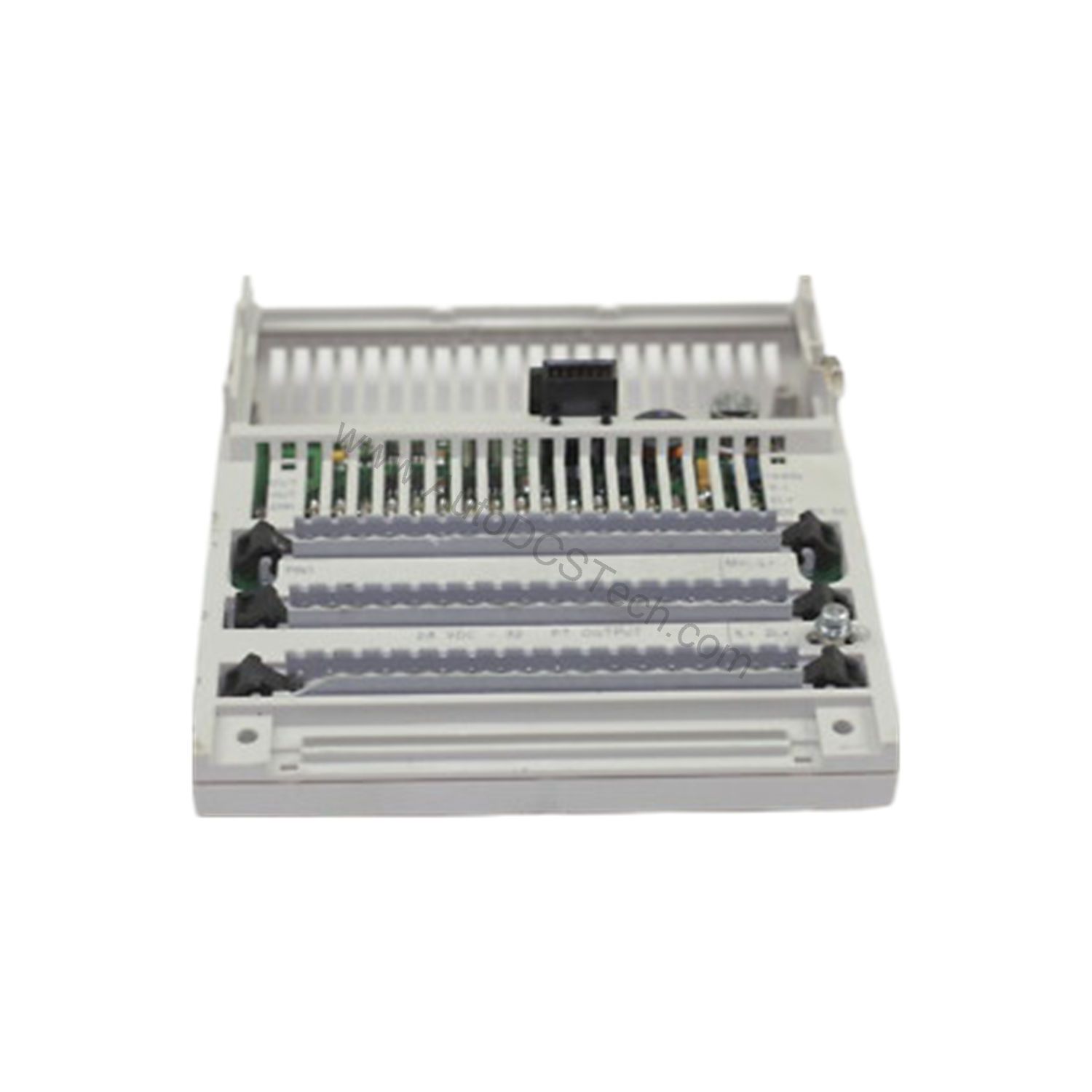

Installing the 3500/94M-07-00-00 is straightforward, but proper planning ensures optimal performance. The router box mounts in a standard 3500 rack slot, and the option code 07 indicates no display is included—you will need a separate display unit (e.g., 3500/94M-02 to 06) for viewing. Connect the VGA and RS232 cables from each rack to the corresponding inputs on the router box, then link the router box to the display unit.

For multi-rack setups, Bently Nevada recommends using router cables (P/N 3500/94M-07-12-XX) for the first rack and display unit cables (P/N 3500/94M-02 to 06-12-XX) for subsequent racks. The router box requires a 24 Vdc power supply; ensure your supply is within the 22.5 to 25.5 Vdc range to avoid operational issues. Always verify that the OK LED illuminates after power-up to confirm proper operation.

Maintenance and Reliability Tips

Because the 3500/94M-07-00-00 is a solid-state device with no moving parts, its maintenance needs are minimal. However, periodic inspection is recommended to ensure all cable connections remain secure and the OK LED functions correctly. Dust accumulation on the VGA and RS232 ports can degrade signal quality, so keep the module in a clean, well-ventilated enclosure.

Environmental factors such as extreme temperatures or humidity can affect performance. Although the datasheet does not specify an operating temperature range, industrial control rooms typically maintain stable conditions. For long-term reliability, follow Bently Nevada's guidelines for rack mounting and power supply quality. If the OK LED fails to light, check the power supply and cable connections before considering module replacement.

Compatibility and Integration with Bently Nevada Systems

The 3500/94M-07-00-00 is specifically designed for the Bently Nevada 3500 series monitoring system. It works with any 3500 rack that includes a 3500/94M VGA module and an associated I/O card. The router box supports multiple racks, as described in the ordering instructions: first rack uses a router box with cable (P/N 3500/94M-07-12-XX), second rack uses a display unit with cable (P/N 3500/94M-02 to 06-12-XX), and additional racks use router box cables (P/N 3500/94M-00-12-XX).

This modular approach ensures seamless integration with your existing Bently Nevada infrastructure. Whether you are upgrading an older monitoring system or expanding a current one, the 3500/94M-07-00-00 fits without requiring major changes to your rack configuration.

Troubleshooting Common Issues

If the display shows no video signal, first verify that the VGA cable is firmly connected to both the router box and the display unit. Check the OK LED—if it is off, the module may not be receiving power. Measure the input voltage at the power terminals to ensure it is within 22.5 to 25.5 Vdc. If the voltage is correct but the LED remains off, the module might be faulty; contact AutoDCSTech for a replacement.

For touch screen issues, confirm that the RS232 cables are connected to the correct ports. The router box has four RS232 inputs and one output; mixing them up can cause control data to route incorrectly. Also, ensure that the display unit is configured to receive touch data from the router box. If problems persist, consult the Bently Nevada manual or reach out to AutoDCSTech for technical support.

Product Support and Availability

The 3500/94M-07-00-00 is available through AutoDCSTech, a trusted supplier of industrial automation parts. We stock this module and can ship it promptly to minimize downtime. For lifecycle status or availability confirmation, please contact AutoDCSTech before ordering.
