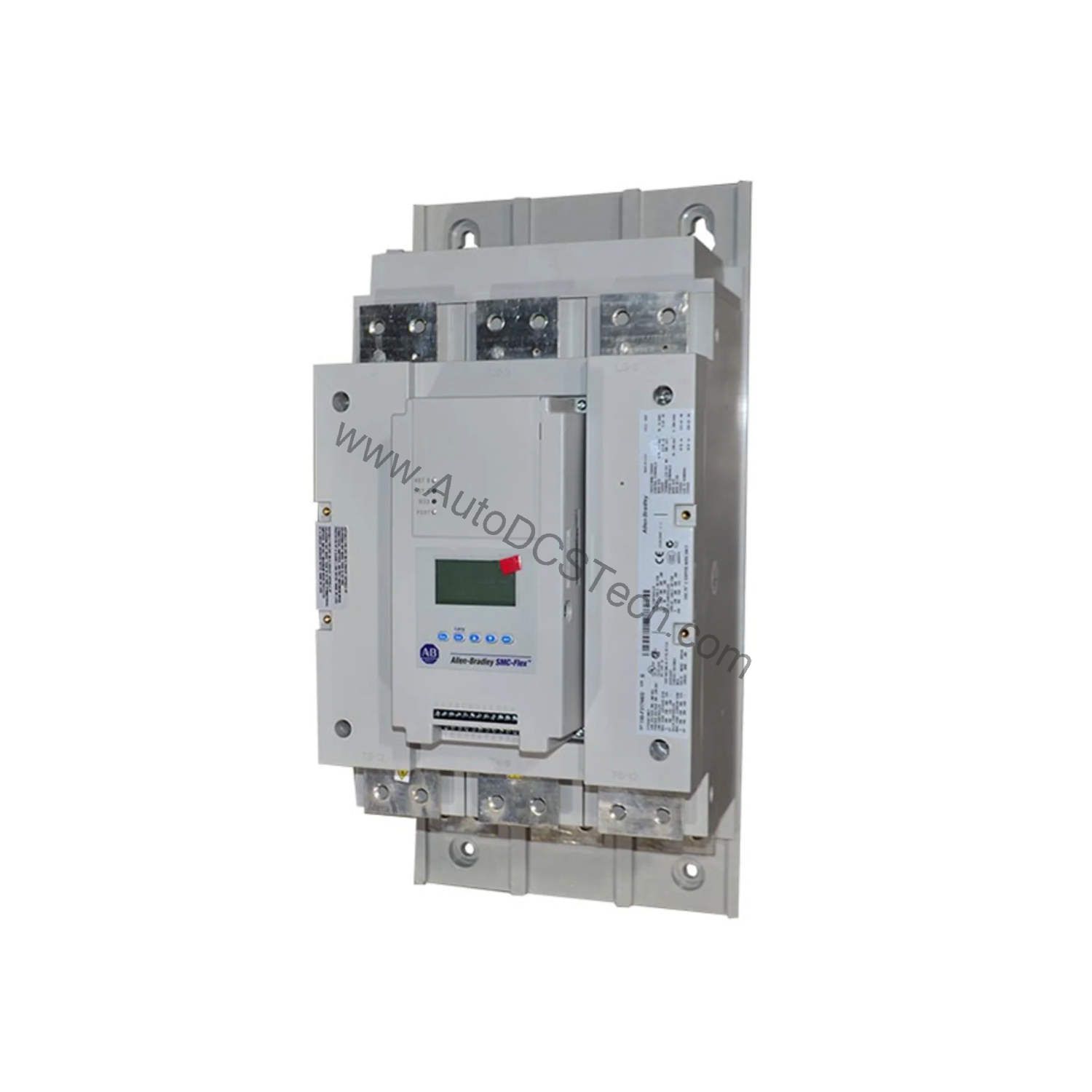

Allen-Bradley 150-F317FBD SMC-Flex Solid State Controller 317A IP65

Cost-Efficient Motor Control with the Allen-Bradley 150-F317FBD

Industrial facilities face constant pressure to balance operational uptime with energy costs. The Allen-Bradley 150-F317FBD SMC-Flex Solid State Controller provides a robust solution that directly reduces total cost of ownership through precise power management and durable construction.

Technical Specifications Breakdown

Key parameters for the 150-F317FBD are listed below for quick reference:

Industry Applications and Cost Benefits

The adjustable output power (400-460V AC) and current (up to 317A) allow facilities to match motor load precisely, avoiding oversizing penalties. The IP65 (Type 4/12) enclosure eliminates the need for additional protective cabinets in dusty or wet environments, saving on installation and maintenance costs.

Installation and Setup Guidance

Mount the controller securely in a location that allows airflow around the IP65 enclosure. Connect three-phase input line voltage (400-460V AC, 50/60 Hz) to the designated terminals. Use the built-in front-panel LCD and buttons to configure output power and current settings without external tools. Ensure control voltage (100-240V AC) is supplied per the unit's rating. Always follow local electrical codes.

Maintenance and Reliability

The sealed IP65 enclosure reduces contamination risk, extending service life. Inspect the enclosure gaskets and external connections annually. Clean the exterior with a damp cloth; avoid solvents. No internal maintenance is required under normal conditions. Periodically verify that output settings match current load requirements to optimize energy use.

Compatibility and Integration

The SMC-Flex line integrates with standard Allen-Bradley control systems and most PLCs via discrete I/O. The adjustable settings allow compatibility with motors rated up to 250 Hp at 460V AC. Confirm control voltage compatibility (100-240V AC) with your system.

Selection Guide and Purchasing Advice

When selecting a solid-state controller, match the ampere rating (317A) and horsepower (250 Hp at 460V AC) to your motor's full-load current. AutoDCSTech stocks the 150-F317FBD and can advise on lifecycle status and availability before ordering.

Troubleshooting and Common Issues

If the motor fails to start, verify input line voltage (400-460V AC) and control voltage (100-240V AC). Check the front-panel display for fault codes. Ensure the output current setting does not exceed 317A. For persistent issues, consult the SMC-Flex user manual or contact AutoDCSTech support.
