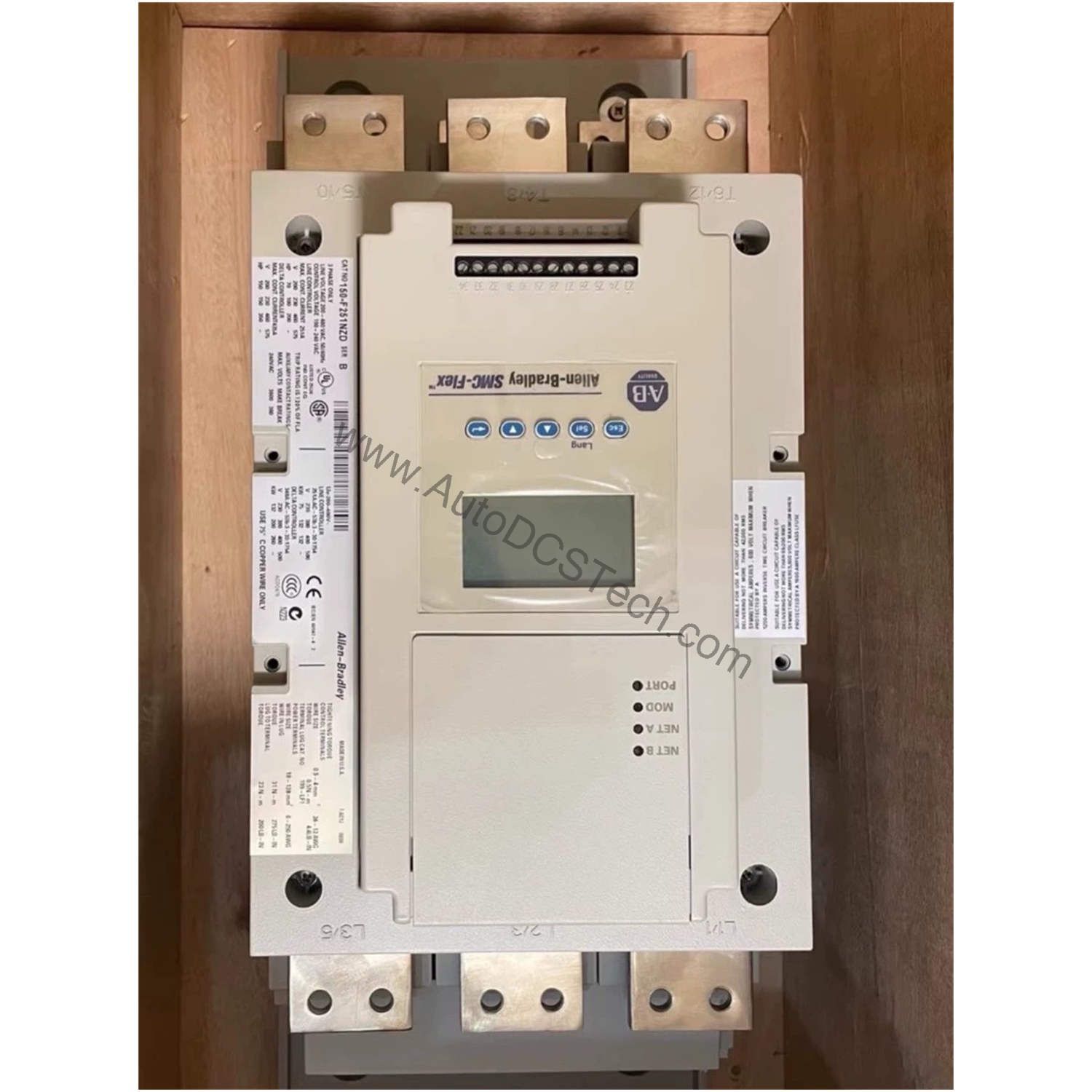

Allen-Bradley 150-F25NBD SMC Flex Smart Motor Controller 25A

Overview

The Allen-Bradley 150-F25NBD is a solid-state, microprocessor-based smart motor controller from the SMC-Flex product line. Designed for industrial three-phase motors, this controller provides soft starting and stopping to reduce mechanical and electrical stress, extending motor lifespan. It is an energy-efficient solution that lowers overall power consumption when paired with the correct motor starting mechanism.

Technical Specifications Breakdown

Key parameters for the 150-F25NBD are listed below for quick reference:

Industry Applications

This controller is well-suited for applications requiring controlled motor acceleration and deceleration, such as conveyors, pumps, and fans. By reducing inrush current and torque spikes, it minimizes wear on mechanical components and electrical systems. Compared to traditional across-the-line starters, the soft start capability lowers maintenance costs and improves operational reliability in continuous-duty environments.

Installation & Setup Guidance

Mount the controller in a clean, dry location with adequate ventilation. Ensure the input line voltage matches the 200-460V AC, 3-phase supply and the control circuit is wired to 120 or 240 VAC. Use the embedded configuration terminal with its five buttons to scroll through menus and adjust parameters such as starting mode (soft start, full voltage, or current limiting) and protection settings. For remote configuration, a Hand-Held HIM or Door Mounted HIM can be connected via optional HIM cables.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. The open enclosure design requires installation within a suitable cabinet to protect against contaminants. Regularly verify that the auxiliary contacts (four configurable as normally-open or normally-closed) function correctly for status indication or fault signaling.

Compatibility & Integration

The controller accepts parameter changes through the front-panel interface or optional HIM modules. It provides real-time measurement values including voltage, current, power consumption, and total motor operation time. The four auxiliary contacts can be configured for normal, up to speed, fault, alarm, network, or external bypass functions, allowing flexible integration into control systems.

Selection Guide & Purchasing Advice

When selecting a soft starter, match the controller rating to your motor's full-load current and voltage. The 150-F25NBD is rated for 25 A and 15 HP at 460V AC, making it suitable for medium-sized motors. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech offers this model along with compatible accessories and HIM modules.

Troubleshooting & Common Issues

If the controller fails to start, check the input line voltage and control voltage supply. Verify that parameter settings are correct for the motor type. If fault or alarm contacts activate, review the displayed measurement values to identify overload or short-circuit conditions. Ensure all auxiliary contact wiring matches the intended configuration.
