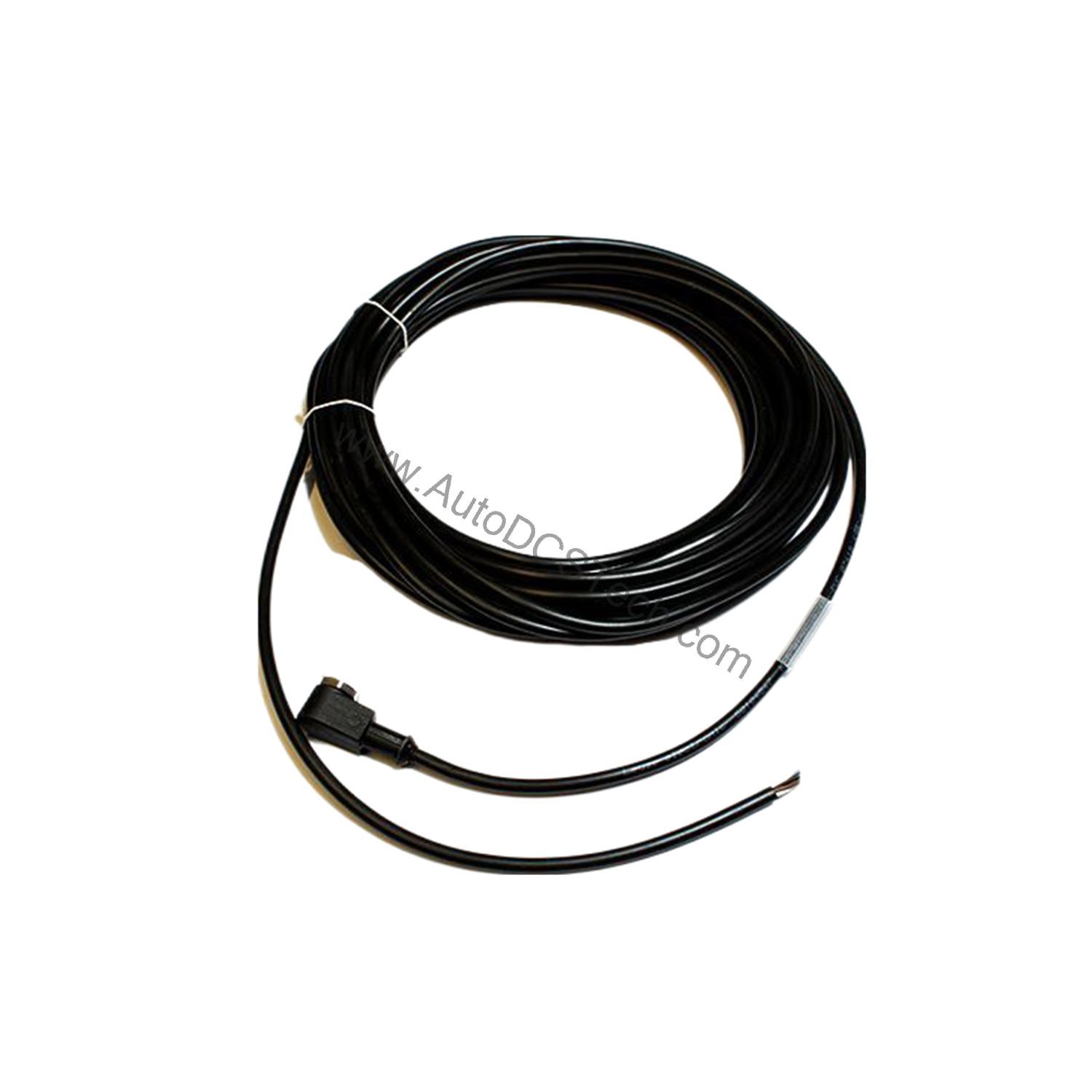

Lenze K-D M12A-5P-2m-PVC Connection Cable

Product Overview

The Lenze K-D M12A-5P-2m-PVC is a pre-assembled connection cable designed for reliable signal and power transmission in industrial automation environments. This cable features an M12 axial connector with 5 pins and a 2-meter PVC cable, making it a practical solution for sensors, actuators, and field devices. Its robust construction and clear electrical ratings ensure dependable performance in demanding applications.

Technical Specifications Breakdown

Key parameters for the K-D M12A-5P-2m-PVC are listed below for quick reference:

Industry Applications

This connection cable is well-suited for use in automated production lines, packaging machinery, and material handling systems. Its 5-pin configuration supports both signal and low-power applications, while the PVC jacket provides good resistance to oils and chemicals commonly found in industrial settings. The axial connector design simplifies routing in tight spaces, reducing installation time and improving cable management.

Installation & Setup Guidance

When installing the K-D M12A-5P-2m-PVC, ensure the connector is fully seated and the locking nut is tightened to the recommended torque of 0.6 Nm (self-locking). Avoid sharp bends, especially in flexible wiring applications, and maintain a bending radius of at least 10 times the sheath diameter. For fixed installations, secure the cable to prevent strain on the connector.

Maintenance & Reliability

Regularly inspect the cable and connector for signs of wear, cuts, or corrosion. Keep the mating surfaces clean and free of debris. The operating temperature range of -30 °C to +70 °C (fixed wiring) and -5 °C to +70 °C (flexible wiring) should be respected to ensure long-term reliability. Periodic checks every 6 months are recommended for critical applications.

Selection Guide & Purchasing Advice

When selecting a connection cable, verify the pin count, cable length, and environmental requirements of your application. The K-D M12A-5P-2m-PVC offers a balanced combination of performance and durability. Our team can assist with cross-references and alternative options if needed.

Troubleshooting & Common Issues

If you experience intermittent signals, first check the connector torque and reseat the cable. Inspect the cable for damage, especially near the connector and bending points. Ensure the operating voltage and current do not exceed the rated values (≤125 VAC/DC, ≤4 A per contact). If problems persist, replace the cable with a new unit.
