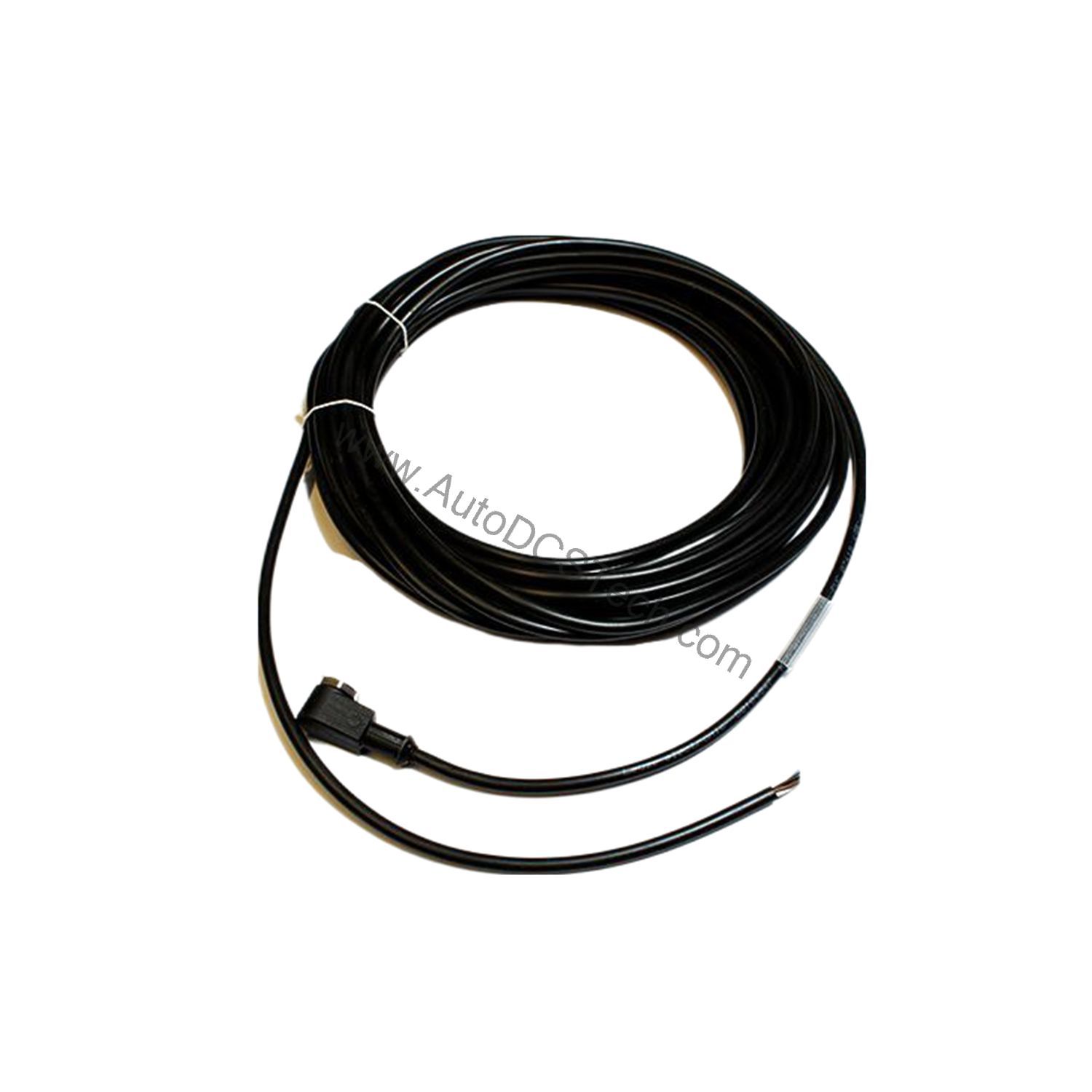

Lenze K-D M12A-5P-5m-PVC Connection Cable with M12 Connector

Technical Specifications Breakdown

Key parameters for the K-D M12A-5P-5m-PVC are listed below for quick reference:

Industry Applications

Machine Tool Connectivity – The 5-pin M12 connector supports both signal and low-power applications. With a 5-meter PVC cable, this unit suits distributed I/O points on machining centers, where reliable data transfer is critical.

Material Handling Systems – Conveyor systems often experience vibration and flexing. The cable's flexible wiring temperature range of -5 °C to +70 °C accommodates dynamic movement, while the robust diecast zinc coupling withstands repeated mating cycles.

Process Control Panels – For control cabinets that require clean cable routing, the axial M12 design simplifies installation in tight spaces. The 0.34 mm² conductor cross-section balances flexibility with current-carrying capacity for typical 24V DC sensor loads.

Installation & Setup Guidance

Proper installation ensures long service life. When routing the cable, maintain a bending radius of at least 10 times the sheath diameter. For fixed installations, the cable can operate from -30 °C to +70 °C; for flexible applications, limit temperature to -5 °C to +70 °C.

Tighten the coupling nut to the recommended torque of 0.6 Nm. The self-locking feature prevents loosening due to vibration. Avoid over-tightening, as this may damage the threads or the O-ring seal.

Before connecting, verify that the operating voltage does not exceed 125 VAC/DC for 5-pin versions. Always power down the system before mating or unmating connectors.

Maintenance & Reliability

The PVC jacket provides good resistance to oils and chemicals commonly found in industrial environments. Periodically inspect the cable for cuts, abrasions, or kinks—especially near the connector strain relief. Check that the coupling nut remains snug but not over-torqued.

For flexible wiring applications, inspect the cable at regular intervals for signs of fatigue. If the cable is frequently flexed, consider using a cable carrier or a higher-flex cable variant.

Reliable Signal and Power Transmission for Harsh Industrial Environments

Industrial automation systems depend on secure connections to maintain uptime and data integrity. The Lenze K-D M12A-5P-5m-PVC connection cable provides a robust interface between sensors, actuators, and control systems. This pre-assembled cable eliminates wiring errors and reduces installation time, making it a dependable choice for machine builders and maintenance teams.

Selection Guide & Purchasing Advice

When selecting a connection cable, match the pin count and voltage rating to your device. Always verify the connector orientation (axial vs. right-angle) to fit your space constraints.

At AutoDCSTech, we stock genuine Lenze cables to ensure compatibility and reliability. Before ordering, confirm your device's connector type and pinout. Our team can assist with cross-references and availability checks.

Troubleshooting & Common Issues

Intermittent Signals – If you experience sporadic communication, check the connector for contamination or damage. Clean with a dry, lint-free cloth and inspect the pins for bending.

Voltage Drop – For long cable runs, voltage drop can become significant. The 0.34 mm² conductor is suitable for short distances; for longer runs, consider a larger cross-section or a separate power cable.

Cable Damage – Repeated flexing beyond the specified bending radius can cause conductor breakage. Replace the cable if you notice any stiffness or visible wear.

Connector Overheating – If the connector becomes warm, verify that the current does not exceed 4 A per contact and that the ambient temperature is within the specified range.

For any persistent issues, consult the device manual or contact AutoDCSTech for technical support.
