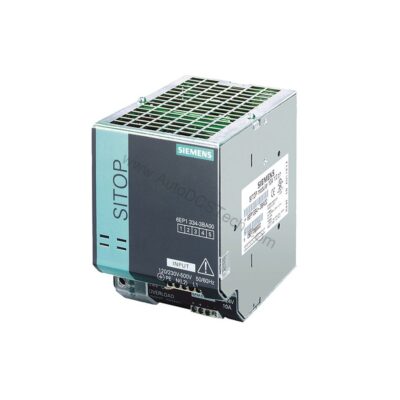

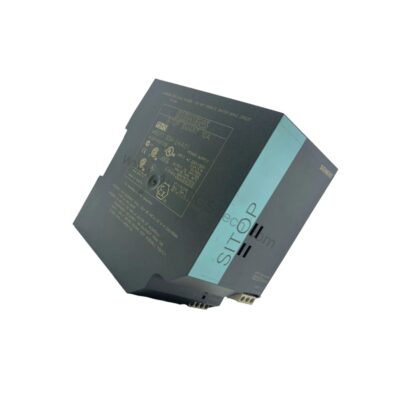

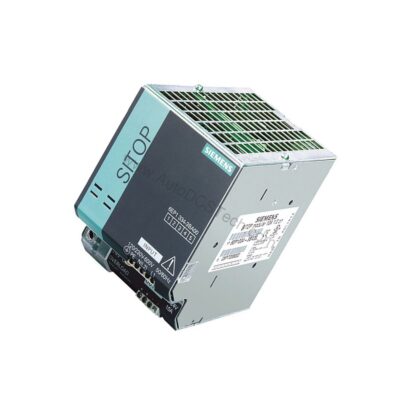

6EP1334-3BA10 24V DC 10A SITOP Power Supply

Introduction to the Siemens 6EP1334-3BA10 SITOP PSU200M

When a production line depends on a stable 24V DC bus, the 6EP1334-3BA10 from Siemens provides the foundation. This SITOP PSU200M power supply accepts a wide AC input range and outputs a regulated 24V DC at 10A. It is engineered for industrial environments where voltage fluctuations and load transients are common.

From a maintenance engineer's perspective, the 6EP1334-3BA10 offers clear diagnostics, robust short-circuit protection, and a compact form factor that fits standard DIN rails. Its design prioritizes reliability and ease of service, reducing downtime in critical applications.

Key Features and Technical Specifications

The 6EP1334-3BA10 is a stabilized power supply with a controlled, isolated DC output. Below are the essential parameters that define its performance:

• Input voltage: Selectable via switch – 120/230 V AC or 230/500 V AC; wide-range input covers 85–264 V AC and 176–550 V AC.
• Output: 24 V DC rated, adjustable 24–28.8 V via potentiometer.
• Output current: Rated 10 A, range 0–10 A with derating above 60 °C.
• Efficiency: 91% at rated load.
• Short-circuit protection: Constant current characteristic approx. 12 A or latching shutdown.
• Galvanic isolation: Yes, safety extra-low output voltage per EN 60950-1 and EN 50178.
• Protection class: IP20.
• Dimensions: 70 × 125 × 121 mm (W × H × D).
• Weight: 0.8 kg net.

One distinctive feature is the wide input voltage range, which allows the same unit to be used across different global power grids. This flexibility simplifies inventory and reduces the need for multiple power supply variants.

Applications and Use Cases

The 6EP1334-3BA10 is suitable for a wide range of industrial automation tasks. It can power PLCs, sensors, actuators, and control panels in manufacturing plants, process industries, and infrastructure projects.

Additionally, the unit's ability to handle short-term overloads (typical 30 A for 25 ms) supports motor starts and inrush currents without nuisance tripping. This reliability is critical in continuous production environments where unexpected downtime is costly.

Installation and Setup

Mounting the 6EP1334-3BA10 is straightforward. It snaps onto a DIN rail EN 60715 35x7.5/15. Ensure adequate clearance: 50 mm above and below for ventilation. No side clearance is required, allowing side-by-side mounting.

Electrical connections are made via screw terminals. Input terminals accept 0.2–2.5 mm² conductors, output terminals accept 0.2–2.5 mm², and auxiliary contacts accept 0.14–1.5 mm². Always follow the manufacturer's wiring diagram and local electrical codes.

Maintenance and Reliability

For long-term reliability, periodic inspection is recommended. Check that the ventilation slots are free of dust and debris. Verify that the input voltage selector switch is set correctly for the supply voltage. Confirm that the output voltage remains within tolerance (24–28.8 V) using a calibrated meter.

The unit has an MTBF of 1,055,408 hours at 40 °C, indicating high reliability. Its robust design includes overvoltage protection (<35 V) and short-circuit proof output, reducing the risk of damage to connected loads.

Troubleshooting and Common Issues

If the output voltage is absent, check the input supply and the selector switch position. The green LED indicates '24 V OK' – if it is off, the unit may be in latching shutdown due to a fault. In such cases, cycle the input power to reset.

If the yellow 'overload' LED is lit, the load may be exceeding the rated current. Reduce the load or consider a higher-capacity power supply. For persistent issues, consult the official Siemens manual or contact AutoDCSTech for support.

Product Support and Availability

The 6EP1334-3BA10 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and provide documentation.
