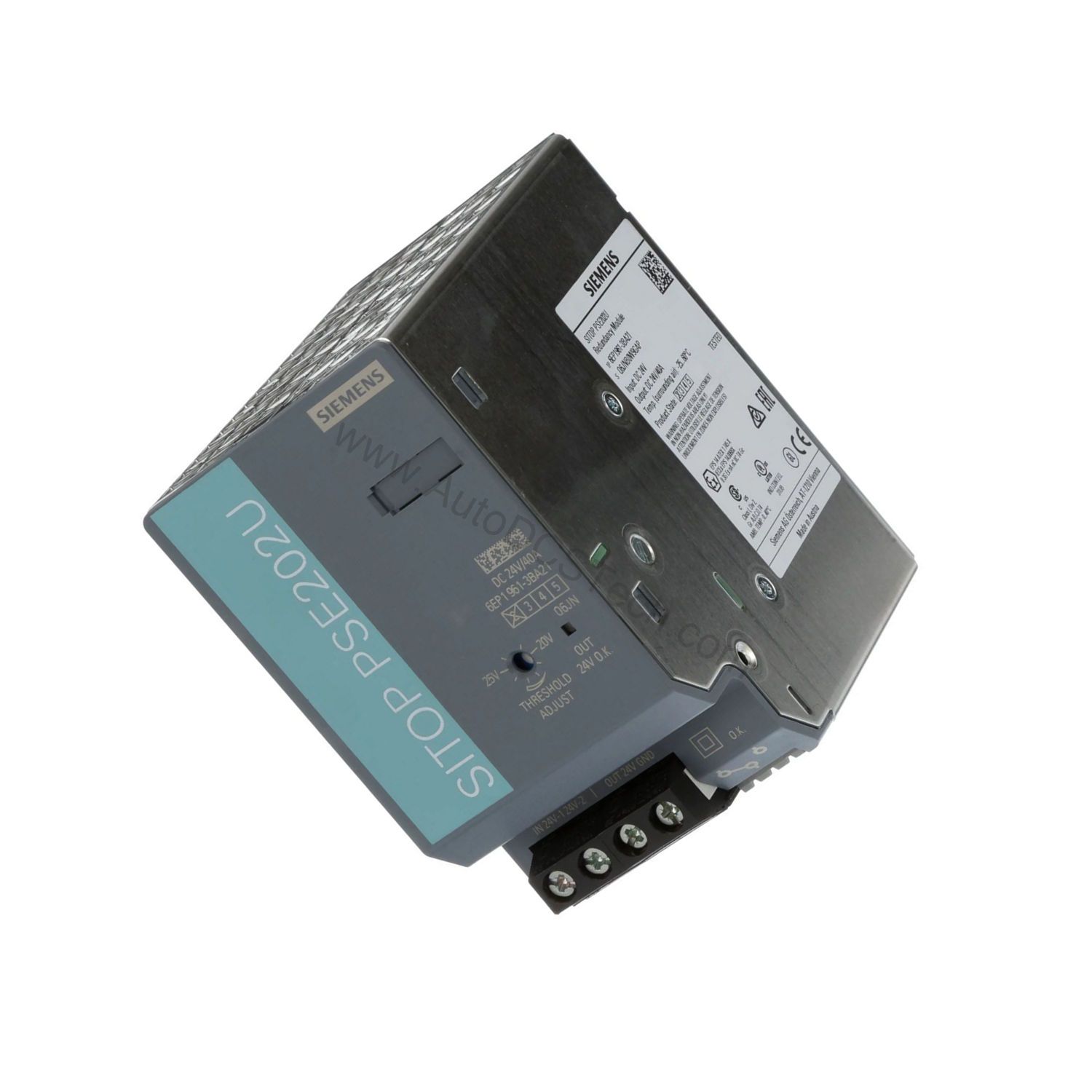

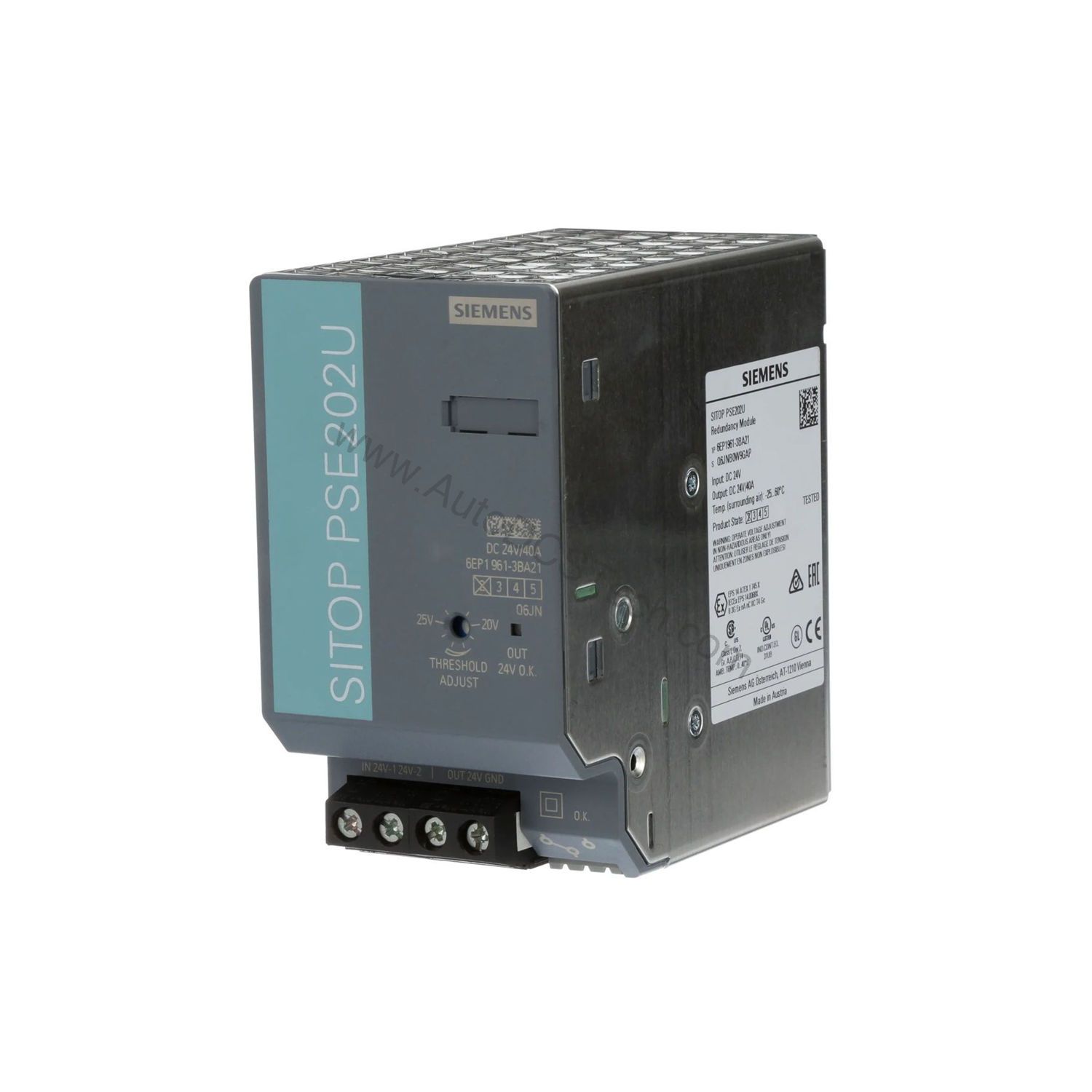

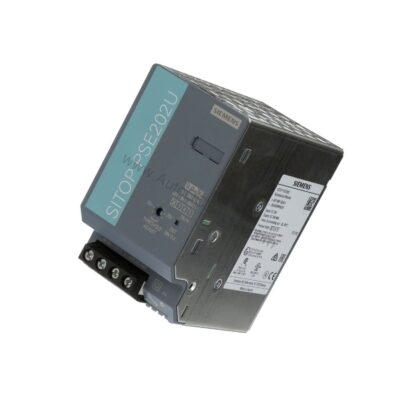

Introduction to the Siemens 6EP1961-3BA21 Redundancy Module
When continuous operation is critical, the 6EP1961-3BA21 from Siemens ensures your DC bus stays powered. This SITOP PSE202U redundancy module decouples two 24V DC power supplies, each rated up to 20A, to provide a reliable 40A aggregate output. By isolating faults and preventing back-feeding, it safeguards your automation system from unexpected downtime.
Key Features and Technical Specifications
- Input voltage: 24V DC (range 24–28.8V DC)
- Output voltage: 24V DC, controlled and isolated
- Output current: rated 40A, max aggregate 40A
- Efficiency: 96.6%
- Power loss: typical 34W at rated load, max 1.5W no-load
- Galvanic isolation: SELV per EN 60950-1 (relay contact)
- Protection class: Class III, IP20
- EMC: EN 55022 Class B (emitted), EN 61000-6-2 (immunity)
- Certifications: CE, cULus (UL 508, CSA C22.2 No. 107.1), EAC
- MTBF: 6,471,654 hours at 40°C
- Ambient temperature: -25 to +60°C (operation), -40 to +85°C (storage/transport)
- Dimensions: 70 × 125 × 120 mm (W×H×D)
- Net weight: 0.5 kg
One standout feature is the redundancy logic: green LED indicates both inputs above threshold, red LED warns if any input drops below the adjustable threshold (20–25V). This immediate visual feedback helps operators spot issues before they affect production.
Applications and Use Cases
The 6EP1961-3BA21 is commonly used in manufacturing lines, process control systems, and critical infrastructure. For instance, in a bottling plant, two SITOP power supplies feed the PLC and sensors; this module ensures that if one supply fails, the other maintains power without interruption. Additionally, it suits applications requiring redundant power for safety-instrumented systems, where continuous operation is essential.
Installation and Setup
Mount the module on a standard DIN rail (EN 60715 35x7.5/15). Ensure adequate spacing: 50mm top and bottom, 0mm left and right. Connect input and output using screw terminals (0.33–10 mm²). For auxiliary relay contacts, use 0.5–2.5 mm² wire. Always follow the manufacturer's manual for wiring and configuration.
Maintenance and Reliability
Routine inspection is simple: check LED status and verify the relay contact operation periodically. The module's high MTBF (6.4 million hours) indicates long service life. Keep the enclosure clean and ensure ambient temperature stays within -25 to +60°C for optimal performance. Derating applies above +60°C, so plan airflow accordingly.
Troubleshooting and Common Issues
If the red LED lights, one input voltage has fallen below the threshold. Measure both input voltages and adjust the threshold if needed. If the relay does not energize, verify the wiring of the changeover contacts. For persistent issues, consult the Siemens SITOP manual or contact AutoDCSTech for support.
Product Support and Availability
The Siemens 6EP1961-3BA21 is available from AutoDCSTech. Contact us for current stock and delivery options. Please verify lifecycle status before ordering.
Comparison with Alternative Redundancy Solutions
Compared to passive diode-based decoupling, the 6EP1961-3BA21 offers active monitoring and a relay output for remote signaling. Unlike simpler modules, it provides:
- Adjustable switching threshold (20–25V) for flexibility
- Isolated relay contact rated 8A/240V AC, 24V DC
- Derating only above +60°C (3%/K up to +70°C)
- Higher efficiency (96.6%) reduces energy waste
Availability & Condition at AutoDCSTech
| Part Number | 6EP1961-3BA21 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
