Introduction

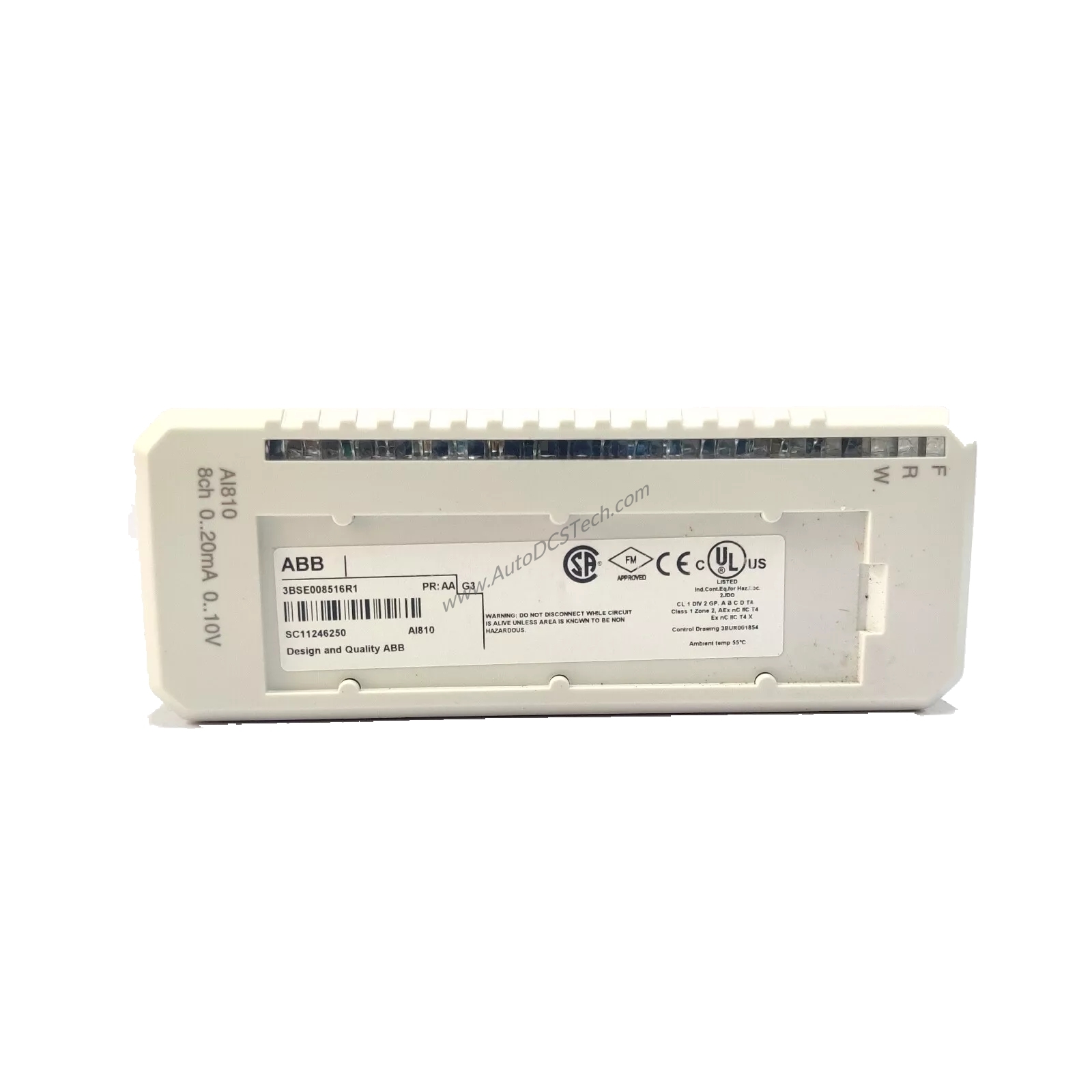

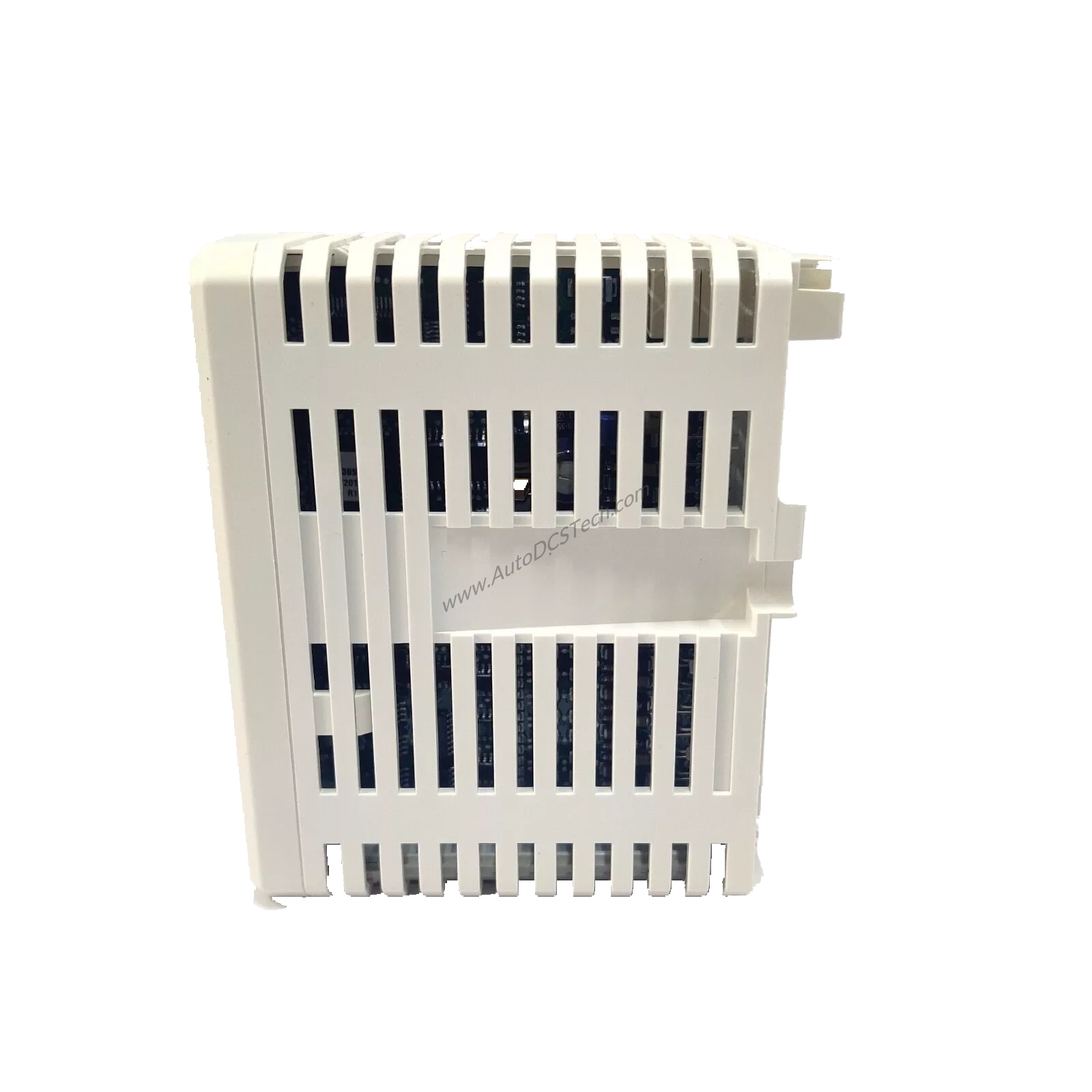

As industrial automation evolves, the demand for precise, reliable analog signal acquisition grows. The ABB AI810 Analog Input Module meets this need with eight versatile channels that accept either voltage or current signals. Part of the ABB S800 I/O family, this module delivers consistent performance in demanding environments.
Technical Specifications Breakdown
Channel Configuration
Each of the eight channels supports unipolar single-ended inputs. You can configure them for 0...20 mA, 4...20 mA, 0...10 V, or 2...10 V d.c. This flexibility simplifies integration with various sensors and transmitters.
Resolution and Accuracy
The AI810 provides 12-bit resolution, ensuring fine granularity in measurement. Its maximum error is only 0.1%, and temperature drift remains low: typical 70 ppm/°C for voltage and 50 ppm/°C for current. This stability supports consistent readings across temperature variations.
Input Protection
Current inputs include a PTC resistor for current limiting, handling short circuits to the transmitter supply up to 30 V d.c. without damage. Voltage inputs withstand over- or undervoltage of at least 30 V d.c. Input shunt resistors are protected to 30 V by the PTC resistor.
Isolation and Filtering
The module offers groupwise isolation from ground for all eight channels. An input filter with a rise time (0-90%) of 140 ms smooths noisy signals. The update cycle time is 8 ms, suitable for most process control loops.
Industry Applications
Process Control
In chemical or pharmaceutical plants, the AI810 monitors pressure, flow, and level transmitters. Its 4...20 mA current input compatibility ensures seamless integration with standard 2-wire transmitters. The module's ability to handle short circuits to the transmitter supply adds reliability.
Water and Wastewater Treatment
For water treatment facilities, the module reads 0...10 V signals from level sensors and flow meters. The 600-meter maximum field cable length allows remote sensor placement without signal degradation.
Installation & Setup Guidance
Mount the AI810 on an S800 MTU such as TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, or TU850. The module connects via Modulebus, drawing 70 mA from +5 V and 40 mA from +24 V. Ensure the MTU provides adequate transmitter power, which can be current limited by the MTU. Use shielded twisted-pair cables for field wiring, keeping cable length under 600 meters (656 yards).
Maintenance & Reliability
Routine inspection of the module's front LEDs—F(ault), R(un), W(arning)—provides quick status checks. The module supervises its internal power supply and reports Module Error, Module Warning, or Channel error. Operating temperature range is 0 to +55 °C (+32 to +131 °F), with storage from -40 to +70 °C (-40 to +158 °F). The IP20 protection class suits clean indoor environments. For vertical mounting in a compact MTU, the maximum ambient temperature is 40 °C (104 °F).
Compatibility & Integration
The AI810 integrates with ABB S800 I/O systems using MTUs like TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850. It supports HART communication, enabling digital communication over analog loops. The module is groupwise isolated from ground, reducing ground loop issues. Rated insulation voltage is 50 V, with a dielectric test voltage of 500 V a.c.
Selection Guide & Purchasing Advice
Before ordering, verify your system's compatibility with the S800 I/O series. The AI810 requires an MTU for field wiring connections. Confirm that your transmitter supply matches the module's input ranges. SpareTechPLC stocks the ABB AI810 (3BSE008516R1) and compatible MTUs. Contact our team to ensure the right configuration for your application.
Troubleshooting & Common Issues
If the module shows a Module Error LED, check the internal power supply supervision status. For channel errors, verify field wiring and that the input signal is within the selected range. The module can withstand up to 30 V d.c. non-destructive input, but sustained overvoltage may cause damage. If the current input appears open, check the PTC resistor and transmitter supply. The NMRR greater than 40 dB at 50/60 Hz helps reject line noise; ensure proper shielding if noise remains.
Frequently Asked Questions
Q1: Can the AI810 accept both voltage and current inputs on the same channel?
No, each channel must be configured as either voltage or current input. You can mix configurations across channels.
Q2: What is the maximum cable length for field wiring?
The maximum field cable length is 600 meters (656 yards).
Q3: Does the AI810 support HART communication?
Yes, the analog inputs withstand HART communication, allowing digital data transmission over the analog loop.
Q4: What is the resolution of the AI810?
The module provides 12-bit resolution.
Q5: What certifications does the AI810 hold?
It carries CE mark, electrical safety certifications (EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201), hazardous location approvals (C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2), and marine certifications (ABS, BV, DNV, LR).
