Product Introduction

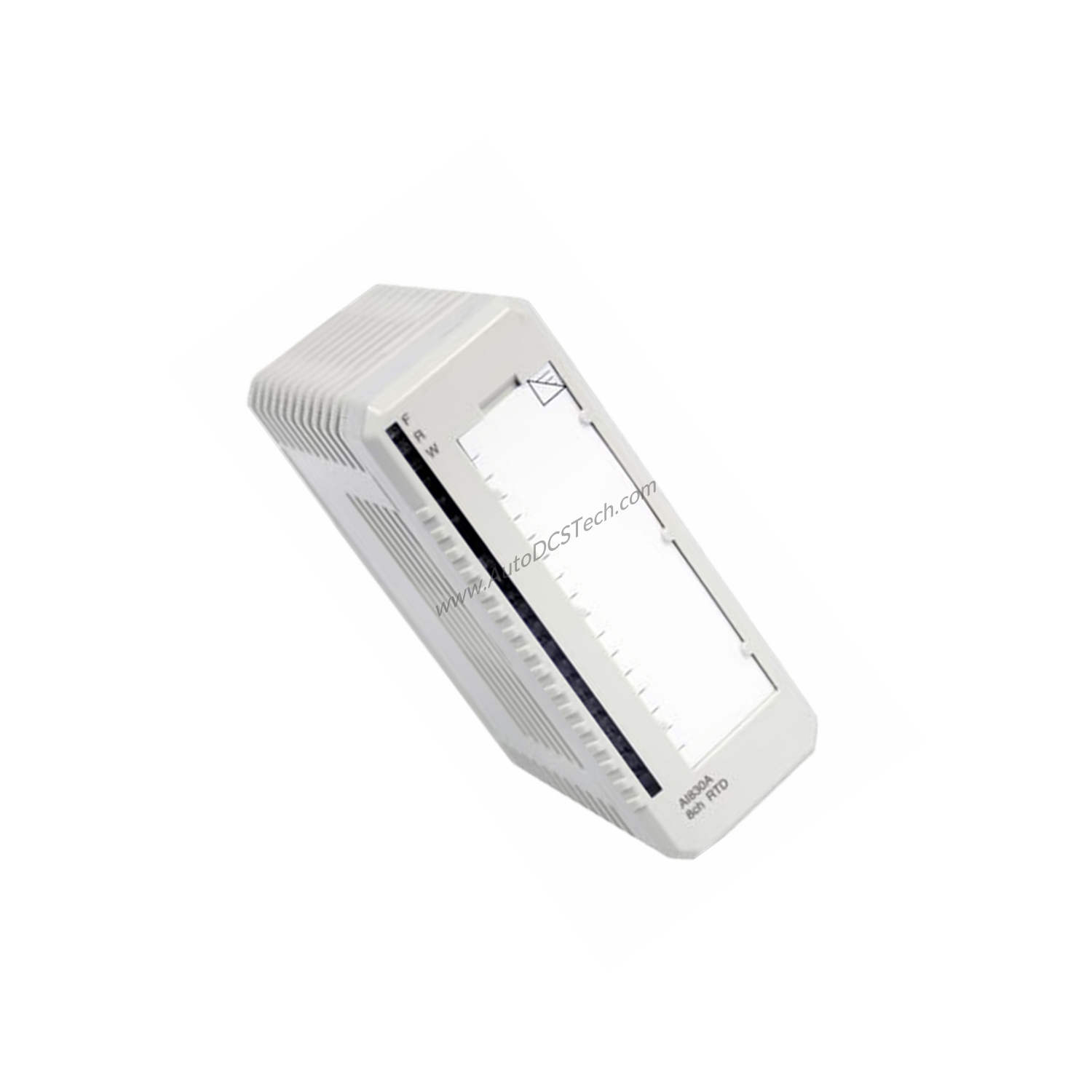

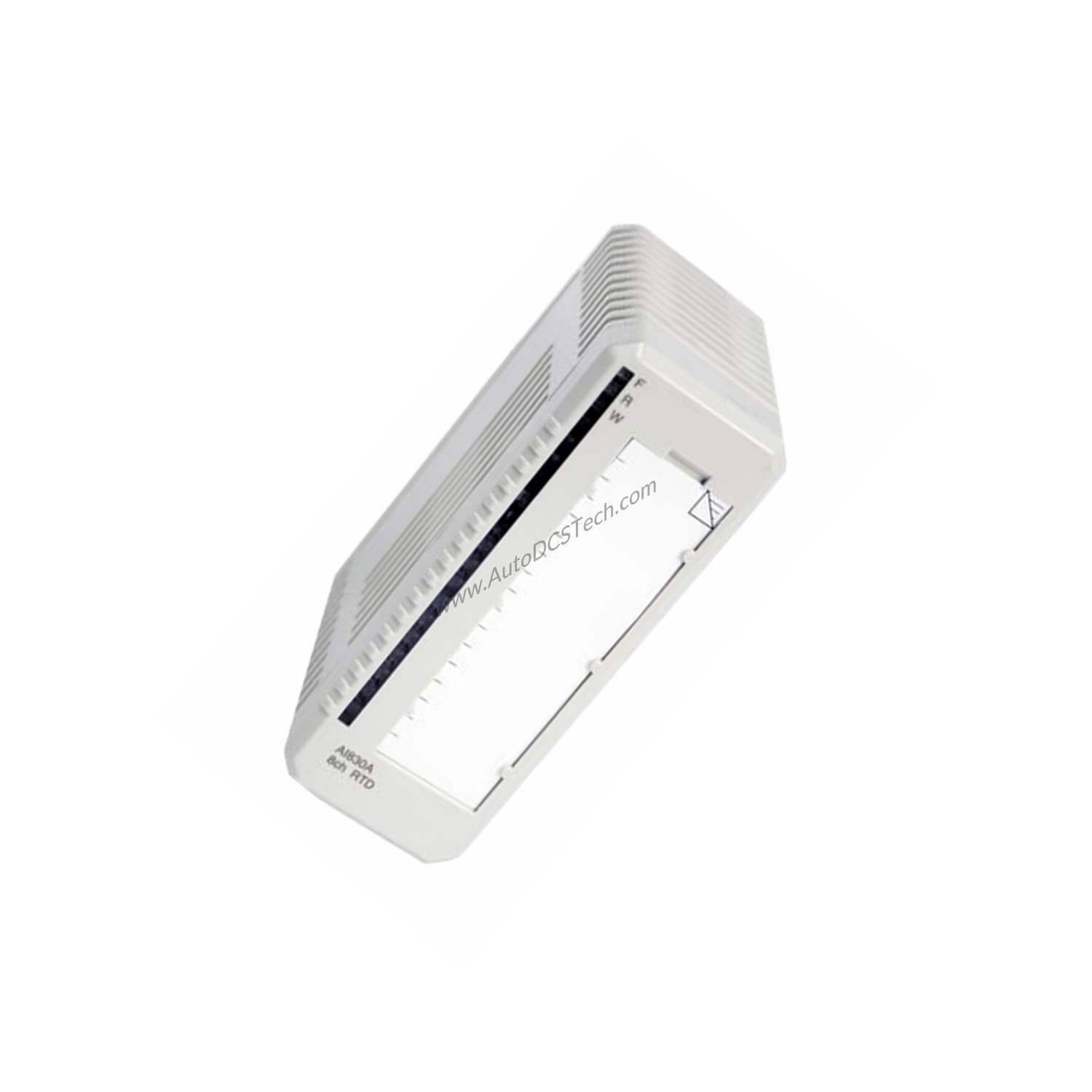

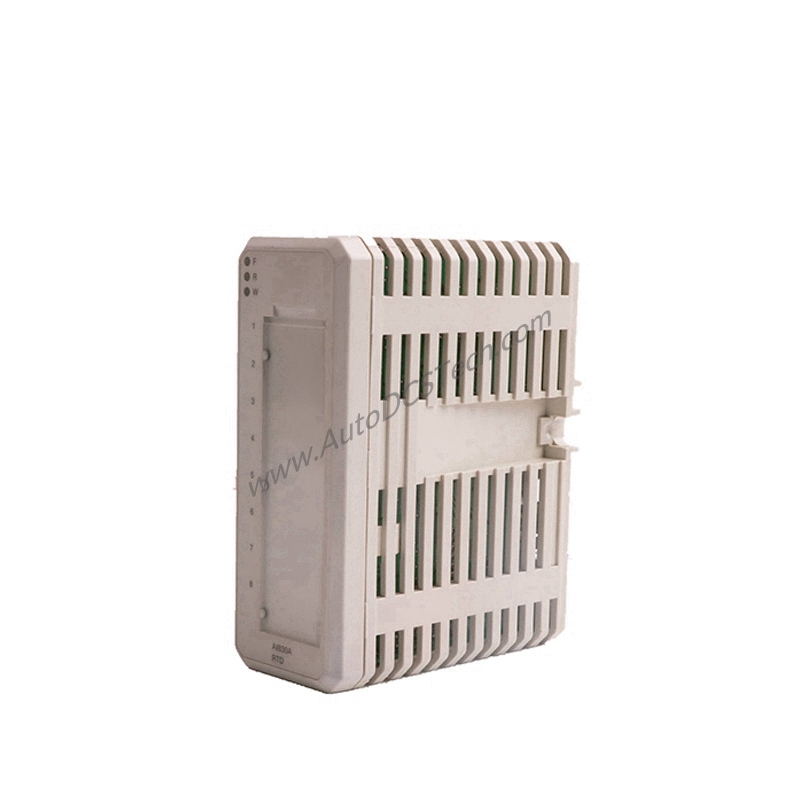

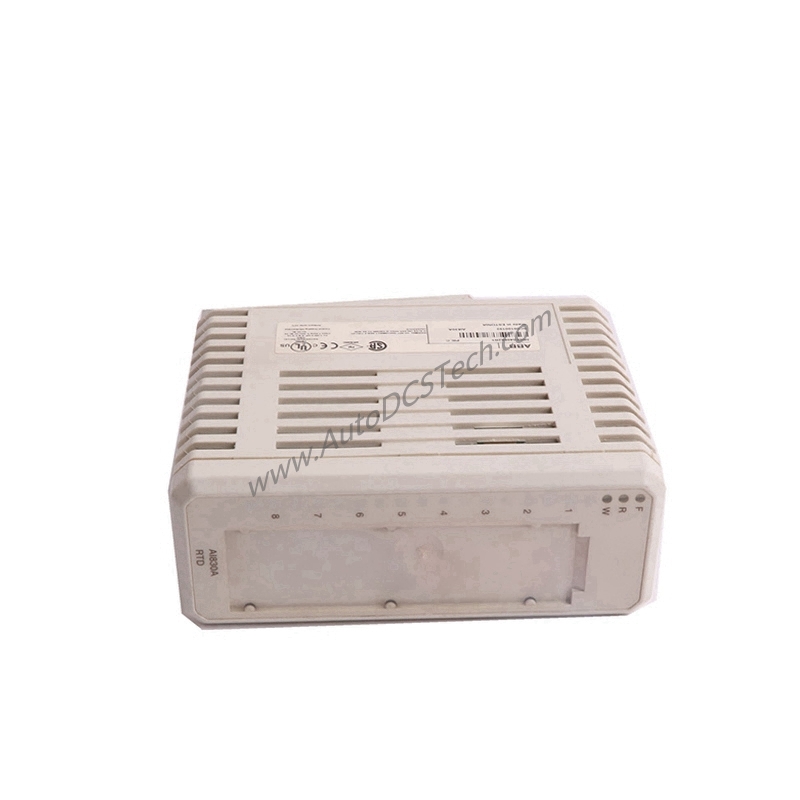

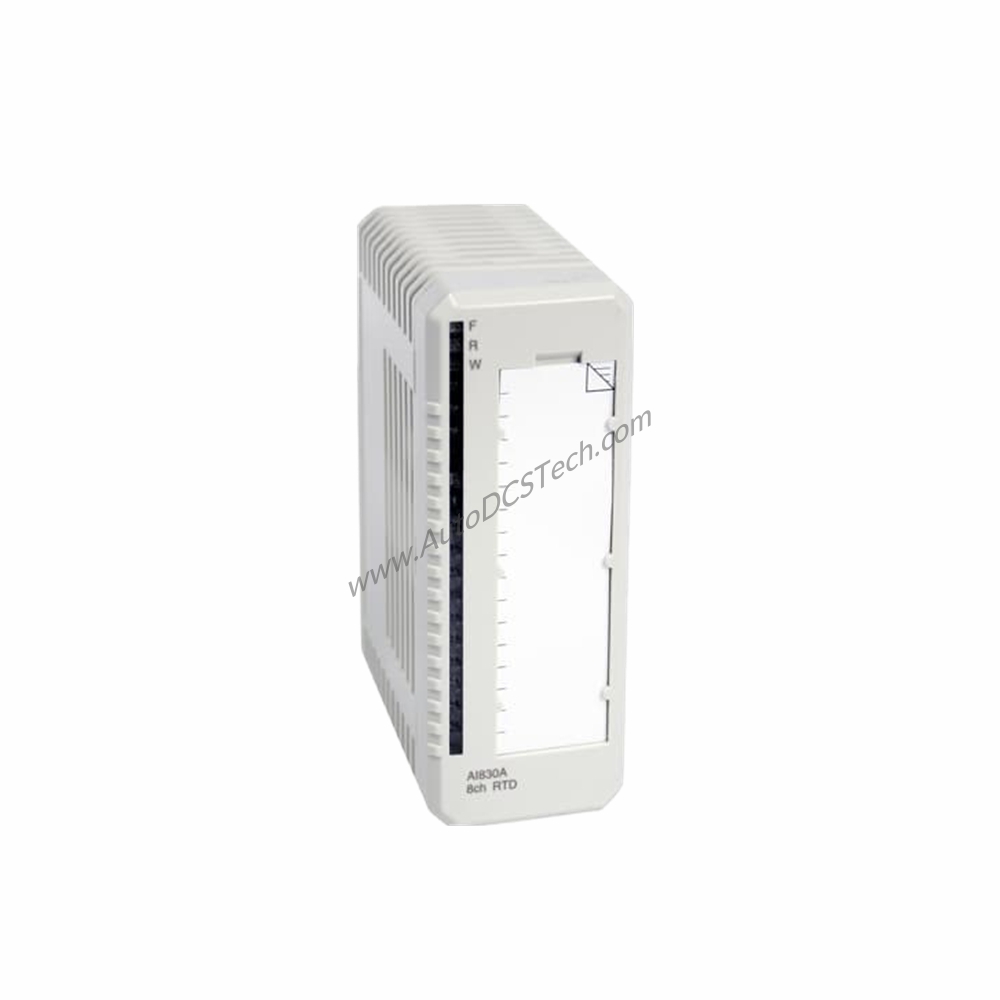

When precise temperature measurement is critical in industrial processes, the ABB AI830A Analog Input Module delivers reliable performance. Part of the ABB S800 I/O family, this module provides 8 channels for resistive temperature detectors (RTDs) such as Pt100, Cu10, Ni100, and Ni120. It supports 3-wire connections, ensuring accurate readings by compensating for lead resistance.
Technical Specifications Breakdown
The AI830A offers 14-bit resolution for high-accuracy temperature conversion. Its update cycle time is 150 + 95 * (number of active channels) ms, allowing fast data acquisition. The module provides groupwise isolation from ground, enhancing noise immunity. With a common-mode rejection ratio (CMRR) greater than 120 dB at 50/60 Hz and a normal-mode rejection ratio (NMRR) greater than 60 dB, it filters out electrical interference effectively. Power dissipation is only 1.6 W, and current consumption is 70 mA on the +5 V Modulebus and 50 mA on the +24 V Modulebus.
Industry Applications
In chemical processing plants, the AI830A monitors reactor temperatures using Pt100 sensors, ensuring safe operation. In HVAC systems, it tracks air handling unit temperatures with Ni100 sensors. Its 3-wire connection minimizes errors from cable resistance, making it ideal for long cable runs in industrial environments.
Installation & Setup Guidance
Mount the AI830A on a DIN rail within an S800 I/O system. Use compatible termination units such as TU810, TU812, TU814, TU830, or TU833. Connect RTDs using 3-wire configuration, ensuring all sensors are isolated from ground. Configure each channel individually via the control system, setting the MainsFreq parameter to 50 Hz or 60 Hz for optimal filtering.
Maintenance & Reliability
Regularly inspect the module for environmental factors. The AI830A operates from 0 to +55 °C and stores from -40 to +70 °C. It has an IP20 protection class and complies with ISA-S71.04 G3 corrosion protection standards. Front LEDs indicate fault, run, and warning statuses, simplifying diagnostics. Supervision features detect open-circuit, short-circuit, and grounded sensor conditions.
Compatibility & Integration
The AI830A integrates seamlessly with ABB S800 I/O systems and is compatible with MTUs including TU810V1. It supports various RTD types and resistive sensors. The module is CE marked and meets electrical safety standards EN 61010-1 and UL 61010-1. It also carries hazardous location certifications for Class I Division 2 and Zone 2.
Selection Guide & Purchasing Advice
Before ordering, verify that your system supports the AI830A and that you have the correct termination unit. SpareTechPLC offers this module with fast shipping and expert support. Contact us to confirm availability and compatibility for your application.
Frequently Asked Questions
Q: What RTD types does the AI830A support?
A: The AI830A supports Pt100, Cu10, Ni100, Ni120, and resistive sensors.
Q: Can the AI830A detect sensor faults?
A: Yes, it monitors for open-circuit, short-circuit, and grounded sensor conditions.
Q: What is the resolution of the AI830A?
A: The module provides 14-bit resolution.
Q: Is the AI830A suitable for hazardous locations?
A: Yes, it has Class I Division 2 and Zone 2 certifications.
Q: What is the power consumption of the AI830A?
A: Power dissipation is 1.6 W.
