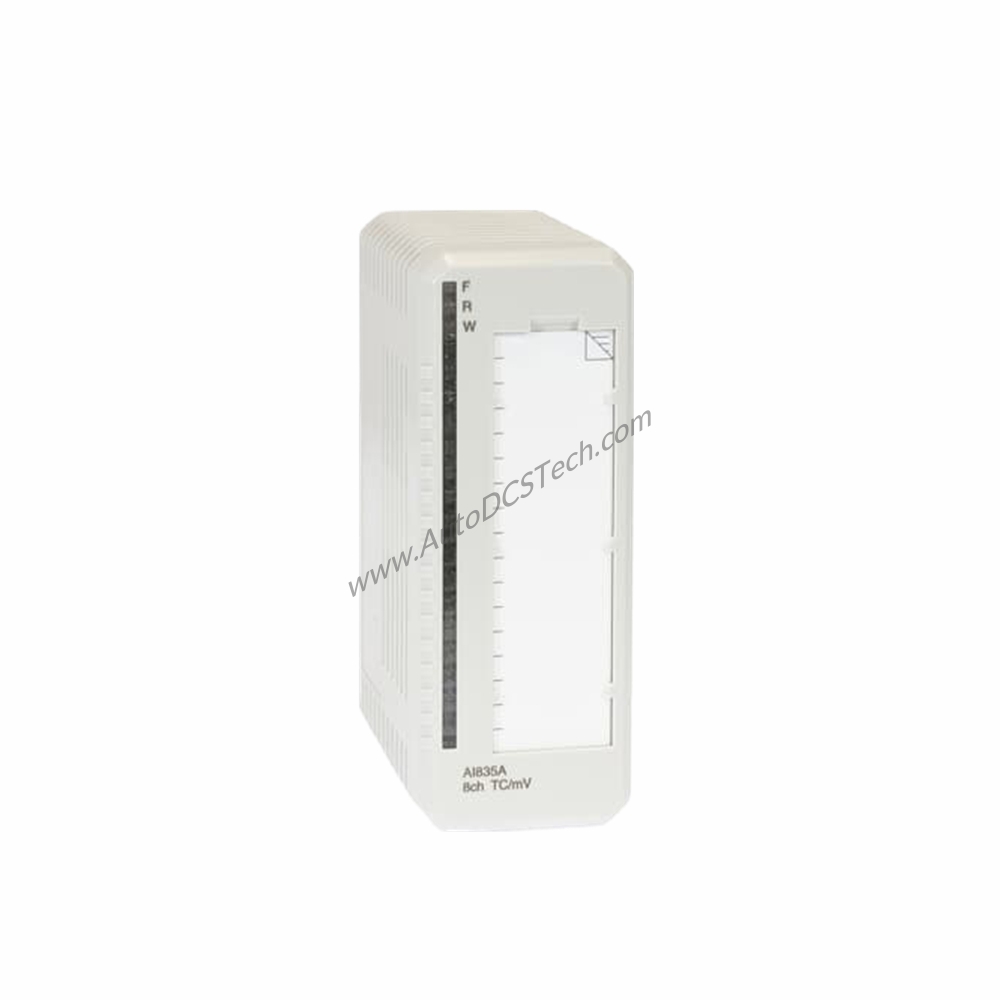

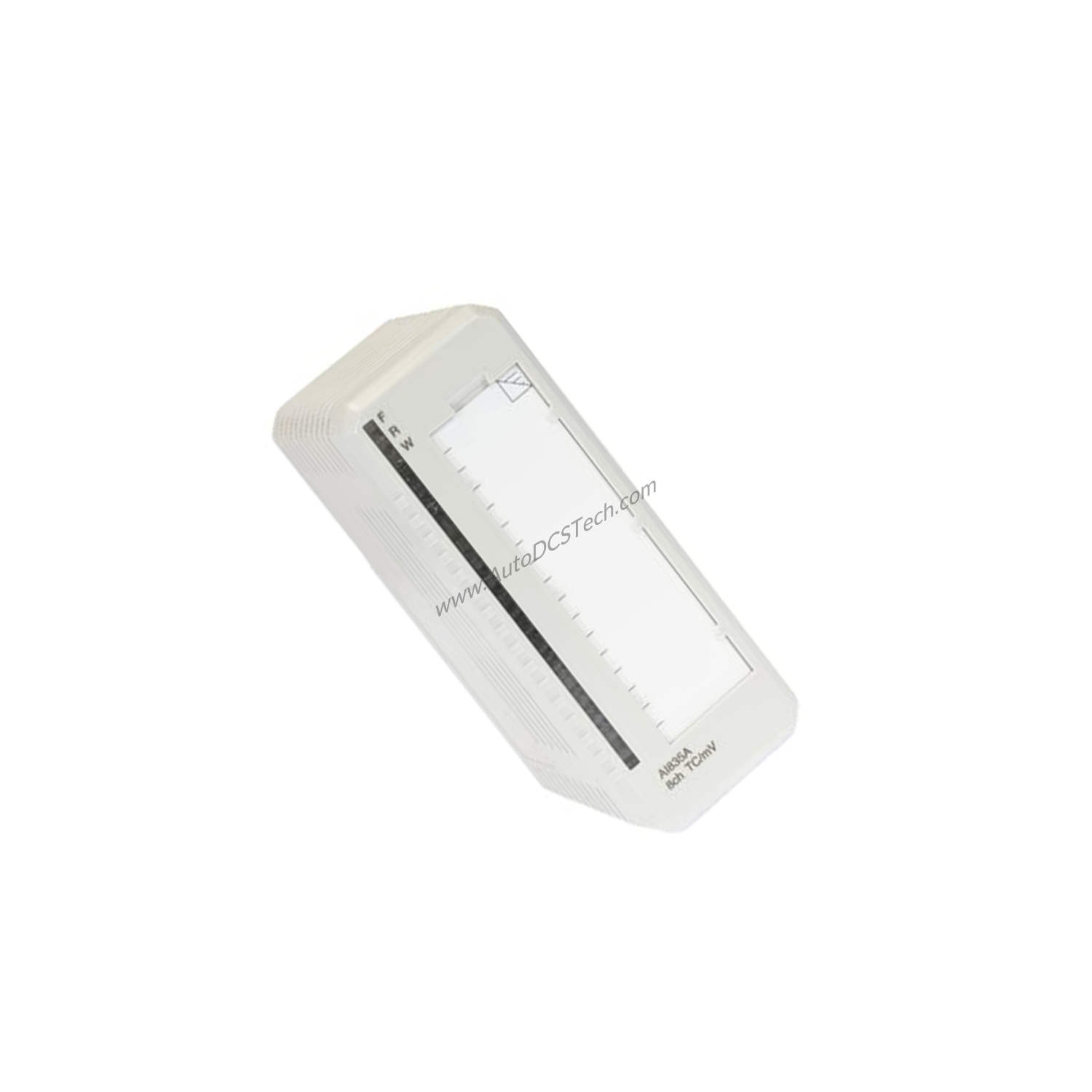

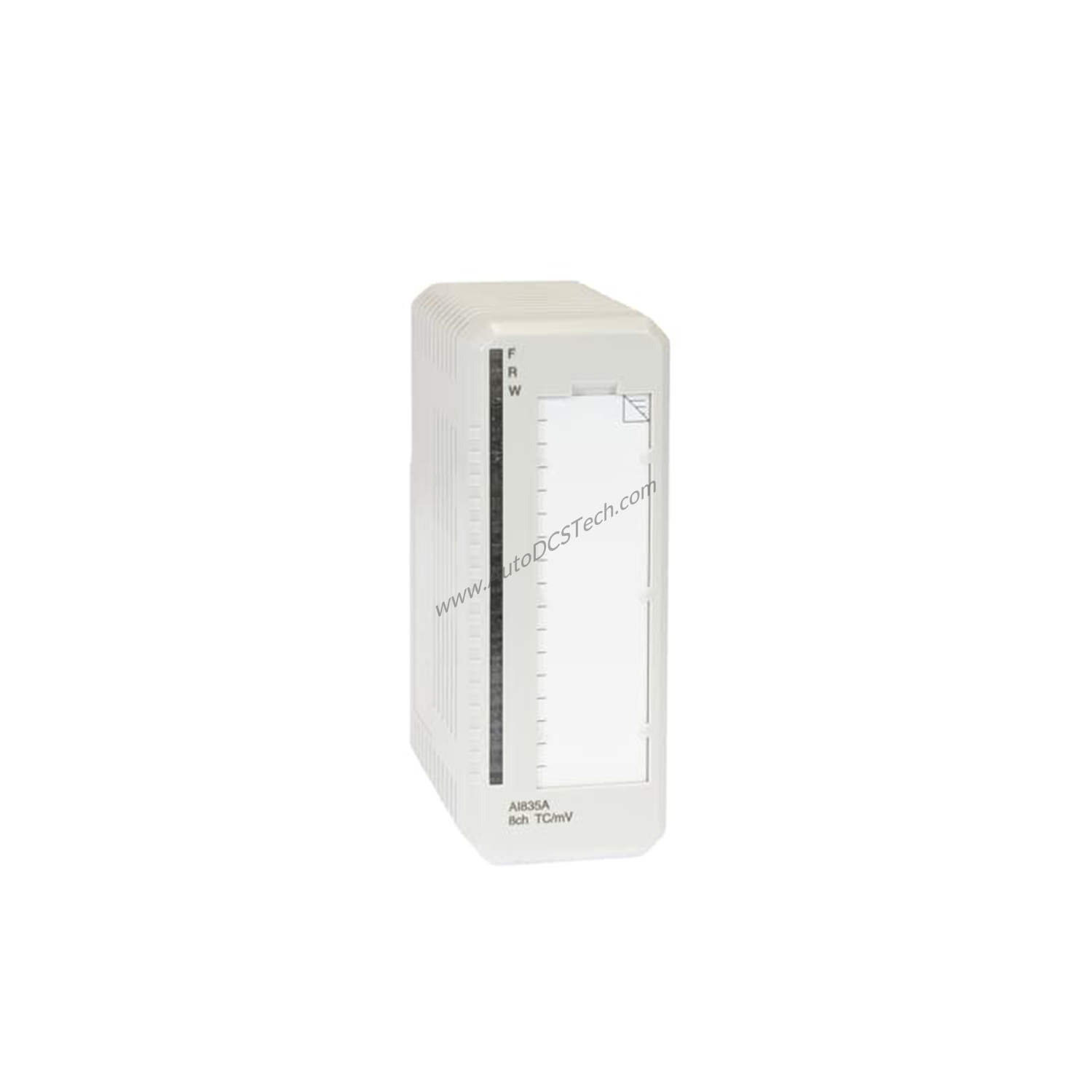

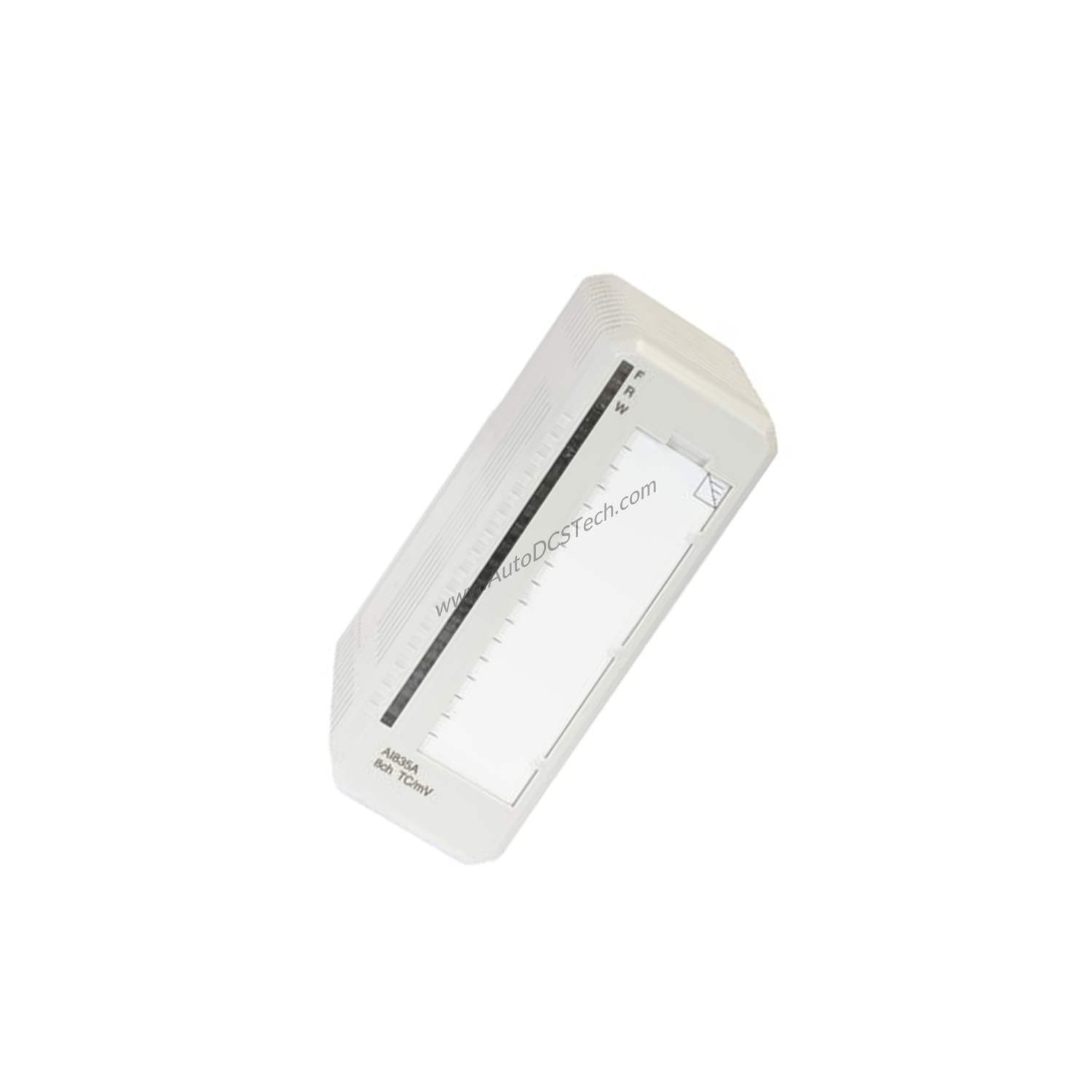

What Is the ABB AI835A?
Struggling with precise temperature measurement in harsh industrial environments? The ABB AI835A Analog Input module delivers reliable thermocouple and millivolt signal acquisition with 8 differential input channels. Part of the S800 I/O family, this module supports a wide range of thermocouple types including B, C, D, E, J, K, L, N, R, S, T, and U, plus linear -30 mV to +75 mV ranges. Its 15-bit resolution ensures accurate data conversion for critical process control.
Technical Specifications Breakdown
Key specs from the AI835A include:
- Resolution: 15 bits for high-precision A/D conversion.
- Input Impedance: > 1 MΩ, minimizing signal loading.
- Isolation: Groupwise isolated from ground, enhancing noise immunity.
- Error: Max 0.1%, ensuring measurement accuracy.
- Temperature Drift: Typ. 5 ppm/°C, Max 7 ppm/°C for stable performance across temperatures.
- Update Cycle Time: 280 + 80 (number of active channels) ms at 50 Hz; 250 + 70 (number of active channels) ms at 60 Hz.
- CMRR: 120 dB at 50/60 Hz, rejecting common-mode noise.
- NMRR: > 60 dB at 50/60 Hz, filtering series-mode interference.
- Power Dissipation: 1.6 W, efficient for cabinet installations.
- Current Consumption: +5 V Modulebus 75 mA, +24 V Modulebus 50 mA.
These parameters make the AI835A suitable for demanding temperature monitoring tasks in process industries.
Industry Applications
The AI835A excels in applications requiring multi-point thermocouple monitoring. For example, in chemical reactors, it tracks temperature gradients across 8 zones using type K thermocouples. In furnace control, it measures exhaust gas temperatures with type S or R sensors. The cold junction compensation feature, using channel 8 with a Pt100 RTD, ensures accurate ambient temperature correction, reducing measurement errors.
Installation & Setup Guidance
Mount the AI835A on a standard DIN rail in an S800 I/O rack. Use compatible MTUs like TU810, TU812, TU814, TU818, TU830, or TU833 for termination. Connect thermocouples to differential inputs, ensuring proper polarity. For cold junction compensation, configure channel 8 with a 4-wire Pt100 RTD. Set measurement ranges per channel via the configuration tool. Maximum field cable length is 600 meters (656 yards).
Maintenance & Reliability
Regularly inspect the module for environmental stress. Operating temperature range is 0 to +55 °C (+32 to +131 °F), with storage from -40 to +70 °C (-40 to +158 °F). The IP20 protection class requires installation in a clean, dry cabinet. Monitor front LEDs for fault (F), run (R), and warning (W) indicators. Diagnostics include module error, channel open-circuit, and cold junction temperature out of range ( 100 °C). Periodic checks ensure long-term reliability.
Compatibility & Integration
The AI835A integrates seamlessly with ABB S800 I/O systems. It communicates via Modulebus, consuming 75 mA on +5 V and 50 mA on +24 V. Use with MTUs such as TU810V1 for termination. The module supports keying code BA for proper slot alignment. No HART, SOE, or redundancy features are included, but groupwise isolation protects against ground loops.
Selection Guide & Purchasing Advice
Before purchasing the ABB AI835A, verify your system compatibility with S800 mechanics and required MTU. Check the article number 3BSE051306R1 for exact model. SpareTechPLC offers this module with fast shipping and expert support. Ensure your application needs 8 differential channels and thermocouple types D, L, and U (specific to AI835A). For replacement or upgrade, confirm voltage ratings and environmental conditions match your site.
Frequently Asked Questions
Q1: What thermocouple types does the AI835A support?
A: The AI835A supports types B, C, D, E, J, K, L, N, R, S, T, and U, plus linear -30 mV to +75 mV ranges.
Q2: How does cold junction compensation work on the AI835A?
A: Channel 8 can be configured as a cold junction channel using a 4-wire Pt100 RTD. It measures ambient temperature locally or remotely, compensating for thermocouple reference junction errors.
Q3: What is the resolution of the AI835A?
A: The module has 15-bit resolution for the A/D converter, providing fine granularity for temperature measurements.
Q4: Can I use the AI835A in hazardous locations?
A: Yes, it has hazardous location certifications: C1 Div 2 cULus, C1 Zone 2 cULus, and ATEX Zone 2.
Q5: What is the maximum cable length for field wiring?
A: The maximum field cable length is 600 meters (656 yards).
