What Is the Schneider TM3DM24R Discrete I/O Module?

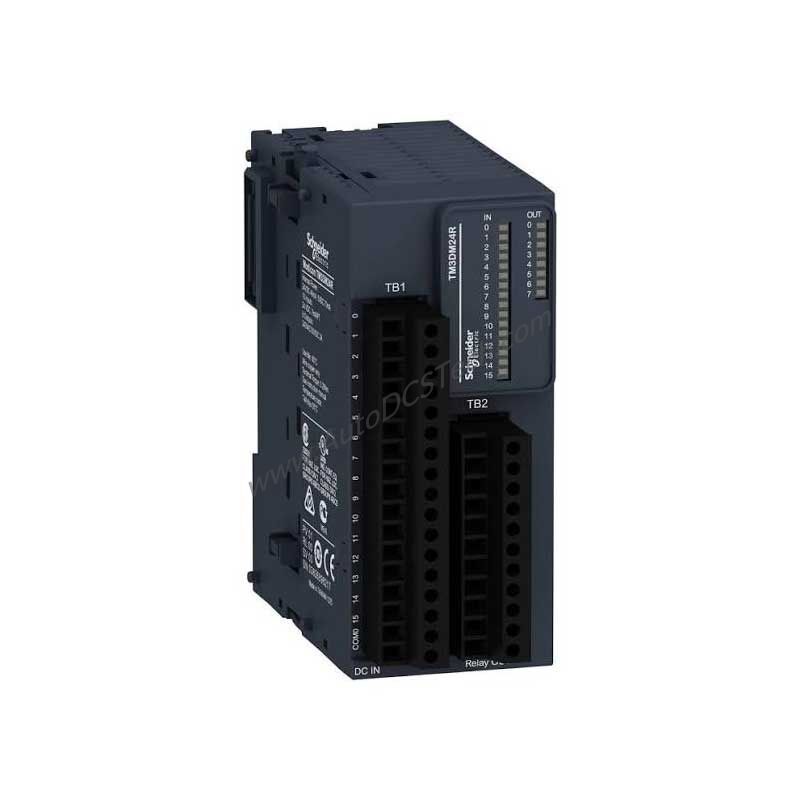

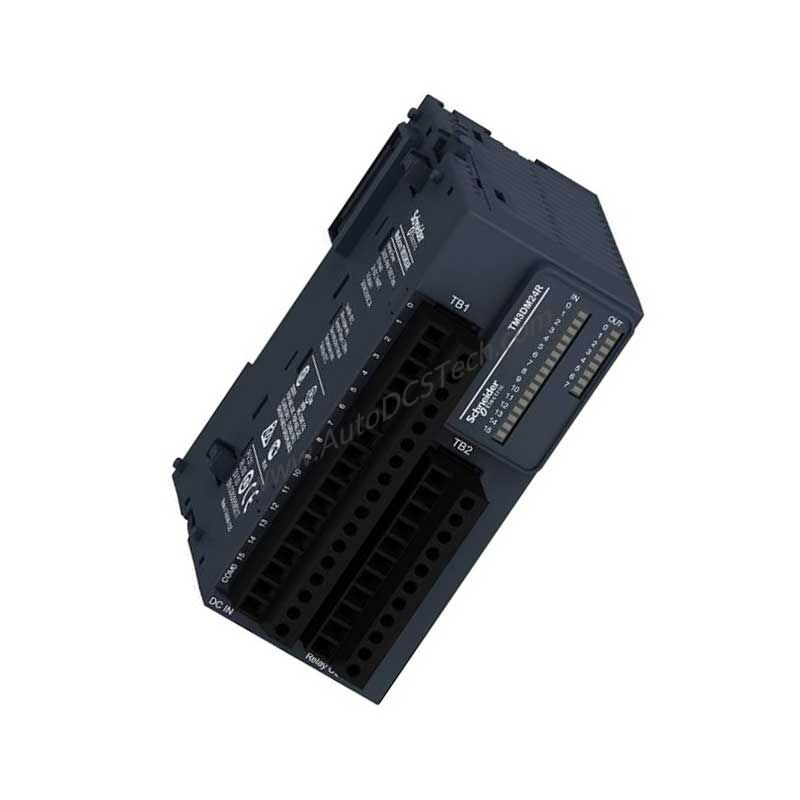

Facing the challenge of integrating reliable discrete control into your Modicon system? The Schneider TM3DM24R is a discrete I/O module from the Modicon TM3 range, designed to provide 16 digital inputs and 8 relay outputs in a single, compact unit. This module is compatible with Modicon M221, M241, and M251 controllers, making it a versatile choice for a wide range of industrial automation applications. Its relay outputs handle both 24 V DC and 240 V AC, offering flexibility for controlling various loads.
Technical Specifications Breakdown
The TM3DM24R offers a robust set of specifications that ensure reliable operation in demanding environments. Let’s examine the key parameters:
- Input Configuration: The module features 16 discrete inputs conforming to IEC 61131-2 Type 1, with a voltage of 24 V DC and a current of 7 mA per input. Input logic is sink or source (positive/negative), providing compatibility with various sensor types. The voltage state 1 is guaranteed between 15 and 28.8 V, while state 0 is 0 to 5 V. Current state 1 is at least 2.5 mA, and state 0 is less than or equal to 1 mA. Input impedance is 3.4 kOhm.
- Output Configuration: The 8 relay outputs are normally open, with positive or negative logic. They support 24 V DC or 240 V AC at 2000 mA per output. The current per output common is 7 A, and the minimum load is 10 mA at 5 V DC. Mechanical durability is rated at 20,000,000 cycles.
- Response Time: Both turn-on and turn-off response times are 4 ms, ensuring timely signal processing.
- Power Consumption: The module draws 5 mA at 5 V DC via the bus connector when off, and 65 mA at 5 V DC when on. It consumes 0 mA at 24 V DC in both states.
- Environmental Resistance: It withstands electrostatic discharge up to 8 kV in air, electromagnetic fields up to 10 V/m, and vibration up to 3.5 mm at 5-8.4 Hz. Operating temperature ranges from -10 to 55 °C for horizontal installation and -10 to 35 °C for vertical installation.
Industry Applications
In packaging and material handling systems, the TM3DM24R can manage multiple sensors and actuators. For example, its 16 inputs can monitor conveyor belt positions and product presence, while the 8 relay outputs control motors or solenoids. The relay outputs’ ability to switch 240 V AC makes it suitable for direct control of small AC loads, reducing the need for external contactors. This module is also ideal for building automation tasks like lighting control or HVAC damper actuation, where mixed voltage requirements are common.
Installation & Setup Guidance
Mount the TM3DM24R on a top hat TH35-15 or TH35-7.5 rail conforming to IEC 60715, or on a plate or panel with a fixing kit. Use the removable screw terminal blocks with a 3.81 mm pitch: a 17-terminal block for inputs and an 11-terminal block for outputs, each accepting 1.5 mm² wires. For regular inputs, use unshielded cable up to 30 m. Ensure proper grounding and follow local electrical codes. The module’s IP20 protection rating (with protective cover) requires installation in a clean, dry enclosure.
Maintenance & Reliability
To maximize uptime, inspect the module periodically for dust accumulation and loose connections. The relay outputs have a mechanical durability of 20,000,000 cycles, but actual life depends on load type and switching frequency. Operate within the specified ambient temperature range (-10 to 55 °C horizontal, -10 to 35 °C vertical) and relative humidity (10-95% without condensation) to ensure long-term reliability. The module’s compliance with EN/IEC 61131-2 and CE marking confirms its robust design for industrial environments.
Compatibility & Integration
The TM3DM24R is part of the Modicon TM3 range and is compatible with Modicon M221, M241, and M251 controllers. It connects via the bus connector, drawing power and communicating with the controller. No additional communication protocols are required for basic I/O operation. For system integration, verify the controller’s firmware version and configure the I/O mapping in your programming software (e.g., EcoStruxure Machine Expert).
Selection Guide & Purchasing Advice
Before purchasing the TM3DM24R, confirm that your controller supports the TM3 expansion range. Check the total current consumption from the bus connector (65 mA at 5 V DC when on) to ensure your system’s power supply can handle the load. For applications requiring more outputs, consider additional TM3 modules. SpareTechPLC offers this module with reliable availability and support. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: Can the TM3DM24R inputs accept both NPN and PNP sensors?
A: Yes, the discrete input logic supports sink or source (positive/negative), so it works with both NPN and PNP sensors.
Q: What is the maximum current per output common?
A: The current per output common is 7 A, as specified in the technical data.
Q: Does the TM3DM24R require an external power supply?
A: No, it draws power from the controller via the bus connector, requiring 5 mA at 5 V DC when off and 65 mA when on.
Q: What is the response time for the relay outputs?
A: Both turn-on and turn-off response times are 4 ms.
Q: Can this module be used with Modicon M251?
A: Yes, the TM3DM24R is compatible with Modicon M251 controllers.
