Product Overview

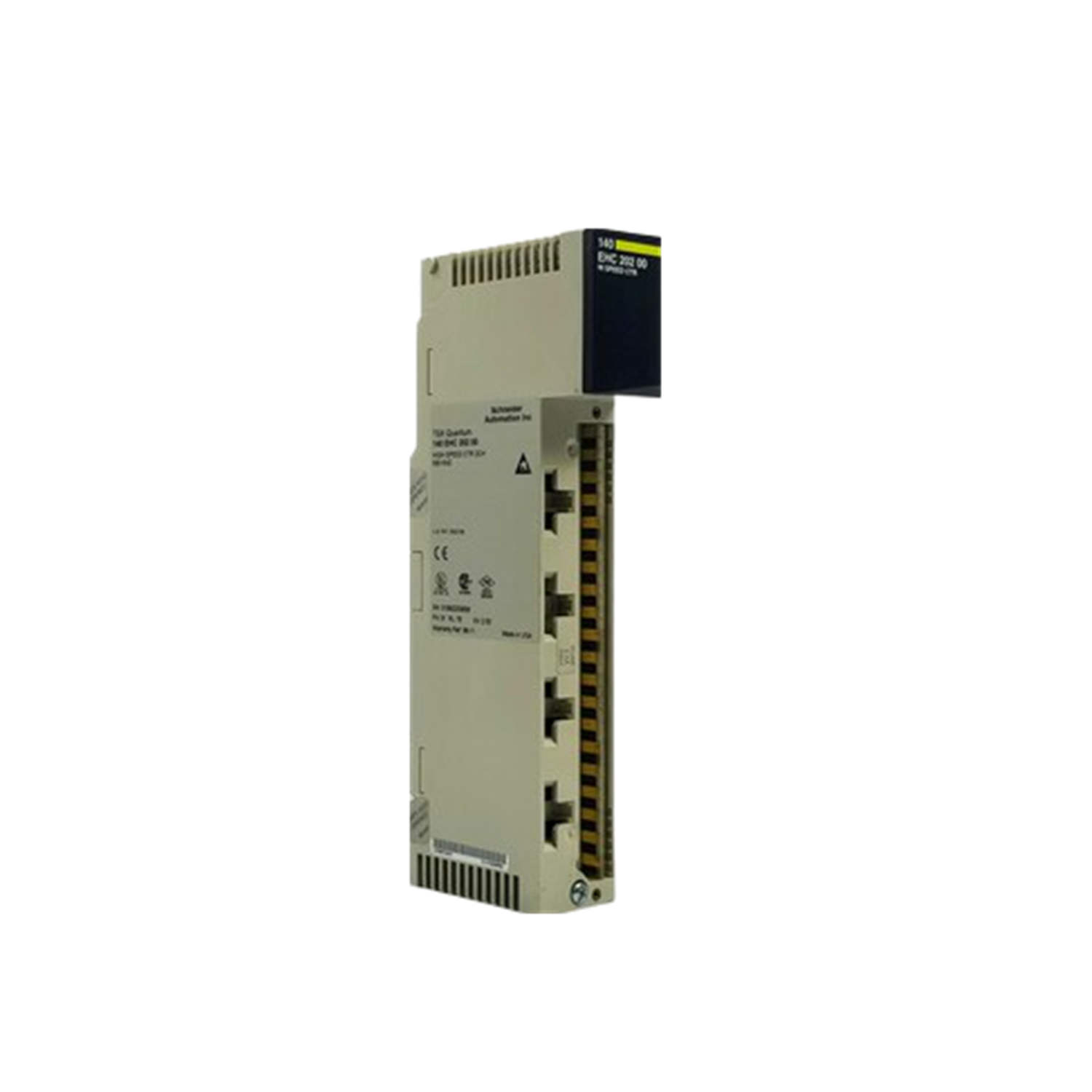

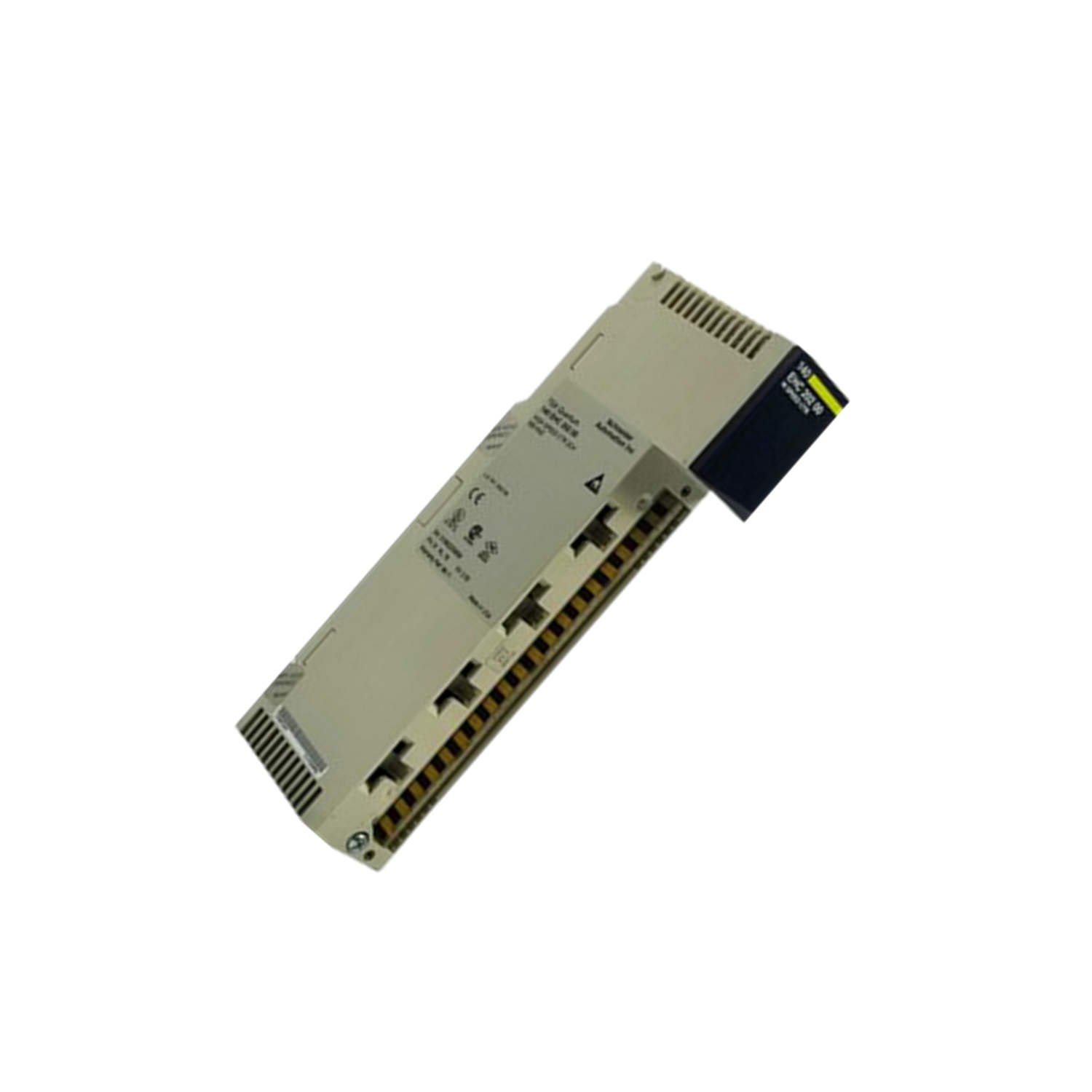

In high-speed counting applications, the Schneider Electric 140EHC20800SC high-speed counter module delivers precision and reliability. Part of the Modicon Quantum product line, this module accepts both incremental and quadrature input types, making it versatile for various automation tasks. With a counting frequency of 500,000 Hz, it ensures rapid and accurate measurement, reducing cycle times and improving throughput. By choosing this component, you invest in a solution that minimizes downtime and enhances operational efficiency.
Technical Specifications Breakdown
Key parameters for the 140EHC20800SC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Product Type | High Speed Counter Module |
| Counting Input Type | Incremental or quadrature |
| Counting Frequency | 500,000 Hz |
| Input Resistance | 10 kOhm discrete input |
| Discrete Output Number | 4 |
| Discrete Output Type | Field Effect Transistor (FET) |
| Load Current | 0.5 A |
| Maximum Leakage Current | 0.4 mA state off |
| Protection Type | 36 V transorb discrete output |
| Output Short-Circuit Protection | Blown fuse 2.5 A |
| External Power Requirement | 19.2 to 30 V |
| Resistance to Electromagnetic Fields | 9.1 V/m |
| Operating Altitude | 5000 m |
Industry Applications
This module excels in material handling systems where precise counting of parts or products is critical. The 500,000 Hz counting frequency allows for high-speed production lines, reducing bottlenecks and increasing output. In packaging machinery, the incremental or quadrature input types enable accurate position feedback, minimizing waste and rework. By integrating this component, facilities can achieve lower cost per unit and higher overall equipment effectiveness (OEE).
Installation & Setup Guidance
When installing the module, ensure the external power supply is within 19.2 to 30 V to avoid damage. Connect discrete inputs using the specified 10 kOhm input resistance for proper signal conditioning. The four FET outputs can drive loads up to 0.5 A each, so verify that connected devices do not exceed this rating. Use the 36 V transorb protection to safeguard against voltage spikes. For short-circuit protection, the 2.5 A blown fuse will isolate faults, preventing costly repairs.
Maintenance & Reliability
Periodically inspect the module for signs of environmental stress, especially in high-altitude installations up to 5000 m. The 9.1 V/m resistance to electromagnetic fields ensures stable operation in electrically noisy environments. Check the fuse condition after any short-circuit event and replace with a 2.5 A rated fuse. Keep the module clean and free of debris to maintain optimal heat dissipation.
Compatibility & Integration
The 140EHC20800SC is designed for the Modicon Quantum platform, ensuring seamless integration with existing Schneider Electric systems. It communicates via the backplane bus, so no additional wiring is needed for data exchange. Verify firmware compatibility with your Quantum CPU to avoid communication errors.
Selection Guide & Purchasing Advice
When selecting this module, confirm that your application requires incremental or quadrature counting at up to 500,000 Hz. For lower-speed tasks, a standard counter module may be more cost-effective. SpareTechPLC offers this module with verified specifications and fast shipping. Contact our team to check current lifecycle status and availability before ordering.
Troubleshooting & Common Issues
If the module does not count accurately, verify that the input signals match the incremental or quadrature type. Check the external power supply voltage between 19.2 and 30 V. If outputs fail to activate, test the load current (max 0.5 A) and inspect the 2.5 A fuse for continuity. In noisy environments, ensure grounding is adequate to maintain the 9.1 V/m electromagnetic field resistance.
