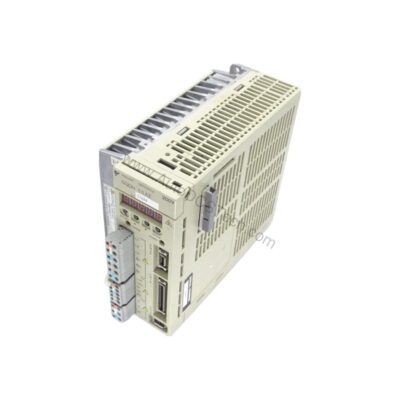

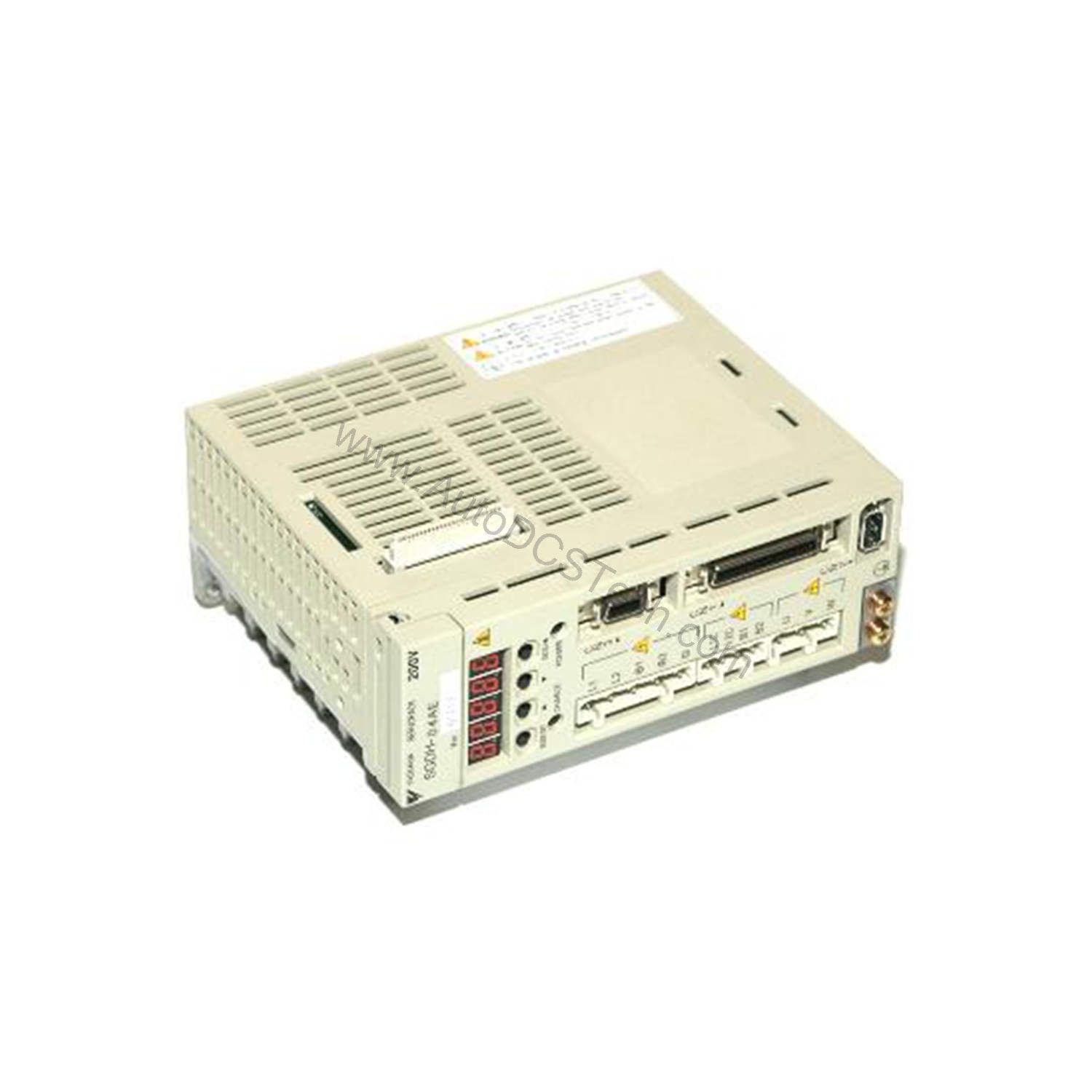

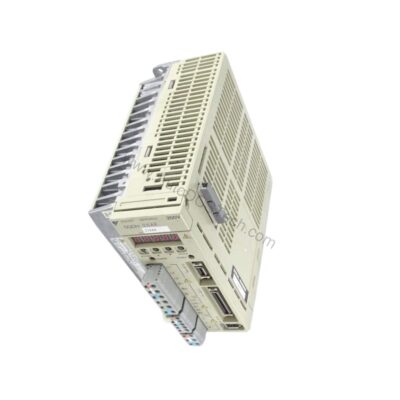

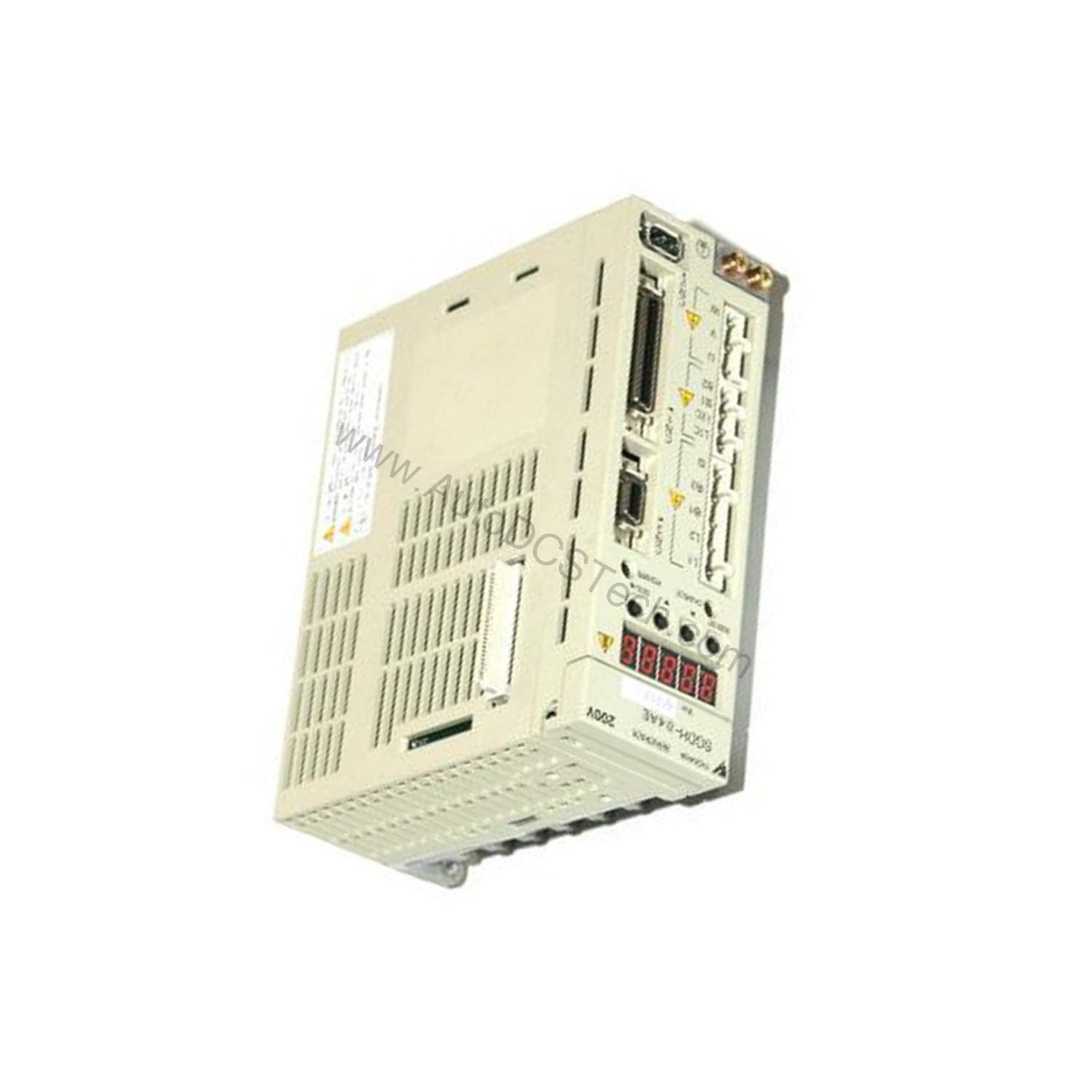

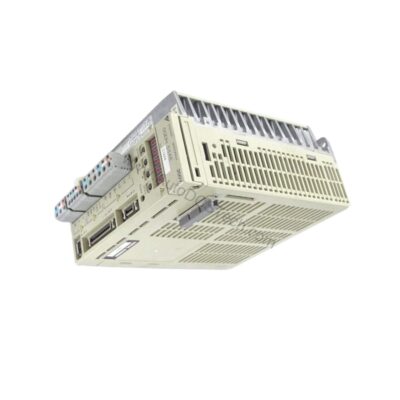

Introduction to the SGDH-50AE
When high-power motion control demands precision and reliability, the SGDH-50AE from Yaskawa's Sigma II series stands ready. This servo amplifier operates on a 230 VAC three-phase input, delivering robust performance for industrial applications.
Key Features and Technical Specifications
The SGDH-50AE is engineered for efficiency and durability. Its specifications include:
- Input Voltage: 230 VAC, three-phase
- Output Voltage: 0-230 V
- Output Current: 32.8 A
- Power Rating: 5 kW (6.7 HP)
- Input Frequency: 50/60 Hz
- Ambient Temperature: 0-55°C
- Weight: 15.00 lbs (6.80 kg)
The 0-230 V output range accommodates various motor specifications, while the 50/60 Hz input frequency supports global deployment.
Installation and Setup
Proper installation is critical for optimal performance. Begin by verifying the input voltage matches your facility's supply. The SGDH-50AE requires a three-phase connection; ensure correct phase sequencing. Mount the amplifier in a well-ventilated area to maintain ambient temperatures within 0-55°C. Follow the manufacturer's manual for wiring and grounding to avoid electrical noise.
Maintenance and Reliability
Routine inspection is essential for long-term reliability. Check all connections periodically for tightness and signs of wear. Keep the enclosure clean and free of dust, as buildup can impede heat dissipation. The amplifier's design minimizes moving parts, reducing failure points. Regular maintenance ensures the SGDH-50AE continues to deliver cost-effective performance.
Cost-Benefit Analysis
Investing in the SGDH-50AE yields long-term savings. Its 5 kW power rating delivers high throughput, reducing cycle times. The 32.8 A output current minimizes downtime by driving motors efficiently. Moreover, the amplifier's robust design lowers maintenance costs, as it operates reliably within 0-55°C ambient temperatures.
Additionally, the three-phase input ensures stable operation under heavy loads, preventing costly interruptions. By choosing this Yaskawa amplifier, you optimize both performance and total cost of ownership.
Compatibility and Integration
The SGDH-50AE integrates with Yaskawa Sigma II servo motors and controllers. Its 0-230 V output and 32.8 A current capability match a wide range of motor ratings. For specific compatibility details, consult the official Yaskawa documentation or contact AutoDCSTech.
Troubleshooting Common Issues
If the amplifier fails to start, check the input power supply and phase sequence. Overheating may occur if ambient temperature exceeds 55°C; improve ventilation. For persistent issues, refer to the Yaskawa manual or seek technical support.
Product Support and Availability
The SGDH-50AE is available from AutoDCSTech. Contact us for current stock and lifecycle status. We are ready to assist with your industrial automation needs.
Availability & Condition at AutoDCSTech
| Part Number | SGDH-50AE |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
