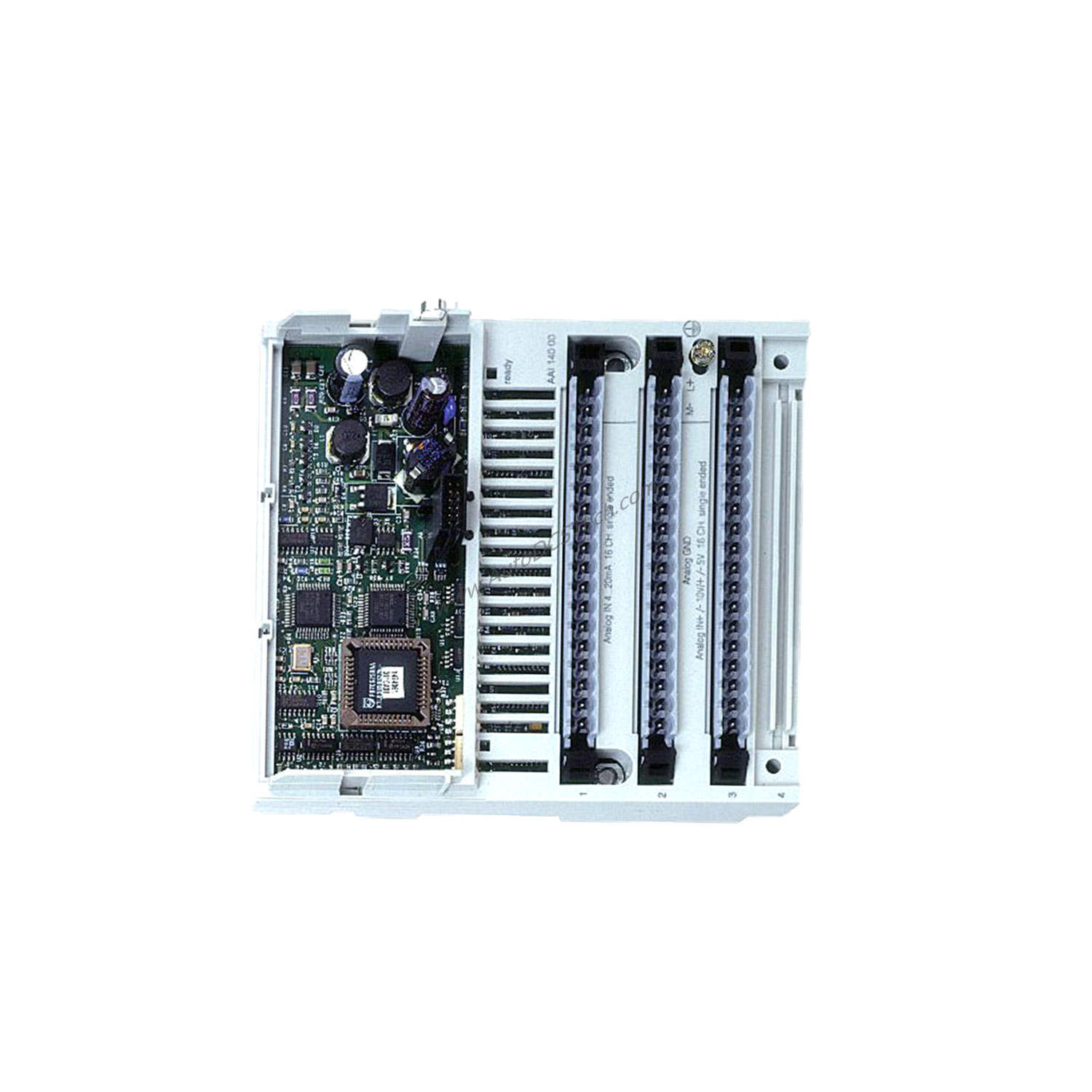

Product Overview
When your industrial process demands precise analog signal acquisition, the Schneider 170AAI03000 Analog Input Base delivers reliable performance. Part of the Modicon Momentum automation platform, this module handles eight differential input channels with a full 16-bit signed data format. A conversion time of just 12 ms ensures rapid response to changing process variables.
Key Technical Specifications
The 170AAI03000 provides robust isolation and environmental resilience:
- Channel Count: 8 differential analog inputs
- Data Format: Full 16 bits signed
- Conversion Time: 12 ms
- Channel-to-Channel Isolation: 200V DC for 1 minute
- Channel-to-Ground Isolation: 500V AC for 1 minute
- Channel-to-Bus Isolation: 500V AC for 1 minute
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Maximum Relative Humidity: 95% without condensation
- Reverse Polarity Protection: Internal
These specifications make the 170AAI03000 suitable for demanding industrial environments where signal integrity and equipment protection are critical.
Industry Applications
In process control systems, the 170AAI03000 excels at reading analog signals from sensors such as temperature transmitters, pressure transducers, and flow meters. Its differential input configuration rejects common-mode noise, ensuring accurate readings even in electrically noisy factory floors. The 12 ms conversion time supports real-time monitoring applications where rapid updates are necessary.

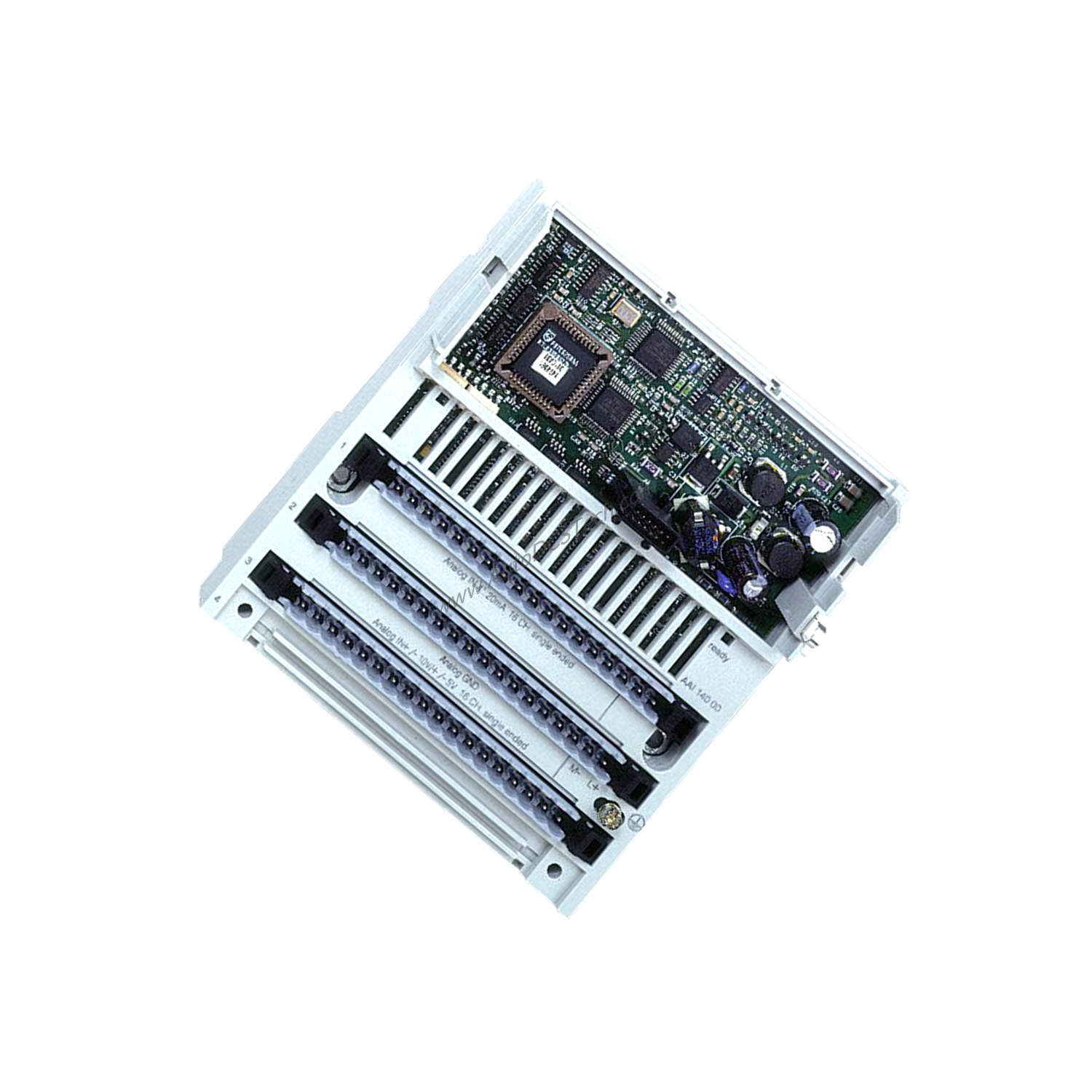

Installation & Setup Guidance
Mount the 170AAI03000 securely on a DIN rail within the Modicon Momentum backplane. Ensure proper wiring of differential signals—connect both the positive and negative leads from each sensor to the corresponding channel terminals. The internal reverse polarity protection guards against accidental miswiring, but always double-check connections before powering the system. Operate the module within the 0°C to 60°C temperature range for optimal performance.
Maintenance & Reliability
Routine inspection of connections and environmental conditions helps maintain long-term reliability. The module's 95% non-condensing humidity tolerance allows use in humid environments, but avoid exposure to condensation. No internal maintenance is required; simply verify that the module remains securely seated and that all wiring is intact. The isolation ratings protect against ground loops and transient voltages, reducing downtime.
Compatibility & Integration
The 170AAI03000 integrates seamlessly with the Modicon Momentum automation platform. It communicates with the bus via the backplane, and its data format is compatible with Momentum processors. For system expansion, combine this analog input base with other Momentum I/O modules. Always consult the Modicon Momentum system manual for specific configuration details.
Selection Guide & Purchasing Advice
Before ordering the 170AAI03000, confirm that your system uses the Modicon Momentum platform and that you require eight differential analog inputs. Verify the operating temperature range matches your facility conditions. SpareTechPLC stocks this module and can assist with availability and lifecycle status. Contact our team to ensure the 170AAI03000 meets your application needs.
Frequently Asked Questions
Q: What is the data format of the 170AAI03000?
A: The module uses a full 16-bit signed data format for accurate analog value representation.
Q: How many channels does the 170AAI03000 have?
A: It provides eight differential analog input channels.
Q: What is the conversion time of the 170AAI03000?
A: The conversion time is 12 ms per channel.
Q: Does the 170AAI03000 offer isolation between channels?
A: Yes, it provides 200V DC isolation between channels for one minute.
Q: What temperature range can the 170AAI03000 operate in?
A: The operating temperature range is 0°C to 60°C.
