## Product Overview

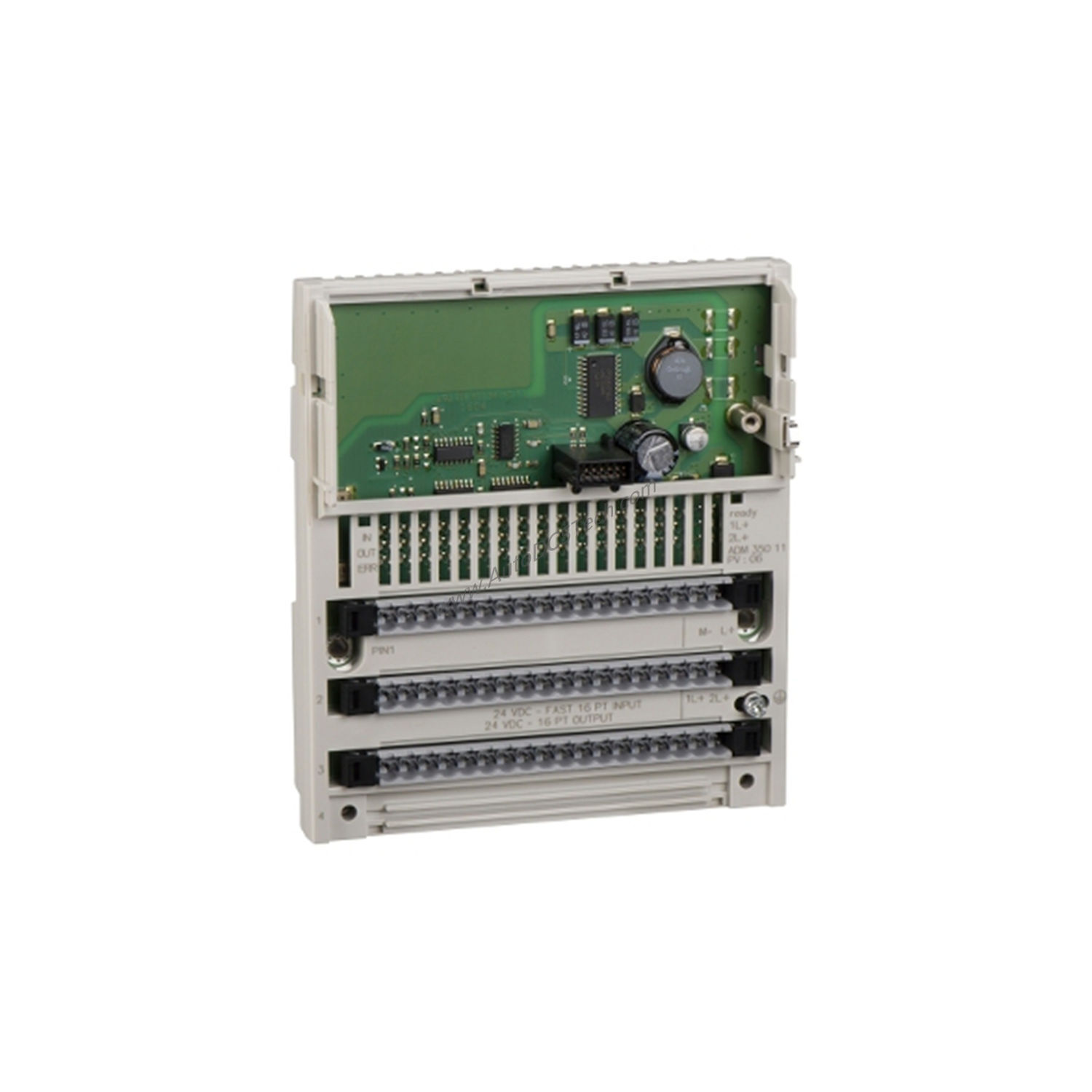

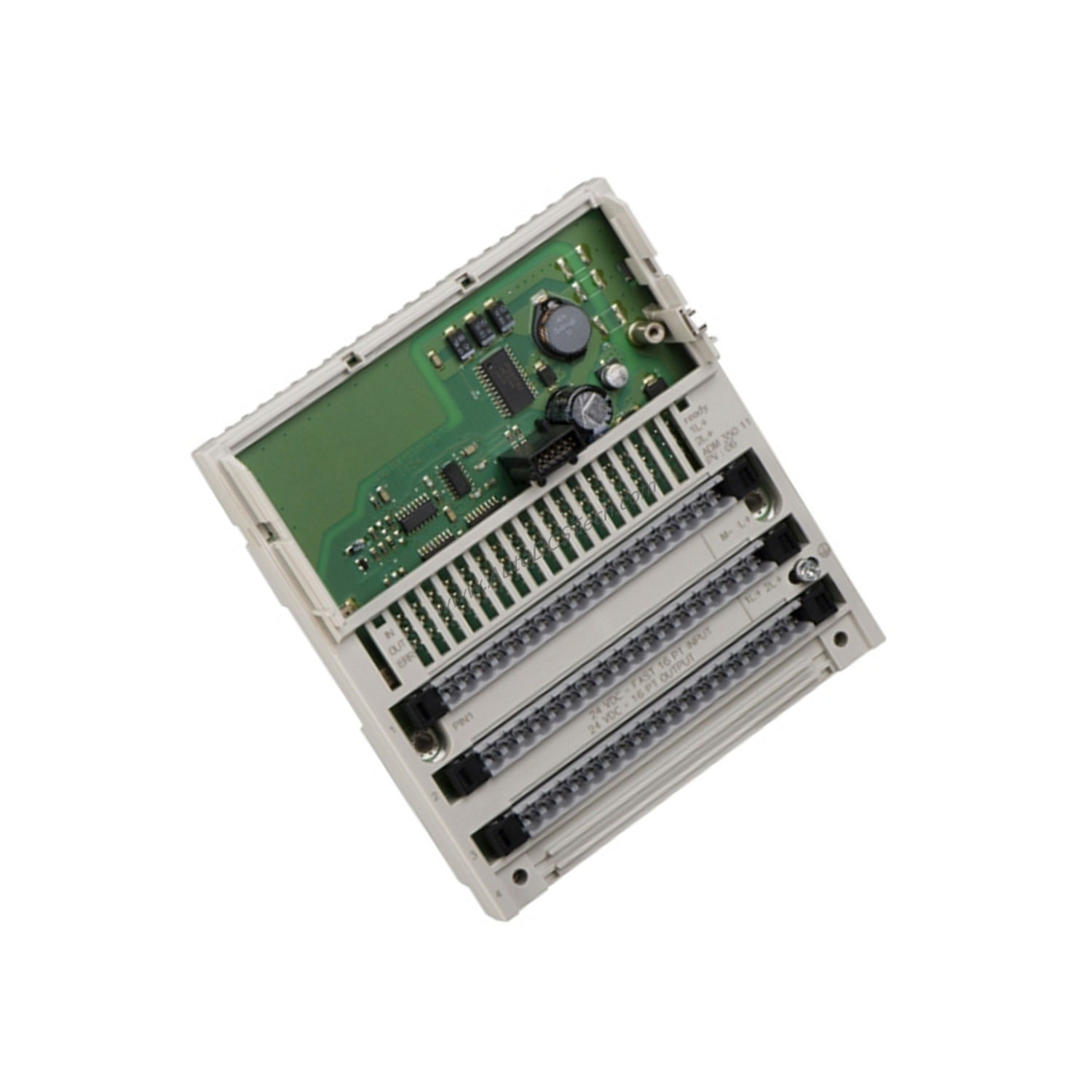

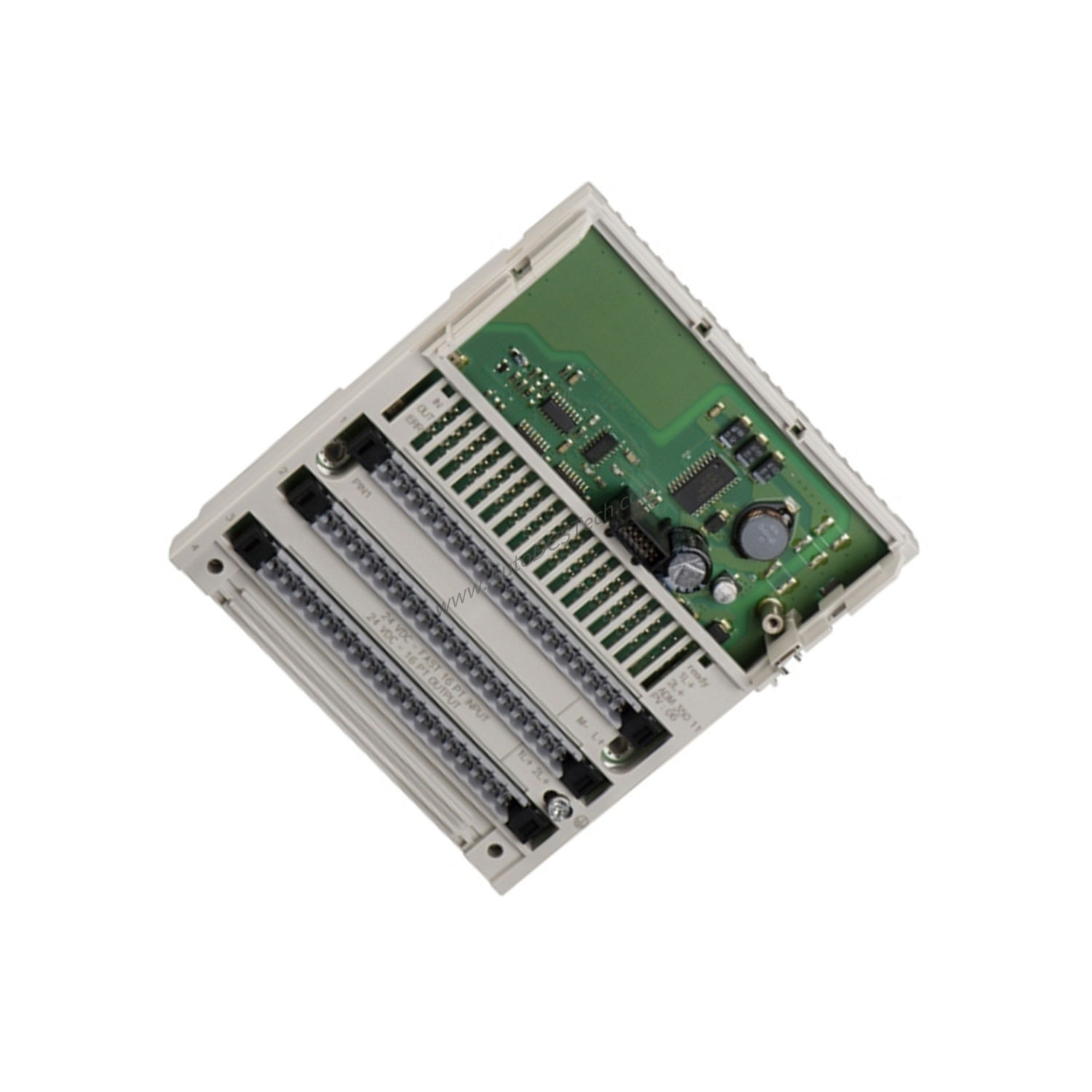

When your industrial control system requires reliable data handling, the Schneider 170ADM85010 I/O Module delivers. This Modicon Momentum series component integrates 16 input and 16 output channels, providing flexibility for monitoring and control tasks. Designed for DIN rail mounting, it fits easily into existing panel layouts.
## Technical Specifications Breakdown
The 170ADM85010 operates on a nominal 24 V DC power supply and supports a voltage range of 10-60 V DC. Each channel handles a constant current of up to 0.5 A, ensuring consistent performance. Its IP20 enclosure protection suits indoor environments, while the temperature range of -20°C to +60°C allows operation in varied conditions. The module weighs 0.45 kg and features a power factor of 0.98.7 for efficient energy use.
## Industry Applications
In manufacturing lines, the 170ADM85010 manages sensor inputs and actuator outputs, enabling precise process control. For building automation, it handles lighting and HVAC systems, ensuring reliable operation. Its wide voltage range adapts to different system voltages, reducing the need for additional converters.
## Installation & Setup Guidance
Mount the 170ADM85010 on a standard DIN rail using its integrated clip. Connect the 24 V DC power supply to the designated terminals. Wire each input and output channel according to your system diagram, ensuring correct polarity. Verify all connections before powering up to avoid damage.
## Maintenance & Reliability
Regularly inspect the module for dust accumulation, as IP20 protection does not prevent particle ingress in harsh environments. Check terminal connections for tightness during routine maintenance. The module's wide temperature tolerance reduces failure risks in unregulated enclosures, extending service life.
## Selection Guide & Purchasing Advice
Before ordering, confirm your system voltage falls within the 10-60 V DC range. Verify that your controller supports Modicon Momentum I/O modules. For current availability and lifecycle status, contact SpareTechPLC. We stock the 170ADM85010 and can advise on replacement options if needed.
## Frequently Asked Questions
**Q: What is the power supply requirement for the 170ADM85010?**
A: The module requires a nominal 24 V DC power supply, with an operating range of 10-60 V DC.
**Q: How many input and output channels does it have?**
A: It features 16 input channels and 16 output channels, each capable of 0.5 A.
**Q: Can the 170ADM85010 be mounted on a DIN rail?**
A: Yes, it is designed for DIN rail mounting, making installation straightforward.
**Q: What is the operating temperature range?**
A: The module operates from -20°C to +60°C, suitable for many industrial environments.
**Q: Is the 170ADM85010 still in production?**
A: Please verify current lifecycle status with SpareTechPLC before ordering.
