Product Overview

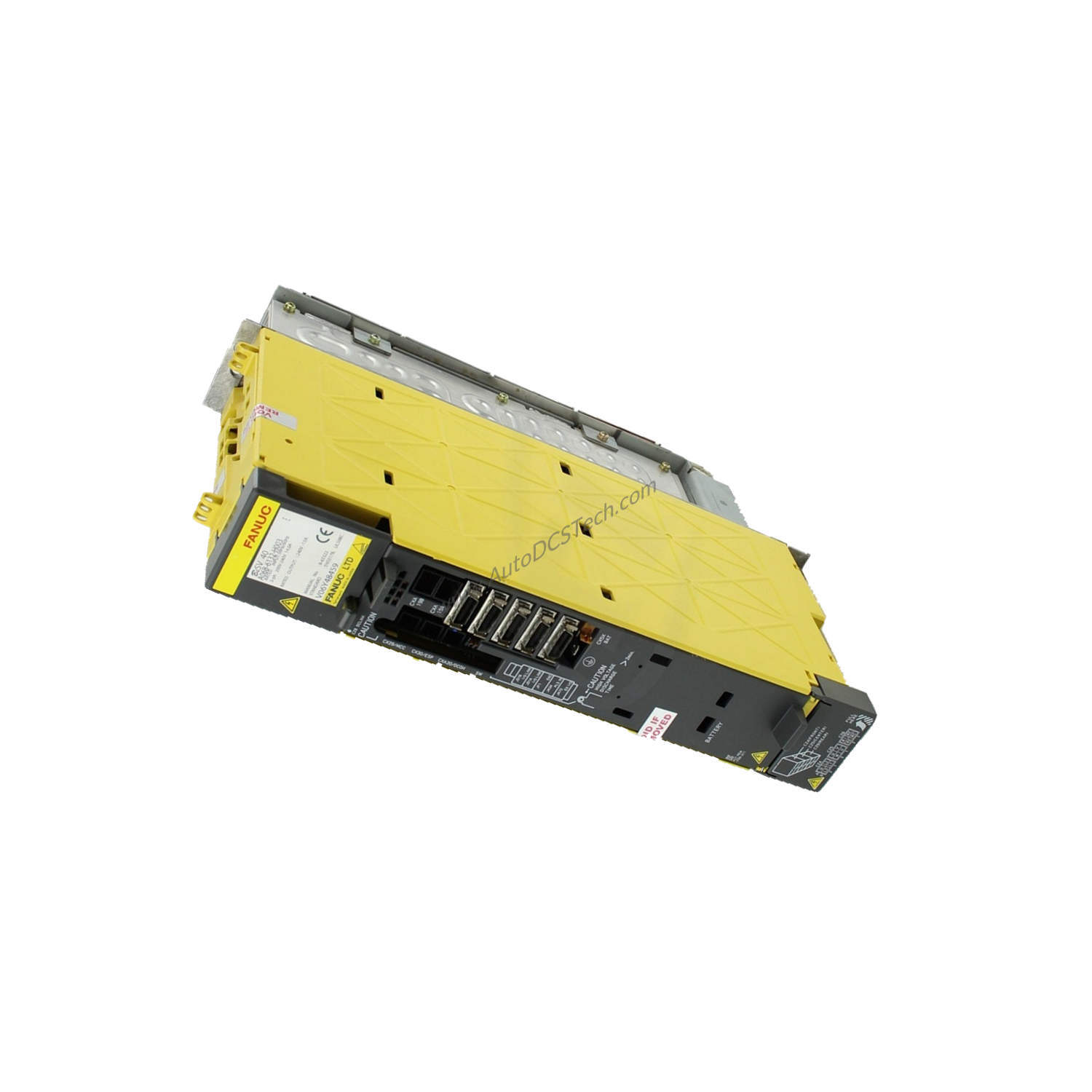

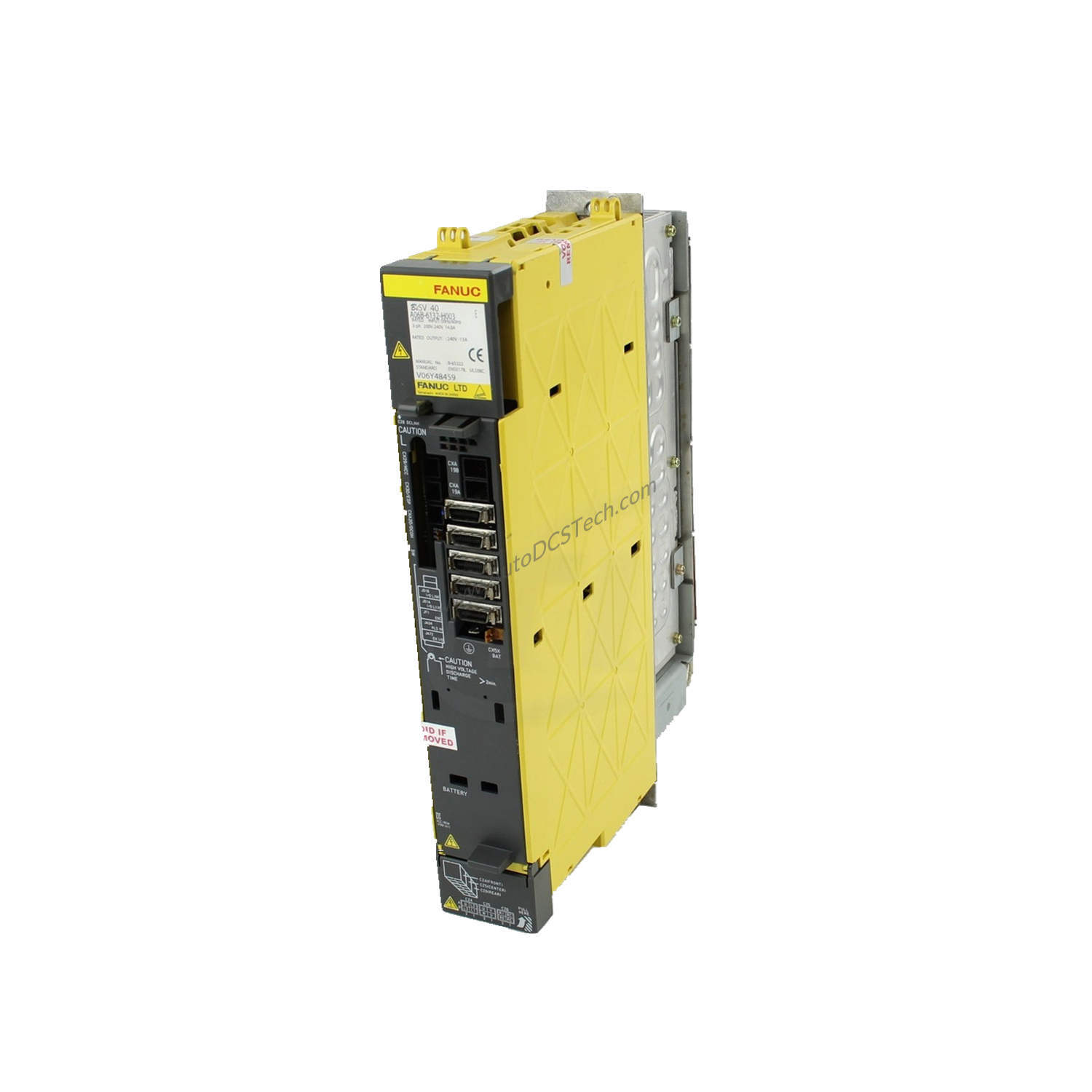

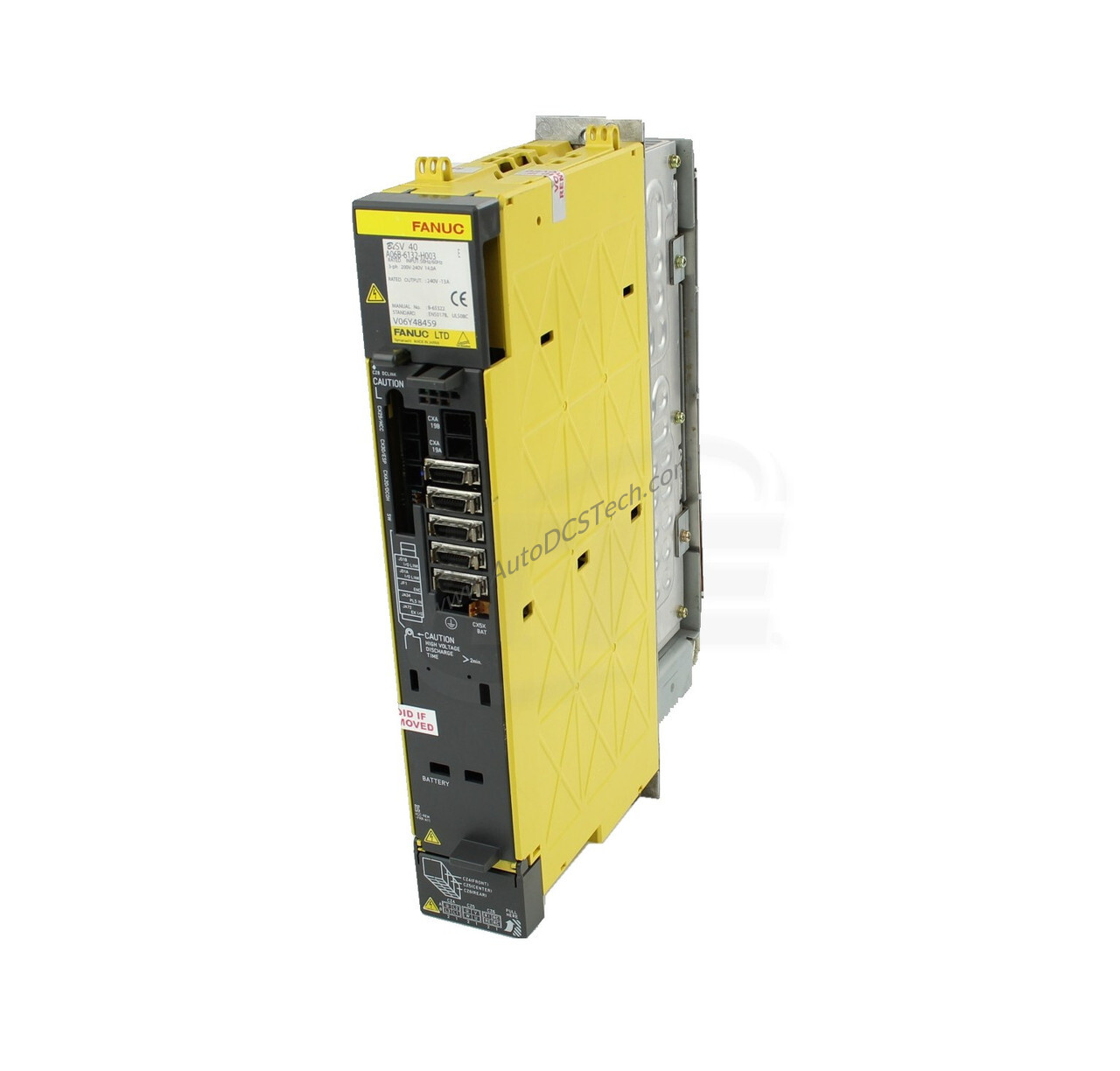

When your production line demands precise motor control, the FANUC A06B-6132-H003 servo amplifier module provides reliable performance. This module operates with a three-phase input voltage ranging from 200 to 240 VAC at 50/60 Hz. It delivers a maximum output voltage of 240 VAC and a rated output current of 13 A, making it suitable for a variety of industrial motion control tasks.
Technical Specifications
The FANUC A06B-6132-H003 is a servo amplifier module from the A06B product line. It requires a rated input current of 14.0 A and belongs to the 200 V voltage class. The module operates in ambient temperatures from 0 to 55 °C and can be stored between -20 and 60 °C. It withstands humidity levels up to 90% RH without condensation and handles operational vibrations below 0.5 G. The unit weighs 7.00 lbs (3.18 kg).
Industry Applications
This servo amplifier module excels in applications such as CNC machine tool axis control, robotic arm positioning, and automated assembly line indexing. Its 13 A rated output current supports medium-torque servo motors, while the 240 VAC output ensures consistent power delivery. The wide input voltage tolerance (200–240 VAC) allows integration into global manufacturing facilities with varying mains supplies.
Installation & Setup Guidance
Mount the A06B-6132-H003 in a clean, dry cabinet with adequate airflow to maintain the 0–55 °C operating range. Ensure the three-phase input supply matches the rated voltage and frequency. Use appropriately sized conductors for the 14.0 A input current and verify that the motor load does not exceed the 13 A rated output. Follow all local electrical codes and the manufacturer's wiring diagram.
Maintenance & Reliability
Regularly inspect the module for dust accumulation, loose connections, and signs of overheating. Keep ambient humidity below 90% RH to prevent condensation. Check that operational vibration remains below 0.5 G to avoid mechanical stress. Periodic testing of output current and voltage ensures the module continues to meet the 13 A and 240 VAC specifications.
Selection Guide & Purchasing Advice
Before purchasing the FANUC A06B-6132-H003, verify that your servo motor's voltage and current requirements align with the module's 240 VAC max output and 13 A rating. Confirm the three-phase input supply is 200–240 VAC at 50/60 Hz. SpareTechPLC stocks this servo amplifier module and can assist with availability and compatibility questions.
Frequently Asked Questions
Q: What is the maximum output voltage of the A06B-6132-H003?
A: The maximum output voltage is 240 VAC.
Q: What is the rated output current?
A: The rated output current is 13 A.
Q: What input voltage and frequency does this module require?
A: It requires a three-phase input of 200 to 240 VAC at 50/60 Hz.
Q: What is the operating temperature range?
A: The ambient operational temperature range is 0 to 55 °C.
Q: How much does the A06B-6132-H003 weigh?
A: It weighs 7.00 lbs (3.18 kg).
