Why Precision Vibration Sensing Matters

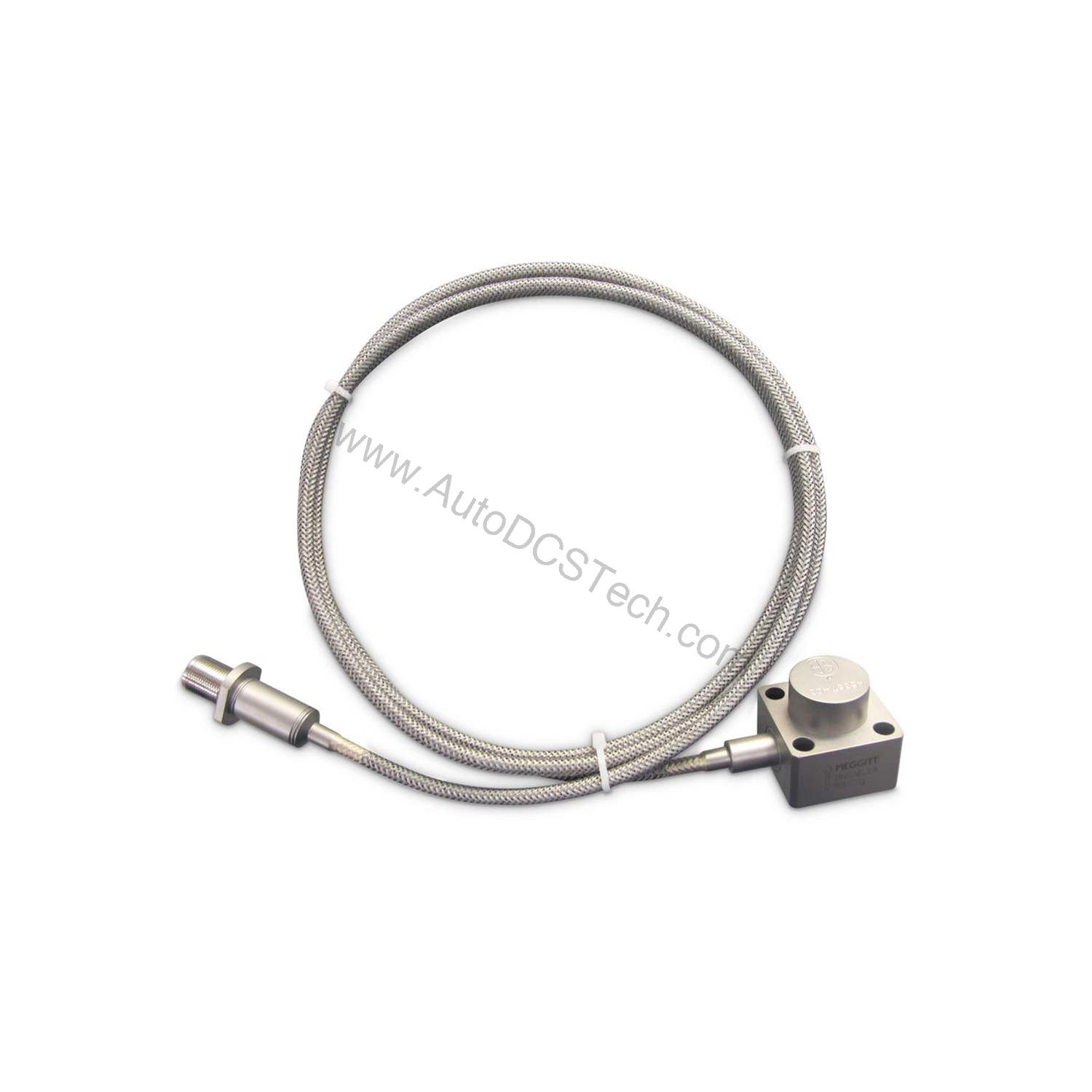

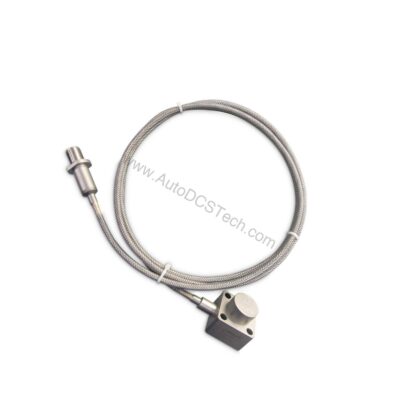

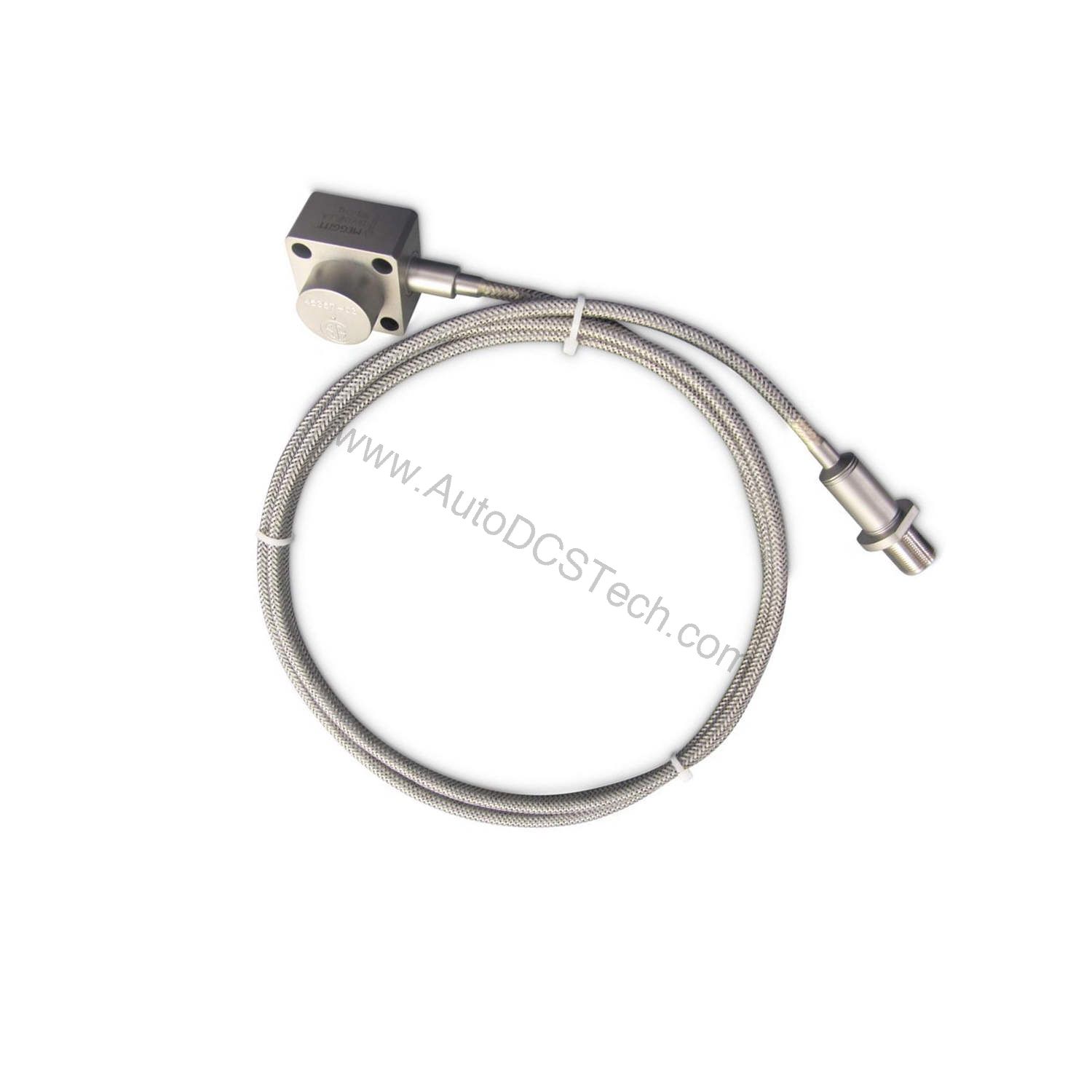

When rotating machinery begins to fail, the first warning often appears as vibration. The 45357-01 from Bently Nevada captures these subtle signals with exceptional accuracy. This accelerometer converts mechanical motion into a charge output that monitoring systems can interpret. Engineers rely on such data to detect imbalance, misalignment, and bearing wear before catastrophic failure occurs.
With a sensitivity of 50 pC/g ±5%, the 45357-01 provides consistent, repeatable measurements. This level of precision supports predictive maintenance programs that reduce unplanned downtime. Consequently, plants can schedule repairs during planned outages instead of reacting to emergencies.
Key Features and Technical Specifications
The 45357-01 is engineered for demanding industrial environments. Its robust construction ensures long-term reliability. Below are the core specifications extracted from the official datasheet:
- Sensitivity: 50 pC/g ±5% – ensures accurate vibration amplitude measurement.
- Mounting: 4 holes at the corners of a square with 1.188 inch (30.17 mm) sides – provides secure attachment to machinery surfaces.
- Connector: MS3100R-10SL-4P – a rugged, industry-standard connector for reliable signal transmission.
- Weight: 15 ounces (425 grams) nominal – lightweight yet sturdy for permanent installation.
These specifications make the 45357-01 suitable for a wide range of vibration monitoring applications. The sensitivity tolerance of ±5% ensures that measurements remain within acceptable bounds for diagnostic analysis. Additionally, the mounting pattern accommodates standard bolt sizes of 0.25 inch or 6 mm, simplifying installation on existing equipment.
Real-World Applications
In petrochemical plants, the 45357-01 monitors pumps and compressors that operate continuously. Similarly, power generation facilities use it to track turbine vibrations. Moreover, manufacturing lines benefit from its ability to detect early signs of tool wear or spindle imbalance. Because the accelerometer outputs a charge signal, it pairs well with Bently Nevada monitoring systems that accept such inputs. This compatibility allows seamless integration into existing condition monitoring architectures.
Furthermore, the 45357-01 proves valuable in harsh environments where dust, moisture, or temperature extremes are common. Its sealed connector and robust housing protect the internal sensing element. Therefore, maintenance teams can rely on consistent performance over extended periods.
Installation and Mounting Guidelines
Proper installation is critical to obtaining accurate vibration data. The 45357-01 features four mounting holes arranged in a square pattern with 1.188 inch (30.17 mm) sides. Use 0.25 inch or 6 mm bolts to secure the accelerometer firmly to the machine surface. Ensure the mounting surface is clean and flat to maximize contact area. A torque wrench should be used to achieve the recommended bolt torque, as specified in the Bently Nevada installation manual.
Additionally, route the cable away from high-traffic areas to prevent accidental damage. The MS3100R-10SL-4P connector provides a secure, moisture-resistant connection. After installation, verify that the accelerometer is oriented correctly according to the measurement axis. Finally, perform a baseline measurement to confirm that the sensor is functioning properly.
Maintenance and Reliability
Regular inspection of the 45357-01 ensures long-term accuracy. Periodically check the mounting bolts for loosening due to vibration. Also, inspect the connector and cable for signs of wear or corrosion. Because the accelerometer has no moving parts, its maintenance requirements are minimal. However, environmental factors such as excessive heat or chemical exposure can degrade the cable insulation over time. Therefore, include the sensor in routine visual inspections.
By following a simple maintenance schedule, you can extend the service life of the 45357-01. This proactive approach reduces the risk of unexpected sensor failure, which could leave machinery unmonitored. Ultimately, reliable vibration data translates into better asset protection and lower maintenance costs.
Troubleshooting Common Issues
If the 45357-01 produces erratic readings, first check the cable connection. A loose or damaged connector can cause signal interruptions. Additionally, verify that the mounting bolts are tight, as a loose sensor will generate false vibrations. If the output signal is absent, test the sensor with a known-good cable and monitoring channel. Should the problem persist, consult the Bently Nevada troubleshooting guide or contact AutoDCSTech for technical support.
Another common issue is incorrect sensitivity settings in the monitoring system. Ensure that the system is configured for 50 pC/g to match the sensor's output. Mismatched settings can lead to inaccurate amplitude readings. By addressing these potential issues, you can maintain reliable vibration monitoring.
Product Support and Availability
The 45357-01 is available through AutoDCSTech, a trusted supplier of industrial automation parts. We maintain a ready inventory to support your maintenance and upgrade needs. Contact our team for pricing and lead time information. Please verify the current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 45357-01 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
