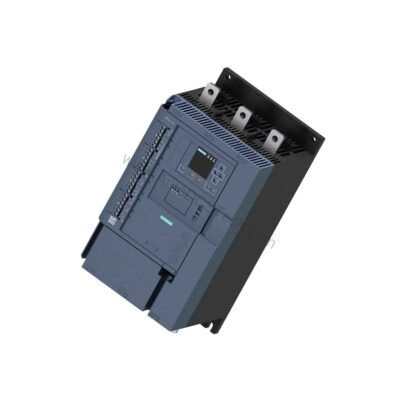

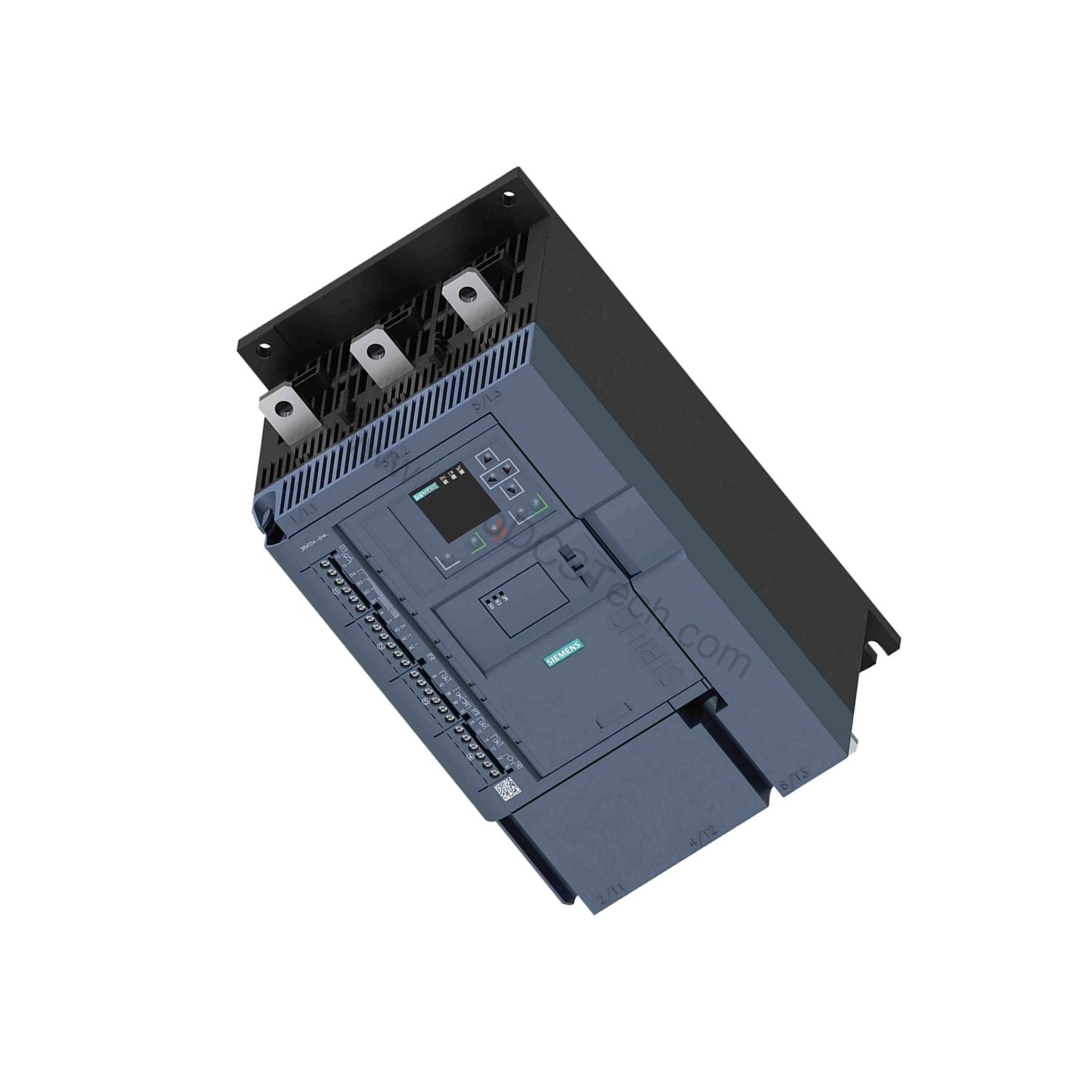

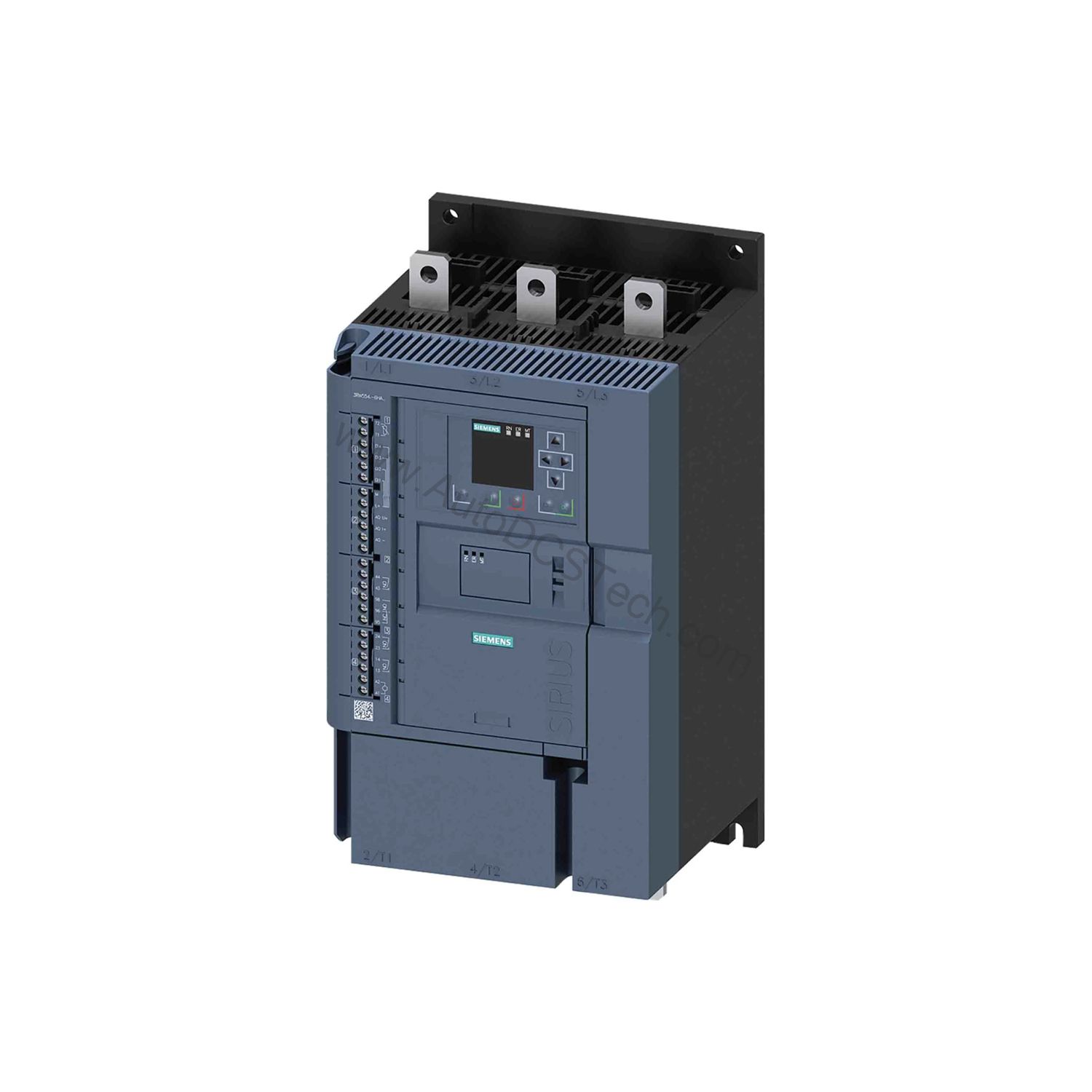

3RW5547-6HA14 470A 200-480V Soft Starter

Solving High-Inertia Start Challenges with the 3RW5547-6HA14

When a 250 kW motor driving a high-inertia load demands a smooth, controlled start, the 3RW5547-6HA14 from Siemens delivers. This SIRIUS soft starter, rated for 470 A at 40 °C, handles operating voltages from 200 to 480 V AC. Its adjustable current limiting from 125% to 800% of rated current lets you tame inrush spikes, protecting both motor and driven equipment. For engineers facing frequent tripping or mechanical stress during startup, this unit provides a robust solution.

Key Features & Technical Specifications

• Rated operational current: 470 A at 40 °C, 416 A at 50 °C, 380 A at 60 °C.
• Inside-delta circuit rating: 814 A at 40 °C, 721 A at 50 °C, 658 A at 60 °C.
• Operating voltage: 200–480 V AC with ±10% tolerance.
• Control supply voltage: 110–250 V AC at 50/60 Hz.
• Adjustable start ramp time: 0–360 s; stop ramp time: 0–360 s.
• Torque control: start torque 10–100%, stop torque 10–100%, torque limitation 20–200%.
• Integrated bypass contact system for reduced power loss after start.
• Electronic motor overload protection with thermistor evaluation (PTC/Klixon).
• 4 digital inputs (parameterizable), 4 digital outputs (3 NO + 1 CO), 1 analog output (4–20 mA or 0–10 V).
• Communication modules supported: PROFINET, EtherNet/IP, Modbus RTU/TCP, PROFIBUS.
• Degree of protection: IP00 front, IP20 with cover.
• Approvals: CE, UL, CSA, ATEX, IECEx.

Real-World Applications

This soft starter suits conveyors, pumps, fans, and compressors where controlled acceleration extends equipment life. For example, in a pumping station, the 3RW5547-6HA14 prevents water hammer by gradually ramping down. Its pump ramp-down function and DC braking capability make it versatile across industries. Moreover, the adjustable current limitation protects motors during heavy starting conditions, reducing mechanical wear.

Installation & Setup

Mount the unit vertically, though it can be rotated ±90° and tilted ±22.5°. Use screw fixing; maintain clearances: 10 mm forward, 100 mm upward, 75 mm downward, 5 mm sideways. Main circuit connections use busbars (max 45 mm width) or DIN cable lugs for conductors 2x (50–240 mm²). Control circuit terminals accept solid wires 1x (0.5–4.0 mm²) or 2x (0.5–2.5 mm²). Tighten main terminals to 14–24 N·m and control terminals to 0.8–1.2 N·m. For thermistor connections, keep wire length under 250 m for 2.5 mm² cross-section.

Maintenance & Reliability

With an integrated bypass, the 3RW5547-6HA14 minimizes heat generation after start, extending component life. The unit offers condition monitoring and an event logbook for proactive diagnostics. Regularly inspect the unit per the manufacturer's manual, especially the cooling paths and terminal tightness. The device's shock resistance of 15 g / 11 ms and vibration resistance up to 2 g at 500 Hz ensure durability in harsh environments.

Compatibility & Integration

The soft starter supports multiple industrial networks via optional communication modules, including PROFINET, EtherNet/IP, Modbus RTU/TCP, and PROFIBUS. This flexibility allows seamless integration into existing automation architectures. The analog output (4–20 mA or 0–10 V) provides real-time current or torque feedback for monitoring systems.

Troubleshooting & Common Issues

If the motor fails to start, check the control supply voltage (110–250 V AC) and the current limiting setting. Overload trips can be reset manually or remotely; recovery time is adjustable from 60 to 1800 s. For ground faults, the unit monitors leakage from 10% to 95%. In case of communication issues, verify the module is properly seated and the network settings match. Always consult the Siemens manual for detailed diagnostics.

Product Support & Availability

The 3RW5547-6HA14 is available from AutoDCSTech. Contact us for current stock and lead times. Our team can assist with selection and integration guidance.
