3RW4457-6BC44 880A Soft Starter 200-460VAC

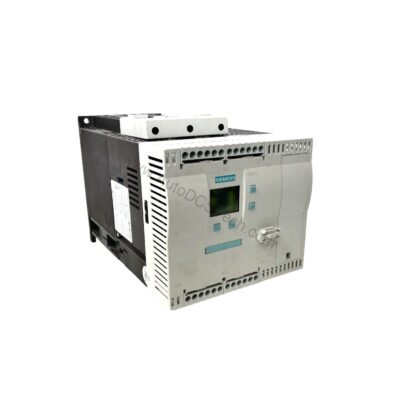

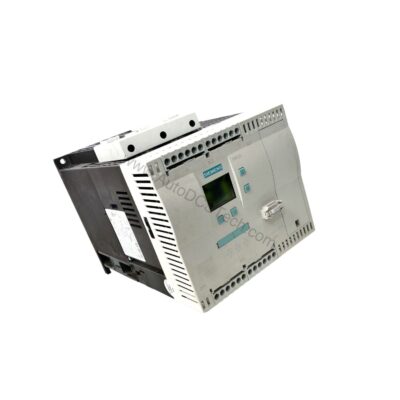

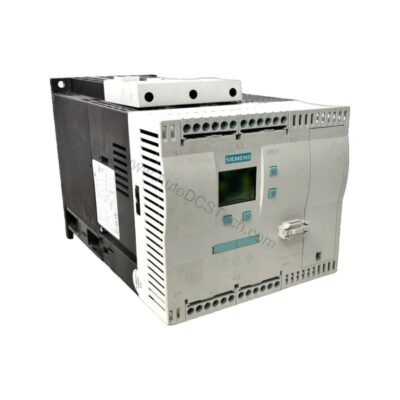

Introduction: The Siemens 3RW4457-6BC44 Soft Starter

When a 500 kW motor at 400 V demands a controlled start, the 3RW4457-6BC44 soft starter from Siemens SIRIUS series provides a reliable solution. This unit is designed for three-phase motors in standard and inside-delta circuits, offering robust performance in demanding industrial environments.

However, note that this product is phased out. The preferred successor is the SIRIUS 3RW5, specifically type 3RW5556-6HA14. Before ordering, confirm current lifecycle status and availability with AutoDCSTech.

Key Features and Technical Specifications

The 3RW4457-6BC44 is a soft starter with an integrated bypass contact system and thyristors. It includes intrinsic device protection, motor overload protection, thermistor motor protection evaluation, external reset, adjustable current limitation, and inside-delta circuit support. A motor brake output is also included.

• Rated operational current at 40 °C: 880 A (standard circuit), 1524 A (inside-delta)
• Operational current at 50 °C: 780 A (standard), 1351 A (inside-delta)
• Operational current at 60 °C: 693 A (standard), 1200 A (inside-delta)
• Rated insulation voltage: 690 V
• Degree of pollution: 3 acc. to IEC 60947-4-2
• Operating voltage: 200-460 V AC (standard and inside-delta)
• Operating frequency: 50-60 Hz
• Minimum load: 8%
• Adjustable motor current for overload protection: min. 176 A
• Continuous operating current at 40 °C: 115% of Ie
• Power loss at 40 °C: 250 W typical

These specs make the 3RW4457-6BC44 suitable for high-power applications where controlled acceleration and deceleration are critical.

Applications and Use Cases

This soft starter is ideal for conveyors, pumps, fans, and compressors where inrush current reduction and torque control are essential. In a typical scenario, a 500 kW pump at 400 V benefits from the 3RW4457-6BC44 to avoid mechanical stress and hydraulic shock during startup. Additionally, the inside-delta circuit configuration allows for even higher power handling, up to 900 kW at 400 V, making it a versatile choice for large industrial motors.

Installation and Mounting

Mounting is straightforward with screw fixing. The unit can be rotated ±90° on a vertical surface and tilted ±22.5° forward/backward. Maintain required clearances: 100 mm above, 5 mm at the sides, and 75 mm below. The maximum wire length is 500 m, and the main circuit uses busbar connections, while auxiliary/control circuits use screw terminals.

Connectable conductor cross-sections for main contacts range from 50 to 240 mm² (finely stranded) or 70 to 240 mm² (stranded). For auxiliary contacts, solid conductors up to 2x 2.5 mm² are supported.

Maintenance and Reliability

Regular inspection is essential to ensure long-term reliability. Check for dust accumulation and verify that all connections remain tight. The unit is designed for an ambient temperature up to 60 °C during operation, with derating starting at 40 °C. The protection class is IP00 on the front, so proper enclosure installation is recommended. Follow the manufacturer's manual for detailed maintenance procedures.

Compatibility and Integration

The 3RW4457-6BC44 operates with a control supply voltage of 230 V AC at 50 or 60 Hz. It includes 3 NO contacts and 1 CO contact for auxiliary signaling. The integrated bypass contact system reduces power loss during continuous operation, enhancing overall system efficiency.

Troubleshooting and Common Issues

If the motor fails to start, check the control supply voltage and ensure it is within the ±15% tolerance. Verify that the motor current setting is above the minimum adjustable value of 176 A. Overload conditions may trigger the internal protection; reset externally if equipped. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech.

Product Support and Availability

The 3RW4457-6BC44 is available through AutoDCSTech. Since it is phased out, verify stock and lifecycle status before ordering. Contact AutoDCSTech for pricing and lead times.
