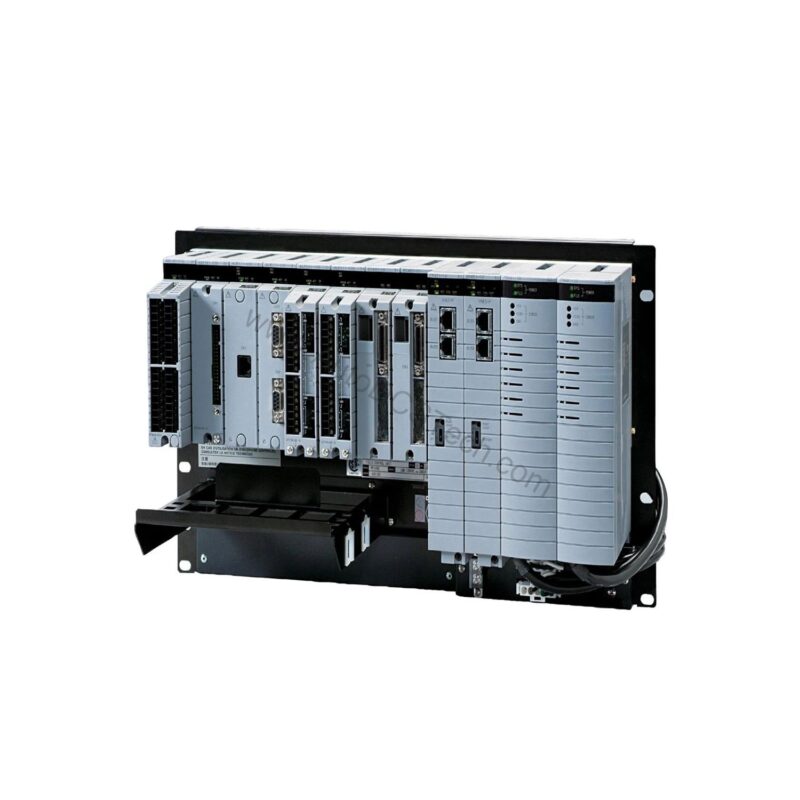

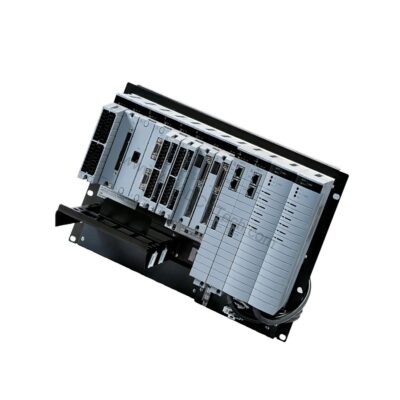

AGP813-S10: Turbomachinery I/O Module
The AGP813-S10 is the Turbomachinery I/O Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 4 channels high-speed, 6 channels basic (isolated).
This configuration's turbomachinery i/o module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. turbomachinery i/o module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 4 channels high-speed, 6 channels basic (isolated) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | AGP813-S10 |
| Product Type | Turbomachinery I/O Module |
| Model | AGS813 High Speed Protection Module (Isolated) |
| Voltage Inputs | 4 channels high-speed, 6 channels basic (isolated) |
| Input Signal | 1 to 5 V DC |
| Digital Inputs | 4 channels high-speed, 8 channels basic (isolated) |
| Rated Input Voltage | 24 V DC (sink) |
| Digital Outputs | 4 channels high-speed, 8 channels basic (isolated), current sinking |
| Maximum Load | 100 mA/channel at 30 V DC |
| Scan Cycle | 5 ms high-speed, 10 ms basic |
| Withstanding Voltage | 500 V AC for 1 minute |
Availability & Condition at AutoDCSTech
| Part Number | AGP813-S10 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
