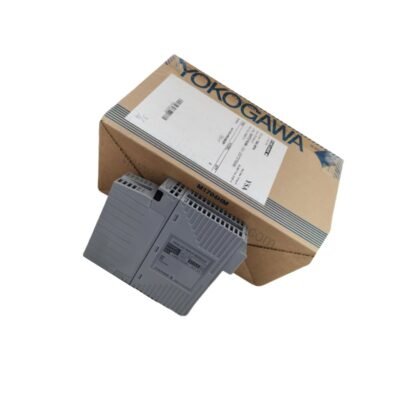

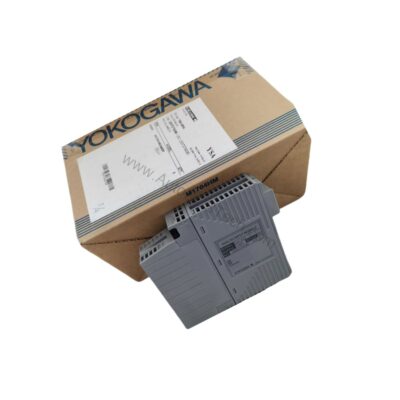

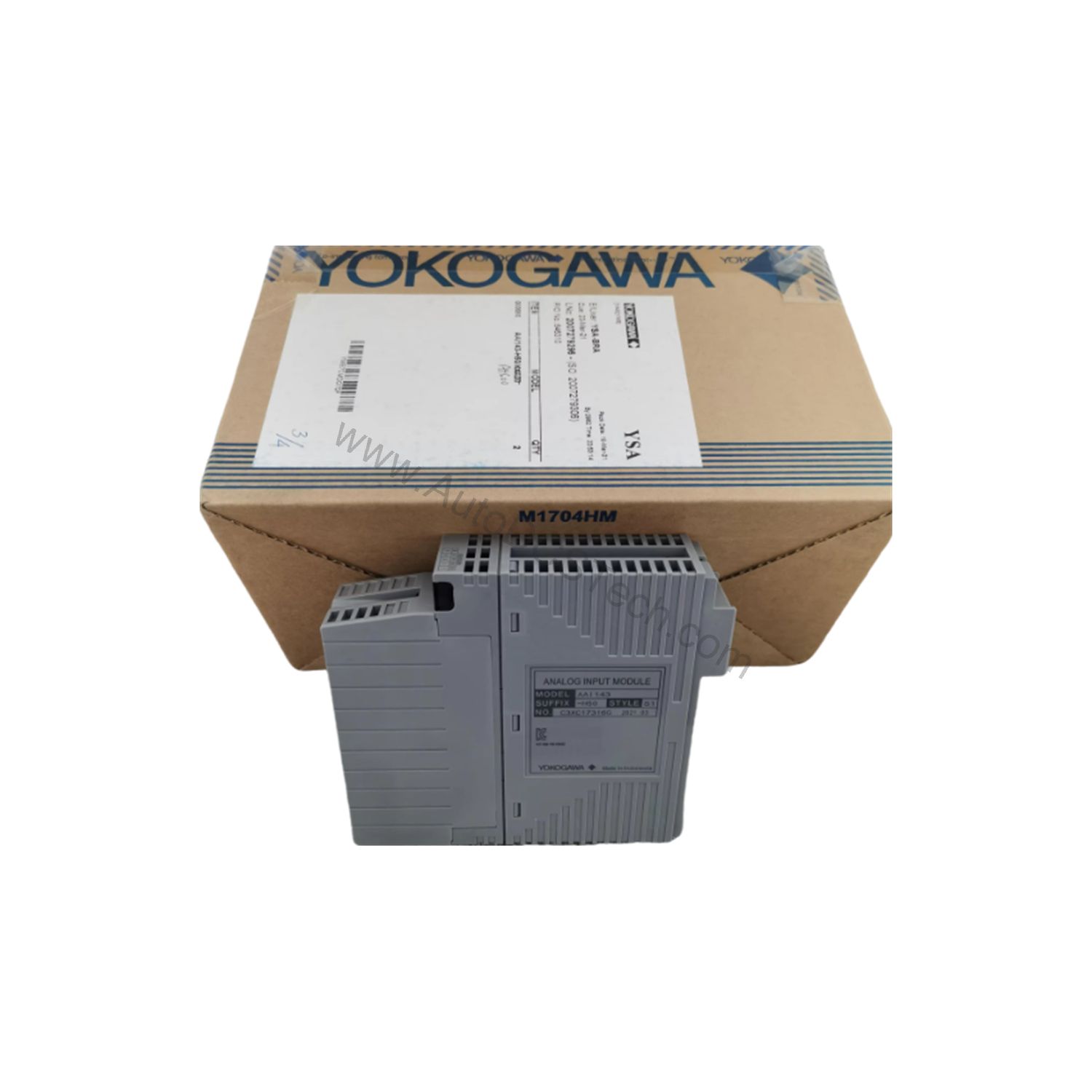

AAI543-H50/K4A00 Analog Output Module Overview
When your process demands precise analog output and reliable redundant operation, the AAI543-H50/K4A00 from Yokogawa is engineered to deliver. This 16-channel isolated analog output module provides 4-20 mA signals with HART digital communication, making it an ideal choice for demanding industrial applications.
Part of the Yokogawa AAI series, the AAI543-H50/K4A00 combines high channel density with robust isolation and fast update rates. Its standard switch-over response in redundant configurations ensures minimal process disruption, while the integrated KS cable interface adapter simplifies connection to AEA4D terminal boards.
Key Features and Technical Specifications
The AAI543-H50/K4A00 is built for precision and reliability. Below are its core specifications:
- Output Channels: 16 isolated channels with standard switch-over response in redundant configuration.
- Output Signal: 4 to 20 mA analog output.
- HART Communication: Available for digital process data overlay.
- Withstanding Voltage: 1500 V AC between output and system for 1 minute.
- Allowable Load Resistance: 0 to 750 Ω.
- Circuit-Open Detection: Less than 0.65 mA.
- Accuracy: ±48 µA.
- Data Update Period: 10 ms.
- Drift Due to Ambient Temperature Change: ±16 µA/10 °C.
- Maximum Current Consumption: 230 mA at 5 V DC, 540 mA at 24 V DC.
- External Communication: Pressure clamp terminal, MIL connector cable, dedicated cable (KS1).
- Weight: 0.4 kg.
The standout feature is the 16 isolated channels with a fast 10 ms update period. This ensures that even in multi-loop applications, each output remains independent and responsive, reducing cross-channel interference and improving overall control stability.
Applications and Use Cases
The AAI543-H50/K4A00 is well-suited for continuous process industries such as oil and gas, chemical, and power generation. Its isolated outputs and HART capability make it ideal for driving final control elements like valve positioners and variable frequency drives, where precise current signals are critical.
Furthermore, the redundant configuration with standard switch-over response ensures high availability in critical loops. For example, in a boiler control system, if one module fails, the backup takes over seamlessly, preventing costly downtime.
Installation and Setup
When installing the AAI543-H50/K4A00, ensure proper mounting in the designated Yokogawa I/O rack. The module comes with a KS cable interface adapter (model ATK4A-00) for connecting to the AEA4D terminal board, simplifying wiring.
Use the specified external communication options—pressure clamp terminal, MIL connector cable, or dedicated KS1 cable—to ensure secure signal integrity. Always follow the manufacturer's manual for exact wiring and configuration steps.
Maintenance and Reliability
To maintain long-term reliability, periodically inspect the module for signs of dust accumulation or loose connections. The AAI543-H50/K4A00 is designed for industrial environments, but routine checks of the terminal connections and cable integrity can prevent intermittent faults.
Given its redundant configuration capability, regular testing of switch-over functionality is recommended to ensure failover operates correctly. Refer to the official Yokogawa documentation for detailed maintenance intervals.
Troubleshooting and Common Issues
If an output channel fails, the circuit-open detection feature (less than 0.65 mA) can help identify a broken loop. Check the load resistance; it must be within 0 to 750 Ω for proper operation.
For communication errors, verify the HART connection and ensure the cable is properly shielded. If issues persist, consult the Yokogawa manual or contact AutoDCSTech for technical support.
Compatibility and Integration
The AAI543-H50/K4A00 integrates seamlessly with Yokogawa distributed control systems (DCS) and is compatible with the AEA4D terminal board via the included KS adapter. HART protocol enables digital communication with smart field devices.
Its standard switch-over response makes it suitable for redundant I/O configurations, ensuring high system availability.
Product Support and Availability
AutoDCSTech stocks the AAI543-H50/K4A00 and can provide expert guidance on integration and configuration. Contact our team to verify current availability and lifecycle status before ordering.
