Product Overview

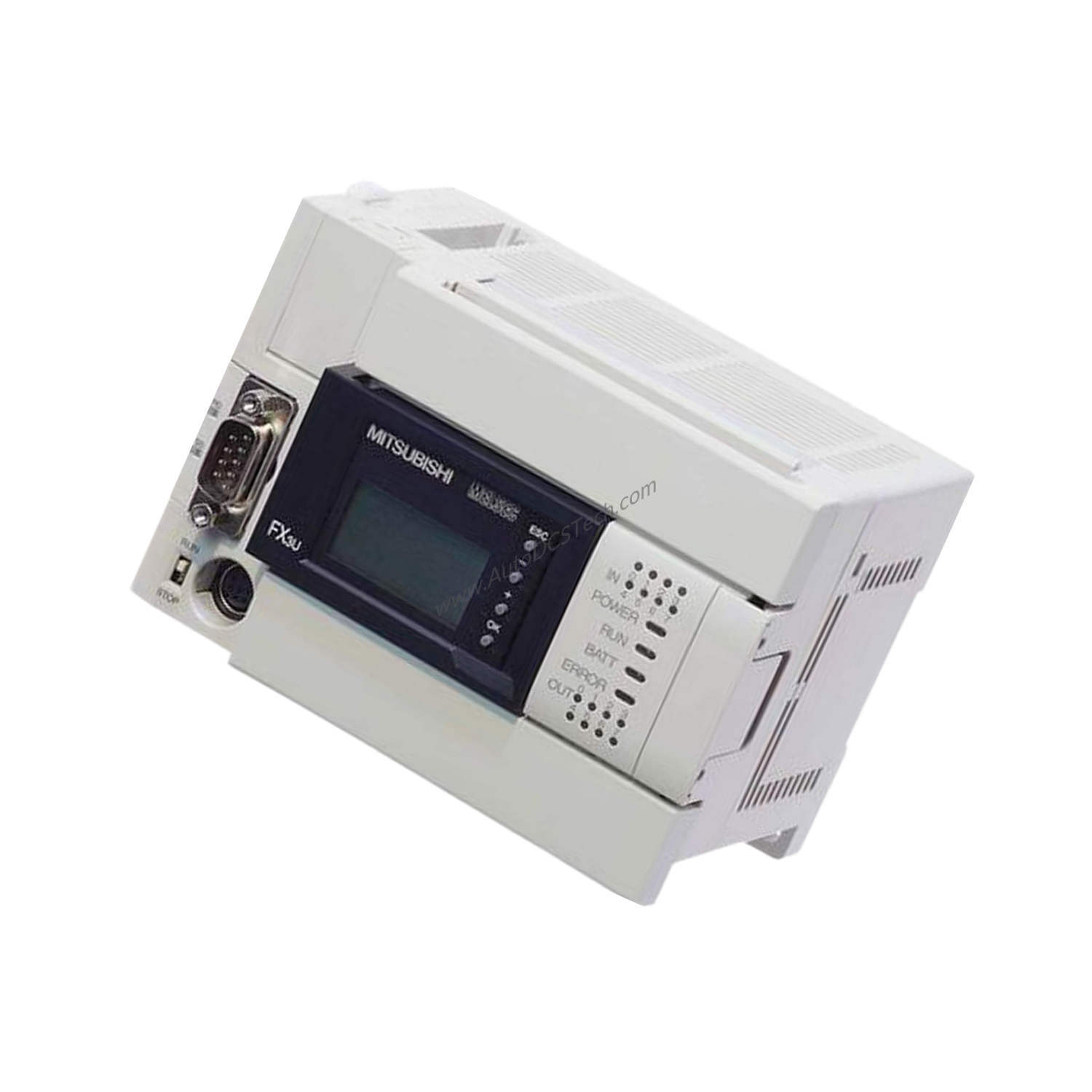

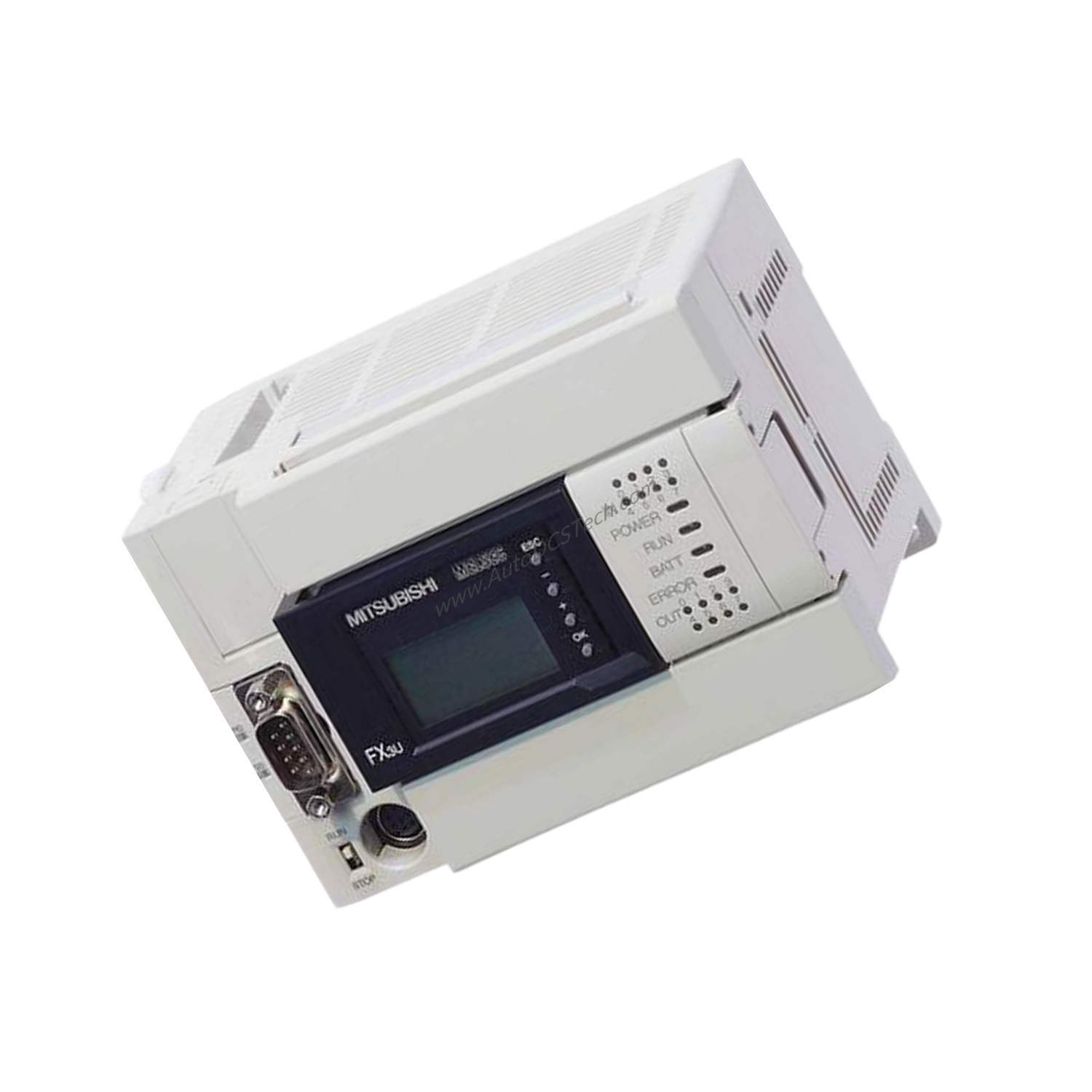

When a production line requires precise, high-speed control of multiple actuators and sensors, the Mitsubishi FX3U-32MT-ES-A delivers a robust solution. This FX3U base unit integrates 16 DC 24 V digital inputs and 16 transistor outputs with sink logic, all powered by a universal AC 100-240 V supply. Part of the MELSEC-F series, it is designed for applications where space is limited but performance cannot be compromised.
Technical Specifications Breakdown
The FX3U-32MT-ES-A offers a program memory of 64K steps, stored in RAM, enabling complex control sequences. Its integrated digital I/O includes 16 inputs and 16 outputs, with a total local I/O capacity of 256 points and up to 384 points when combined with remote I/O. The unit supports expansion for future scalability. Key performance metrics include a cycle time of 65 ns for LD instructions and 642 ns for MOV instructions, ensuring fast logic execution. Power consumption is 35 W, and the unit includes a buffer battery to retain program data. The protection class is IP10, suitable for indoor industrial environments.
Industry Applications
In packaging machinery, the FX3U-32MT-ES-A controls conveyor belts, sensors, and actuator sequences with its 16 transistor outputs, providing reliable on/off control. Its 16 DC 24 V inputs interface directly with proximity sensors and limit switches. The compact dimensions (150 mm width, 90 mm height, 86 mm depth) allow easy integration into control cabinets. Another common use is in material handling systems, where the expandable I/O accommodates additional remote modules as the system grows.
Installation & Setup Guidance
Mount the FX3U-32MT-ES-A on a DIN rail or directly onto a panel using the provided slots. Ensure adequate ventilation around the unit, as the ambient temperature range is 0 °C to 55 °C. Connect the AC power supply (100-240 V) to the designated terminals. Wire the DC 24 V inputs according to the sink logic configuration, and connect the transistor outputs to the load devices. Use shielded cables for RS-422 communication to minimize noise. Verify all connections before powering on.
Maintenance & Reliability
Regularly inspect the unit for dust accumulation and ensure the ambient temperature stays within the specified 0 °C to 55 °C range. The buffer battery should be checked periodically and replaced as needed to prevent program loss. With a weight of 0.65 kg, the unit is lightweight and easy to service. Following the manufacturer's guidelines for periodic inspection helps maintain long-term reliability.
Compatibility & Integration
The FX3U-32MT-ES-A integrates seamlessly with other MELSEC-F series expansion modules and remote I/O units. It features one RS-422 port for programming and communication with HMIs or other controllers. The unit supports up to 384 total I/O points when combined with remote modules, making it suitable for medium-scale automation systems.
Selection Guide & Purchasing Advice
Before purchasing, verify that your application requires 16 DC 24 V inputs and 16 transistor outputs with sink logic. Confirm the AC power supply voltage matches your facility (100-240 V). If you need additional I/O, ensure the system can be expanded. SpareTechPLC offers the FX3U-32MT-ES-A with reliable availability and support for your automation needs.
