Product Overview

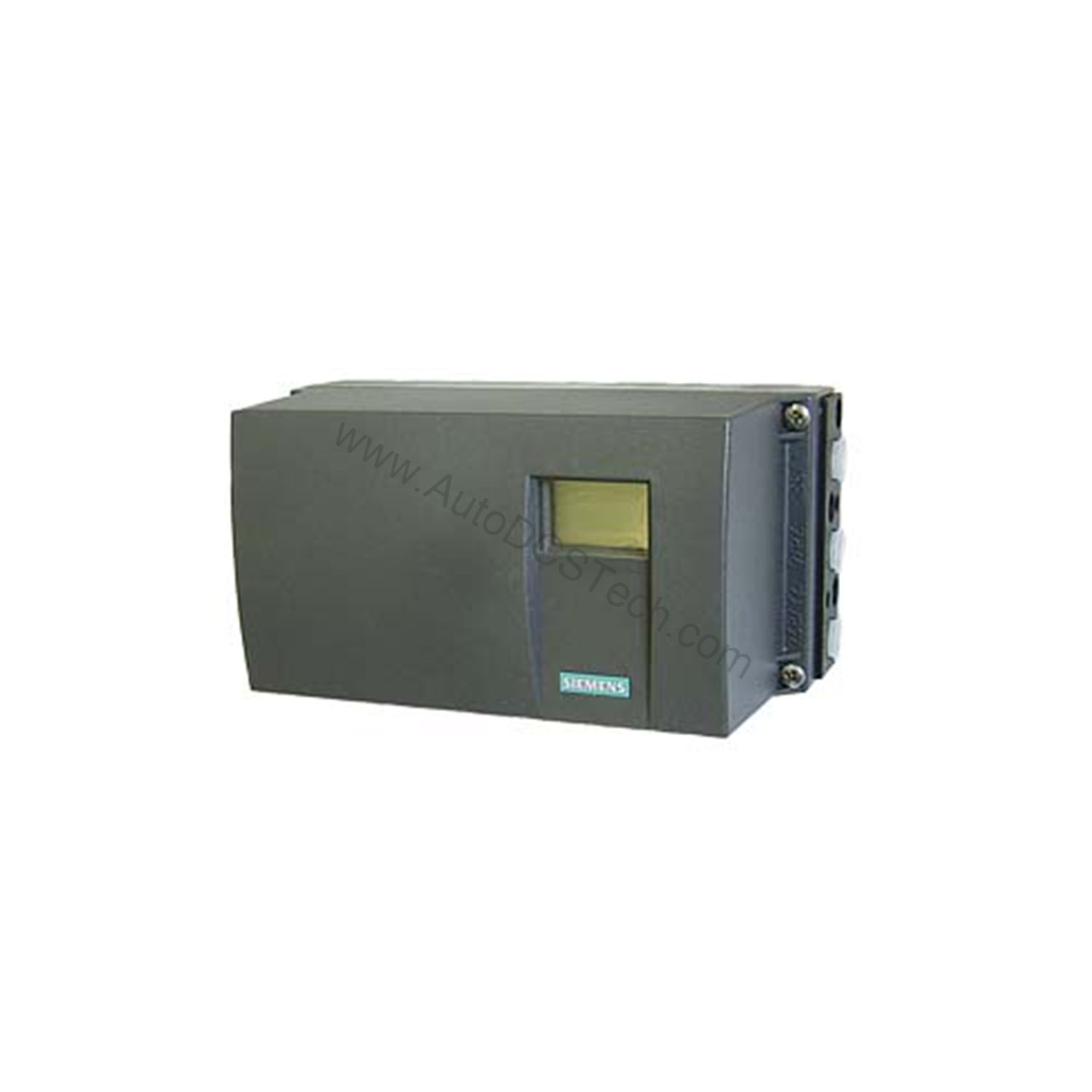

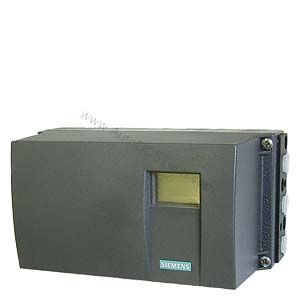

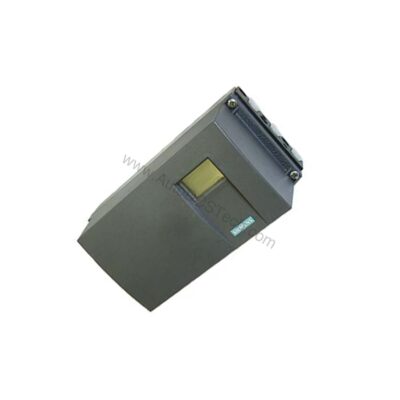

When precise valve positioning is critical, the 6DR5010-0NG00-0AA0 delivers reliable performance. This Siemens SIPART PS2 Smart electropneumatic positioner operates on a 2-wire 4-20 mA loop without HART, making it a straightforward choice for many applications.
Designed for single-acting actuators, it features a Makrolon enclosure and non-contacting position detection for wear-free operation. The unit does not include explosion protection, so it suits general-purpose environments.
Key Features & Technical Specs
- 2-wire (4 to 20 mA) input without HART protocol.
- Single-acting actuator compatibility.
- Makrolon enclosure for durability.
- No explosion protection (Ex/nEx not included).
- Electrical connection thread: M20x1.5; pneumatic: G1/4.
- No limit monitor installed.
- No option modules installed.
- Brief instructions in German and English.
- No mounted pressure gauge block.
One distinctive feature is the non-contacting position detection, which eliminates wear and enhances long-term reliability. This is especially valuable in cyclic applications where traditional feedback mechanisms may degrade.
Applications & Use Cases
For example, in a water treatment plant, the 6DR5010-0NG00-0AA0 can modulate valve position based on a 4-20 mA signal, ensuring accurate flow control. Its wear-free sensor reduces maintenance downtime.
Installation & Setup
Mount the positioner directly on the actuator, ensuring the pneumatic connections align with G1/4 ports. Use the M20x1.5 electrical connection for wiring the 2-wire loop.
Follow the brief instructions provided in German and English for initial configuration. Verify the supply pressure and signal polarity before commissioning.
Maintenance & Reliability
Regularly inspect the positioner for dust accumulation or moisture ingress, especially in harsh environments. The non-contacting sensor minimizes wear, but periodic calibration checks are recommended.
Because there is no explosion protection, avoid installing in flammable atmospheres. Routine maintenance helps extend service life and maintain accuracy.
Buyer's Guide: Evaluating the 6DR5010-0NG00-0AA0
When selecting a positioner, consider your actuator type, control signal, and environmental requirements. This model is tailored for single-acting actuators and a 4-20 mA signal, so verify compatibility with your existing system.
Because it lacks explosion protection, it is not suitable for hazardous areas. If you need HART communication or additional options like limit monitors, explore other SIPART PS2 variants.
Compatibility & Integration
The 6DR5010-0NG00-0AA0 integrates with any control system that provides a 4-20 mA output. It does not support HART, so it works with analog-only loops.
It is compatible with single-acting pneumatic actuators, both linear and part-turn. Ensure the actuator's stroke and thrust match the positioner's capabilities.
Troubleshooting & Common Issues
If the positioner does not respond, check the 4-20 mA signal and wiring continuity. Verify that the pneumatic supply is within the recommended range.
If calibration drifts, re-zero and span the unit according to the brief instructions. For persistent issues, consult the full Siemens manual or contact AutoDCSTech.
Product Support & Availability
The 6DR5010-0NG00-0AA0 is available through AutoDCSTech. Contact us for current stock and delivery options.
Availability & Condition at AutoDCSTech
| Part Number | 6DR5010-0NG00-0AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
