Introduction: The Evolution of Industrial Motor Control
Over the past decades, industrial automation has shifted from simple motor starters to sophisticated variable frequency drives that optimize energy use and process precision. The 6SE6440-2UD42-0GA1 from Siemens represents this evolution, combining robust engineering with flexible performance. As part of the MICROMASTER 440 family, this drive is designed for applications where reliability and adaptability are non-negotiable.
This article explores the technical specifications, installation considerations, and maintenance practices for the 6SE6440-2UD42-0GA1, helping engineers make informed decisions for their systems.
Key Features and Technical Specifications

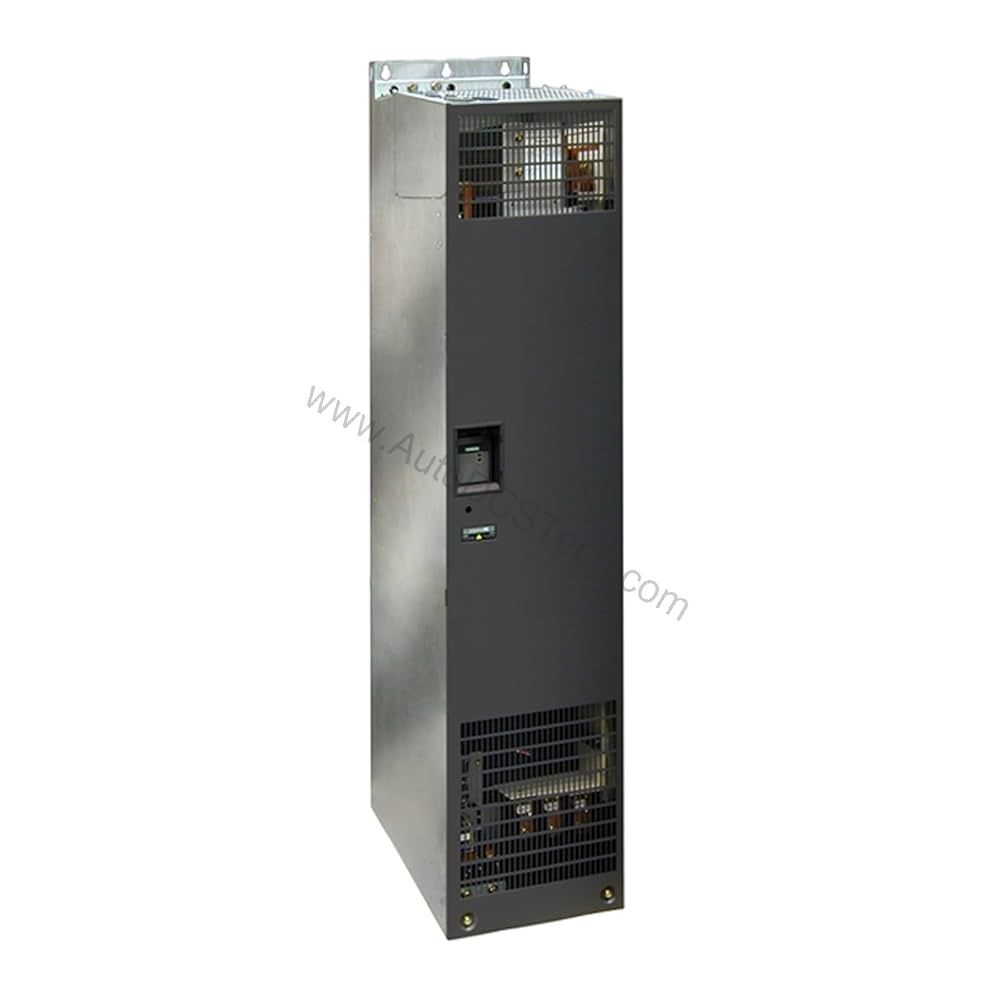

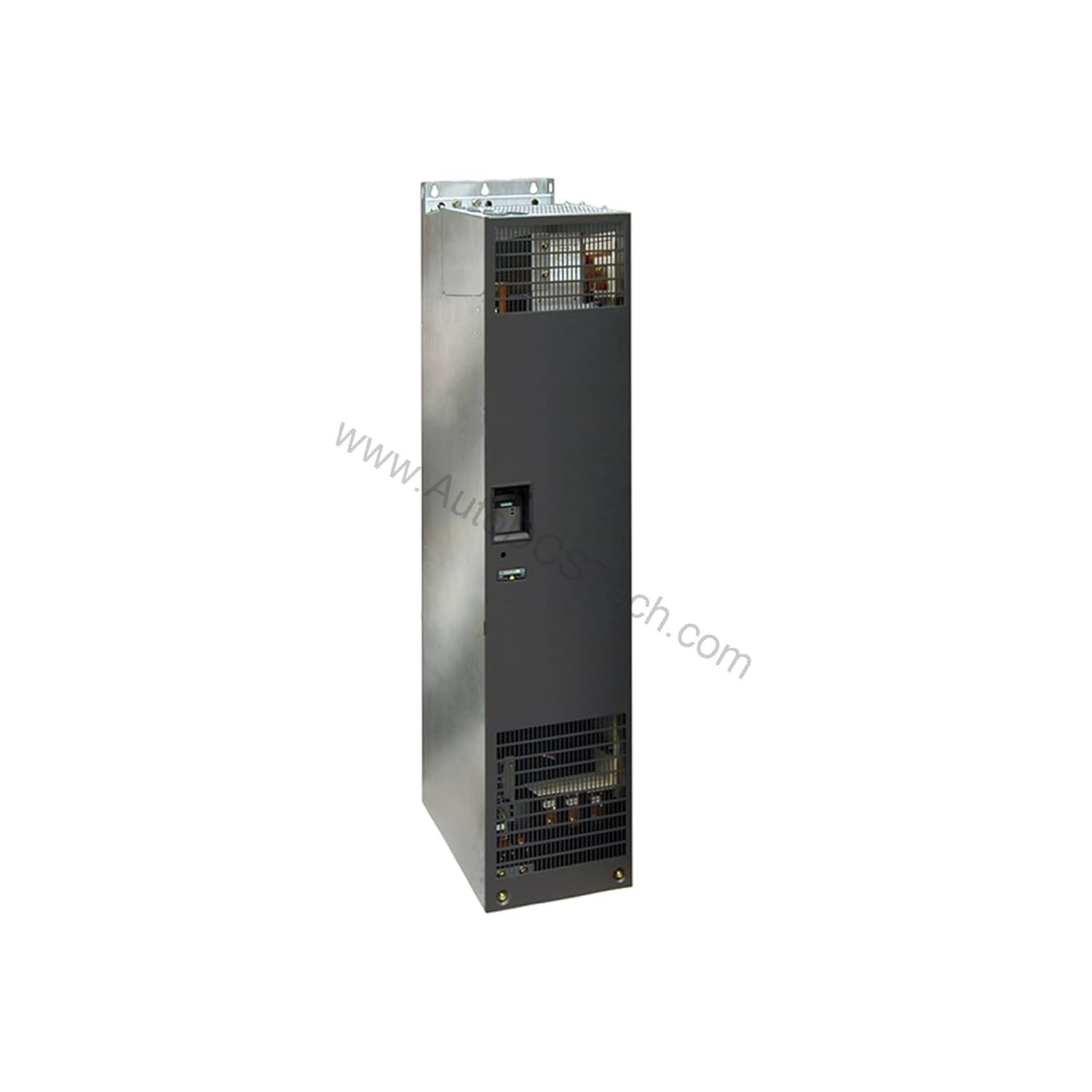

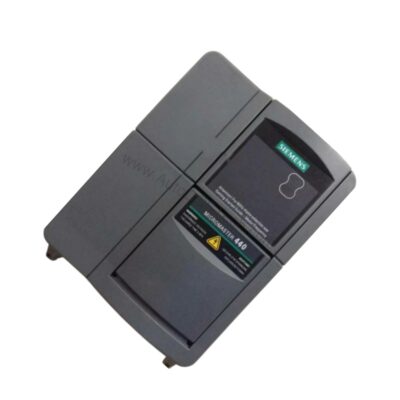

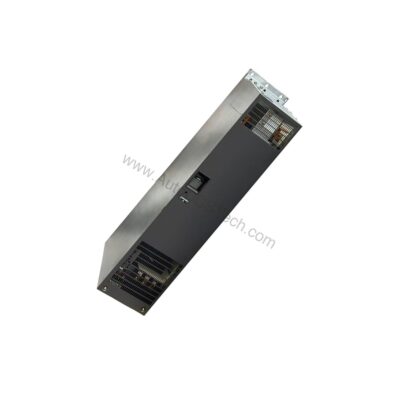

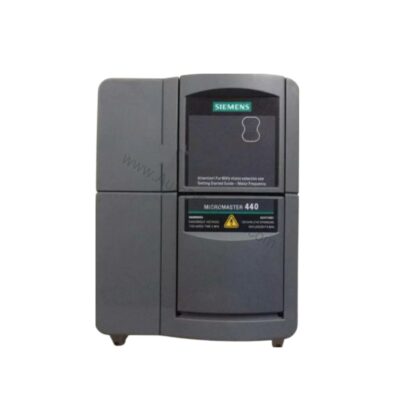

The 6SE6440-2UD42-0GA1 is a three-phase AC drive engineered for demanding industrial environments. Its specifications highlight its capability to handle high-power motors with precision.
- Input: 3AC 380-480 V ±10%, 47-63 Hz
- Rated output power (LO): 250 kW / 350 hp
- Rated output power (HO): 200 kW / 300 hp
- Rated output current (LO): 477 A
- Rated output current (HO): 370 A
- Pulse frequency: 4,000 Hz
- Output frequency (V/f control): 0-267 Hz
- Overload capability (LO): 150% for 1 s, then 110% for 59 s, then 100% for 240 s (300 s cycle)
- Overload capability (HO): 136% for 57 s, then 100% for 243 s (300 s cycle)
- Efficiency: 0.97
- Power factor: 0.95
- Ambient temperature (operation): 0 to +40 °C
- Protection: IP20
- Dimensions (H x W x D): 1533 x 326 x 545 mm
- Net weight: 388.014 lb
One distinctive feature is the high overload capability, which allows the drive to handle short-term peak loads without tripping. This is particularly useful in applications with intermittent heavy loads, such as crushers or mixers.
Applications and Use Cases
The 6SE6440-2UD42-0GA1 is suitable for a wide range of industrial applications, including conveyors, pumps, fans, and machine tools.
For example, in a cement plant, the drive can handle the high starting torque of a ball mill, while its overload capability ensures continuous operation even under material jams. Similarly, in wastewater treatment, the drive provides precise speed control for pumps, reducing energy consumption and wear.
Moreover, the drive's wide output frequency range (0-267 Hz) enables operation of high-speed motors, expanding its versatility in specialized machinery.
Installation and Setup Considerations
Proper installation is critical for the reliable operation of the 6SE6440-2UD42-0GA1. The drive is designed for IP20 protection, meaning it should be installed in a clean, dry environment, preferably inside an electrical enclosure.
When mounting, ensure adequate clearance for ventilation, as the drive relies on forced cooling. The ambient temperature must be maintained between 0 and +40 °C to avoid derating. Additionally, the drive requires a three-phase supply with a voltage range of 380-480 V AC and a frequency of 47-63 Hz.
Wiring should follow the manufacturer's guidelines, using appropriate cable sizes for the high output currents (up to 477 A). It is also essential to ensure proper grounding and to use shielded cables for control signals to minimize electromagnetic interference.
For detailed wiring diagrams and parameter settings, refer to the official Siemens documentation or contact AutoDCSTech for technical support.
Maintenance and Reliability
Regular maintenance ensures the longevity and reliability of the 6SE6440-2UD42-0GA1. The drive's cooling fan is a key component that should be inspected periodically for dust accumulation and wear. Blocked airflow can lead to overheating and reduced performance.
Additionally, check all power connections for tightness, as loose terminals can cause arcing and damage. The ambient temperature should be monitored, especially in hot environments, to ensure the drive operates within its specified range.
By following a preventive maintenance schedule, you can minimize downtime and extend the service life of the drive, ultimately reducing total cost of ownership.
Compatibility and Integration
The 6SE6440-2UD42-0GA1 is designed to work with standard three-phase induction motors. It supports V/f control, which is suitable for most general-purpose applications. The drive can be integrated into existing control systems via analog and digital I/O terminals, though specific communication protocols are not listed in the provided data.
For advanced integration, such as fieldbus communication, consult the official Siemens documentation or contact AutoDCSTech to verify available options.
Troubleshooting Common Issues
One common issue with high-power drives is overheating due to inadequate ventilation. Ensure that the cooling fan is operational and that the enclosure has proper airflow. Another issue is voltage imbalance on the input supply, which can cause excessive current draw and nuisance trips. Use a multimeter to verify that the line voltages are within the specified ±10% tolerance.
If the drive trips on overload, check the motor load and ensure the overload settings match the application. The drive's overload capability (136% for 57 s in HO mode) provides a buffer for short-term peaks, but continuous operation beyond rated current should be avoided.
For persistent faults, consult the drive's diagnostic indicators and refer to the Siemens manual for specific error codes.
Product Support and Availability
The 6SE6440-2UD42-0GA1 is available through AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering, as the product may have long lead times.
Availability & Condition at AutoDCSTech
| Part Number | 6SE6440-2UD42-0GA1 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
