Introduction to the Siemens 6DR4004-2M Gauge Block

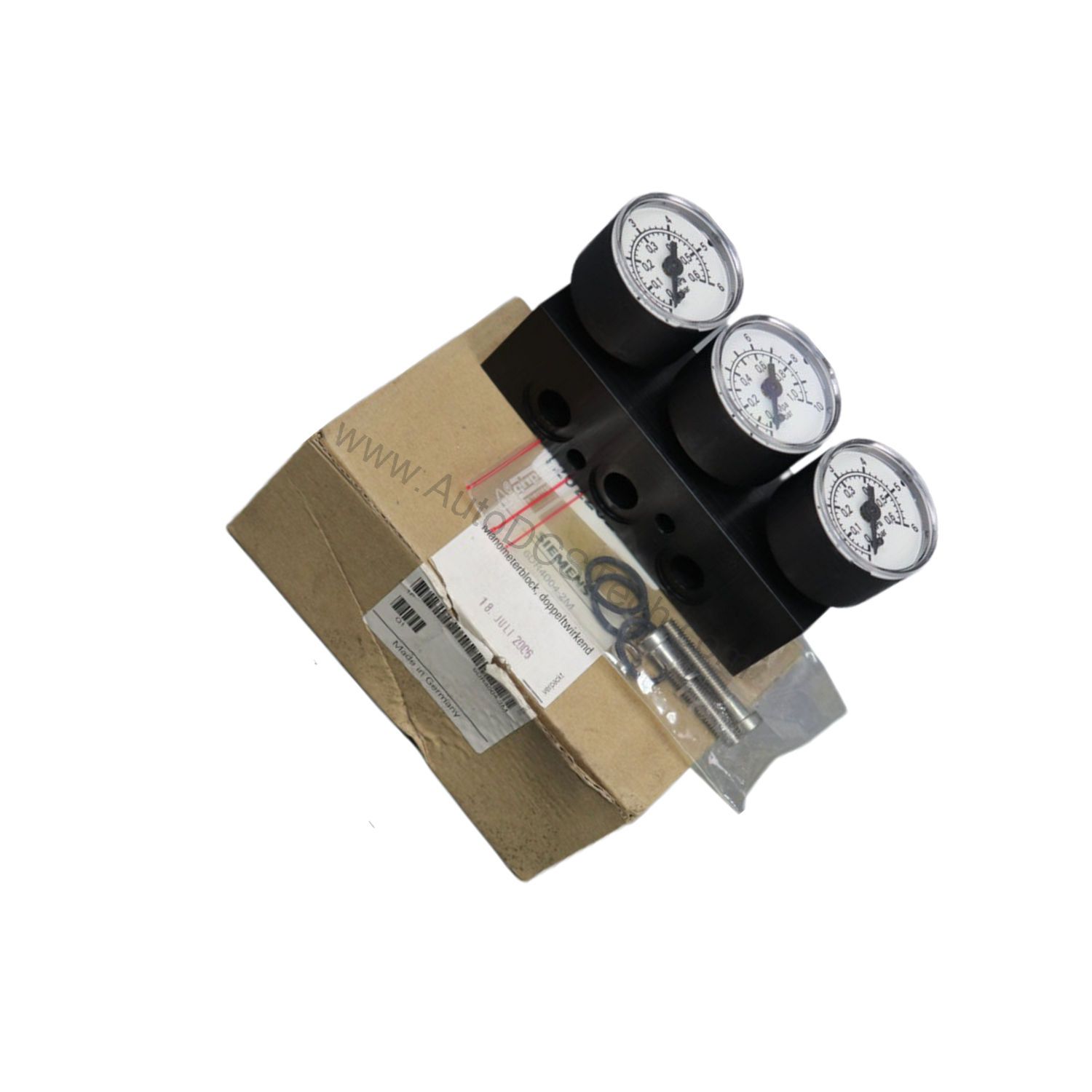

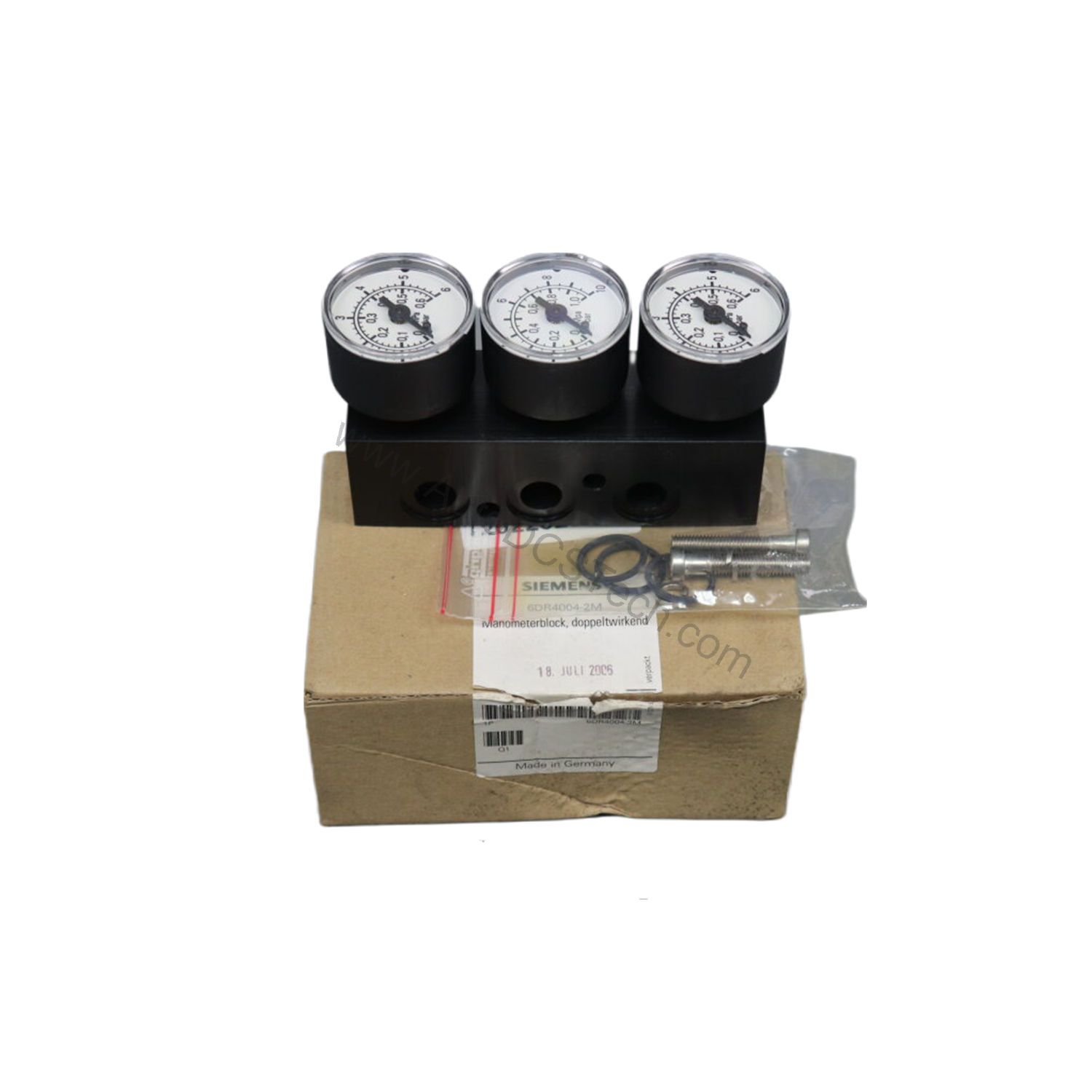

When an electropneumatic positioner must deliver precise, repeatable control in double-acting applications, the integrity of the pneumatic manifold becomes critical. The 6DR4004-2M from Siemens addresses this need with a robust aluminum block engineered for direct retrofit onto SIPART PS2 positioners. This gauge block simplifies installation while providing clear visual indication of supply and chamber pressures.

Designed as a double-acting unit, the 6DR4004-2M supports applications where two output pressures drive an actuator in opposite directions. Its G¼ threaded connections ensure compatibility with standard pneumatic fittings, reducing the need for adapters. The aluminum construction offers a balance of strength and weight, making it suitable for industrial environments.

Key Features and Technical Specifications

The 6DR4004-2M is built around a few essential parameters that define its performance. Below are the core specifications extracted from the product data:

• Material: Aluminum block
• Actuation: Double-acting
• Connection: G¼
• Pressure gauges: 1 network pressure gauge (10 BAR) and 1 chamber pressure gauge (6 BAR)
• Retrofit: Simple retrofit for SIPART PS2 electropneumatic positioner

These specs highlight the block's role in monitoring and maintaining proper pneumatic pressure. The dual gauges allow operators to quickly verify supply pressure and chamber pressure, which is critical for troubleshooting and tuning the positioner loop.

Real-World Applications

The 6DR4004-2M is commonly used in process industries where precise valve positioning is essential. In chemical plants, refineries, and power generation facilities, the block helps maintain stable control of control valves. For example, in a double-acting actuator setup, the block ensures that both sides of the actuator receive the correct pressure, preventing erratic movement.

Furthermore, the simple retrofit design means that upgrading an existing SIPART PS2 installation is straightforward. Maintenance teams can replace older manifolds with the 6DR4004-2M without extensive re-piping, reducing downtime. The integrated pressure gauges also facilitate routine checks, allowing operators to spot pressure anomalies early.

Installation and Setup

Installing the 6DR4004-2M is a straightforward process. First, ensure the SIPART PS2 positioner is de-energized and the pneumatic supply is isolated. Then, mount the gauge block onto the positioner using the appropriate G¼ connections. Tighten all fittings securely to avoid leaks, but avoid over-torquing the aluminum threads.

After mounting, connect the supply line to the network pressure port and the chamber lines to the chamber ports. Verify that the pressure gauges read correctly when the system is pressurized. The 10 BAR gauge monitors the supply, while the 6 BAR gauge indicates chamber pressure. If readings are not as expected, check for blockages or misconnections.

Maintenance and Reliability

Routine maintenance of the 6DR4004-2M is minimal due to its robust aluminum construction. Periodically inspect the block for signs of corrosion or damage, especially in harsh environments. Check the pressure gauges for accuracy and replace them if they become damaged or unreadable.

Because the block is a passive component, it has a long service life when installed correctly. However, regular inspection of the pneumatic connections is recommended to prevent leaks. Following the manufacturer's guidelines for the SIPART PS2 will ensure the entire assembly operates reliably.

Compatibility and Integration

The 6DR4004-2M is specifically designed for use with the Siemens SIPART PS2 electropneumatic positioner. It is a direct retrofit part, meaning it matches the mounting and connection requirements of the PS2 without additional modifications. This compatibility simplifies procurement and installation for maintenance teams.

This makes it suitable for both new installations and upgrades of existing PS2-based control loops.

Troubleshooting Common Issues

One common issue with gauge blocks is pressure gauge failure, which can lead to incorrect readings. If the gauge needle does not move or sticks, the gauge may be defective and should be replaced. Another issue is air leakage at the threaded connections; applying thread sealant or replacing sealing washers can resolve this.

If the positioner does not respond correctly, check that the chamber pressure matches the expected value. A significant difference between the network and chamber pressures may indicate a blockage in the internal passages. In such cases, disassemble the block and clean it with compressed air, or contact AutoDCSTech for guidance.

Product Support and Availability

The Siemens 6DR4004-2M is an active product and is available as a stock item. AutoDCSTech can supply this gauge block with fast shipping. For detailed technical information or to confirm compatibility, contact our team.
