Product Introduction

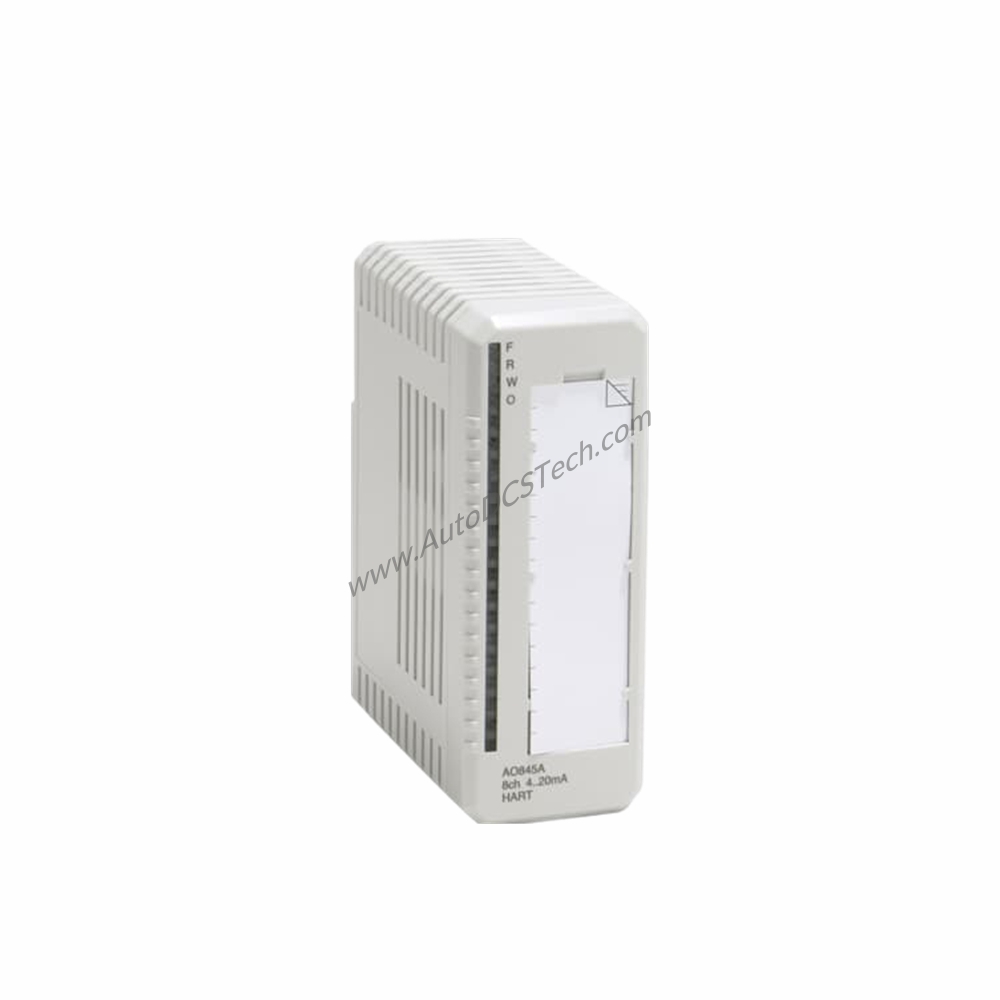

In the evolving landscape of industrial automation, the demand for precise and reliable analog output control has never been higher. The ABB AO845A Analog Output Module addresses this need with 8 unipolar channels delivering 4...20 mA signals. Designed for both single and redundant configurations, this module performs cyclic self-diagnostics to ensure continuous operation. Part of the ABB S800 series, the AO845A (article number 3BSE045584R1) offers HART pass-through communication, enabling seamless integration with smart field devices.
Technical Specifications Breakdown
The AO845A delivers critical performance metrics that matter in process control. Its 12-bit resolution provides fine granularity for accurate output adjustments. The module supports an under/over range of -12.5% / +15%, allowing flexibility beyond the standard 4...20 mA span. Output load capability reaches up to 750 Ω, ensuring compatibility with a wide range of actuators. Error is limited to a maximum of 0.1%, while temperature drift stays within 50 ppm/°C, maintaining stability across varying conditions. The update cycle time of 10 ms ensures responsive control loops.
Industry Applications
In chemical processing plants, the AO845A provides precise control of valve positions and flow regulators. Its redundant capability ensures that if one module fails, the backup takes over without process interruption. For oil and gas applications, the module's HART pass-through allows remote diagnostics and configuration of smart transmitters, reducing maintenance visits. The short-circuit proof output and isolation from ground (1 group of 8 channels) enhance safety in harsh environments.
Installation & Setup Guidance
Mount the AO845A in an S800 I/O rack using compatible MTUs such as TU810V1, TU812, TU814, TU830, TU833, TU842, TU843, or TU852. Ensure the module is keyed with code DB for correct insertion. Connect field wiring to the MTU terminals, observing maximum cable length of 600 meters (656 yards). The module requires a +24 V external supply (218 mA current consumption) and +5 V from the ModuleBus (125 mA max). For redundant applications, pair two modules on the same MTU; the ModuleBus master manages error state transitions.
Maintenance & Reliability
Regular inspection of the AO845A focuses on verifying LED status indicators: F (fault), R (run), W (warning), and OSP (output state preset). The module reports Module Error, Module Warning, and Channel Error via diagnostics. Operating temperature range is 0 to +55 °C (+32 to +131 °F), with storage from -40 to +70 °C (-40 to +158 °F). Pollution degree 2 and corrosion protection class G3 (ISA-S71.04) ensure reliability in industrial environments. The IP20 protection class requires installation in a clean, dry cabinet.
Compatibility & Integration
The AO845A integrates with ABB's S800 I/O system and communicates via ModuleBus. It is compatible with multiple MTUs for flexible wiring. The module supports HART pass-through, allowing connection to HART-enabled field devices without additional hardware. Redundancy is fully supported for critical loops. The module is CE marked and carries electrical safety certifications per EN 61010-1 and UL 61010-1, plus hazardous location approvals (C1 Div2, C1 Zone2, ATEX Zone 2).
Selection Guide & Purchasing Advice
When ordering the AO845A, verify the article number 3BSE045584R1 and confirm your system's compatibility with the S800 series. Consider whether you need single or redundant operation. For redundant setups, order two modules and a compatible MTU. SpareTechPLC stocks the AO845A and can advise on current availability and lifecycle status. Ensure your application does not require intrinsic safety, as this module is not intrinsically safe. Check environmental conditions against the module's 0 to +55 °C operating range.
Troubleshooting & Common Issues
If the AO845A reports an External Channel Error, check the process power supply voltage and verify that output current matches the setpoint when above 1 mA (possible open circuit). Internal Channel Error indicates the output circuit cannot deliver the correct current; in redundant pairs, the ModuleBus master commands the faulty module to error state. Module Error may stem from output transistor failure, short circuit, checksum error, internal power supply fault, status link error, watchdog timeout, or incorrect OSP behavior. Use the front LEDs for quick status identification.
Frequently Asked Questions
Q: Can the AO845A be used in redundant configurations?
A: Yes, the AO845A supports redundancy. In a redundant pair, the ModuleBus master commands a module to error state if an Internal Channel Error occurs.
Q: What is the maximum output load for the AO845A?
A: The maximum output load is 750 Ω, ensuring compatibility with most 4...20 mA actuators.
Q: Does the AO845A support HART communication?
A: Yes, the module provides HART pass-through, allowing communication with HART-enabled field devices.
Q: What certifications does the AO845A hold?
A: It carries CE, UL 61010-1, ATEX Zone 2, and marine certifications (BV, DNV, LR).
Q: What is the resolution of the AO845A?
A: The module offers 12-bit resolution for precise analog output control.
