Product Introduction

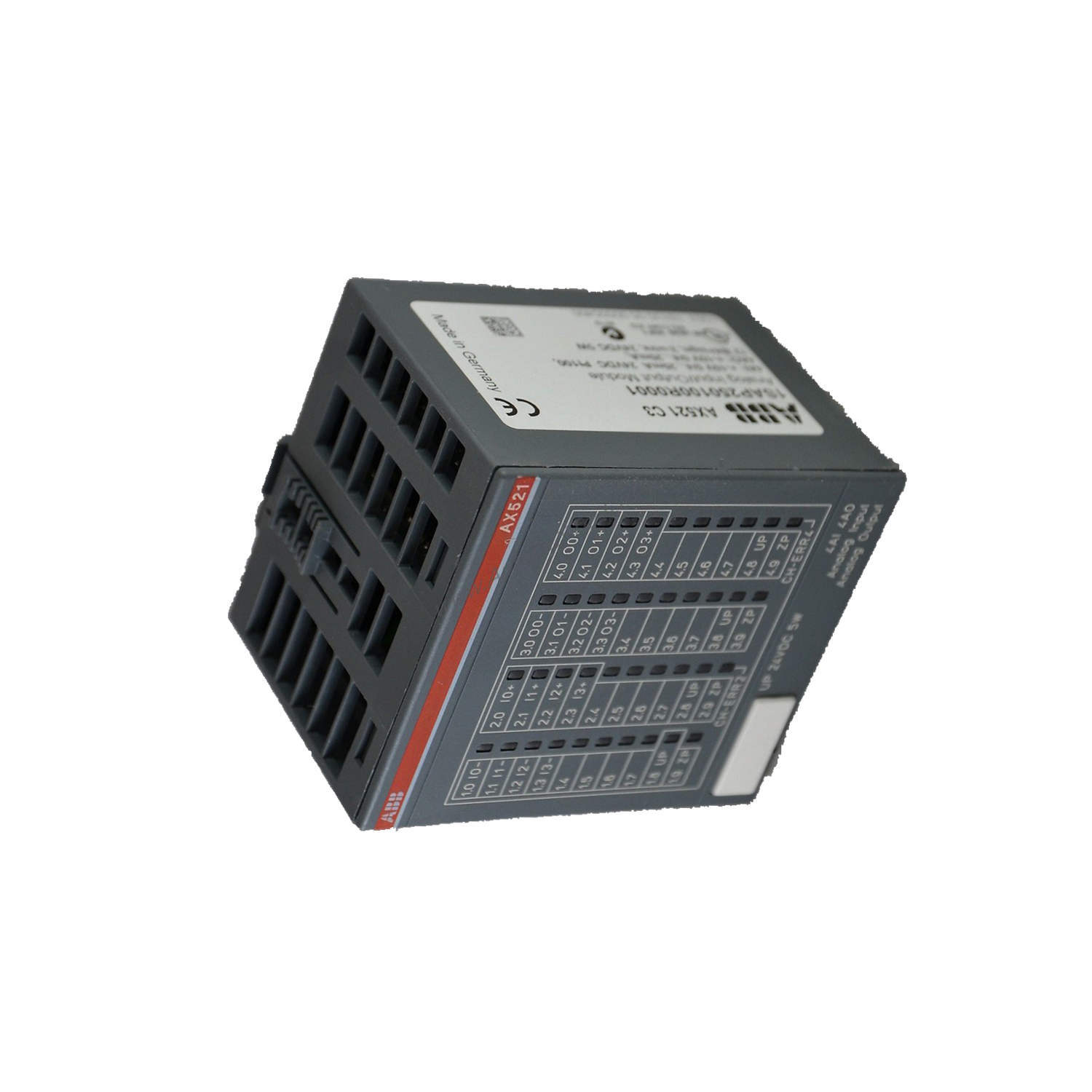

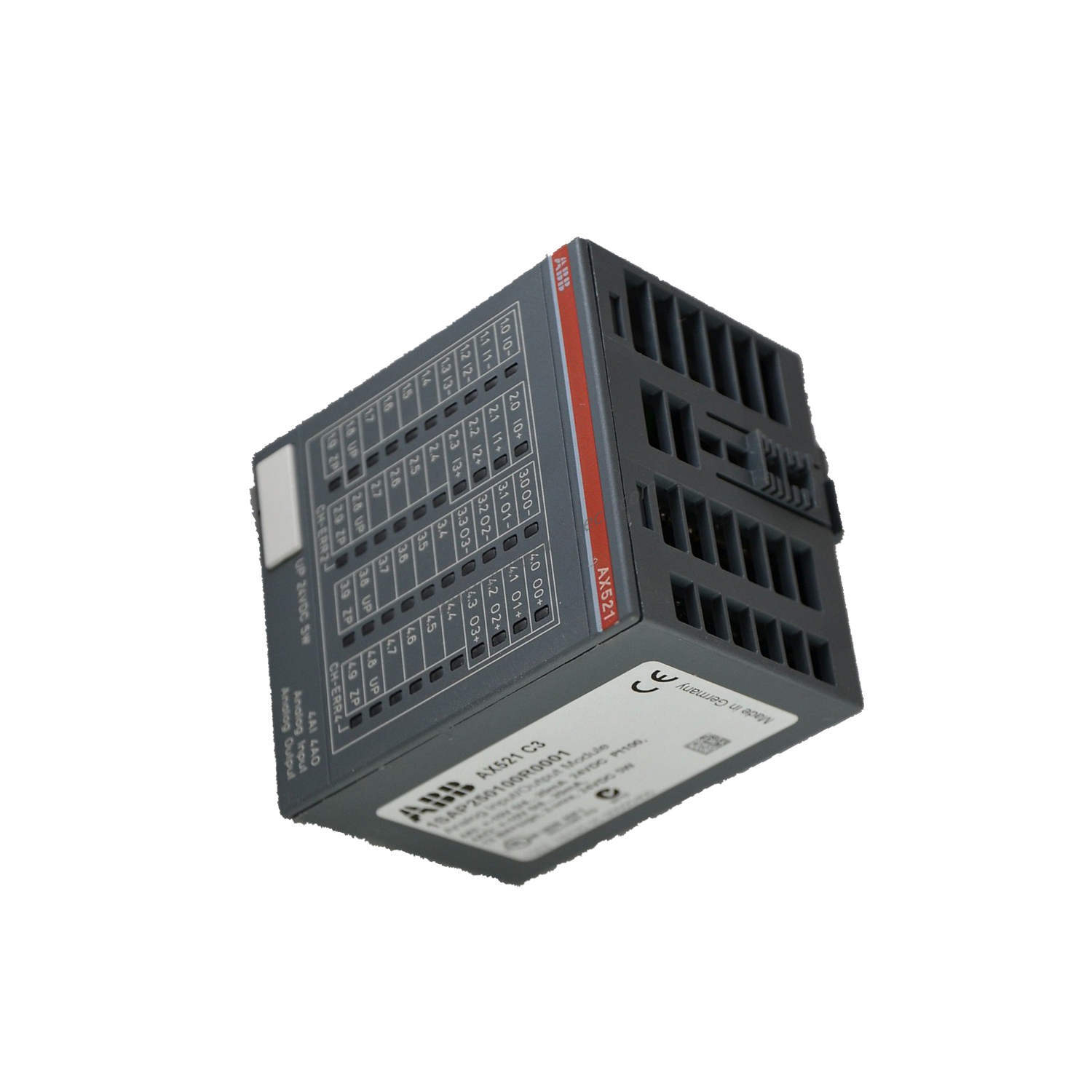

When process control demands precise analog signal handling across multiple sensor types, the ABB AX521 analog input/output module delivers reliable performance. This module combines 4 analog inputs and 4 analog outputs in a single compact unit, supporting voltage, current, and Pt100/Pt1000/Ni1000 inputs. With 12-bit resolution including sign, the AX521 provides accurate conversion for industrial automation tasks.
Technical Specifications Breakdown
The AX521 offers flexible configurability for each input channel individually: 0 V...10 V, -10 V...+10 V, 0 mA...20 mA, 4 mA...20 mA, Pt100/1000, and Ni1000. The conversion cycle is 2 ms for 8 inputs plus 8 outputs, extending to 1 s with Pt/Ni sensors. Resolution across all voltage and current ranges is 12 bits (including sign for the -10 V...+10 V range). Typical conversion error is ±0.5% of full scale at 25 °C, with a maximum of ±1% across the full operating temperature range of 0 °C to +60 °C.
Each of the 4 analog output channels supports bipolar voltage (-10 V...+10 V) and unipolar current (0 mA...20 mA, 4 mA...20 mA). Output resolution is 12 bits including sign, with a typical settling time of 5 ms for a full range change. The module operates from a 24 V DC process voltage (rated value) with protection against reverse polarity and a 10 A fast fuse on UP. Current consumption from UP at normal operation is 0.15 A plus output loads.
Industry Applications
Process Monitoring and Control: In chemical or pharmaceutical plants, the AX521 handles multiple analog signals from pressure transmitters (4 mA...20 mA) and temperature sensors (Pt100) simultaneously. The 2 ms conversion cycle ensures timely data acquisition for closed-loop control.
Machine Automation: For packaging or material handling systems, the module's bipolar voltage outputs (-10 V...+10 V) can drive servo drives or proportional valves. The configurable input filter time constant (100 µs) helps reject electrical noise in industrial environments.
Installation & Setup Guidance
Mount the AX521 horizontally for full operating temperature range (0 °C to +60 °C). For vertical mounting, derate output load to 50% per group at 40 °C. Ensure natural convection cooling is not obstructed by cable ducts or other cabinet components. Use analog cables with conductor cross-section >0.14 mm² and keep cable length under 100 m to maintain signal integrity. Connect the external 24 V DC supply via terminals ZP and M (process voltage). Unused voltage inputs should be configured as "unused" in software; unused current inputs can be left open-circuited.
Maintenance & Reliability
Routine inspection should verify that the 24 V DC supply remains within tolerance (24 V -15%, +20%) and that ambient temperature does not exceed 60 °C. The module's galvanic isolation between channels and the I/O bus protects against ground loops. Overvoltage protection on inputs prevents damage from transient spikes. For long-term reliability, ensure the cabinet environment stays below 95% humidity without condensation.
Compatibility & Integration
The AX521 connects to the ABB AC500 series CPU or communication interface module via the I/O bus interface. It draws approximately 2 mA from the 24 V DC supply at the CPU/communication module terminals. The module is compatible with ABB's Automation Builder software for configuration and diagnostics. For systems requiring mixed signal types, the AX521's individually configurable inputs allow seamless integration with various field devices.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system supports the AX521 (part number 1SAP 250 100 R0001). Confirm that the 24 V DC process voltage is available and that the total current draw (0.15 A plus output loads) does not exceed your power supply capacity. SpareTechPLC stocks the ABB AX521 and can advise on compatibility with your existing AC500 system. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
Incorrect Input Signal: If an input reads incorrectly, check that the channel is configured for the correct range (voltage, current, or Pt100). Ensure the input resistance matches: >100 kΩ for voltage, approximately 330 Ω for current. Wrong or missing signals will not damage the module up to 35 V.
Output Not Responding: Verify that the output load is within specifications: 0 Ω...500 Ω for current outputs, and maximum ±10 mA loadability for voltage outputs. Unused outputs can be left open-circuited. Check that the 24 V DC supply is present and within tolerance.
Communication Errors: If the module does not communicate with the CPU, inspect the I/O bus connection and verify that the internal power supply via the I/O bus is active. The module's LED indicators per channel help diagnose signal presence.
Frequently Asked Questions
Q1: Can the AX521 handle both voltage and current inputs on the same module?
Yes, each of the 4 input channels can be individually configured for voltage (0 V...10 V or -10 V...+10 V), current (0 mA...20 mA or 4 mA...20 mA), or Pt100/Pt1000/Ni1000.
Q2: What is the maximum cable length for analog signals?
The maximum analog cable length is 100 m, provided the conductor cross-section is greater than 0.14 mm².
Q3: How do I configure unused input channels?
Unused voltage inputs should be configured as "unused" in the software. Unused current inputs have low resistance and can be left open-circuited without damage.
Q4: What is the typical conversion error at room temperature?
Typical conversion error is ±0.5% of full scale at 25 °C for all ranges.
Q5: Is the AX521 compatible with the ABB AC500 series?
Yes, the AX521 is designed for the ABB AC500 system and connects via the I/O bus interface to the CPU or communication interface module.
