Product Overview

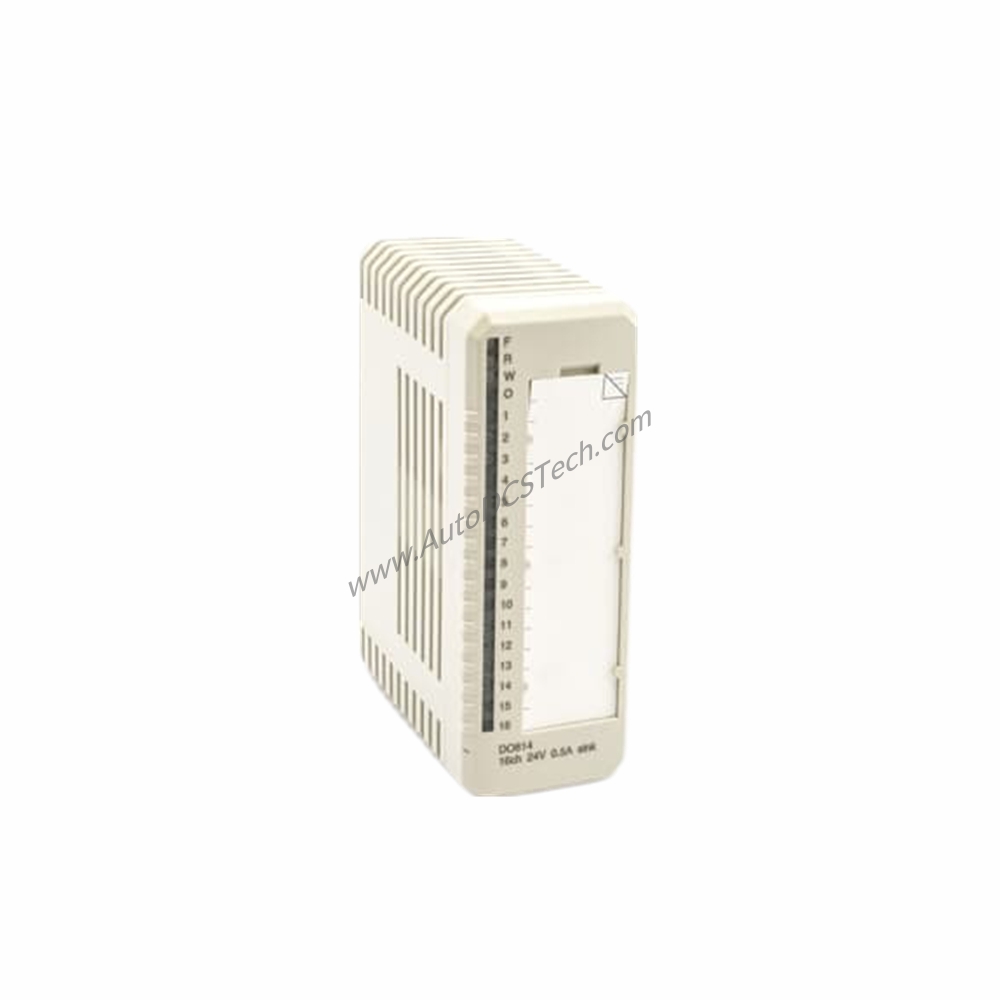

When your industrial control system demands reliable digital output switching, the ABB DO814 delivers precise performance. This 16-channel 24 V digital output module with current sinking is engineered for the S800 I/O family, providing robust signal control in demanding environments. Each channel offers a maximum continuous current sinking of 0.5 A, with output voltage range from 10 to 30 V. The outputs are divided into two individually isolated groups, each containing eight output channels and one voltage supervision input. This design ensures that a fault in one group does not affect the other, enhancing system reliability.
Technical Specifications Breakdown
The DO814 offers several key specifications that define its capability:
- Number of Channels: 16 channels for 24 V DC current sinking outputs.
- Current Sinking: Maximum continuous current sinking of 0.5 A per channel.
- Output Voltage Range: 10 to 30 V, compatible with standard 24 V systems.
- Isolation: Groupwise isolated from ground, with two isolated groups of eight channels.
- Protection: Short-circuit protection to ground and 30 V, over-voltage and over-temperature protection.
- Power Dissipation: Typ. 2.1 W, ensuring efficient operation.
- Current Consumption: 80 mA from +5 V Modulebus.
These specifications make the DO814 suitable for driving a variety of loads, including relays, solenoids, and indicator lights, while maintaining high reliability.
Industry Applications
The DO814 excels in applications requiring high-density digital output control. Common use cases include:
- Manufacturing Automation: Controlling actuators, valves, and motors in assembly lines.
- Process Control: Managing on/off devices in chemical or pharmaceutical plants.
- Material Handling: Operating conveyors and sorting equipment in warehouses.
In each scenario, the module's short-circuit and over-temperature protection minimize downtime, while the voltage supervision input provides early warning of power loss.
Installation & Setup Guidance
Mount the DO814 onto an S800 I/O base unit or MTU such as TU810, TU812, TU814, TU830, TU833, or TU838. Ensure proper keying code BE is matched. Connect field wiring to the module's terminals, observing polarity for current sinking outputs. The maximum field cable length is 600 meters (656 yards). For vertical mounting in compact MTU, note the maximum ambient temperature is 40 °C (104 °F). Always follow the manufacturer's guidelines for safe installation.
Maintenance & Reliability
Routine inspection of the DO814 should include checking the front panel LEDs for fault (F), run (R), warning (W), OSP, and channel status. The module's process voltage supervision per group provides diagnostic feedback via ModuleBus. Operating temperature range is 0 to +55 °C (+32 to +131 °F), with storage from -40 to +70 °C (-40 to +158 °F). The IP20 protection class requires installation in a clean, dry enclosure. Regular verification of the power supply and load connections helps maintain long service life.
Compatibility & Integration
The DO814 integrates seamlessly with the ABB S800 I/O system. It communicates via ModuleBus and is compatible with MTUs including TU810, TU812, TU814, TU830, TU833, and TU838. The module supports output state preset (OSP) upon error detection, allowing predetermined output states for safe failure. No HART, SOE, redundancy, high integrity, or intrinsic safety features are included, making it a standard digital output solution.
Selection Guide & Purchasing Advice
Before purchasing the DO814, verify that your system uses the S800 I/O architecture and that the MTU supports this module. The article number is 3BUR001455R1. Consider the required number of channels and isolation groups—the DO814 offers two isolated groups of eight channels. For applications needing higher current or different isolation, consult SpareTechPLC for alternatives. SpareTechPLC offers genuine ABB parts with expert support to ensure you select the right module for your automation needs.
Frequently Asked Questions
Q1: What is the maximum continuous current sinking per channel on the DO814?
A1: The maximum continuous current sinking is 0.5 A per channel.
Q2: How many isolated groups does the DO814 have?
A2: The DO814 has two individually isolated groups, each with eight output channels and one voltage supervision input.
Q3: What is the operating temperature range for the DO814?
A3: The operating temperature range is 0 to +55 °C (+32 to +131 °F), with approvals issued for +5 to +55 °C.
Q4: Does the DO814 support HART or redundancy?
A4: No, the DO814 does not support HART, SOE, redundancy, high integrity, or intrinsic safety.
Q5: What MTUs are compatible with the DO814?
A5: Compatible MTUs include TU810, TU812, TU814, TU830, TU833, and TU838.
