Product Introduction

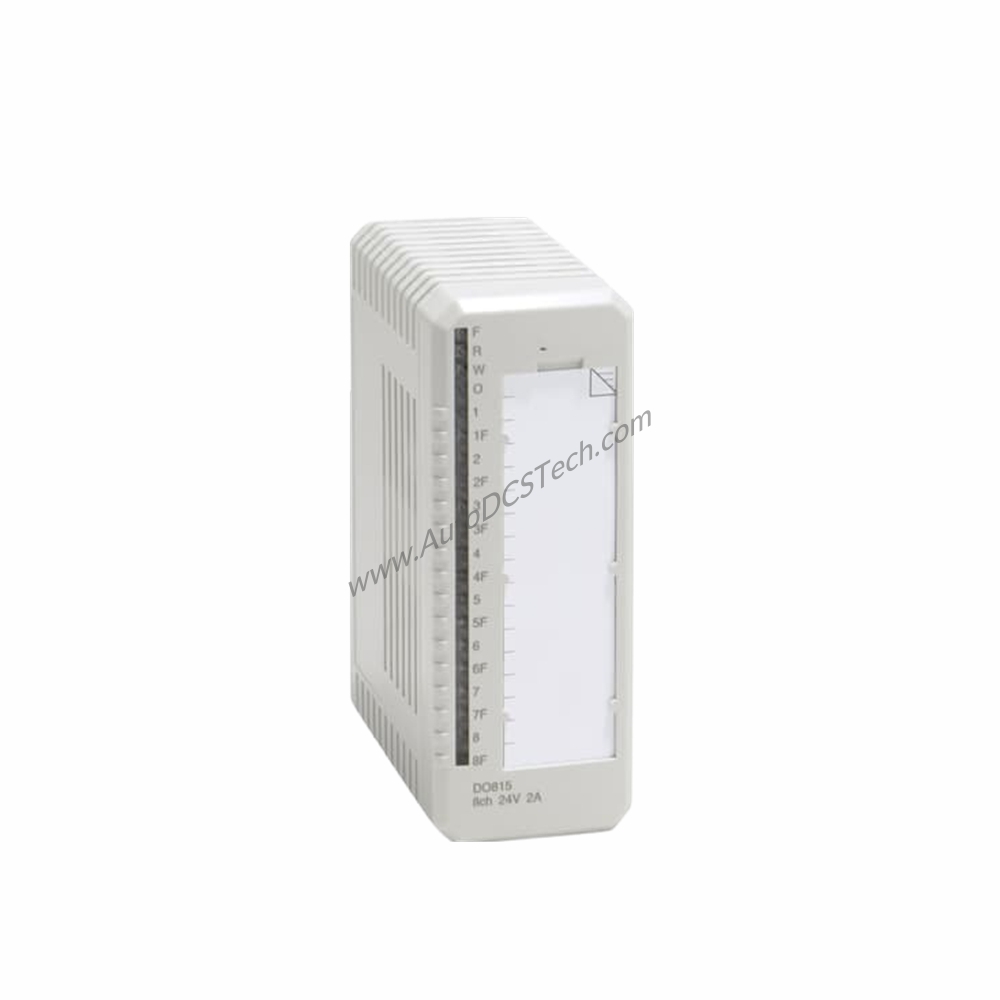

When industrial processes demand reliable digital output control, the ABB DO815 delivers robust performance. This 8-channel 24V digital output module is part of the S800 I/O family. It provides high-side current sourcing outputs with comprehensive protection features. The DO815 handles loads up to 2A per channel at 24V and operates within a 10 to 30V output voltage range. Its design includes short-circuit and overload protection, ensuring uptime in demanding environments.
Technical Specifications Breakdown
The DO815 offers key specifications that enable precise and safe operation. The module features eight channels divided into two individually isolated groups of four. Each group provides groupwise isolation from ground, enhancing system reliability. The output load is less than 0.25 Ω, supporting efficient power delivery. Current limiting ensures short-circuit proof operation. The maximum field cable length reaches 600 meters, allowing flexible installation. Power dissipation is typically 4W, with a +5V Modulebus current consumption of 120 mA typical and 150 mA maximum. The module includes diagnostic LEDs for fault, run, warning, OSP, and per-channel status and fault indication.
Industry Applications
The DO815 suits applications requiring reliable digital output control. In manufacturing automation, it drives solenoid valves and actuators with inductive load capability. Its filament lamp load support up to 10W makes it ideal for indicator lights in control panels. The module's open load detection on active signal helps identify wiring faults quickly, reducing downtime in continuous processes.
Installation & Setup Guidance
Mount the DO815 onto compatible MTUs such as TU810, TU812, TU814, or TU830. Ensure the module is properly keyed with code AA. Connect field wiring to the appropriate terminals, respecting the two isolated groups. Use a 24V DC power supply within the 10-32V range. Verify the output voltage does not exceed 30V. For vertical mounting in compact MTU configurations, the maximum ambient temperature is 40°C (104°F).
Maintenance & Reliability
Routine inspection of the DO815 ensures long service life. Check the front LEDs for module error or channel fault indications. The module supervises short circuit, overload, undervoltage, and open load conditions. Two fault operation modes—automatic reset and fault latching—allow flexible response to faults. Operate within the 0 to +55°C ambient temperature range and maintain relative humidity between 5% and 95% non-condensing. The IP20 protection class requires installation in a clean, dry enclosure.
Compatibility & Integration
The DO815 integrates seamlessly with the ABB S800 I/O system. It connects via Modulebus and requires +5V and +24V power from the bus. The module does not consume +24V from external sources. It is compatible with MTUs TU810, TU812, TU814, and TU830. The OSP function sets outputs to a predetermined state upon communication error, enhancing system safety.
Selection Guide & Purchasing Advice
Before purchasing the DO815, verify your system's compatibility with the S800 I/O platform. Confirm the MTU type and ensure the module's keying code AA matches the base. Check the environmental conditions meet the operating temperature and humidity ranges. For current lifecycle status and availability, please verify with SpareTechPLC before ordering. SpareTechPLC offers genuine ABB modules and expert support for your automation needs.
Troubleshooting & Common Issues
If the DO815 shows a channel fault LED, check for short circuits or overloads on the output. The module provides open load detection on active signals, helping identify disconnected loads. In fault latching mode, a reset may be required after clearing the fault. Ensure the supply voltage stays within 10-30V to avoid undervoltage detection. For persistent issues, inspect field wiring length—maximum 600 meters—to prevent voltage drop.
