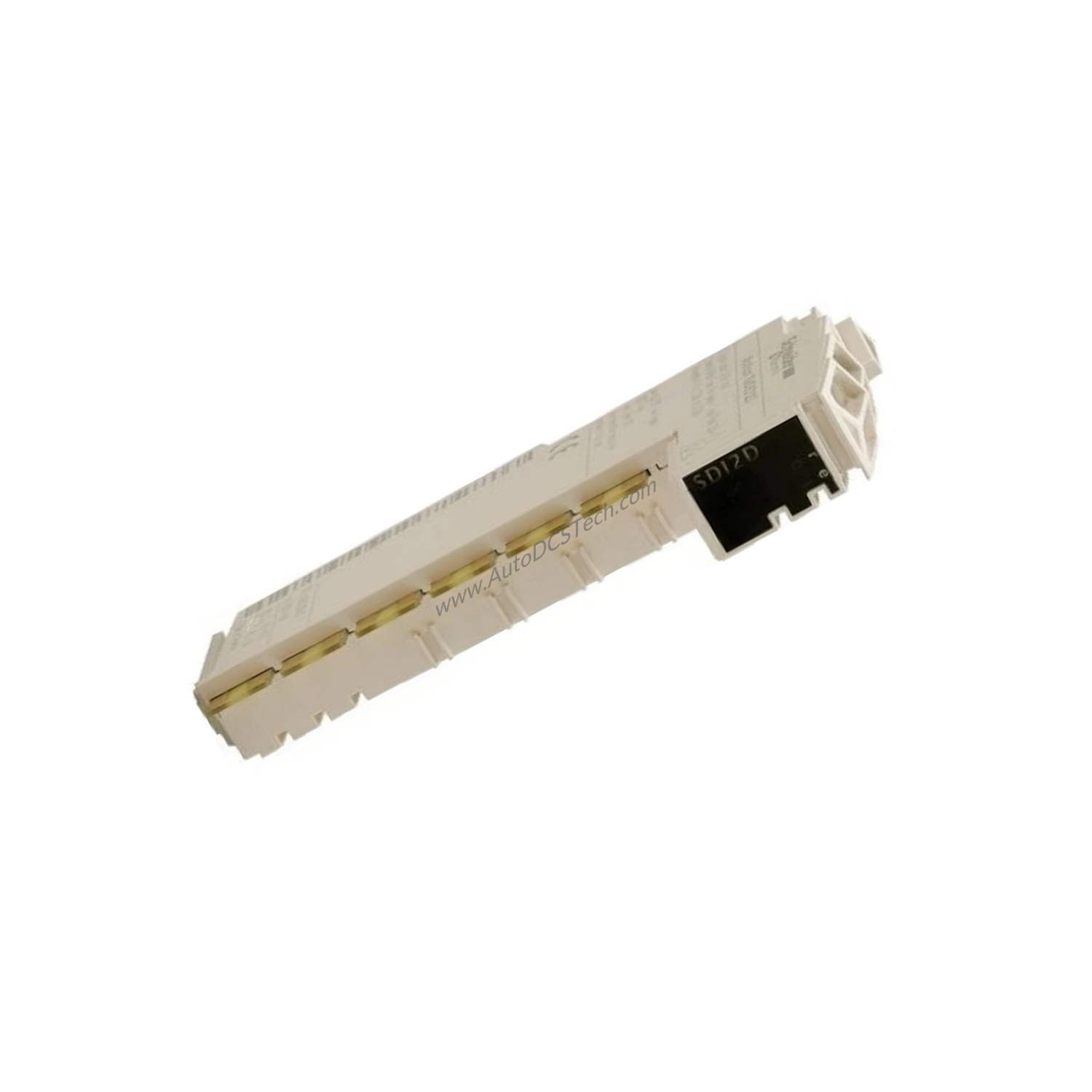

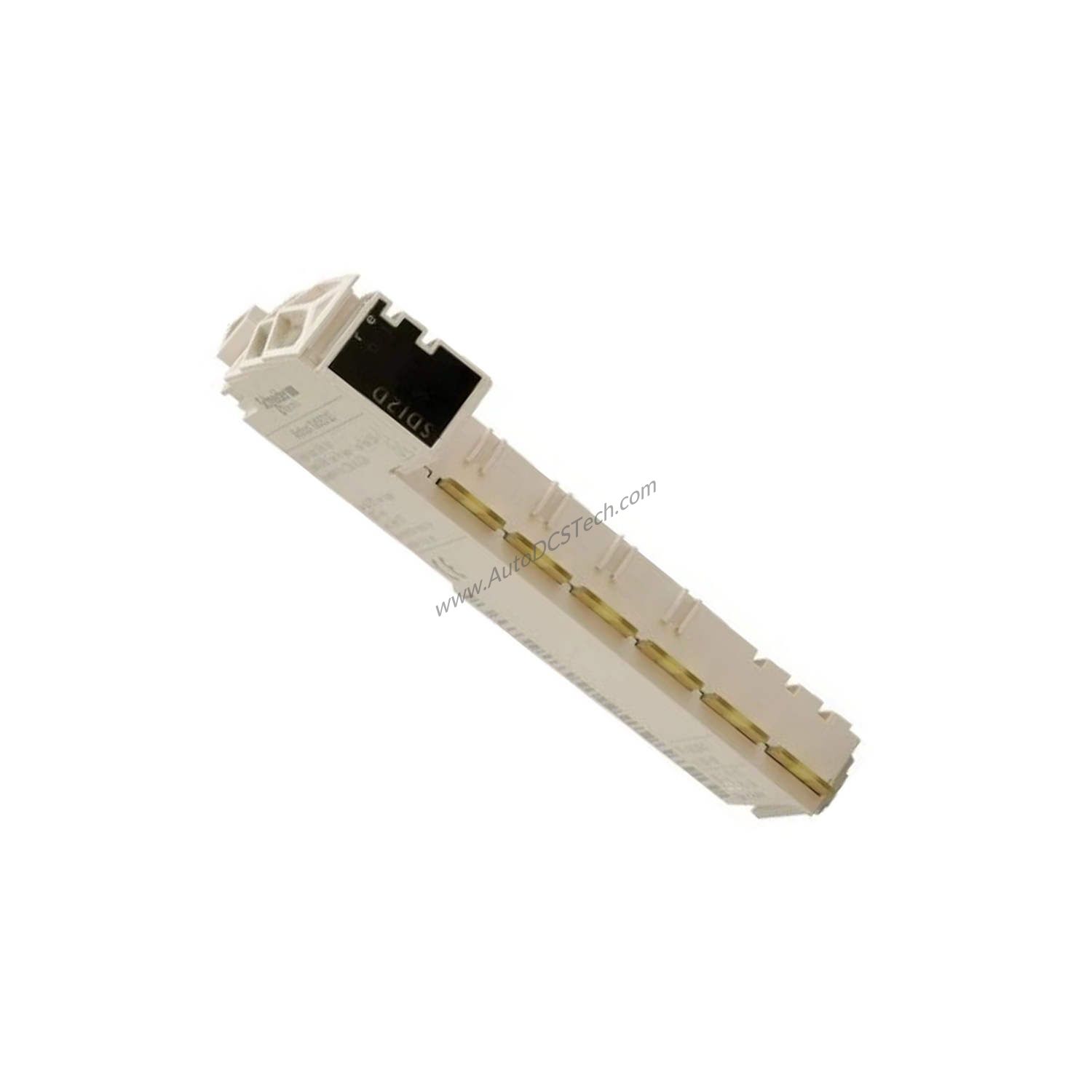

What Is the TM5SDO4T?
Struggling with reliable switching in your automation system? The Schneider TM5SDO4T discrete output module offers a compact, robust solution for controlling actuators, valves, and indicators. Part of the Modicon TM5 family, this module delivers four transistor outputs at 24V DC, each rated at 0.5A, with a maximum common current of 2A. Its source logic configuration simplifies integration with PLCs like Modicon M258 and PacDrive LMC motion controllers.
Technical Specifications Breakdown
- Output Voltage and Limits: Operates at 24V DC with a range of 20.4...28.8V, ensuring stable performance even with supply fluctuations.
- Current per Channel: Each output handles 0.5A continuous, with a peak current of 12A for demanding loads.
- Response Time: Switches from state 0 to 1 in ≤300 µs, and state 1 to 0 in ≤300 µs, enabling high-speed control.
- Protection Features: Includes reverse polarity, short-circuit, and overload protection for enhanced reliability.
- Isolation: Provides 500Vrms AC isolation between channel and bus, with no isolation between channels.
- Power Dissipation: Maximum 0.86W, keeping energy consumption low.
Industry Applications
In packaging lines, the TM5SDO4T controls solenoid valves and conveyor diverters with its fast 500 Hz switching frequency. For material handling, its 0.5A per channel drives small DC motors and indicator lights. The module’s IP20 rating suits clean, dry environments like control cabinets.
Installation & Setup Guidance
Mount the module on a DIN rail in a horizontal or vertical orientation. Use 3-wire connections for each output. Ensure ambient temperature stays between -10°C and 55°C (horizontal) or -10°C to 50°C (vertical) without derating. For higher temperatures up to 60°C, apply the specified derating factor. Connect the 24V DC supply within the 20.4...28.8V limits.
Maintenance & Reliability
Inspect the module periodically for dust accumulation and secure connections. The green and red LEDs provide local power supply status, while four yellow LEDs indicate output states. With a storage temperature range of -40°C to 70°C and 5% to 95% non-condensing humidity, the TM5SDO4T withstands harsh storage conditions. Its shock resistance of 15 gn for 11 ms ensures durability in vibrating machinery.
Compatibility & Integration
This module integrates seamlessly with Modicon M258 and PacDrive LMC motion controllers (LMC Pro 2, LMC Pro, LMC Eco). It supports logic controllers and motion controllers, making it versatile for mixed automation architectures. The 3-wire connection simplifies wiring to sensors and actuators.
Selection Guide & Purchasing Advice
Before purchasing, verify your controller compatibility and output requirements. The TM5SDO4T is ideal for applications needing four source-logic transistor outputs at 24V DC. For higher current needs, consider modules with greater per-channel ratings. SpareTechPLC stocks this module and can advise on lifecycle status and availability.
Frequently Asked Questions
Q: What is the maximum current per common on the TM5SDO4T?
A: The maximum current per output common is 2A.
Q: Does the TM5SDO4T support positive logic?
A: The module uses source logic (positive logic) as specified in the data.
Q: What is the response time for switching?
A: Both turn-on and turn-off times are ≤300 µs.
Q: What certifications does this module hold?
A: It is certified CSA, GOST-R, CULus, and C-Tick, and complies with IEC 61131-2 and UL 508.
Q: Can I use the TM5SDO4T with a Modicon M258 controller?
A: Yes, it is compatible with Modicon M258 and PacDrive LMC motion controllers.
