3501E 115 VAC/VDC 32-Point TMR Digital Input Module

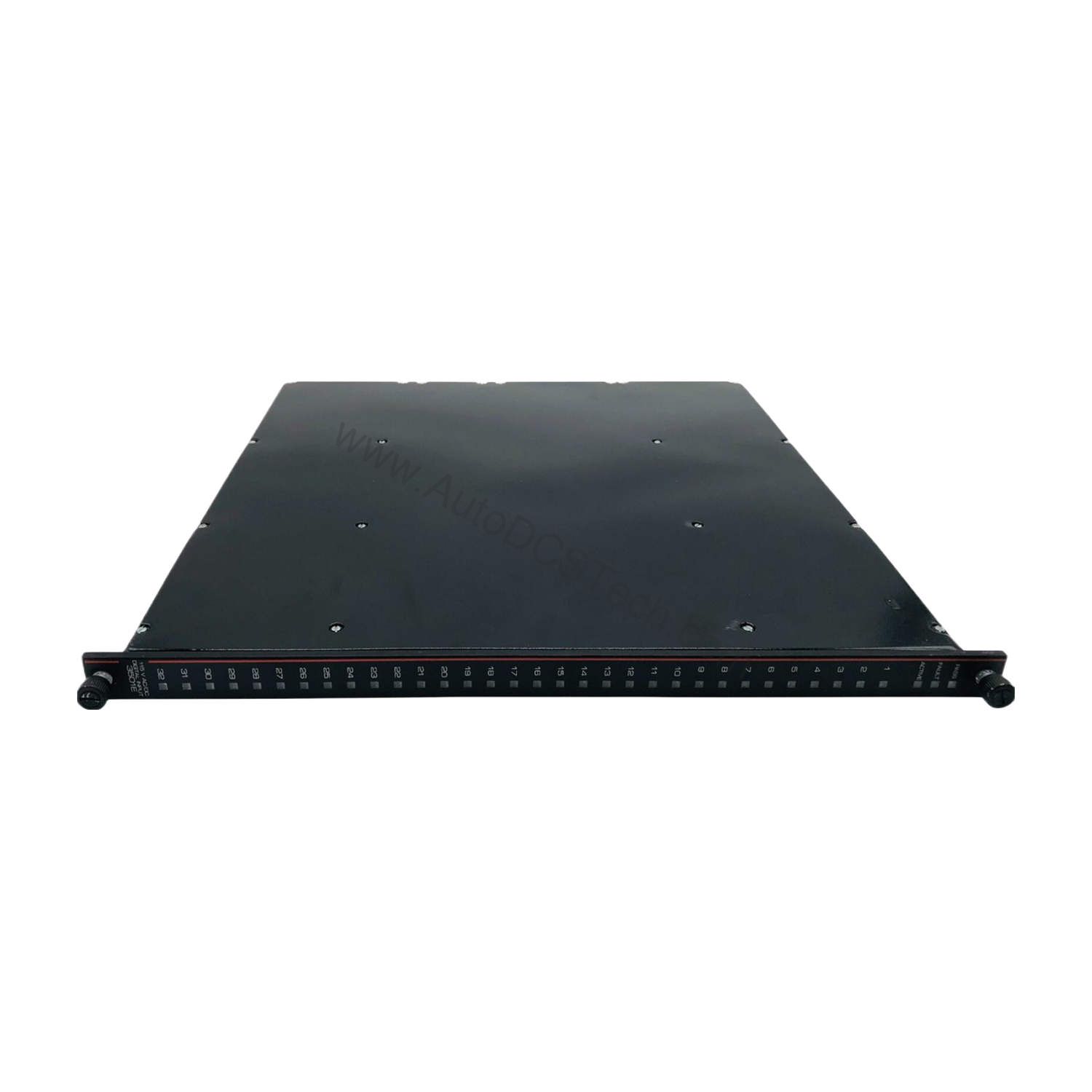

Introduction to the 3501E Triconex Digital Input Module

This Triconex module is engineered for high-integrity digital input applications where reliability is non-negotiable. Each module uses triple modular redundancy (TMR) to ensure that no single fault can interrupt critical signal processing.

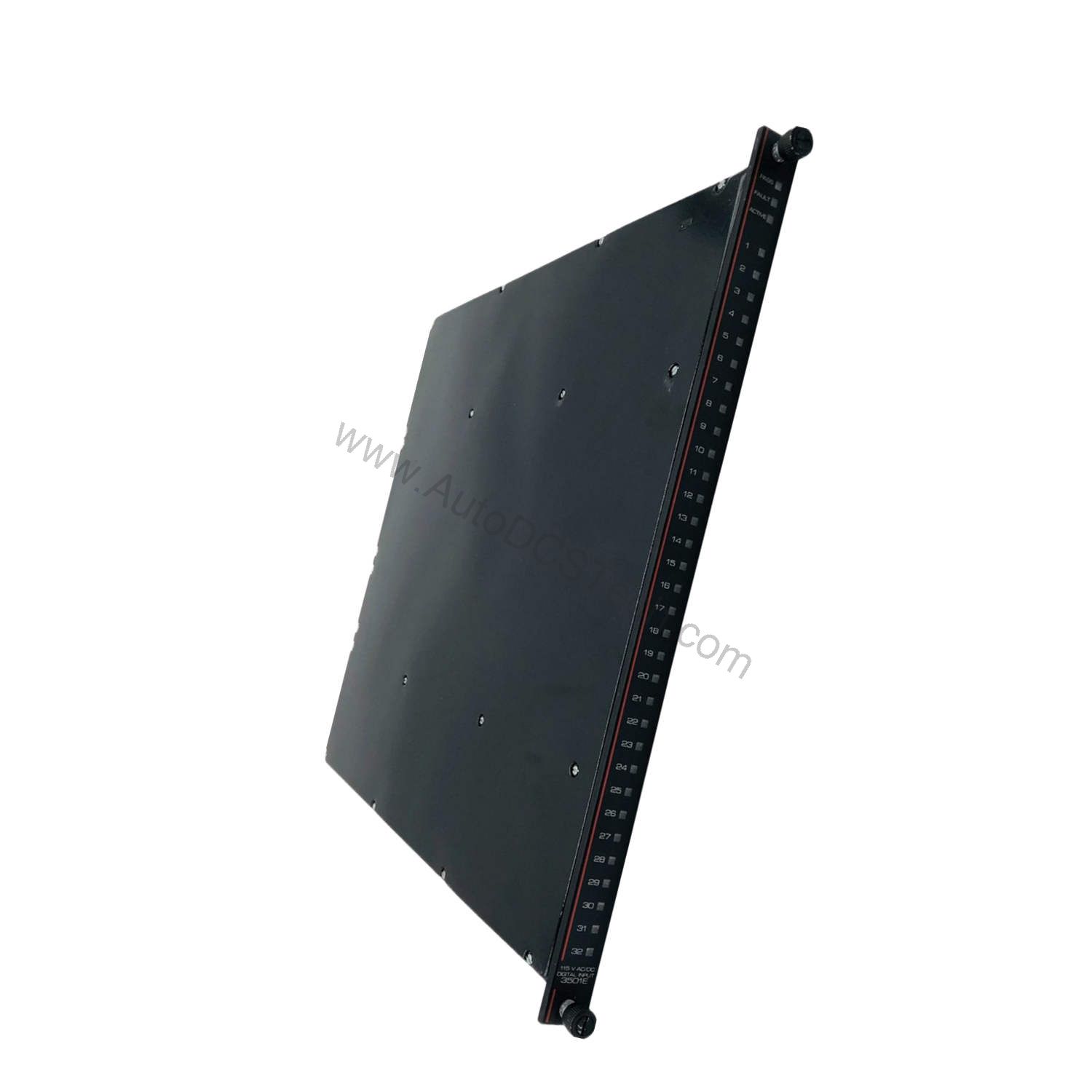

The 3501E is a 32-point, non-commoned, opto-isolated digital input module. It accepts both AC and DC signals across a wide range, making it versatile for various industrial environments. With its red color code and diagnostic indicators, this module integrates seamlessly into Tricon systems.

Key Features and Technical Specifications

The 3501E stands out with its TMR architecture, which triplicates all critical signal paths. This design guarantees safety and maximum availability, even when a channel fault occurs. The module continuously runs diagnostics on each channel, activating the module Fault indicator if any issue is detected.

• Input Voltage: 115 VAC/VDC nominal, with an operating range of 90-155 VAC/VDC.
• Points: 32 points, non-commoned and isolated.
• Frequency Range: DC or 47-63 Hz.
• Switching Levels: Off-to-On above 86 VAC/VDC; On-to-Off below 28 VAC/VDC.
• Input Delay: OFF to ON less than 8 ms; ON to OFF less than 15 ms.
• Point Isolation: 1,500 VDC (with 2,500 VDC available).
• Nominal Input Impedance: Greater than 8.5 kΩ.
• Field Power Load: 1.5 watts per on point; 2.9 watts at maximum field voltage.
• Diagnostic Indicators: Input status per point; module status PASS, FAULT, ACTIVE.

One distinctive feature is the nominal turn-on current of 6-9 mA, which ensures reliable detection of field signals. This low current requirement reduces power consumption and heat generation, extending module life.

Applications and Use Cases

The 3501E is ideal for safety-critical applications in oil and gas, chemical processing, and power generation. Its TMR design is particularly suited for emergency shutdown systems, fire and gas detection, and burner management. In these environments, the module's ability to tolerate single faults without losing functionality is a major advantage.

For example, in a high-availability process control system, the 3501E can monitor limit switches, pressure switches, and other discrete sensors. The non-commoned, isolated points prevent ground loops and cross-talk, ensuring accurate signal reading.

Installation and Setup

Installing the 3501E requires careful attention to wiring and isolation. Each input point is isolated, so field wiring must respect the specified isolation ratings. Ensure that the input voltage remains within the 90-155 VAC/VDC range to avoid damage.

Proper grounding is essential to maintain the module's isolation and diagnostic accuracy. Follow the manufacturer's guidelines for chassis grounding and signal wiring. The module's red color code helps identify it quickly during installation.

Maintenance and Reliability

Regular inspection of the 3501E is recommended to maintain its high reliability. The module's built-in diagnostics continuously monitor each channel, alerting operators to any fault. This proactive approach minimizes downtime and reduces maintenance costs.

Because the module is designed for harsh industrial environments, it requires minimal routine care. However, periodic checks of the input wiring and voltage levels can prevent unexpected failures. Always refer to the official Triconex manual for detailed maintenance procedures.

Compatibility and Integration

The 3501E is part of the Tricon family of safety systems. It communicates with Main Processors via a proprietary backplane, which is not detailed in the provided data. For integration specifics, consult the Tricon system documentation.

This module is designed to work seamlessly with other Tricon modules, such as analog input and output modules, to form a complete safety instrumented system. Its TMR architecture ensures that it meets the highest integrity requirements.

Troubleshooting and Common Issues

If the module Fault indicator lights up, it points to a channel fault, not a module failure. The module is guaranteed to operate properly with a single fault and may continue with multiple faults. Common issues include incorrect input voltage levels or wiring errors.

To diagnose, check the input status indicators and verify that field signals are within the specified switching levels. If the problem persists, consult the troubleshooting section of the Triconex manual or contact AutoDCSTech for support.

Product Support and Availability

The 3501E is available from AutoDCSTech, an industrial automation parts supplier. In stock and ready to ship, this module comes with the assurance of quality and reliability. Contact AutoDCSTech for pricing and delivery options.
