3636T 32-Point Relay Output Module | Triconex

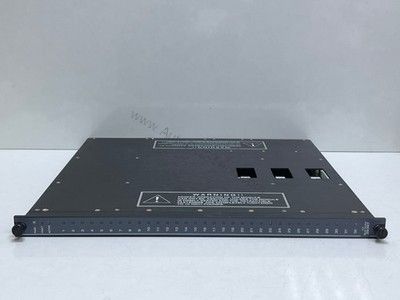

Introduction: The 3636T in Critical Annunciator Applications

When an annunciator panel must reliably reflect process alarms, engineers face a common challenge: high-side solid-state outputs often cannot interface cleanly with such loads. The 3636T from Triconex solves this by providing a dedicated relay output module designed for non-critical points that require dry contact switching. This module receives output signals from the main processors on each of three channels, votes the three sets of signals, and uses the voted data to drive 32 individual relays. As a result, the 3636T delivers dependable switching for annunciator panels and similar applications where isolation and load flexibility matter more than speed.

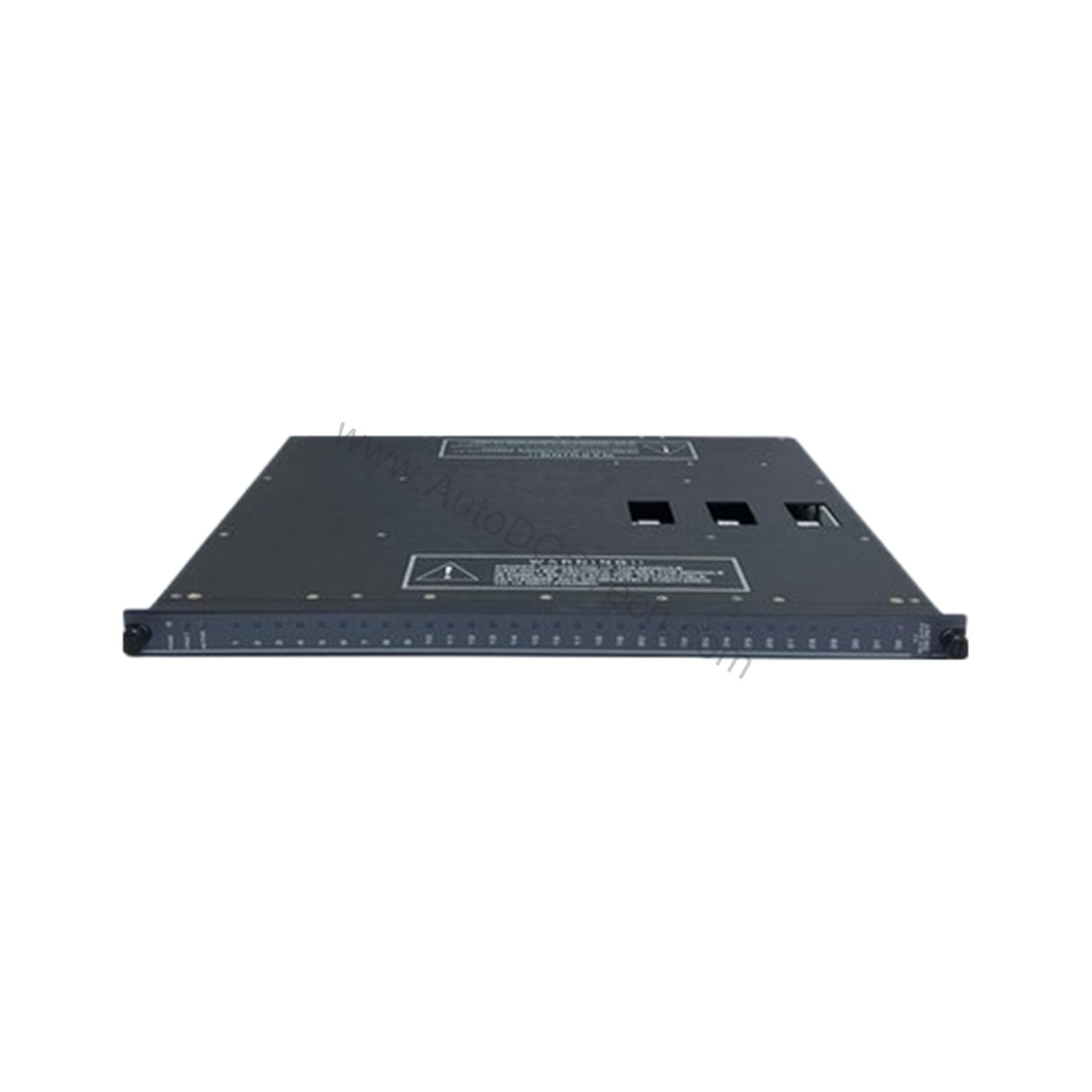

Key Features & Technical Specifications

The 3636T is engineered with a robust set of specifications that make it suitable for demanding industrial environments. Below is a structured breakdown of its core parameters:

• Type: Non-triplicated module for non-critical points.
• Points: 32 outputs, non-commoned, providing individual isolation.
• Voltage Range: 155 VAC/VDC maximum, accommodating a wide variety of loads.
• Current Load: 2A maximum per output, sufficient for many relay and indicator circuits.
• Switching Power (Resistive): 2000 VA, 150 watts maximum, indicating robust contact rating.
• Point Isolation: 1500 VDC, with 2500 VDC for the 3636T model, ensuring channel-to-channel isolation.
• Fuses: 1 per output (2.5A fast-acting), protecting each relay circuit individually.
• Diagnostic Indicators: Output Status (1 per point) and Module Status (PASS, FAULT, ACTIVE).
• Output Contact: Normally Open (NO), ideal for annunciator and alarm circuits.
• Color Code: Silver Blue, aiding quick identification in the field.

One distinctive feature is the loopback circuit on each output. This circuit verifies the operation of each relay switch independently of the presence of a load. Consequently, ongoing diagnostics test the operational status of the module, and any failure activates the Fault indicator, which in turn triggers the chassis alarm. This self-diagnostic capability significantly reduces troubleshooting time and enhances system reliability.

Applications & Use Cases

The 3636T is specifically designed for interfacing with annunciator panels, where its normally open contacts and high isolation are essential. Furthermore, it suits any non-critical point that is not compatible with high-side solid-state switches. Typical applications include alarm indication, status lamps, and general-purpose switching in Tricon systems. Because the module is non-triplicated, it is best deployed in non-critical roles where a single module failure does not compromise safety functions. Moreover, the module supports hot-spare configurations, allowing for replacement without system shutdown, which minimizes downtime.

Installation & Setup

Installing the 3636T requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane. This design simplifies field wiring and ensures proper signal integrity. During installation, ensure that the ETP is correctly mounted and that the cable is securely connected. Also, verify that the module is seated properly in the chassis and that all fuses are intact. Since the module uses normally open contacts, confirm that the load circuit is wired accordingly. Always follow the manufacturer's installation manual for detailed procedures.

Maintenance & Reliability

Routine maintenance of the 3636T focuses on periodic inspection of the module and its associated ETP. Check for signs of overheating, loose connections, or damaged fuses. The module's built-in diagnostics continuously monitor relay operation, so any fault is immediately indicated. For optimal reliability, keep the module environment clean and within specified temperature ranges. Because the module supports hot-spare replacement, you can swap a faulty unit without halting operations, thereby reducing downtime and maintenance costs.

Compatibility & Integration

The 3636T is part of the Triconex family and is designed to work with the Tricon backplane. It receives output signals from the main processors on each of three channels, making it fully compatible with Triconex safety systems. The module requires an external termination panel (ETP) for field wiring, which is available from Triconex. For integration, ensure that the ETP cable is correctly connected to the backplane and that the module is recognized by the system. No additional communication protocols are required, as the module operates within the Tricon architecture.

Troubleshooting & Common Issues

If the Fault indicator is lit, the module's diagnostics have detected an issue. Common causes include a blown fuse, a failed relay, or a wiring fault. Check the fuses first, as they are fast-acting and may open due to overcurrent. If a fuse is blown, replace it with the specified 2.5A fast-acting type. If the fault persists, verify that the load is within the module's ratings. Also, ensure that the ETP cable is securely connected. For persistent issues, consult the official Triconex documentation or contact AutoDCSTech for support.

Product Support & Availability

The 3636T is available from AutoDCSTech, an industrial automation parts supplier. We stock this module and can ship it promptly. For technical support or to verify lifecycle status, please contact AutoDCSTech. Our team is ready to assist with your Triconex requirements.
