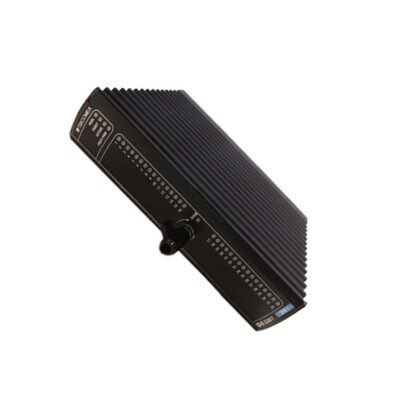

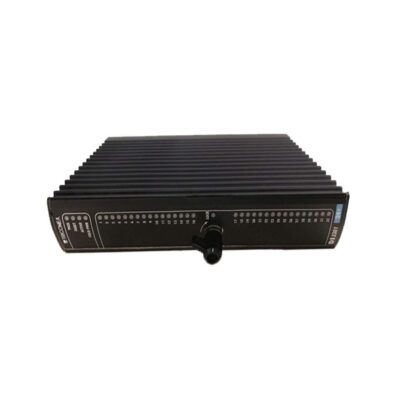

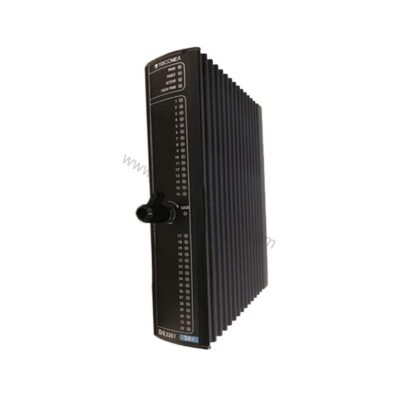

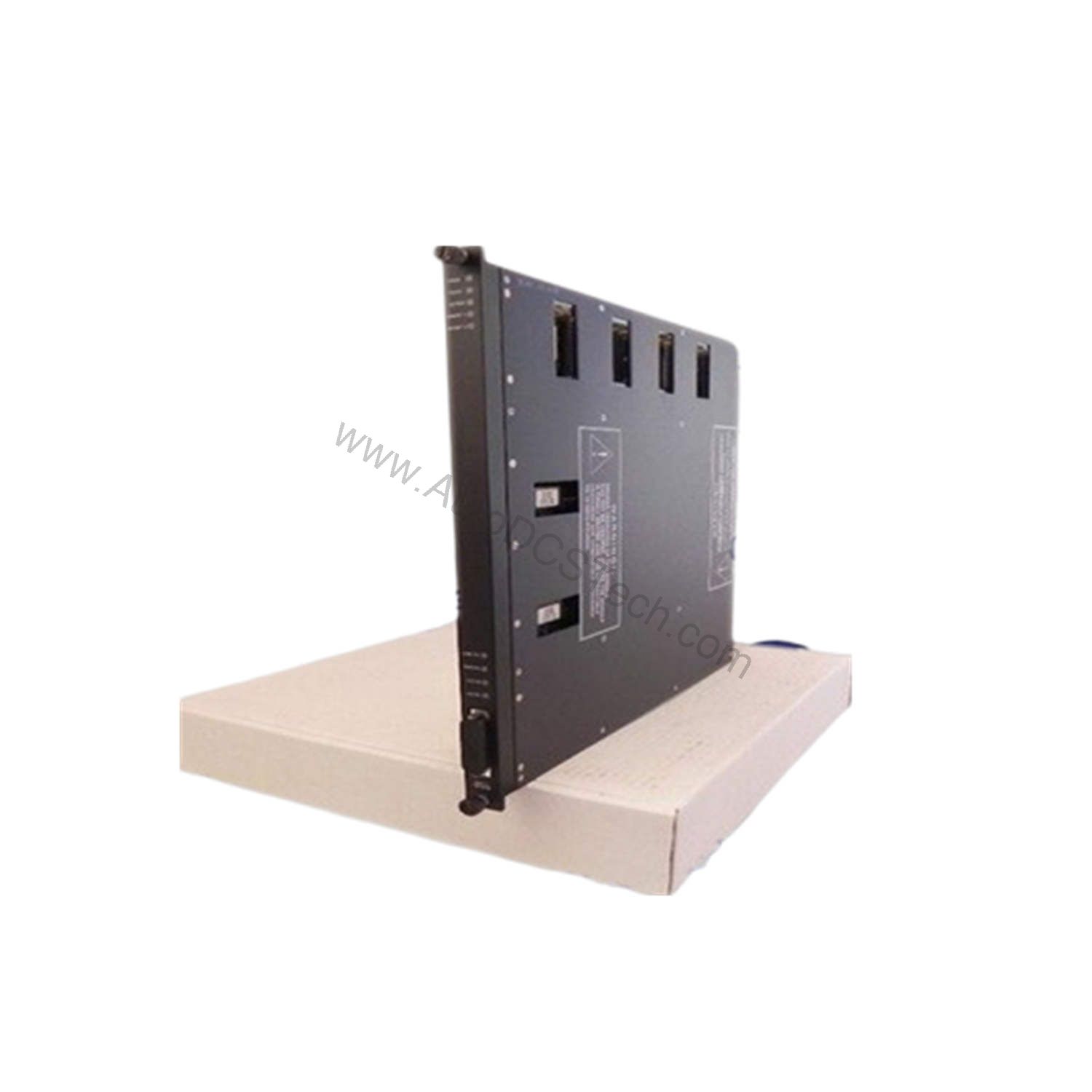

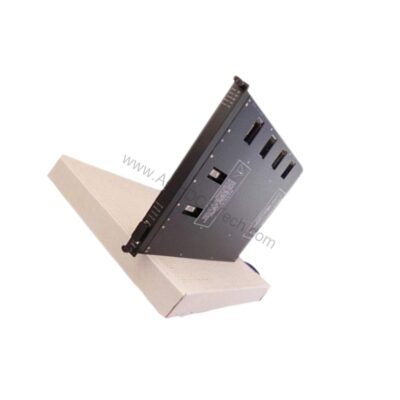

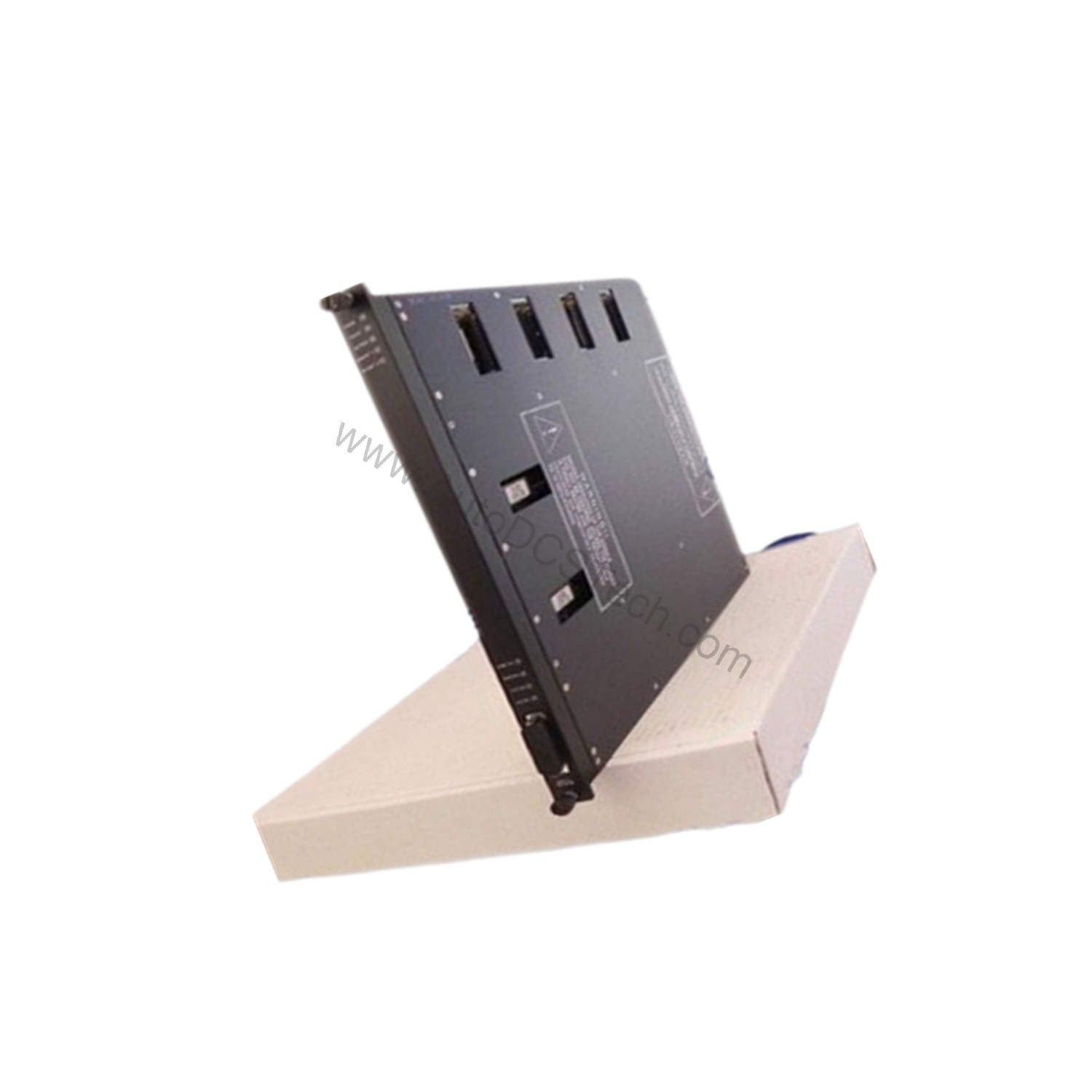

3806E Triconex TMR Analog Output Module

Introduction: The Evolution of Analog Output Reliability

In the early days of industrial automation, a single failed output could shut down an entire process. As plants grew more complex, engineers demanded higher availability without sacrificing safety. This drove the development of Triple Modular Redundant (TMR) architectures, where three independent channels vote on every signal. The 3806E from Triconex represents a mature step in that evolution, combining high-density analog output with fault-tolerant design.

For turbomachinery applications, where vibration, speed, and temperature loops must remain stable, the 3806E provides a robust interface between the Tricon controller and field actuators. Its ability to detect open loops and channel faults without interrupting healthy outputs makes it a cornerstone of modern safety systems.

What Is the 3806E?

The 3806E is a TMR analog output module designed for the Triconex safety system. It receives output signals from the main processor on each of three channels. Each set of data is voted, and a healthy channel is selected to drive the eight outputs. This voting ensures that a single channel failure does not affect the output signal.

The module monitors its own current outputs as input voltages and maintains an internal voltage reference. This self-calibration capability provides continuous health information. The design prevents a non-selected channel from driving an analog signal to the field, eliminating the risk of conflicting outputs.

Key Features and Technical Specifications

• Type: TMR (Triple Modular Redundant) for high availability.
• Output current range: 4-20 mA and 20-320 mA.
• Number of output points: 6 points at 4-20 mA and 2 points at 20-320 mA.
• Isolation: No, commoned return, DC coupled.
• Resolution: 12 bits.
• External loop power: +42.5 VDC maximum, nominal +24 VDC, reverse voltage protected.
• Max load at 24 VDC (4-20 mA): ≤ 475 Ohms.
• Max load at 24 VDC (16-320 mA): ≤ 25 Ohms.
• Over-range protection: Less than +42.5 VDC.
• Switch time on leg failure: Less than 10 ms, typical.
• Diagnostic indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2.
• Color code: Light Green.

One distinctive spec is the switch time on leg failure of less than 10 ms. In a TMR system, when one leg fails, the output must switch to a healthy leg quickly to avoid process upset. This rapid switching ensures minimal disturbance to the control loop.

Applications and Use Cases

The 3806E is optimized for turbomachinery applications, including gas turbines, compressors, and generators. In these environments, analog outputs control critical parameters such as fuel valve position, anti-surge bypass, and lube oil pressure. The module's high-current output capability (20-320 mA) is particularly useful for driving solenoids or proportional valves that require more current than standard 4-20 mA loops.

Furthermore, the module supports hot-spare capability, allowing online replacement of a faulty module without shutting down the process. This feature is essential for continuous operations where downtime is costly. The open loop detection via the LOAD indicator helps maintenance teams quickly identify wiring issues.

Installation and Setup

Installing the 3806E requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis. Ensure that the external loop power supplies are provided by the user, with a maximum of +42.5 VDC and nominal +24 VDC. The module is reverse voltage protected, but proper polarity is still recommended.

When wiring, consider the load resistance limits. For 4-20 mA outputs, the maximum load at 24 VDC is 475 Ohms. For 20-320 mA outputs, the maximum load at 24 VDC is 25 Ohms. Exceeding these limits may prevent the module from driving the specified current.

Maintenance and Reliability

The 3806E performs ongoing diagnostics on each channel and circuit. If any diagnostic fails, the faulty channel is deactivated, and the FAULT indicator lights up, activating the chassis alarm. The module continues to operate with up to two failed channels, providing redundancy. Regular inspection of the PWR1 and PWR2 indicators ensures that loop power is present. The LOAD indicator should be monitored to detect open loops.

Because the module is designed for high reliability, routine maintenance is minimal. However, periodic verification of output accuracy and loop integrity is recommended, following the manufacturer's manual. The self-calibration feature reduces the need for manual recalibration.

Compatibility and Integration

The 3806E is part of the Triconex safety system and is compatible with Tricon backplanes. It requires an external termination panel (ETP) for field wiring. The module communicates with the main processor over the backplane, and its TMR architecture ensures that the processor receives voted output data. No additional protocols are mentioned, but the module is designed for seamless integration into Triconex systems.

Troubleshooting Common Issues

If the LOAD indicator activates, it indicates an open loop on one or more output points. Check the field wiring and the load resistance. If the FAULT indicator is on, a channel fault has occurred, but the module may still operate with the remaining channels. Verify the health of each channel via the diagnostics. If PWR1 or PWR2 are off, check the external loop power supply.

For any persistent issues, consult the official Triconex documentation or contact AutoDCSTech for support.

Product Support and Availability

The 3806E is available through AutoDCSTech, a leading supplier of industrial automation parts. Contact AutoDCSTech for pricing and lead times. Please verify current lifecycle status and availability before ordering.
