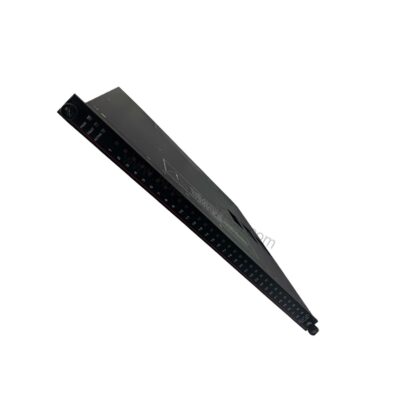

Introduction to the Triconex 3503E
When a safety system demands guaranteed availability and fault tolerance, the 3503E from Triconex provides a robust solution. This TMR (Triple Modular Redundant) digital input module is engineered for high-integrity applications where a single point of failure is unacceptable. Each of its three isolated input channels independently processes all data, ensuring that the system continues to operate correctly even with a single fault present.
Part of the Triconex family, the 3503E is designed to meet the rigorous requirements of safety instrumented systems. Its triple-redundant architecture and comprehensive diagnostics make it a reliable choice for critical process control.
Key Features and Technical Specifications
The 3503E offers a range of features that enhance safety and operational efficiency. Below are the core specifications extracted from the official datasheet:
- Input Voltage: 24 VAC/VDC
- Input Points: 32, commoned in groups of 8
- Recommended Input Range: 20-42.5 VDC
- Maximum Voltage: 42.5 VAC/VDC
- Frequency Range: DC or 47-63 Hz
- Switching Level (Off to On): > 18 VAC/VDC
- Switching Level (On to Off): < 6 VAC/VDC
- Nominal Turn-On Current: 6-9 mA
- Typical Hysteresis: 4 VAC/VDC
- Input Delay (OFF to ON / ON to OFF): < 8 ms / < 15 ms
- Point Isolation: 1,500 VDC
- Nominal Input Impedance: > 1.25 KΩ

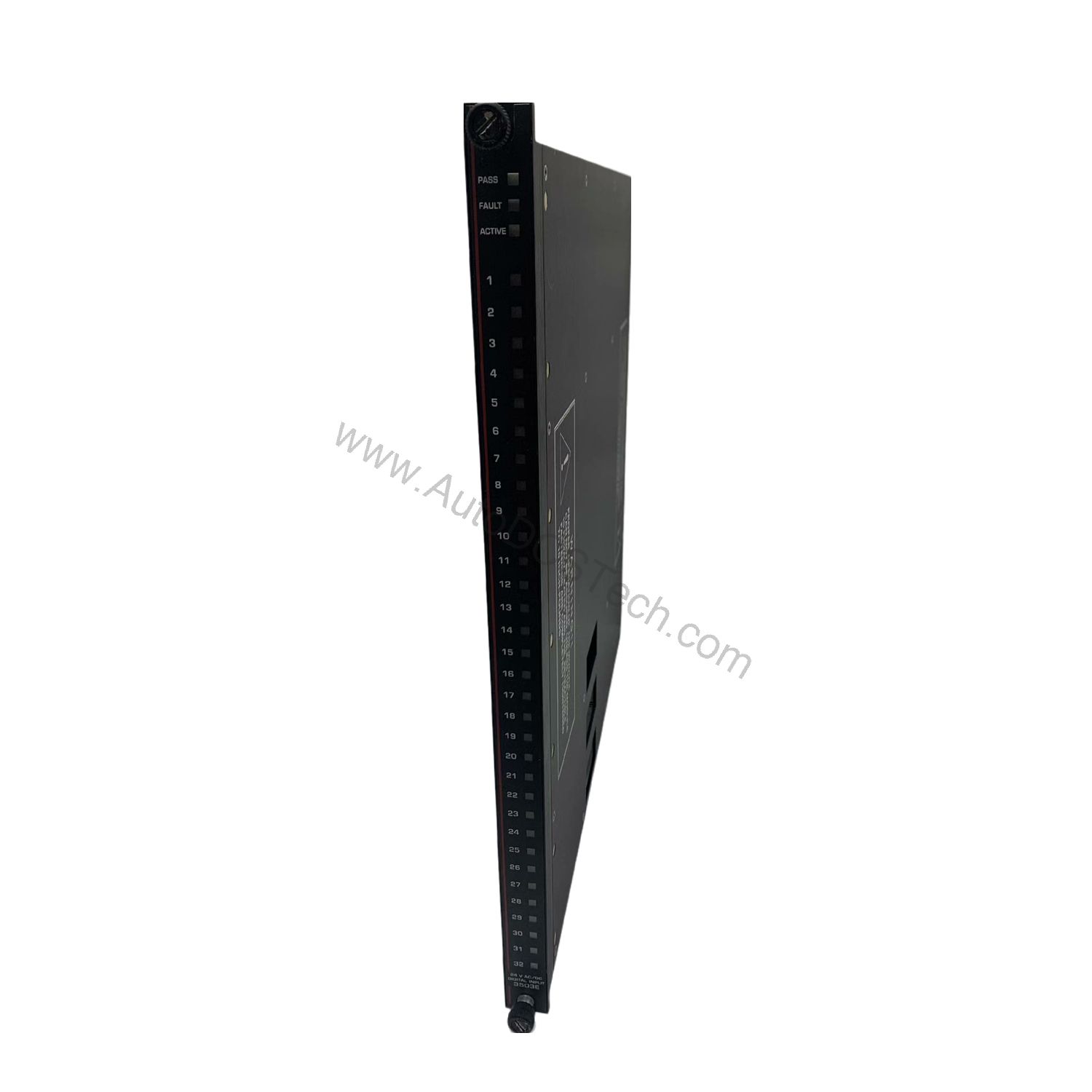

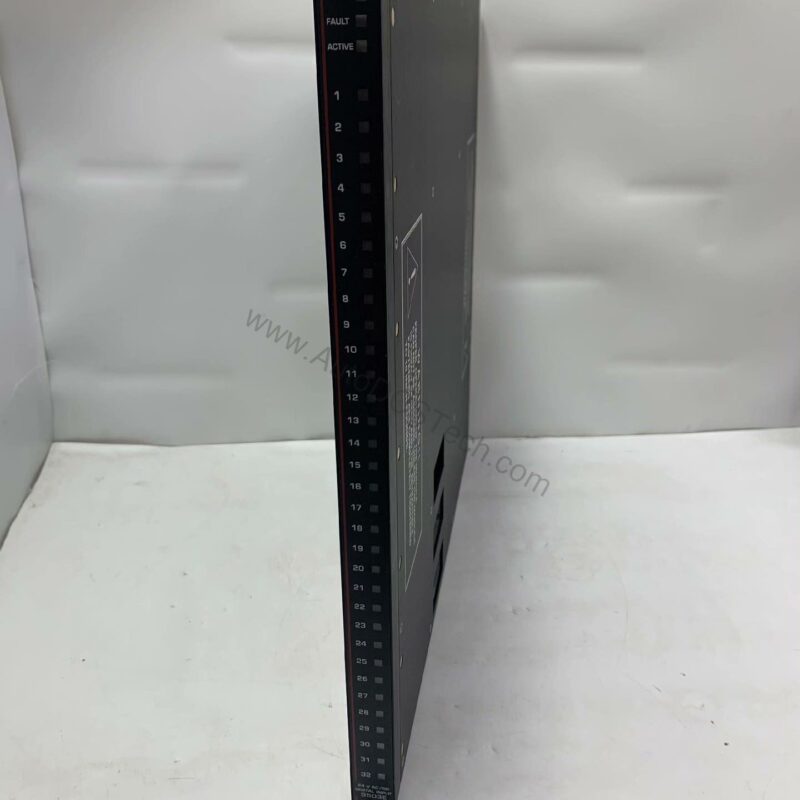

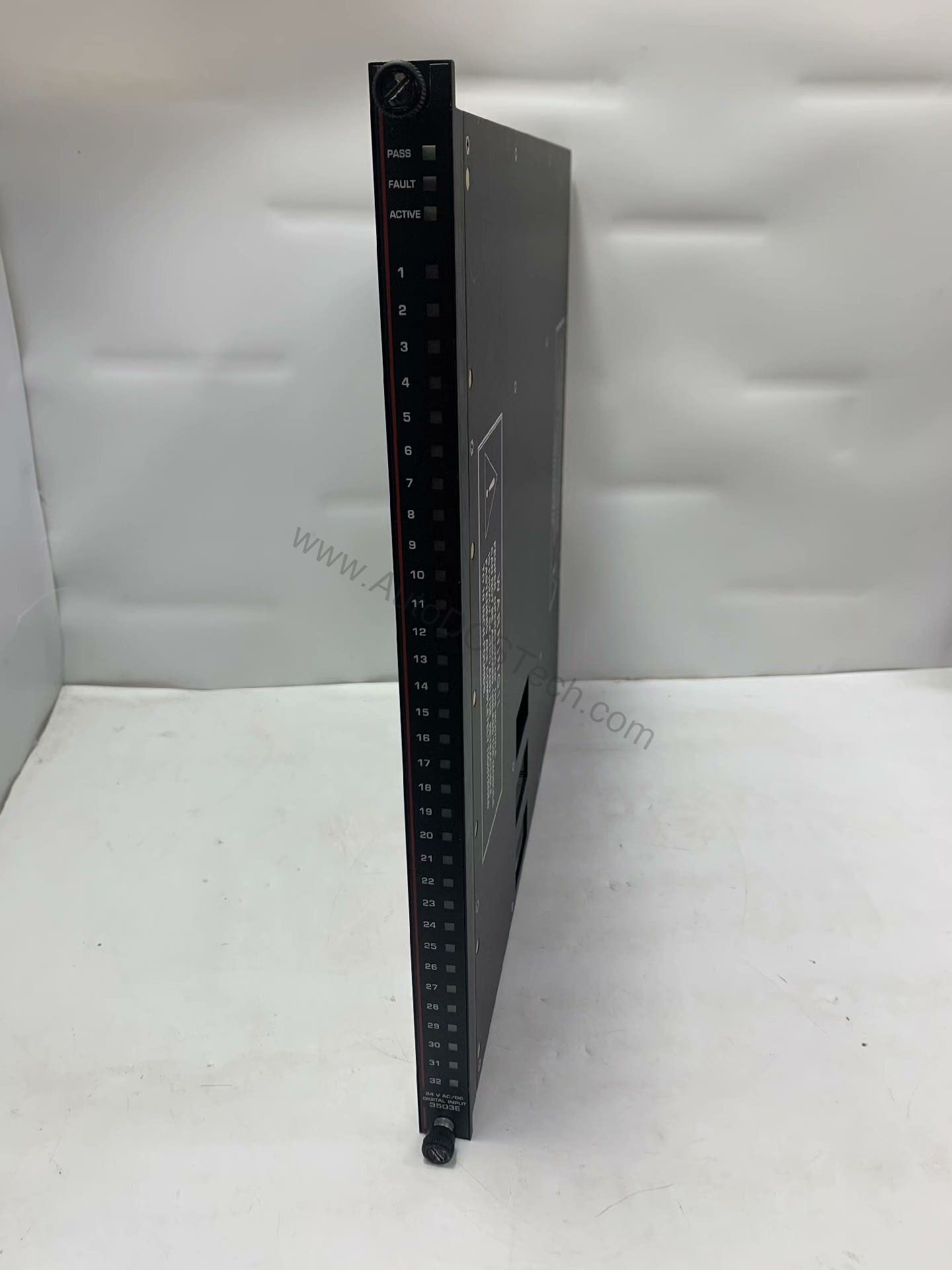

- Diagnostic Indicators: Input Status (1 per point), Module Status (PASS, FAULT, ACTIVE), Stuck Test (On)
- Color Code: Dark Red
One distinctive feature is the self-test capability for stuck-ON detection. This is crucial for de-energize-to-trip systems, as it verifies that inputs can actually return to the OFF state, thereby preventing undetected failures that could compromise safety.
Real-World Applications
The 3503E is ideal for safety-critical applications in industries such as oil and gas, chemical processing, and power generation. Its ability to handle both AC and DC inputs makes it versatile for various field devices, including limit switches, proximity sensors, and relay contacts. The module's high isolation (1,500 VDC) ensures that field transients do not affect the controller, maintaining signal integrity.
Furthermore, the TMR architecture supports hot-spare capability, allowing for module replacement without system shutdown. This minimizes downtime and enhances plant availability, a key consideration for continuous processes.
Installation and Setup
Proper installation is essential for optimal performance. The 3503E requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis, ensuring correct seating and connection.
When mounting the module, ensure that the chassis is properly grounded and that all field wiring is routed according to the manufacturer's guidelines. The module's diagnostic indicators provide immediate visual feedback on input status and module health, simplifying commissioning and troubleshooting.
Maintenance and Reliability
Routine maintenance of the 3503E involves periodic inspection of the module and its termination panel. Check for any signs of physical damage, loose connections, or environmental stress. The module's continuous self-diagnostics monitor each channel, and any detected fault activates the module Fault indicator, which in turn triggers the chassis alarm. This proactive approach helps identify issues early, reducing the risk of unexpected failures.
Given its TMR design, the module is guaranteed to operate properly in the presence of a single fault and may continue with certain multiple faults. This inherent redundancy, combined with regular checks, ensures long-term reliability and safety.
Compatibility and Integration
The 3503E is designed for integration with the Tricon safety system. It communicates with the main processors via the Tricon backplane, where input data is voted to ensure the highest integrity. The module supports hot-spare capability, allowing for redundant configurations that enhance system availability.
For integration, ensure that the module's part number matches your system's requirements and that the firmware is compatible. Always refer to the official Triconex documentation for detailed integration guidelines.
Troubleshooting and Common Issues
If the module Fault indicator is active, it points to a channel fault, not a module failure. Use the input status indicators to identify the specific point that is faulty. For stuck-ON conditions, the self-test function can be used to verify that inputs can transition to the OFF state. If a channel fails diagnostics, check the field wiring and the external termination panel for issues.
Should problems persist, consult the official Triconex troubleshooting guide or contact AutoDCSTech for expert assistance.
Product Support and Availability
The 3503E is available through AutoDCSTech, a trusted supplier of industrial automation parts. For current lifecycle status and availability, please contact AutoDCSTech before ordering. Our team is ready to assist with technical questions and procurement.
Availability & Condition at AutoDCSTech
| Part Number | 3503E |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
