Introduction: Solving Hazardous Area Output Challenges

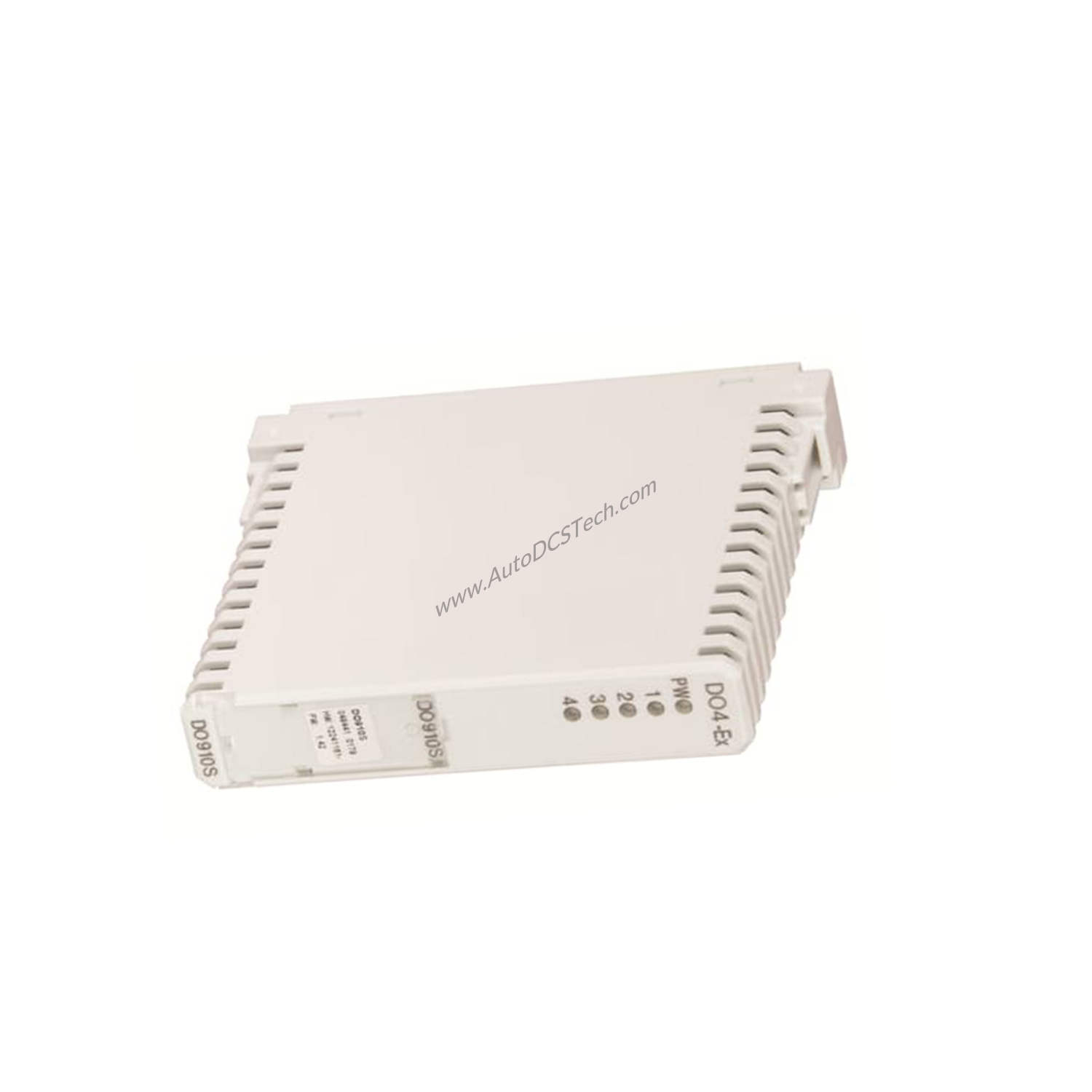

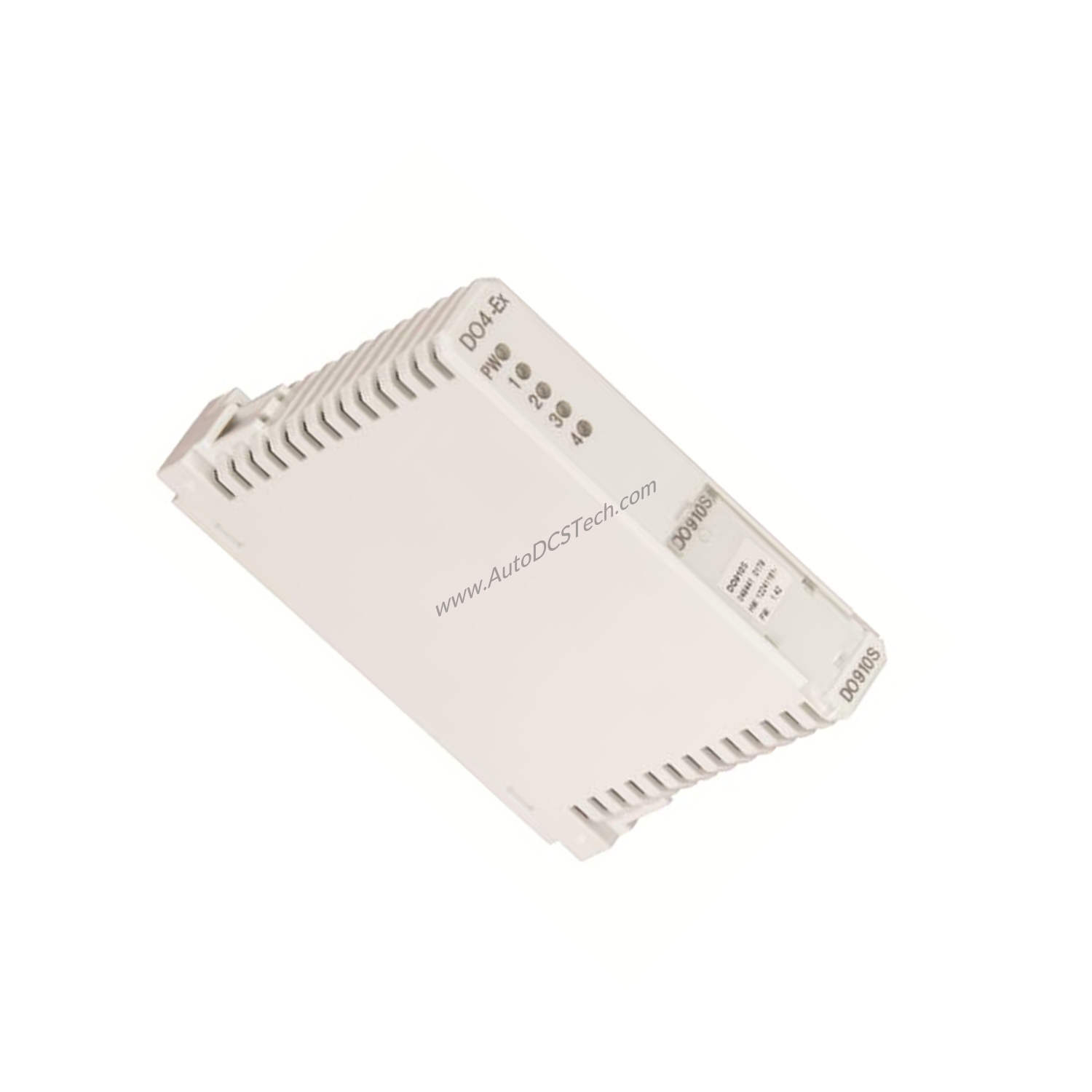

When industrial processes require reliable solenoid valve or alarm control in explosive atmospheres, the ABB DO910-S 3KDE175321L9100 ABB Digital Output Module delivers a safe, robust solution. Part of the S900 I/O system, this module is designed for installation directly in Zone 1 hazardous areas, eliminating the need for costly marshalling cabinets and long cable runs. Its intrinsic safety design allows connection to field devices in Zone 0, Zone 1, or Zone 2, simplifying system architecture while maintaining the highest safety standards.
Technical Specifications Breakdown
The DO910-S offers four output channels, each capable of driving intrinsically safe solenoid valves or alarms. Key parameters from the datasheet include:
- Channel Count: 4 channels, with electrical isolation between output and bus, output and power, and channel to channel. This isolation prevents fault propagation and enhances system reliability.
- Signal Type: Solenoid driver, optimized for inductive loads like valves.
- Intrinsic Safety: Yes, enabling direct connection to hazardous area field devices.
- Redundancy: Not supported on this module, but the S900 system offers power and communication redundancy at the backplane level.
- Environmental Ratings: Operates from -20 °C to 60 °C ambient, with 93% relative humidity at 40 °C. The G3 coating per ISA-S71.04 ensures corrosion resistance in harsh industrial atmospheres.
- Dimensions & Weight: Compact 20 mm width, 104 mm depth, 104 mm height, weighing only 0.135 kg, saving valuable cabinet space.
Industry Applications: Where the DO910-S Excels
Oil & Gas Valve Control: In upstream processing, the DO910-S drives emergency shutdown valves and blowdown valves in Zone 1 areas. The integrated short and break detection provides immediate fault notification, reducing unplanned downtime. Hot swap capability allows module replacement without powering down the loop, critical for continuous processes.
Chemical Plant Alarm Systems: For toxic gas or fire alarms, the module's intrinsic safety ensures safe operation with sensors in Zone 0. The PROFIBUS DP interface integrates seamlessly with distributed control systems, enabling advanced diagnostics via FDT/DTM.
Pharmaceutical Batch Processing: The DO910-S controls solvent valves in classified areas. Its G3 coating withstands corrosive cleaning agents, while the compact footprint fits crowded junction boxes.
Installation & Setup Guidance
Mount the DO910-S on an S900 backplane in a suitable enclosure rated for Zone 1. Ensure the bus connector is properly seated before powering the system. Use certified intrinsically safe barriers or isolators between the module and field devices as per the control drawing. The module supports hot configuration in run, so you can add or modify channels without stopping the process. Always verify the bus address and termination settings before commissioning.
Maintenance & Reliability
The DO910-S features auto-diagnostics that continuously monitor output health, short circuits, and wire breaks. This built-in intelligence reduces manual inspection frequency. The G3 coating protects against corrosive atmospheres, extending service life in chemical and offshore environments. When replacement is needed, the hot swap mechanism allows module exchange without interrupting primary voltage, minimizing production losses. Regular inspection of the bus connectors and field wiring is recommended to maintain signal integrity.
Compatibility & Integration
The DO910-S communicates via PROFIBUS DP, a widely adopted fieldbus standard. It integrates with ABB Ability™ System 800xA, Siemens PCS 7, and other DCS/PLC systems supporting PROFIBUS DP. The S900 I/O system is designed for both non-hazardous and Zone 1/2 areas, making it a flexible choice for mixed environments. Use FDT/DTM-compliant configuration tools for easy setup and diagnostics.
Selection Guide & Purchasing Advice
Before ordering, confirm your system variant supports the S900 I/O type S for Zone 1. Verify the backplane and power supply are compatible. The DO910-S is a non-redundant module; if fault tolerance is required, consider redundant S900 power and communication modules. SpareTechPLC stocks the DO910-S (3KDE175321L9100) with fast worldwide shipping. Contact our team to check current lifecycle status and availability before placing your order.
Troubleshooting & Common Issues
- No Output: Check bus connection and module status LEDs. Verify the channel is enabled in the configuration software. If the module detects a short or break, the output will be disabled automatically.
- Communication Failure: Ensure the PROFIBUS DP cable is terminated correctly and the bus address matches the configuration. Inspect the bus connector for damage.
- Overheating: Operate within the -20 °C to 60 °C range. Ensure adequate ventilation in the enclosure. The module's compact size dissipates heat efficiently, but avoid mounting near heat sources.
Frequently Asked Questions
Q: Can the DO910-S be used in Zone 0 directly?
A: The module itself is certified for Zone 1 installation. It can connect to intrinsically safe field devices located in Zone 0, Zone 1, or Zone 2.
Q: Does the DO910-S support redundancy?
A: No, this module does not have built-in redundancy. However, the S900 system supports redundant power and communication modules at the backplane level.
Q: What is the maximum cable length to the field device?
A: The datasheet does not specify cable length limits. Follow intrinsic safety installation guidelines and refer to the control drawing for your specific application.
Q: Is the DO910-S compatible with Siemens S7-1500?
A: Yes, if the S7-1500 has a PROFIBUS DP master module, it can communicate with the DO910-S via the S900 I/O system.
Q: How do I replace the module without stopping the process?
A: The DO910-S supports hot swap. Ensure the replacement module has the same configuration, then gently remove the old module and insert the new one. The system will automatically recognize it.
