Product Overview

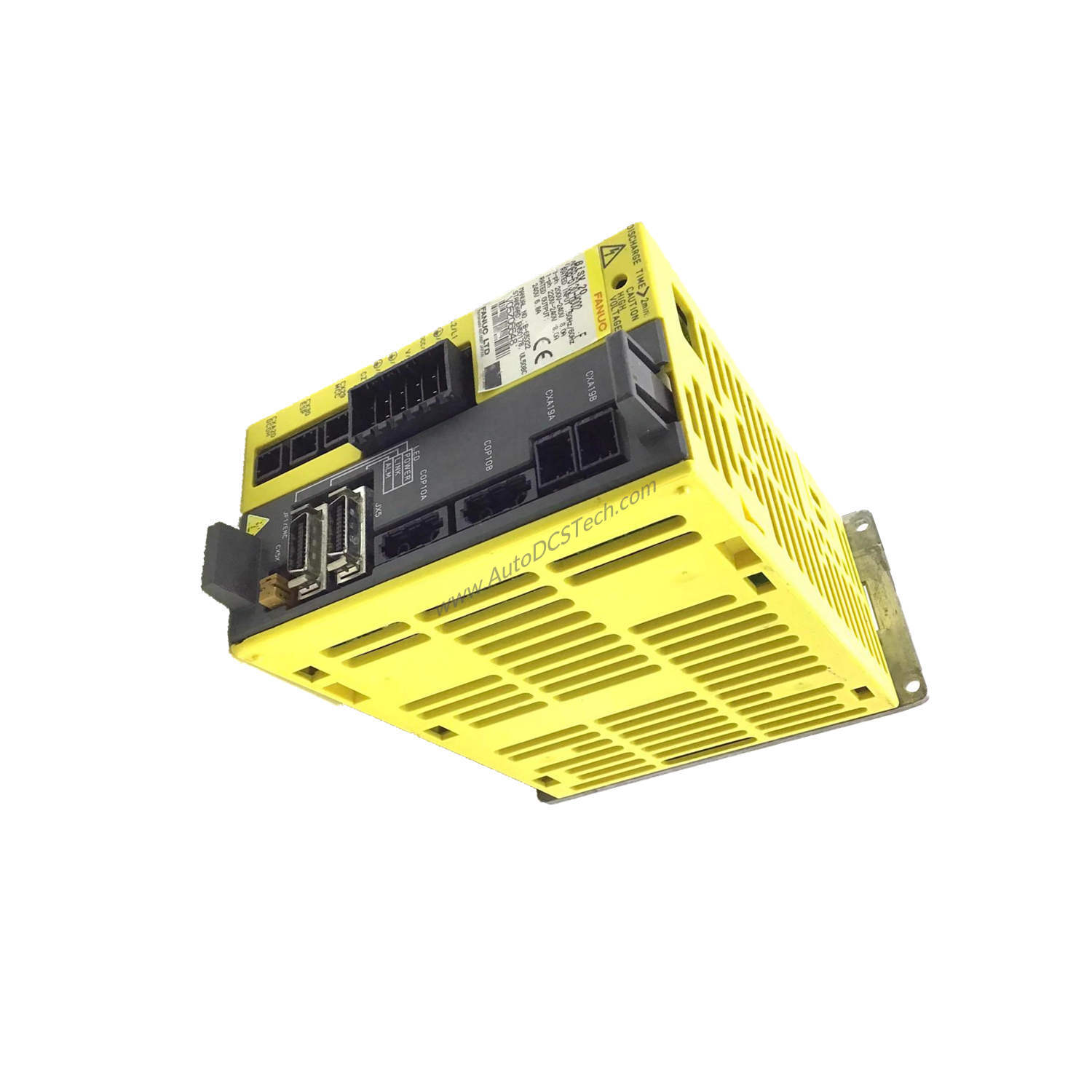

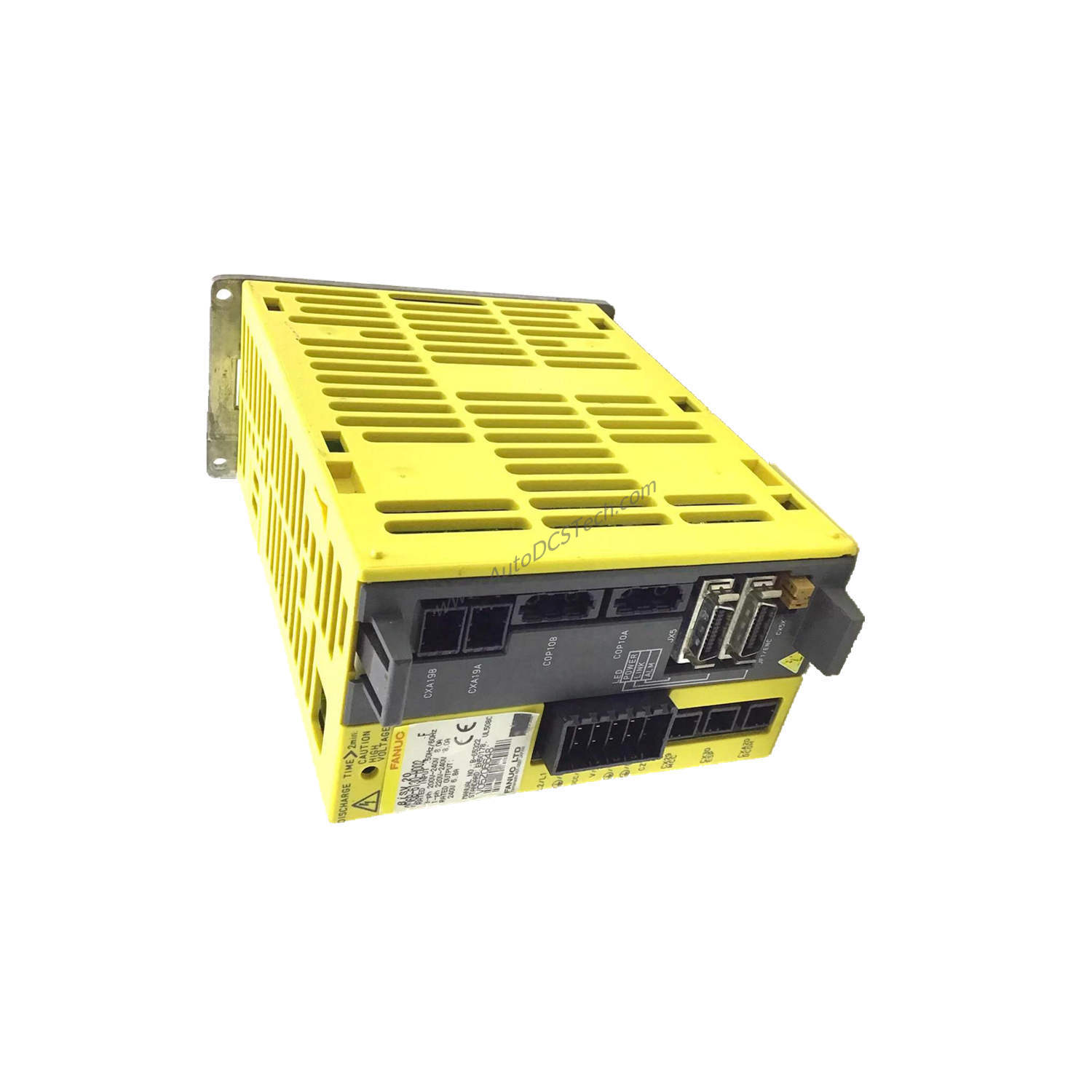

When production line downtime strikes due to servo drive failure, the FANUC A06B-6130-H002 servo amplifier module provides a dependable solution that minimizes repair costs and lost output. Designed for precision motion control in automated environments, this module from the A06B product line handles demanding tasks while keeping energy expenses in check.
Technical Specifications Breakdown
Voltage Class and Input Power
Operating within the 200V voltage class, the A06B-6130-H002 accepts a rated input voltage of 200 to 240 VAC at 50/60 Hz. This flexibility allows connection to either 3-phase or 1-phase power systems, reducing the need for costly power conditioning equipment. The input current rating of 8.0 A ensures sufficient energy transfer for heavy loads without oversizing upstream components.
Output Capabilities
With a maximum output voltage of 240 VAC and a rated output current of 6.8 A, this servo amplifier delivers consistent torque and speed control. Matching the output to motor requirements avoids over-specification, which directly lowers capital expenditure and energy waste.
Environmental Resilience
Operational temperature range of 0 to 55°C and storage range of -20 to 60°C allow the module to function in diverse factory conditions without expensive climate control. Humidity tolerance up to 90% RH (non-condensing) and vibration resistance below 0.5G further extend service life, reducing replacement frequency and maintenance budgets.
Industry Applications
CNC Machining Centers
In CNC milling or turning operations, the A06B-6130-H002 drives axis motors with precision. Its stable output under varying loads minimizes scrap rates, directly improving material utilization and per-part cost.
Robotic Assembly Lines
For robotic arms requiring smooth acceleration and deceleration, this servo amplifier maintains positioning accuracy. The wide input voltage tolerance ensures compatibility with global power grids, avoiding transformer upgrades.
Installation & Setup Guidance
Mount the module in a clean, dry cabinet with adequate airflow. Ensure the ambient temperature stays within 0 to 55°C and vibration remains below 0.5G. Connect input power according to the voltage phase configuration (3-phase or 1-phase) as per your facility. Use shielded cables for motor and feedback connections to prevent electromagnetic interference, which can cause costly misalignment.
Maintenance & Reliability
Inspect the module quarterly for dust accumulation on heat sinks and verify that cooling fans (if present) operate freely. Check all power connections for tightness to avoid resistive heating. By adhering to the humidity limit of 90% RH (non-condensing), you prevent condensation-related failures that lead to unplanned downtime. These simple steps maximize the return on your investment by extending the module's operational life.
Buying Guide
Before ordering the FANUC A06B-6130-H002, confirm your system's voltage phase (3-phase or 1-phase) and ensure the input current rating of 8.0 A matches your supply capacity. Verify that the output current of 6.8 A meets your motor's requirements. For current availability and lifecycle status, contact SpareTechPLC—your reliable source for industrial automation parts.
Frequently Asked Questions
Q: Can the A06B-6130-H002 operate on single-phase power?
A: Yes, it supports both 3-phase and 1-phase power systems within the 200 to 240 VAC range.
Q: What is the maximum ambient temperature for operation?
A: The module operates reliably from 0 to 55°C, helping avoid costly cooling system upgrades.
Q: How does the 6.8 A output current affect motor selection?
A: It ensures you can drive motors requiring up to 6.8 A without oversizing, reducing both purchase and energy costs.
Q: What humidity level is safe for this servo amplifier?
A: It is rated for up to 90% RH (non-condensing), which prevents moisture-related failures in humid environments.
Q: Is the A06B-6130-H002 still in production?
A: Please verify current lifecycle status with SpareTechPLC before ordering to ensure availability.
