Introduction: Solving Hazardous Area Signal Integrity Challenges

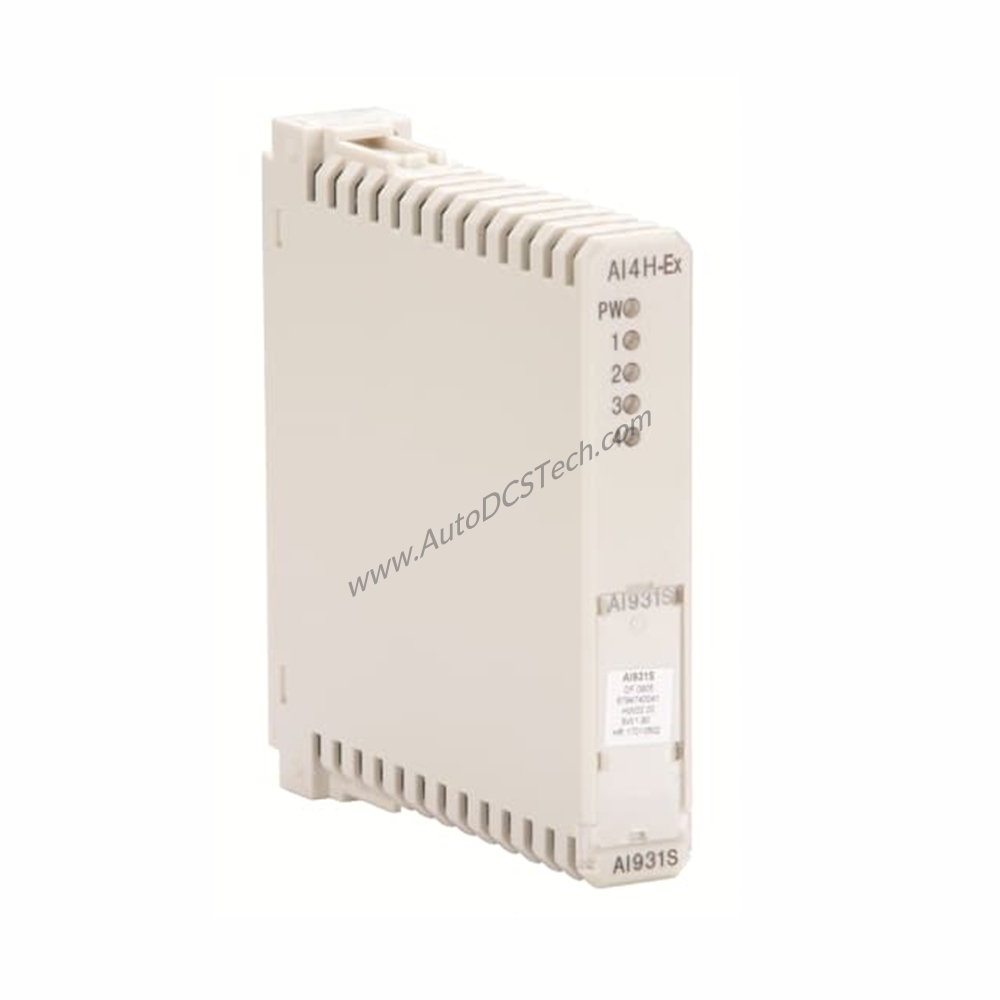

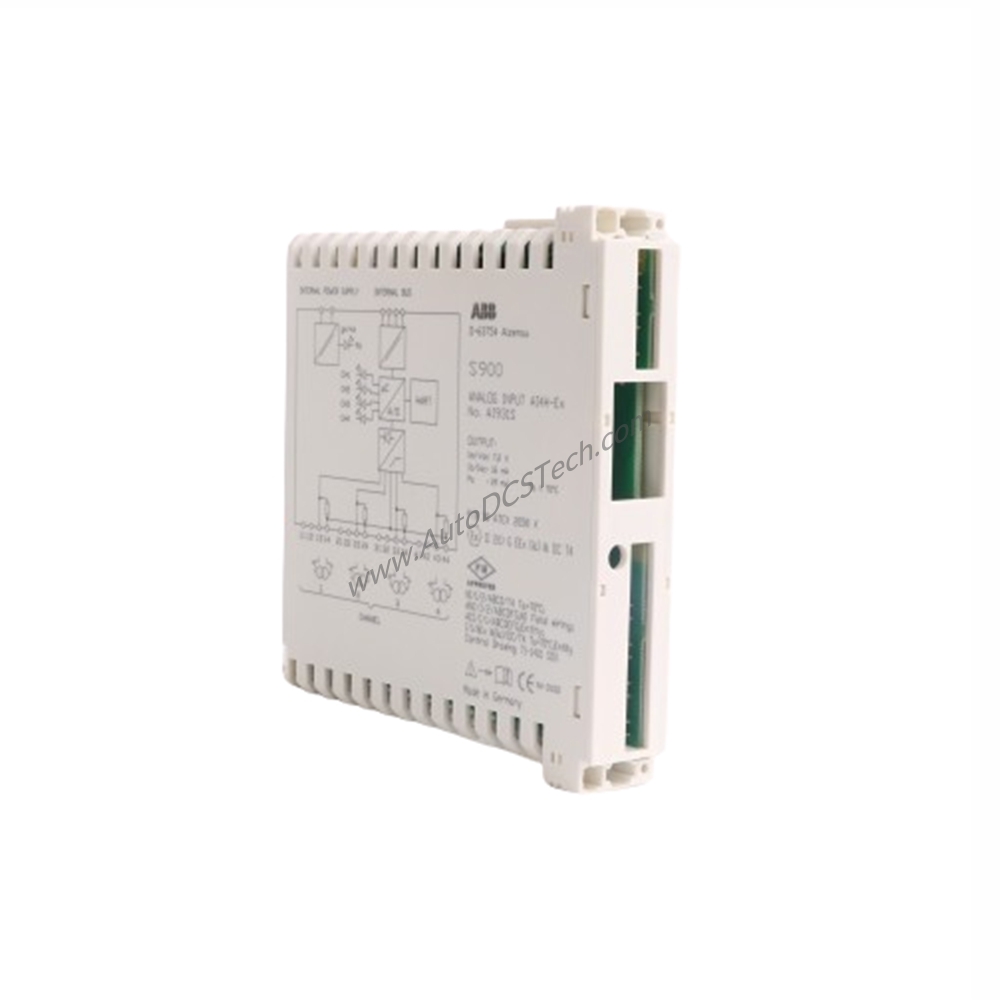

In process plants where explosive atmospheres demand intrinsic safety, reliable analog signal acquisition becomes a critical engineering challenge. The ABB AI931S analog input module directly addresses this need by providing four passive 0/4...20 mA channels certified for installation in ATEX Zone 1 hazardous areas. Part of the S900 I/O system, it reduces marshalling costs and wiring complexity while maintaining robust signal integrity.
Technical Specifications Breakdown
The AI931S operates with passive inputs for 0/4...20 mA current loops, supporting both short-circuit and break detection for enhanced diagnostics. Key specifications include:
- Number of channels: 4
- Signal type: 4...20 mA (passive)
- HART support: Yes, enabling cyclic HART variable transmission via PROFIBUS DP
- Intrinsic safety: Yes, certified for Zone 1 hazardous locations
- Electrical isolation: Between input/bus and input/power
- Common return: Shared for all four inputs
- Dimensions: Width 20 mm (0.79 in.), Depth 104 mm (4.09 in.), Height 104 mm (4.09 in.)
- Weight: 0.13 kg (0.28 lbs.)
- Climatic conditions: Relative humidity max. 93 % +/- 3 % at 40°C; ambient temperature -20 °C to 60 °C
- Corrosive atmosphere: ISA-S71.04 G3 coating
These parameters ensure the module performs reliably in harsh industrial environments while maintaining high measurement accuracy.
Industry Applications: From Refineries to Chemical Plants
1. Refinery Process Monitoring
In oil refineries, the AI931S connects intrinsically safe field devices such as pressure transmitters and temperature sensors located in Zone 0, 1, or 2 areas. Its passive input design eliminates the need for separate loop power supplies, simplifying wiring and reducing installation costs. The HART capability allows remote configuration and diagnostics of smart transmitters without additional hardware.
2. Chemical Batch Reactor Control
For chemical batch processes requiring precise 4...20 mA signal acquisition from Zone 1 reactors, the AI931S provides hot swap functionality and hot configuration in run. This minimizes downtime during maintenance or reconfiguration, directly improving overall equipment effectiveness (OEE).
Installation & Setup Guidance
Mount the AI931S on a standard S900 I/O rail in Zone 1 hazardous areas. Ensure the module is correctly oriented with the front panel accessible for field wiring. Connect intrinsically safe field devices to the passive input terminals using shielded twisted-pair cables. The common return simplifies wiring by sharing a single return path for all four channels. For redundant power and communication, pair with appropriate S900 power supply and bus coupler modules. Always follow the manufacturer's installation manual for hazardous area compliance.
Maintenance & Reliability
The AI931S features extended diagnostics and auto-diagnostics that continuously monitor input health, detecting short circuits and breaks. The G3 coating protects against corrosive atmospheres, extending service life in harsh environments. Integrated disconnection mechanisms allow module replacement during operation without interrupting primary voltage. Regular inspection of field wiring and connector integrity is recommended to maintain reliable signal transmission.
Compatibility & Integration
The AI931S communicates with control systems via PROFIBUS DP, supporting cyclic HART variable transmission. It integrates seamlessly with ABB S900 I/O system components and is compatible with FDT/DTM-based configuration tools for easy setup and diagnostics. The module supports hot configuration in run and hot swap functionality, enabling online changes without system downtime.
Selection Guide & Purchasing Advice
Before ordering, verify that your control system supports PROFIBUS DP and that the S900 I/O system variant matches your hazardous area classification (Zone 1 or Zone 2). Confirm the article number 3KDE175511L9310 for the AI931S. SpareTechPLC stocks this module and can assist with compatibility checks and availability. Please verify current lifecycle status with SpareTechPLC before ordering.
Frequently Asked Questions
Q1: Can the AI931S be used in Zone 0 hazardous areas?
A: The AI931S is certified for installation in Zone 1 hazardous areas. It can connect intrinsically safe field devices located in Zone 0, Zone 1, or Zone 2, but the module itself must be installed in Zone 1 or non-hazardous areas.
Q2: Does the AI931S support HART communication?
A: Yes, it supports cyclic HART variable transmission via PROFIBUS DP, allowing remote configuration and diagnostics of HART-enabled field devices.
Q3: What is the maximum ambient temperature range?
A: The module operates from -20 °C to 60 °C, with relative humidity up to 93 % at 40 °C.
Q4: Is the AI931S hot-swappable?
A: Yes, it supports hot swap functionality, allowing replacement during operation without interrupting the primary voltage.
Q5: What type of inputs does the AI931S accept?
A: It accepts passive 0/4...20 mA inputs with common return for all four channels, including short and break detection.
