Product Introduction

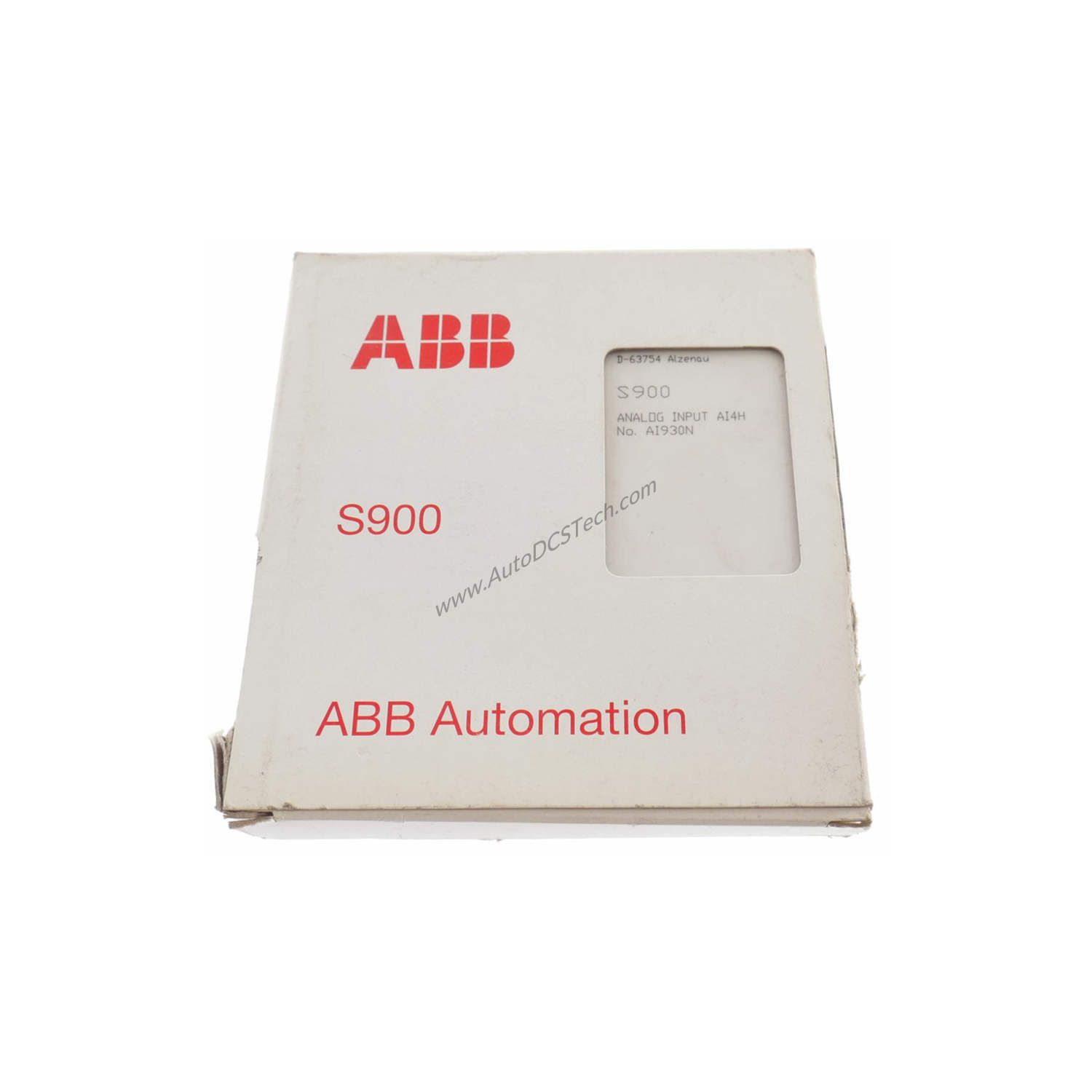

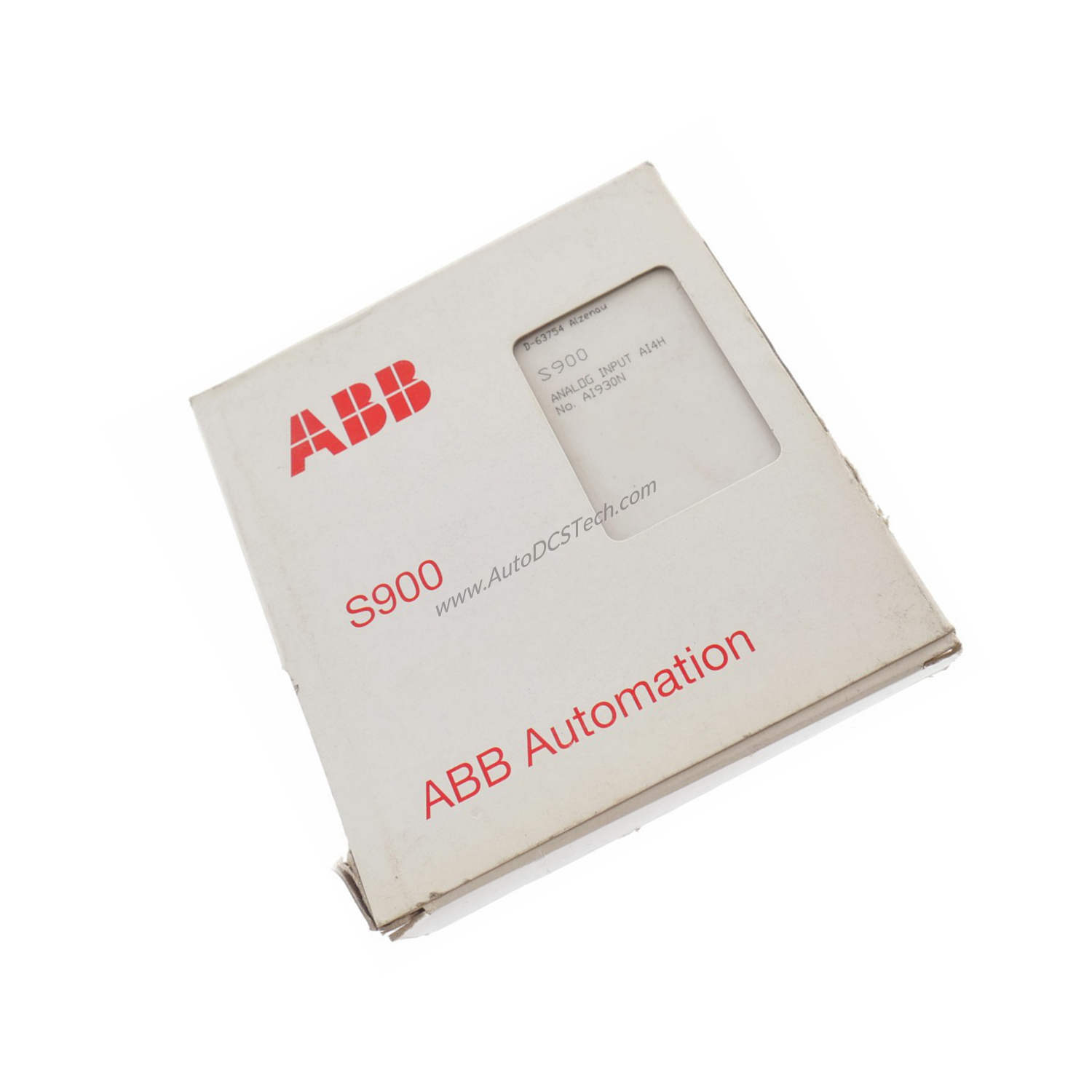

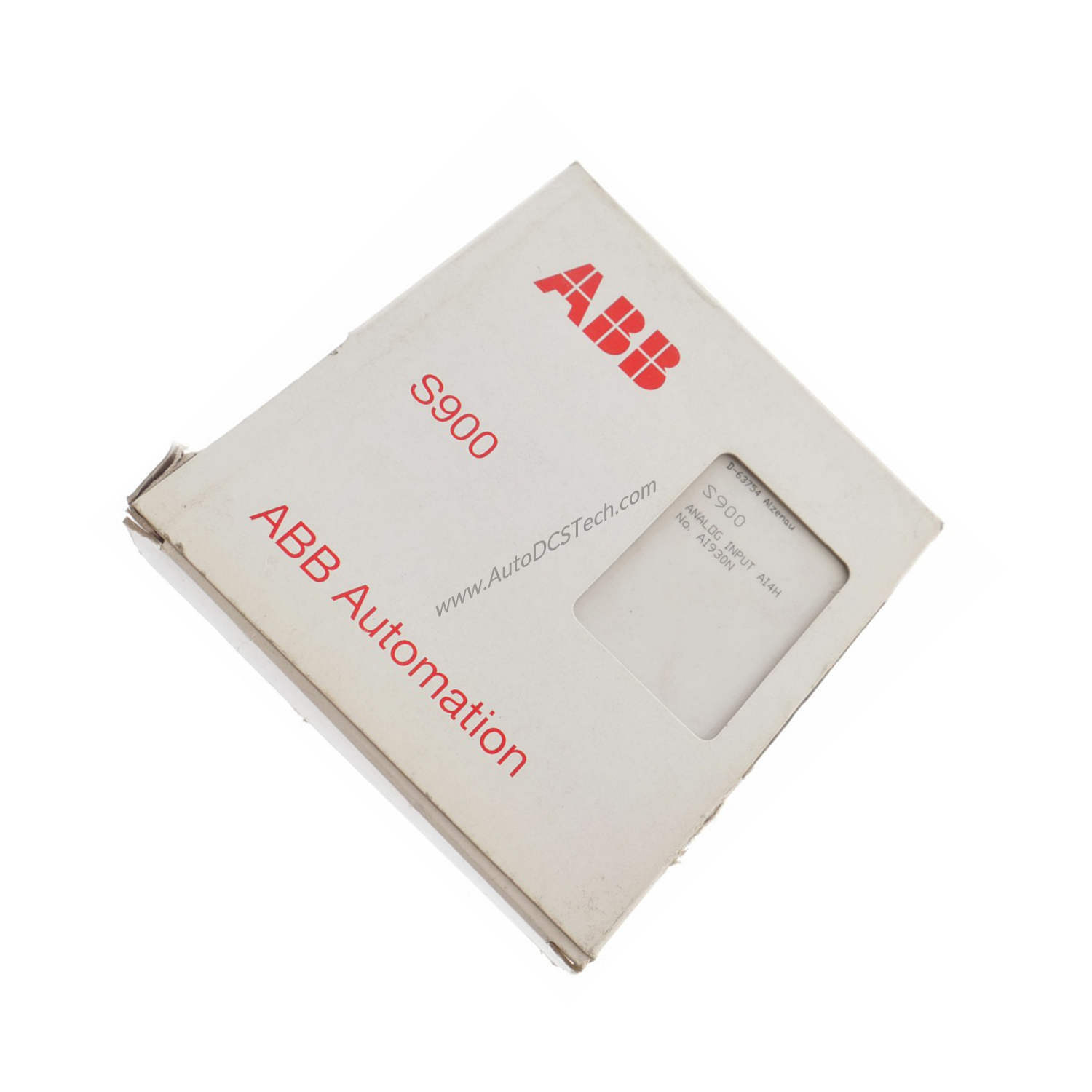

When industrial processes demand precise analog signal acquisition in non-hazardous areas, the ABB AI930N analog input module delivers reliable 4...20 mA loop-powered transmitter support. Part of the ABB S900 I/O family, this module reduces marshalling and wiring costs by enabling direct field installation. Its robust design and integrated diagnostics minimize downtime, offering a cost-effective solution for continuous process monitoring.
Technical Specifications Breakdown
- 4 channels for 4...20 mA signals enable simultaneous monitoring of multiple transmitters, reducing per-point cost.
- HART communication allows digital process variable transmission over the same loop, eliminating extra wiring expenses.
- Electrical isolation between input/bus and input/power protects against ground loops, lowering maintenance costs.
- Short and break detection provides immediate fault alerts, preventing costly production interruptions.
- Hot swap functionality permits module replacement without powering down the system, maximizing uptime.
Industry Applications
In oil and gas facilities, the AI930N connects pressure and temperature transmitters in safe areas, transmitting HART variables for predictive maintenance. This reduces unplanned shutdowns and extends equipment life. In water treatment plants, the module’s 4...20 mA inputs interface with flow and level sensors, while its diagnostics cut troubleshooting time and labor costs.
Installation & Setup Guidance
Mount the AI930N on a standard DIN rail within the S900 I/O system. Ensure the environment meets the specified climatic conditions: -20 °C to 60 °C ambient temperature and relative humidity up to 93 % at 40 °C. Use the common return for all inputs to simplify wiring. Configure the module via FDT/DTM tools for optimal performance.
Maintenance & Reliability
The AI930N’s auto-diagnostics and G3 coating for corrosive atmospheres (per ISA-S71.04 G3) extend service life in harsh environments, reducing replacement frequency. Periodic inspection of connections and environmental conditions ensures sustained reliability. The hot swap feature allows module exchange without system downtime, lowering total cost of ownership.
Compatibility & Integration
The AI930N integrates seamlessly with the ABB S900 I/O system via PROFIBUS DP communication. It supports cyclic HART variables and hot configuration in run. The module is designed for safe (non-hazardous) area installation only, ensuring straightforward integration into existing control architectures.
Selection Guide & Purchasing Advice
Before purchasing the AI930N (3KDE175513L9300), verify your system’s compatibility with PROFIBUS DP and safe area requirements. Confirm that your transmitters are 4...20 mA loop-powered 2-wire types. SpareTechPLC stocks this module and can advise on availability and lifecycle status. Contact us for current pricing and lead times.
Frequently Asked Questions
Q1: Can the AI930N be used in hazardous areas?
No, the AI930N is type N, designed for installation in safe (non-hazardous) areas only.
Q2: Does the AI930N support HART communication?
Yes, it transmits HART frames via the fieldbus and supports cyclic HART variables.
Q3: What is the weight of the AI930N module?
The module weighs 0.135 kg (0.297 lbs.), making it lightweight for DIN rail mounting.
Q4: Can I replace the AI930N while the system is running?
Yes, the hot swap functionality allows replacement during operation without interrupting primary voltage.
Q5: What is the ambient temperature range for operation?
The module operates from -20 °C to 60 °C with relative humidity up to 93 % at 40 °C.
