Product Overview

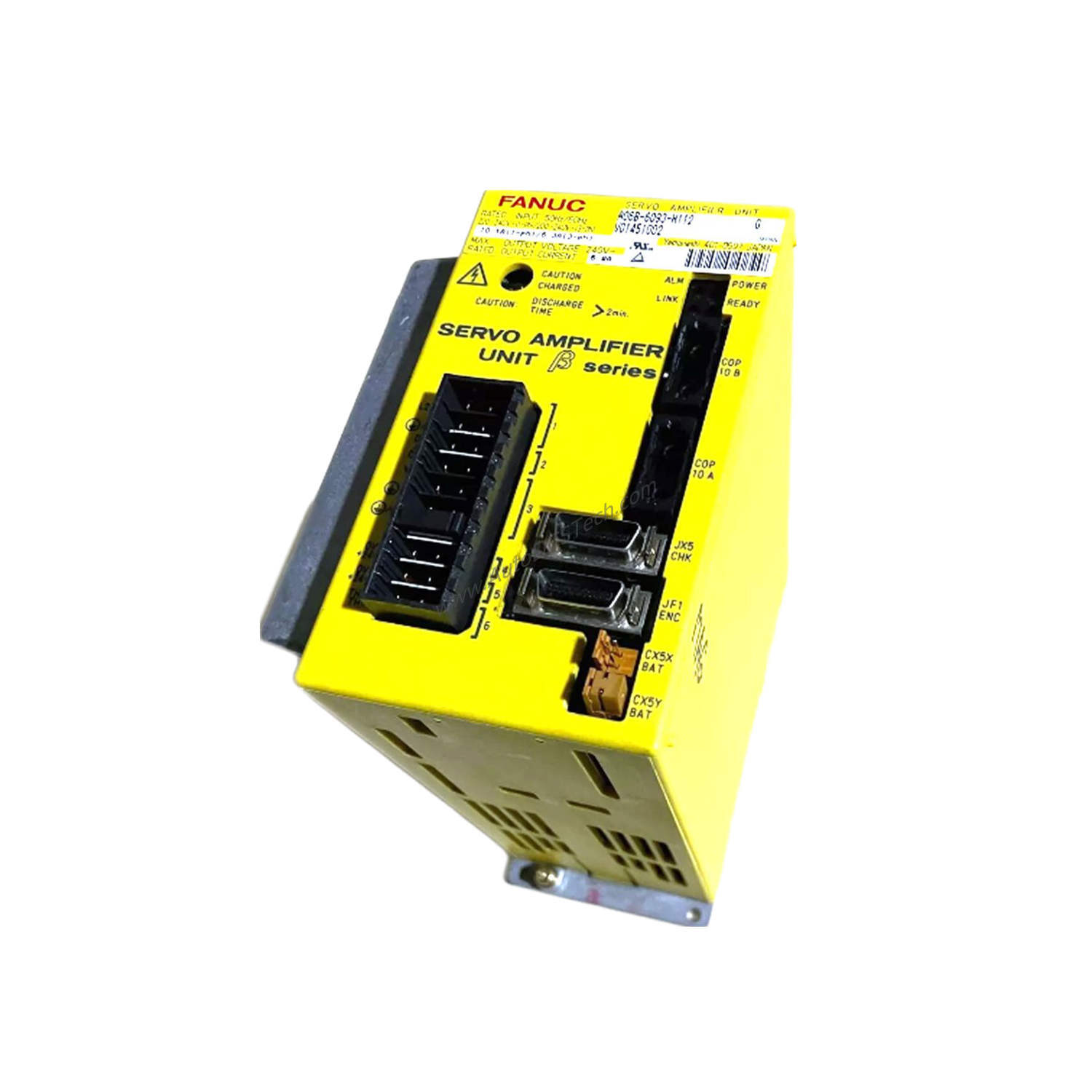

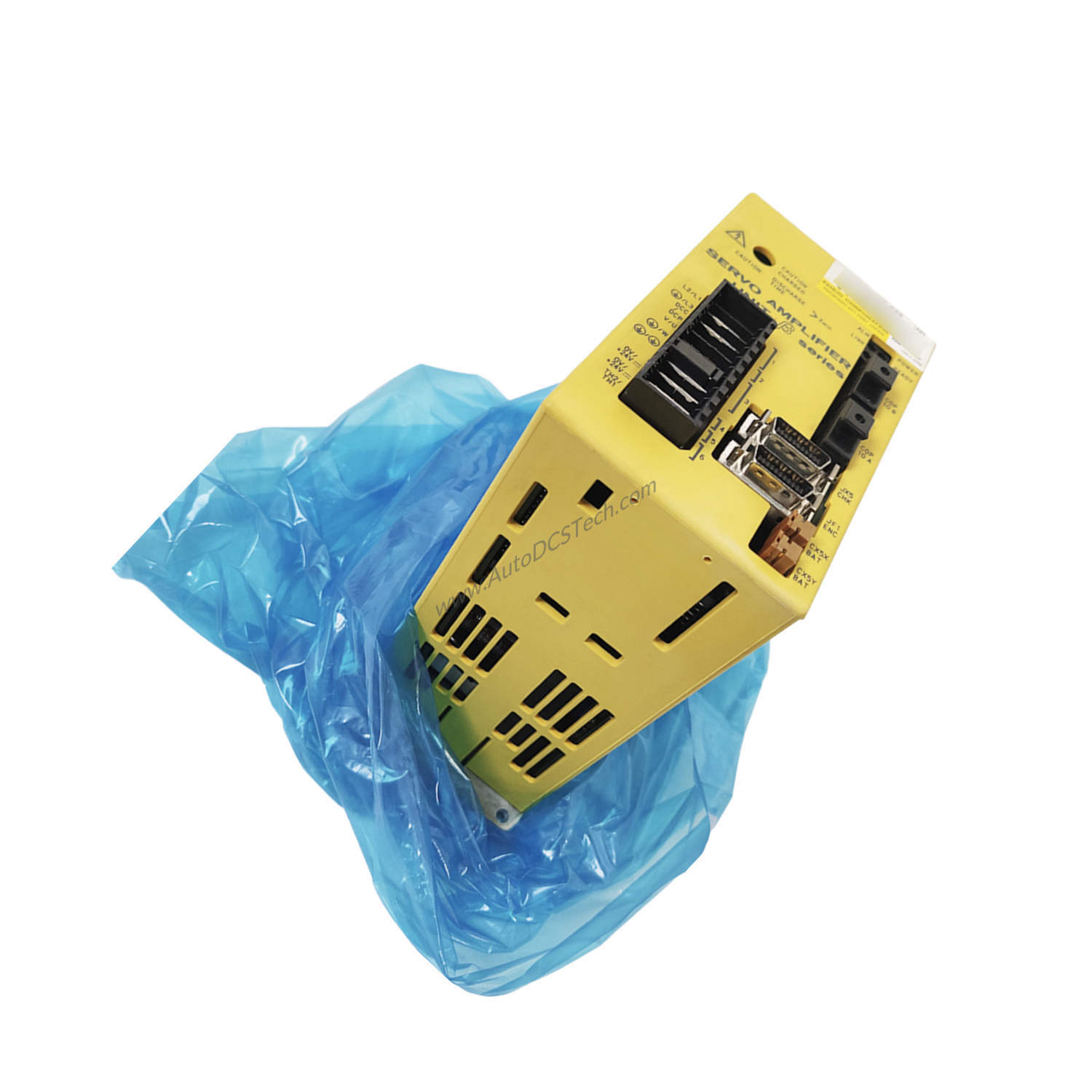

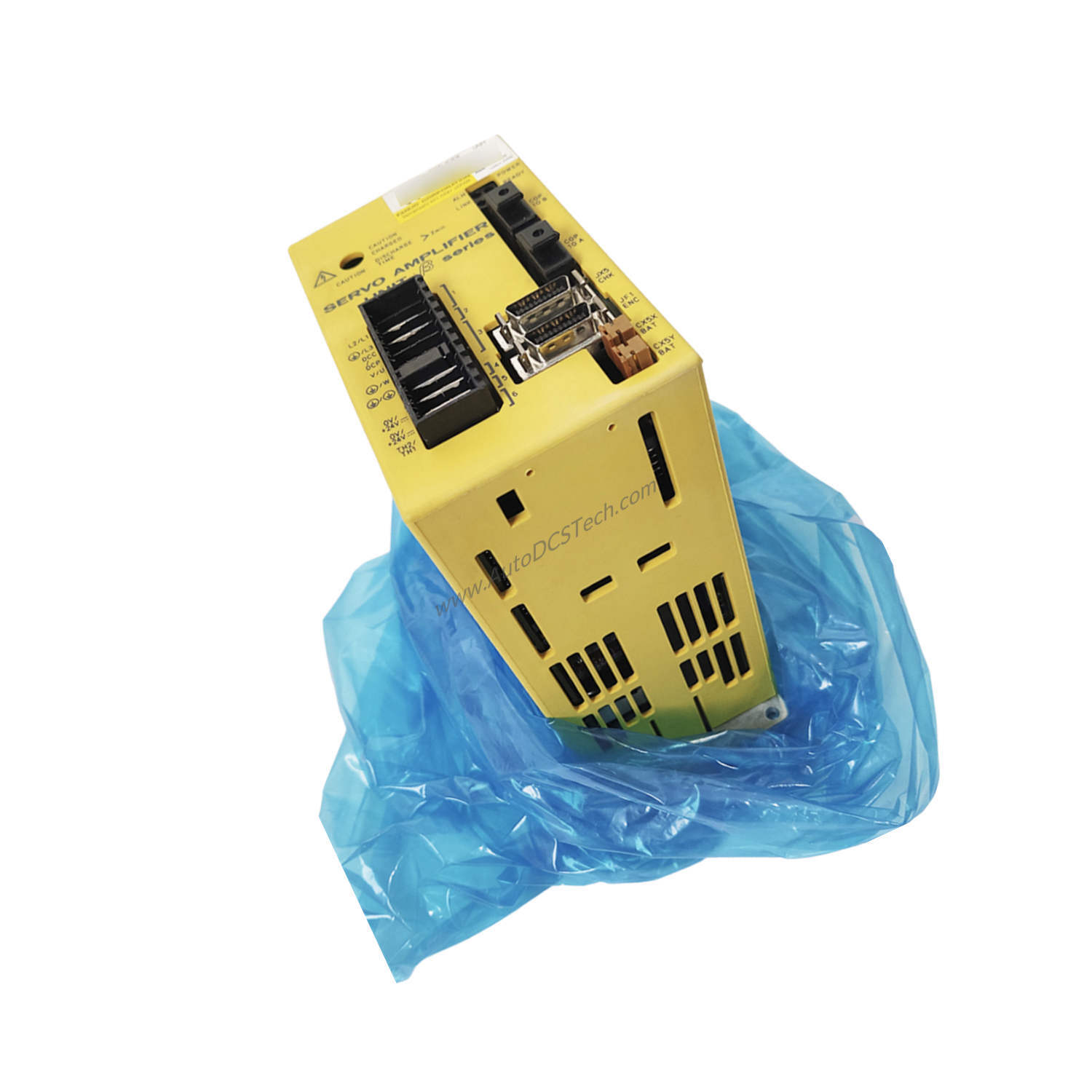

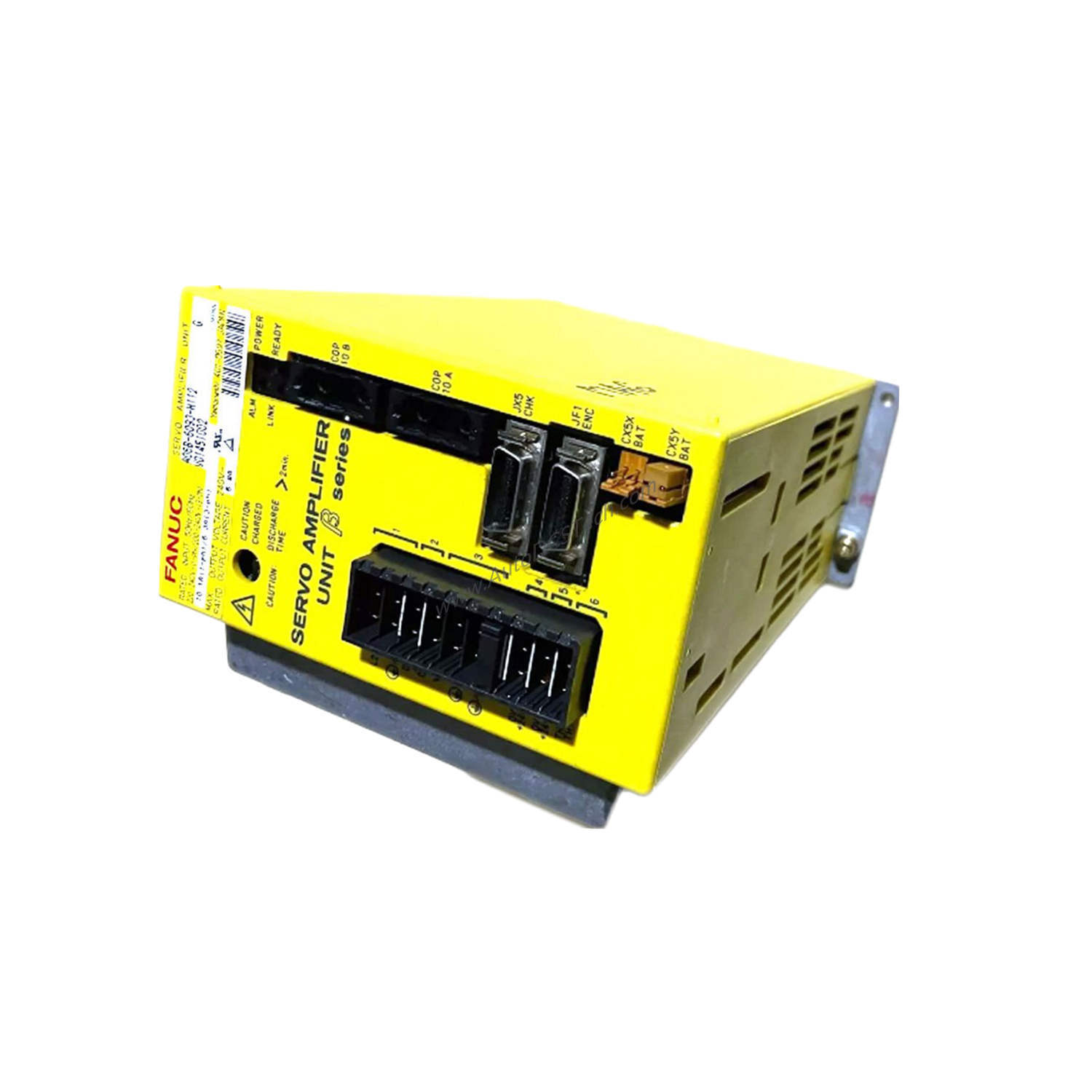

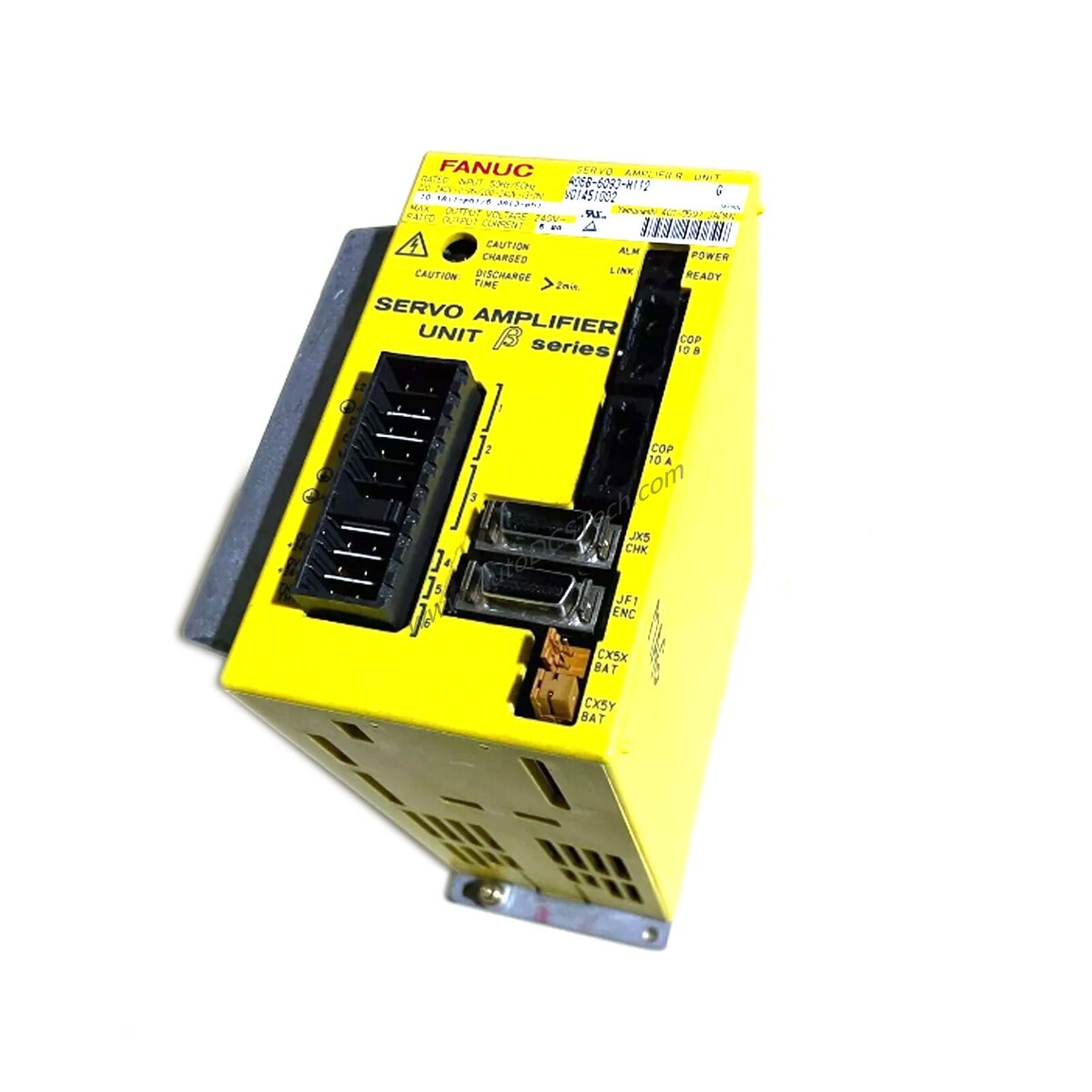

When your CNC system demands precise motion control and reliable power delivery, the FANUC A06B-6093-H113 Servo Amplifier (Servo Drive) provides a robust solution. This unit integrates seamlessly into FANUC-based CNC setups, offering a rated output current of 12.5 A to drive servo motors with consistent performance. The FANUC A06B-6093-H113 belongs to the A06B product line and is engineered for industrial environments where uptime and accuracy are critical.
Technical Specifications Breakdown
Understanding the key parameters of the FANUC A06B-6093-H113 helps you evaluate its fit for your application. The servo unit type is BETA SERVO UNIT TYPE SVU-40, which defines its core architecture. It delivers a rated output current of 12.5 A, ensuring sufficient torque and speed control for medium-duty CNC axes. The input voltage range of 220-240 VAC at 50/60 Hz allows compatibility with standard industrial power supplies worldwide. Cooling is handled by air cooling, keeping the operating temperature within 0°C to 55°C. The FSSB interface enables high-speed communication with the CNC controller, reducing wiring complexity and improving signal integrity. Protection features include overload and overcurrent protection, safeguarding both the amplifier and connected motors from damage during abnormal conditions.
Industry Applications
In CNC machining centers, the FANUC A06B-6093-H113 drives spindle or axis servo motors with the 12.5 A output. For example, in a vertical machining center, this amplifier controls the Z-axis servo, providing smooth vertical motion under varying loads. The FSSB interface simplifies integration with FANUC 0i and 30i series controllers, reducing setup time. The vertical/wall-mounted design saves cabinet space and improves airflow, which is beneficial in compact control panels.
Installation & Setup Guidance
Mount the FANUC A06B-6093-H113 vertically or on a wall using the provided mounting brackets. Ensure adequate clearance around the unit for air cooling. Connect the input power to a 220-240 VAC source at 50 or 60 Hz. Use shielded cables for the FSSB interface to maintain signal integrity. Verify that the rated output current does not exceed 12.5 A for the connected servo motor. After installation, check that the ambient temperature stays within 0°C to 55°C to avoid thermal issues.
Maintenance & Reliability
Regular inspection of the FANUC A06B-6093-H113 ensures long service life. Periodically check the air cooling vents for dust accumulation, which can reduce cooling efficiency. Verify that the input voltage remains within 220-240 VAC and that the frequency is stable at 50 or 60 Hz. The overload and overcurrent protection features automatically safeguard the unit, but routine testing of these functions is recommended. Keep the operating environment within the specified temperature range to prevent premature component aging.
Compatibility & Integration
The FANUC A06B-6093-H113 integrates with FANUC CNC systems via the FSSB interface. This interface supports high-speed serial communication, reducing wiring and improving noise immunity. The BETA SERVO UNIT TYPE SVU-40 is designed for use with FANUC servo motors that match the 12.5 A output. For new installations, verify that your CNC controller supports FSSB communication. The unit is air cooled, so ensure the cabinet has adequate ventilation.
Selection Guide & Purchasing Advice
Before purchasing the FANUC A06B-6093-H113, confirm that your application requires a rated output current of 12.5 A and an input voltage of 220-240 VAC. Check that the FSSB interface is compatible with your CNC controller. The unit weighs 7.00 lbs (3.18 kg) and is designed for vertical/wall mounting. SpareTechPLC stocks this servo amplifier and can advise on availability and lead times. Please verify the current lifecycle status and availability with SpareTechPLC before ordering.
