Introduction

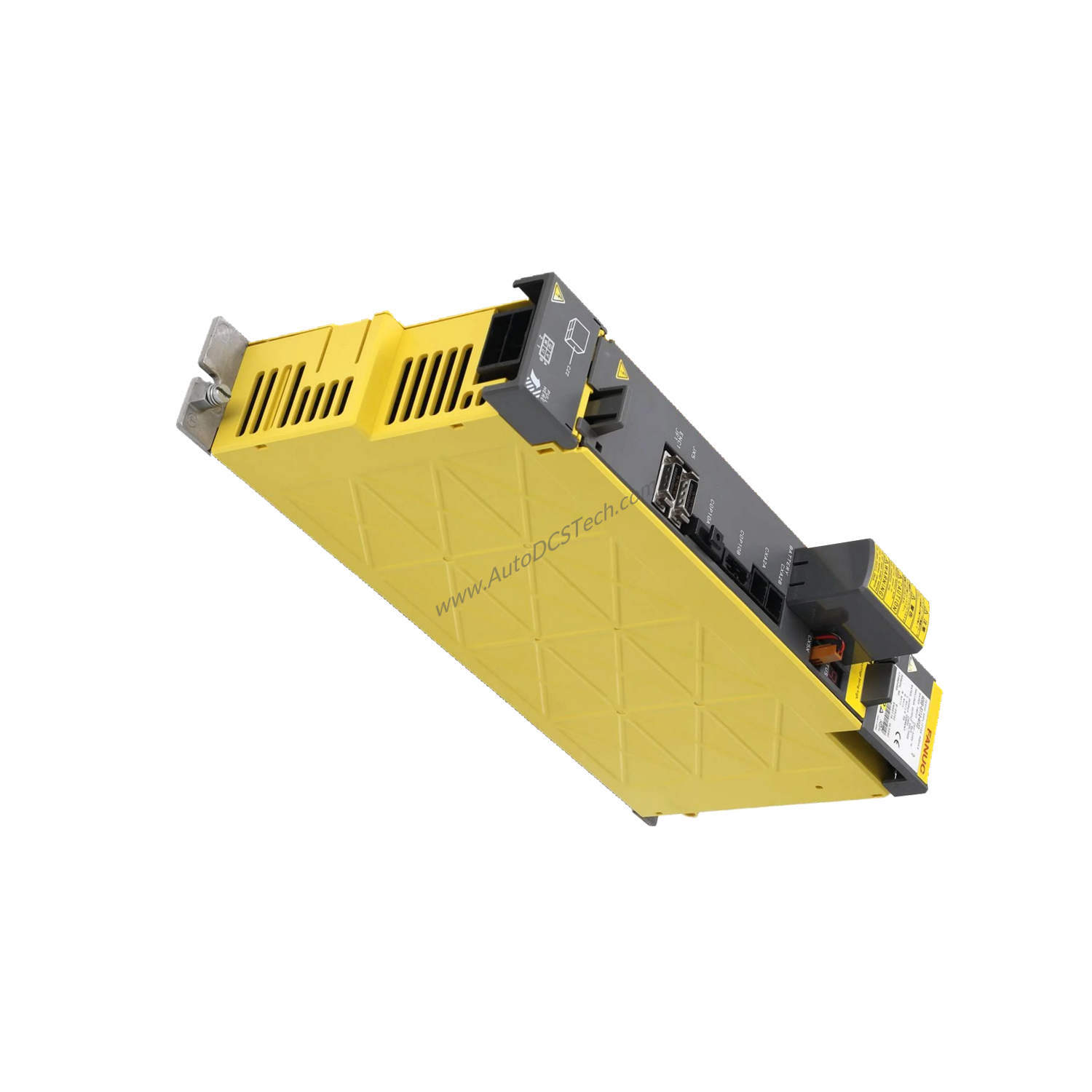

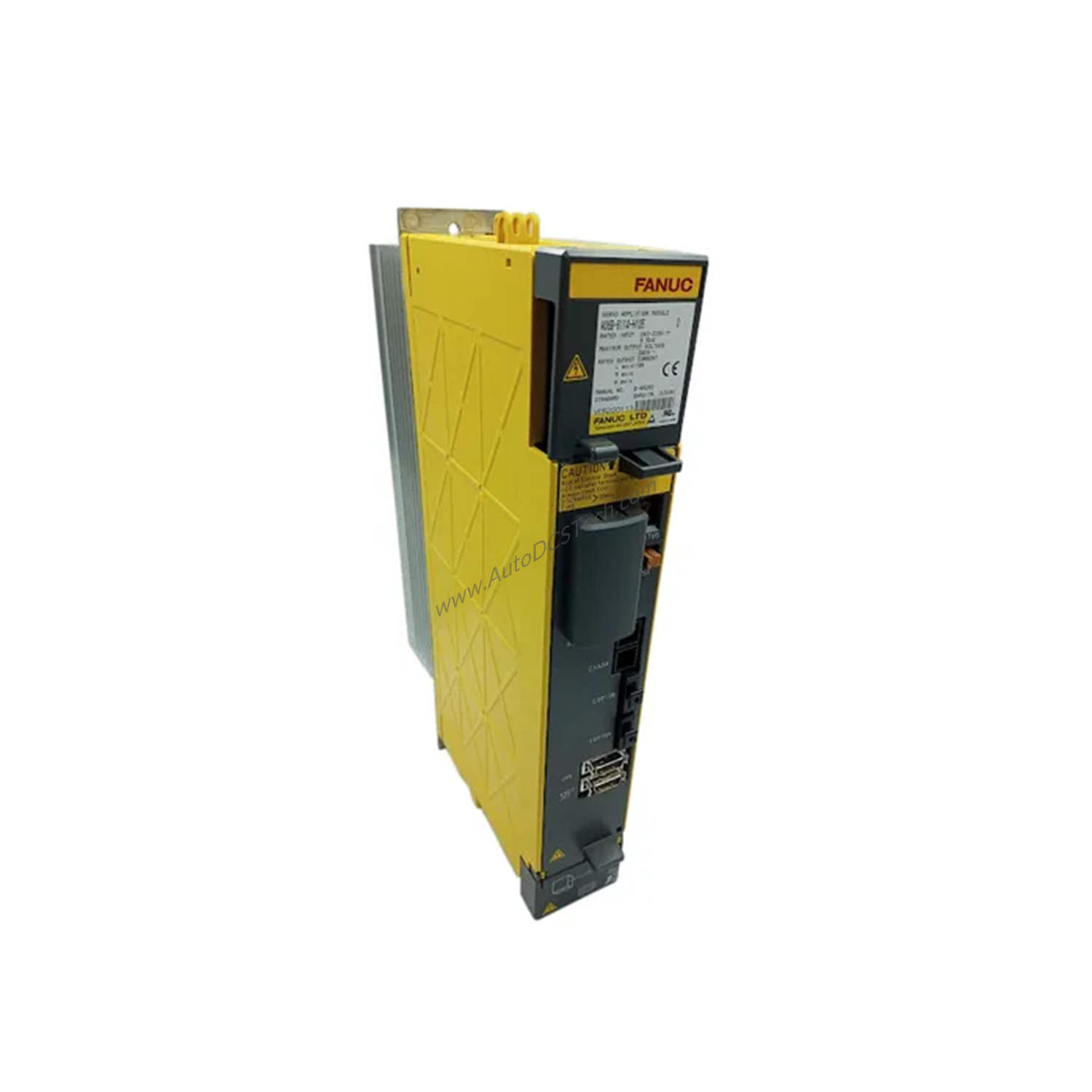

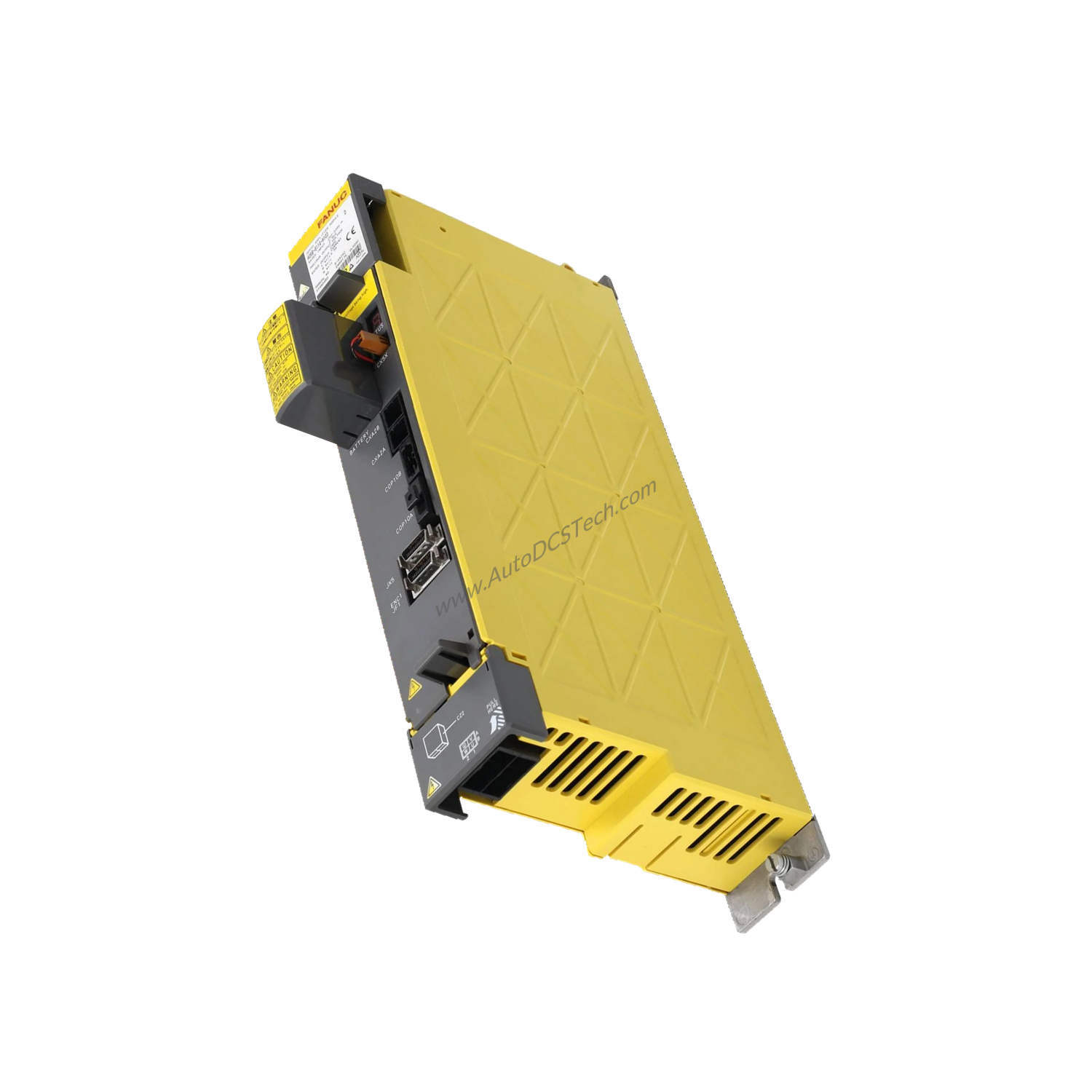

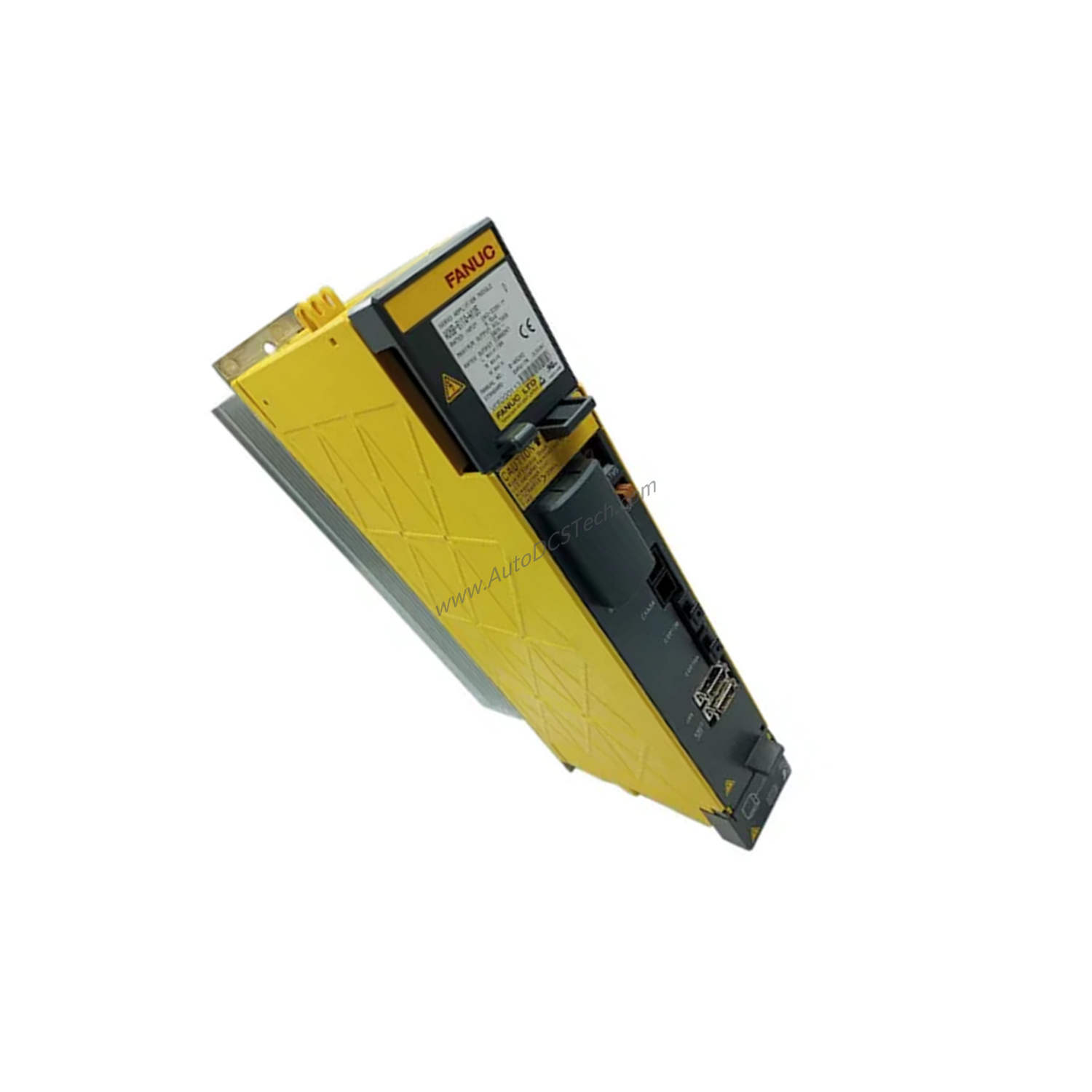

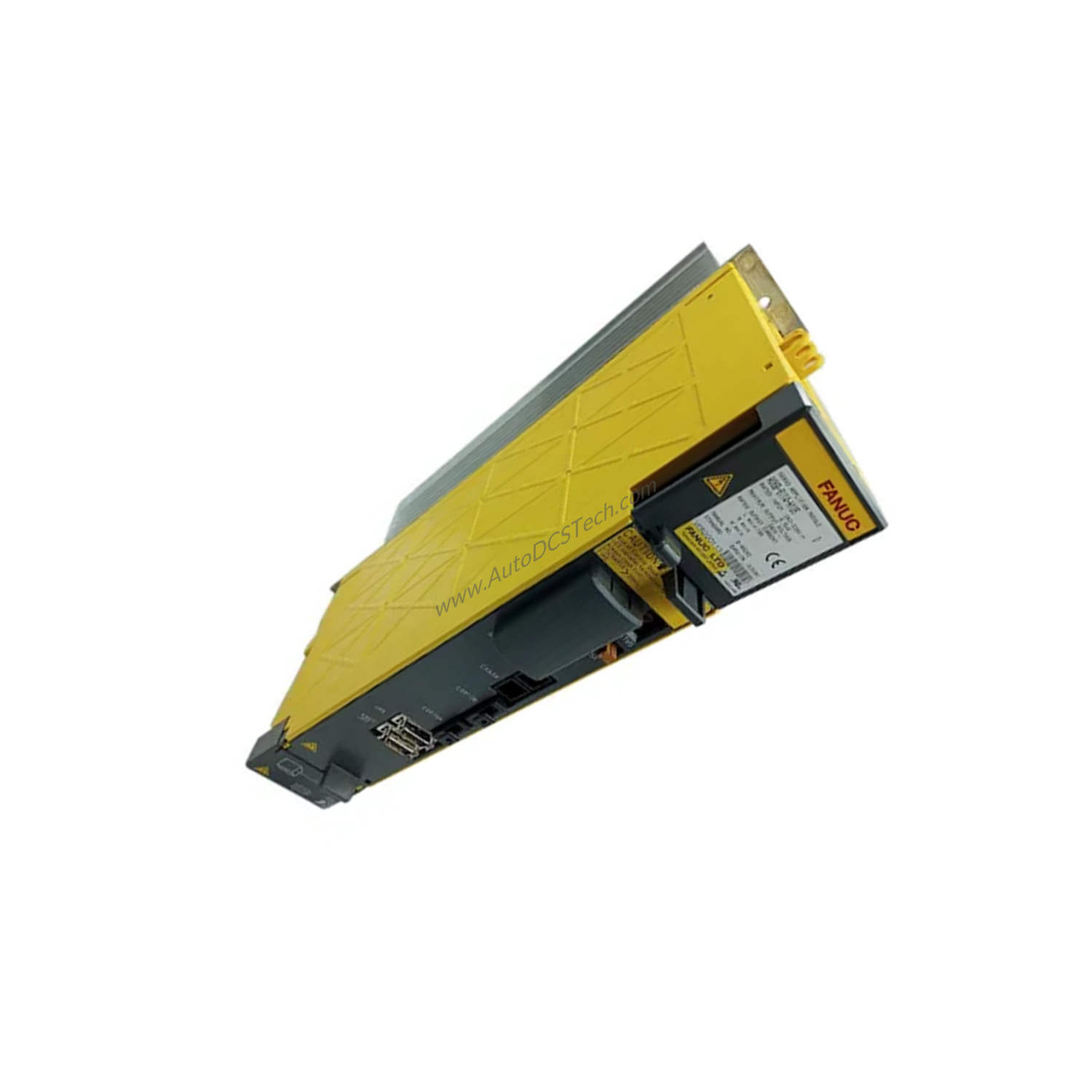

When servo systems struggle with inconsistent torque or speed fluctuations, the FANUC A06B-6114-H209 servo amplifier module provides a robust solution. This module converts DC bus power into precise AC output for servo motors, ensuring stable performance in demanding industrial environments. As part of the A06B product line, it is built for applications requiring accurate motion control.
Technical Specifications Breakdown
The FANUC A06B-6114-H209 operates with an input voltage of 283-339 VDC, drawing from a common DC bus in multi-axis systems. Its rated input power of 11 kW supports high-torque applications without derating. The module delivers an output voltage of 200-240 VAC with a frequency range of 0.1 to 800 Hz, enabling fine speed adjustments from near-zero to high-speed rotation. For dual-axis control, the rated output current is 19A for both the L-axis and M-axis, providing balanced power delivery. Environmental resilience includes an ambient operating temperature range of 0°C to 55°C and humidity tolerance up to 90% RH (non-condensing). The module weighs 15.00 lbs (6.80 kg), typical for industrial servo amplifiers.
Industry Applications
In CNC machining centers, the A06B-6114-H209 drives spindle and feed axes with precise speed control across the 0.1-800 Hz range, reducing cycle times and improving surface finish. For robotic assembly lines, its dual 19A outputs manage coordinated motion between two axes, ensuring repeatable positioning. The wide input voltage tolerance allows integration into systems with fluctuating DC bus voltages, common in older plants.
Installation & Setup Guidance
Mount the A06B-6114-H209 in a clean, ventilated enclosure to maintain ambient temperature below 55°C. Ensure DC bus connections match the 283-339 VDC range and that AC output wiring is rated for 200-240 VAC at 19A per axis. Use shielded cables for motor feedback lines to prevent noise interference. Verify that the input frequency of 50/60 Hz is compatible with the upstream power supply. Always follow the manufacturer's manual for proper grounding and fuse sizing.
Maintenance & Reliability
Periodically inspect the module for dust accumulation on heat sinks, as this can reduce thermal performance. Check all power connections for tightness to avoid arcing. The module's 90% RH humidity tolerance means it can operate in damp environments, but condensation must be prevented. For long-term reliability, verify that the ambient temperature stays within 0°C to 55°C. Regular inspection and testing according to the manufacturer's guidelines is recommended.
Compatibility & Integration
The A06B-6114-H209 is designed for FANUC servo systems, typically paired with FANUC alpha or beta series servo motors. It interfaces with FANUC CNC controllers via the DC bus and control signals. Ensure the controller supports the 0.1-800 Hz output frequency range for full speed control. The module accepts 50/60 Hz input frequency, making it suitable for global installations.
Selection Guide & Purchasing Advice
Before ordering, verify that your system's DC bus voltage matches the 283-339 VDC input range and that the total load per axis does not exceed 19A. Confirm mechanical dimensions fit your cabinet space. SpareTechPLC stocks the A06B-6114-H209 and can advise on compatible motors and cables. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the input voltage range for the A06B-6114-H209?
A: The input voltage is 283-339 VDC.
Q: What output voltage does this module provide?
A: It delivers 200-240 VAC output.
Q: Can this module drive two axes simultaneously?
A: Yes, it has a rated output current of 19A for both the L-axis and M-axis.
Q: What is the operating temperature range?
A: The ambient operating temperature range is 0°C to 55°C.
Q: What is the weight of the A06B-6114-H209?
A: It weighs 15.00 lbs (6.80 kg).
