Introduction

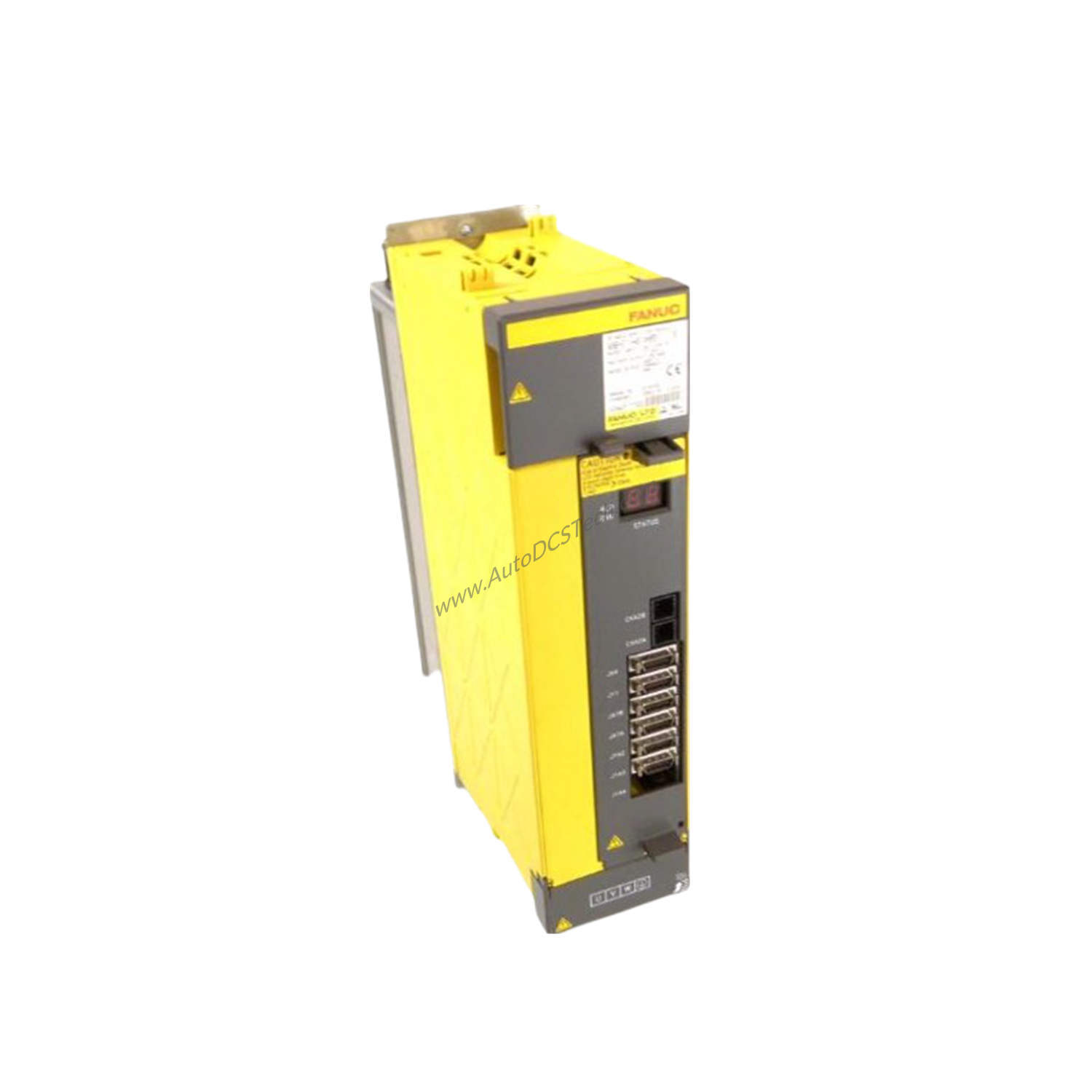

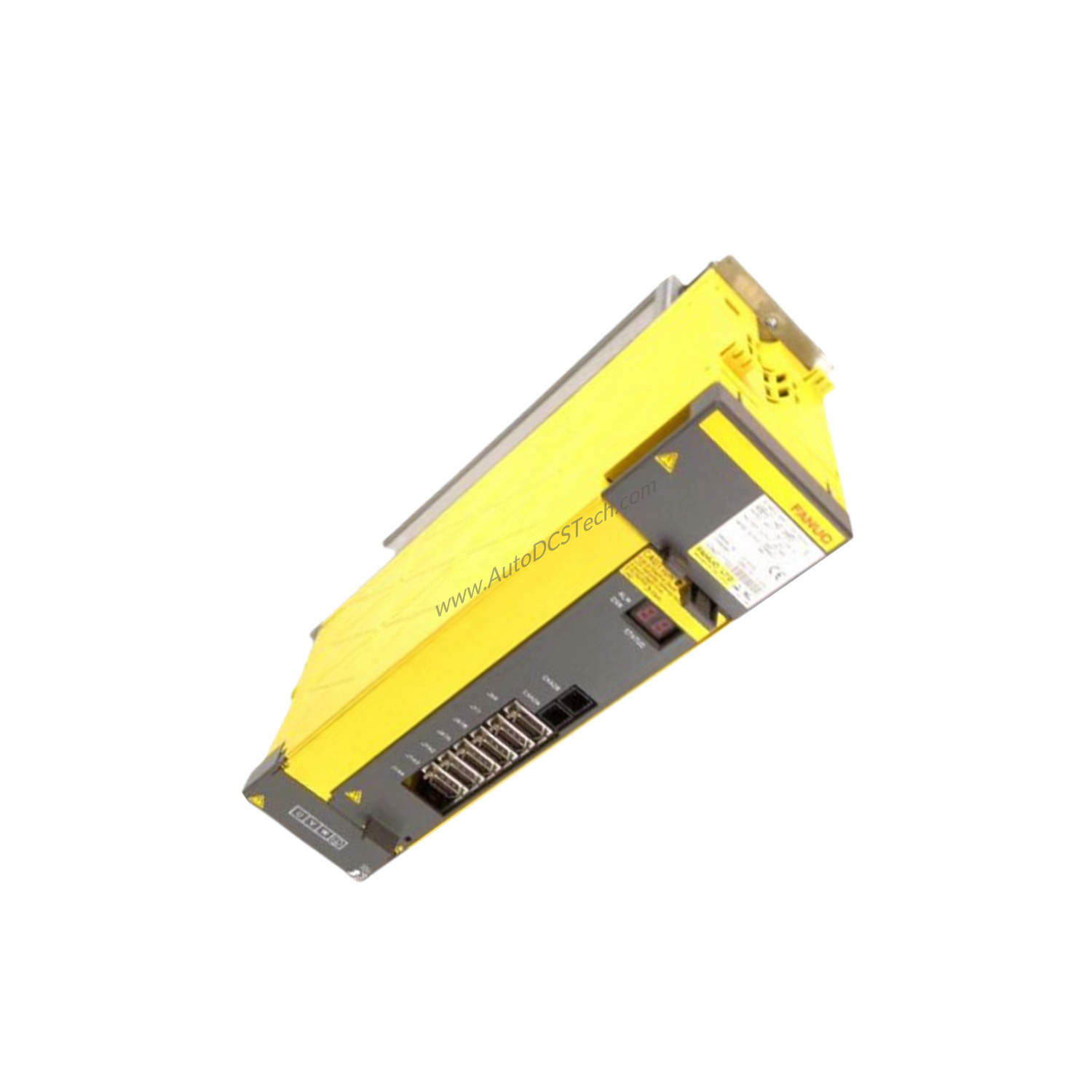

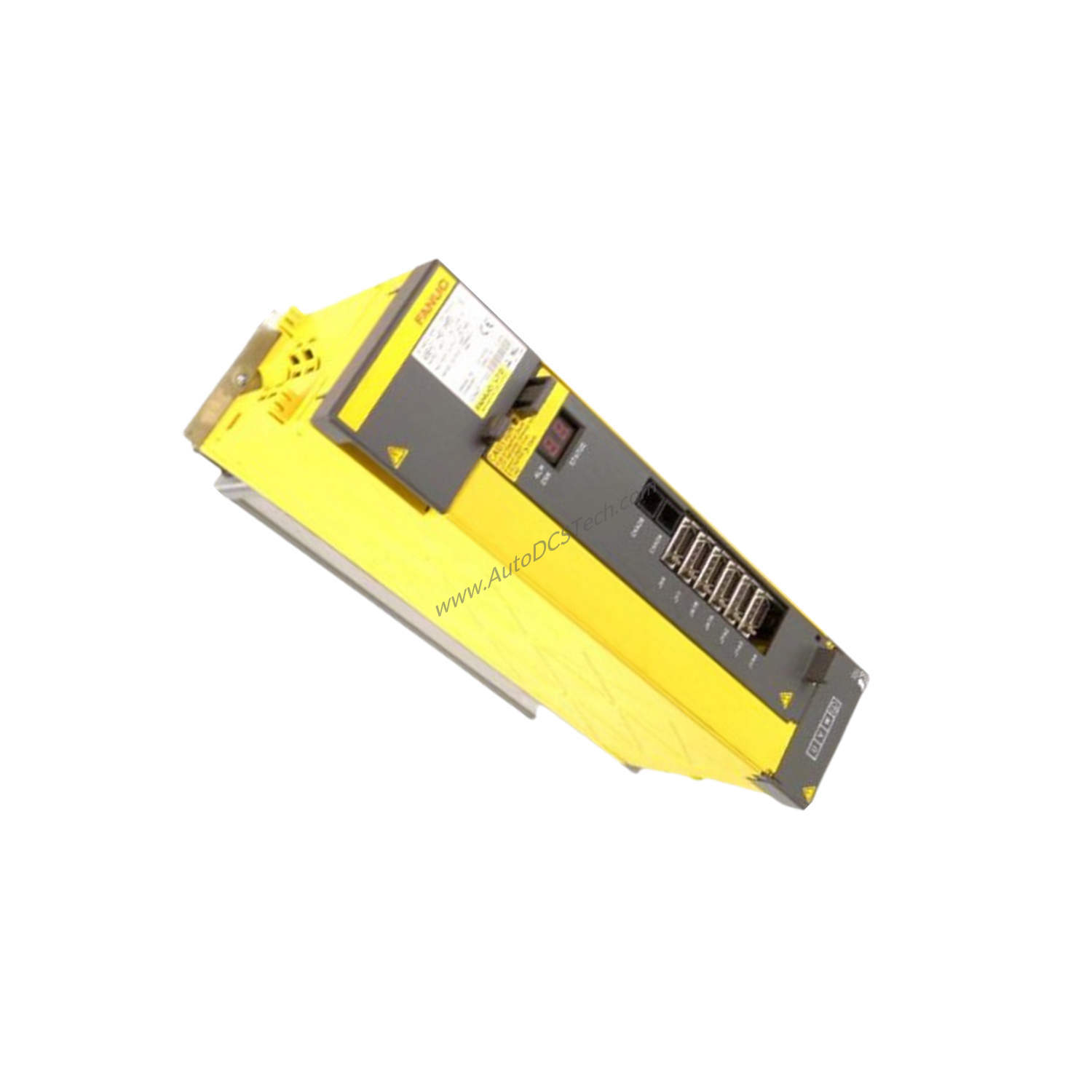

When a manufacturing line experiences voltage instability or power fluctuations, the FANUC A06B-6150-H011 power supply module provides a robust solution. Designed for three-phase systems, this module converts 400-480 VAC input into a stable 565-679 VDC output, ensuring consistent power delivery to critical industrial equipment. With a rated output power of 13 kW, it meets the demands of high-performance automation environments.
Technical Specifications Breakdown
The FANUC A06B-6150-H011 operates with a 3-phase input configuration and accepts an input voltage range of 400-480 VAC. At a nominal input of 400 V, it draws 24 A of current. The input frequency supports both 50 and 60 Hz, making it compatible with global electrical standards. The output voltage ranges from 565 to 679 VDC, providing a stable DC bus for servo drives and other loads. The module delivers a rated output power of 13 kW, sufficient for powering multiple axes or auxiliary systems.
Environmental resilience is built in. The module operates within an ambient temperature range of 0°C to 55°C and can be stored at -20°C to 60°C. It tolerates ambient humidity up to 90% RH without condensation, ensuring reliable performance in humid factory conditions. The unit weighs 11.00 lbs (4.99 kg), making it manageable for installation in cabinets or racks.
Industry Applications
In automotive assembly lines, the FANUC A06B-6150-H011 powers servo drives for robotic arms, ensuring precise motion control. Its stable 565-679 VDC output maintains torque accuracy during high-speed operations. In packaging machinery, the module supplies power to multiple conveyor drives, handling load variations without voltage drops. The 13 kW capacity supports simultaneous operation of several motors, reducing the need for multiple power supplies.
Installation & Setup Guidance
Mount the FANUC A06B-6150-H011 in a clean, dry enclosure with adequate ventilation. Ensure the ambient temperature stays between 0°C and 55°C. Connect the 3-phase input (400-480 VAC) using appropriately rated wiring. Verify that the input current does not exceed 24 A at 400 V. The output terminals deliver 565-679 VDC; confirm polarity before connecting loads. Use shielded cables for DC output to minimize electromagnetic interference. Always follow local electrical codes and the manufacturer's guidelines.
Maintenance & Reliability
Regularly inspect the FANUC A06B-6150-H011 for dust accumulation on cooling fins and fans. Clean the enclosure with a dry cloth to maintain airflow. Check input and output connections for tightness every six months. Monitor ambient humidity; ensure it stays below 90% RH without condensation. The module's robust design minimizes downtime, but periodic checks extend service life. SpareTechPLC recommends verifying the operating temperature stays within 0°C to 55°C to prevent thermal stress.
Compatibility & Integration
The FANUC A06B-6150-H011 integrates with FANUC servo amplifiers and CNC systems that require a 565-679 VDC bus. It is compatible with FANUC A06B series drives and other industrial equipment accepting this voltage range. The module does not include communication protocols; it functions as a standalone power supply. For system integration, ensure the total load does not exceed 13 kW. SpareTechPLC can help confirm compatibility with your existing setup.
Selection Guide & Purchasing Advice
Before ordering the FANUC A06B-6150-H011, verify your system's input voltage matches 400-480 VAC, 3-phase. Confirm that the total power demand does not exceed 13 kW. Check the physical space for mounting; the module weighs 11.00 lbs (4.99 kg). Ensure the operating environment stays within 0°C to 55°C and humidity below 90% RH. SpareTechPLC stocks this module and offers fast shipping. Contact our team for availability and replacement options if needed.
Frequently Asked Questions
Q1: What is the input voltage range for the A06B-6150-H011?
The input voltage range is 400-480 VAC, 3-phase.
Q2: What output voltage does this module provide?
It provides an output voltage of 565-679 VDC.
Q3: Can the A06B-6150-H011 operate in high humidity?
Yes, it can operate in up to 90% RH without condensation.
Q4: What is the rated output power of this module?
The rated output power is 13 kW.
Q5: Does the module support both 50 Hz and 60 Hz input?
Yes, it supports input frequencies of 50/60 Hz.
