Introduction

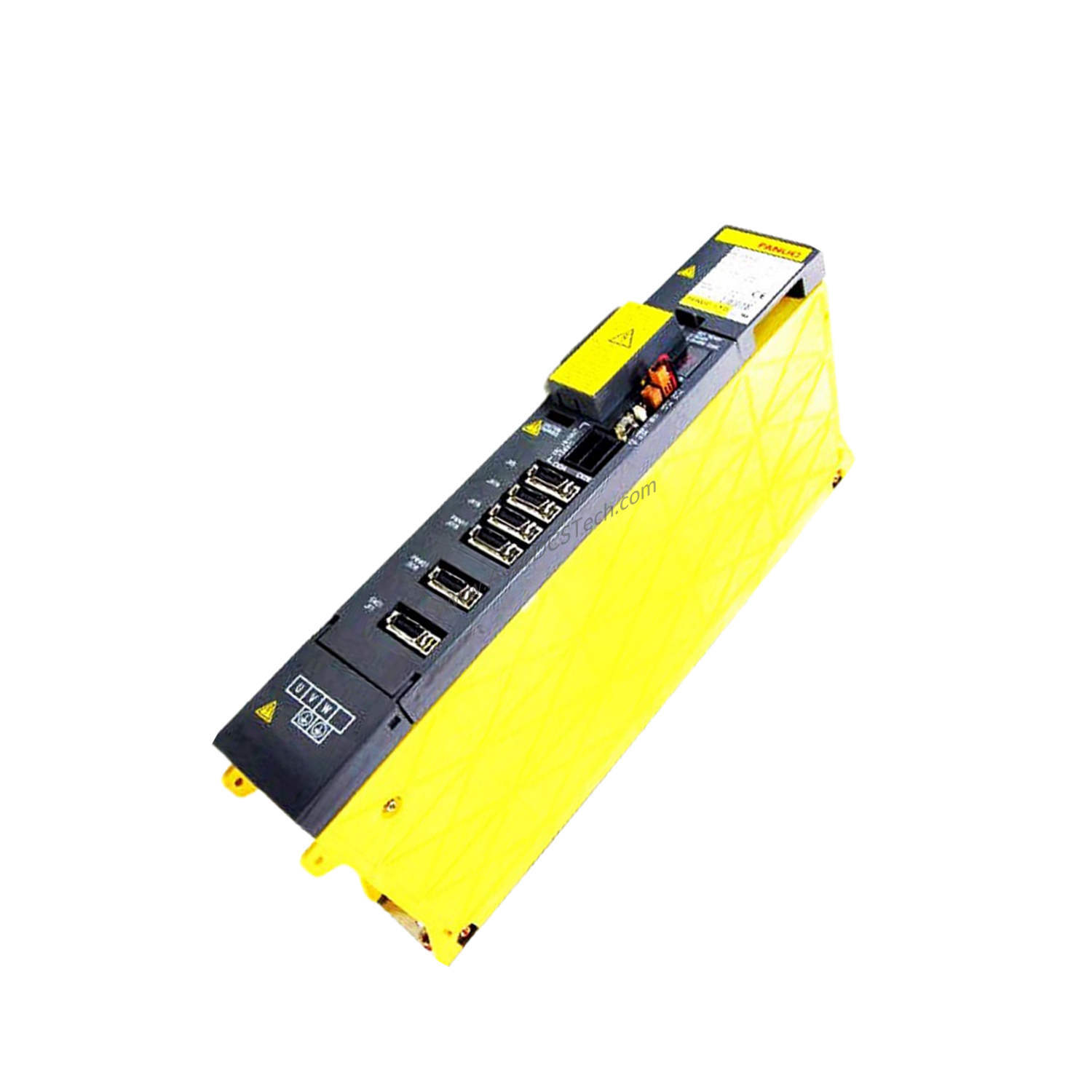

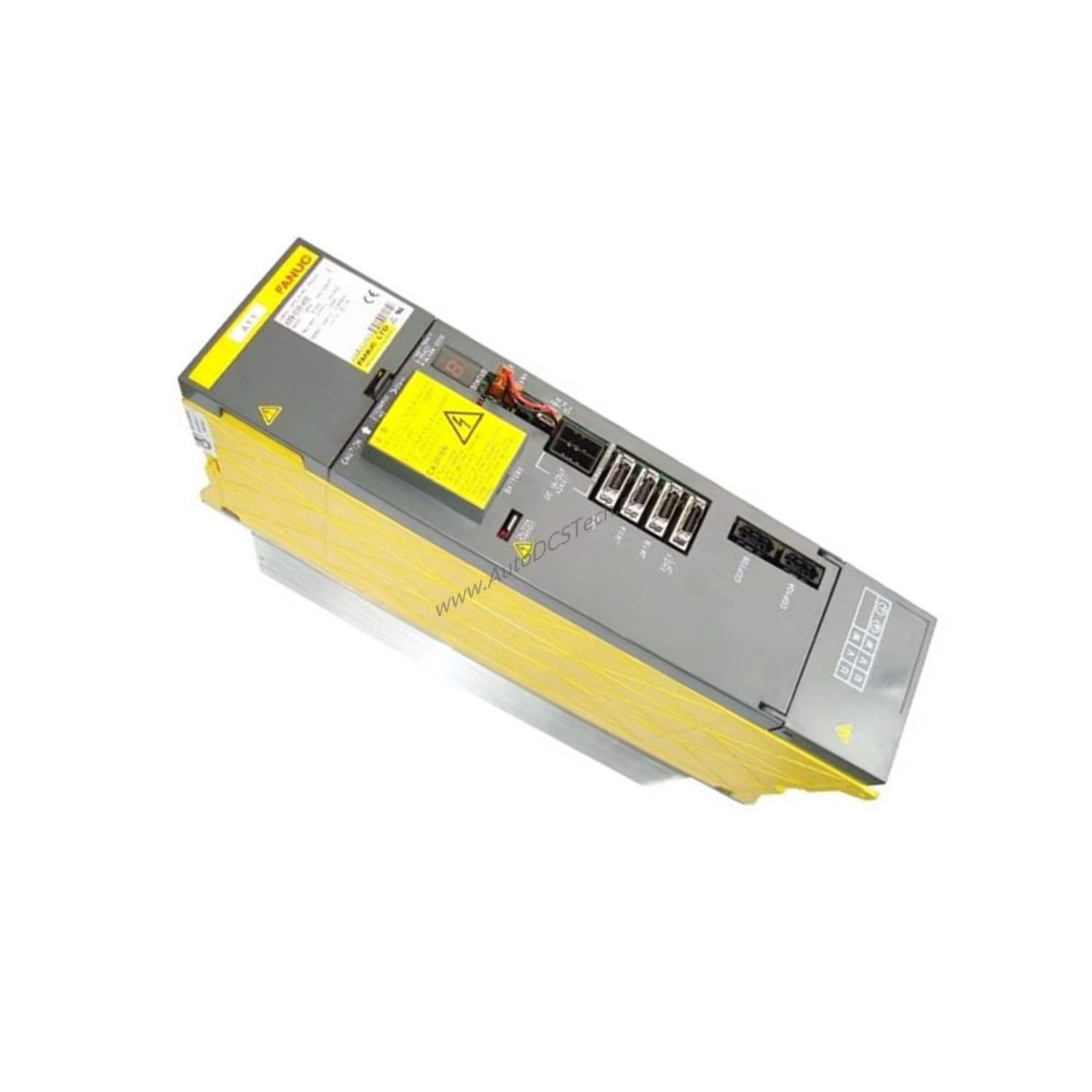

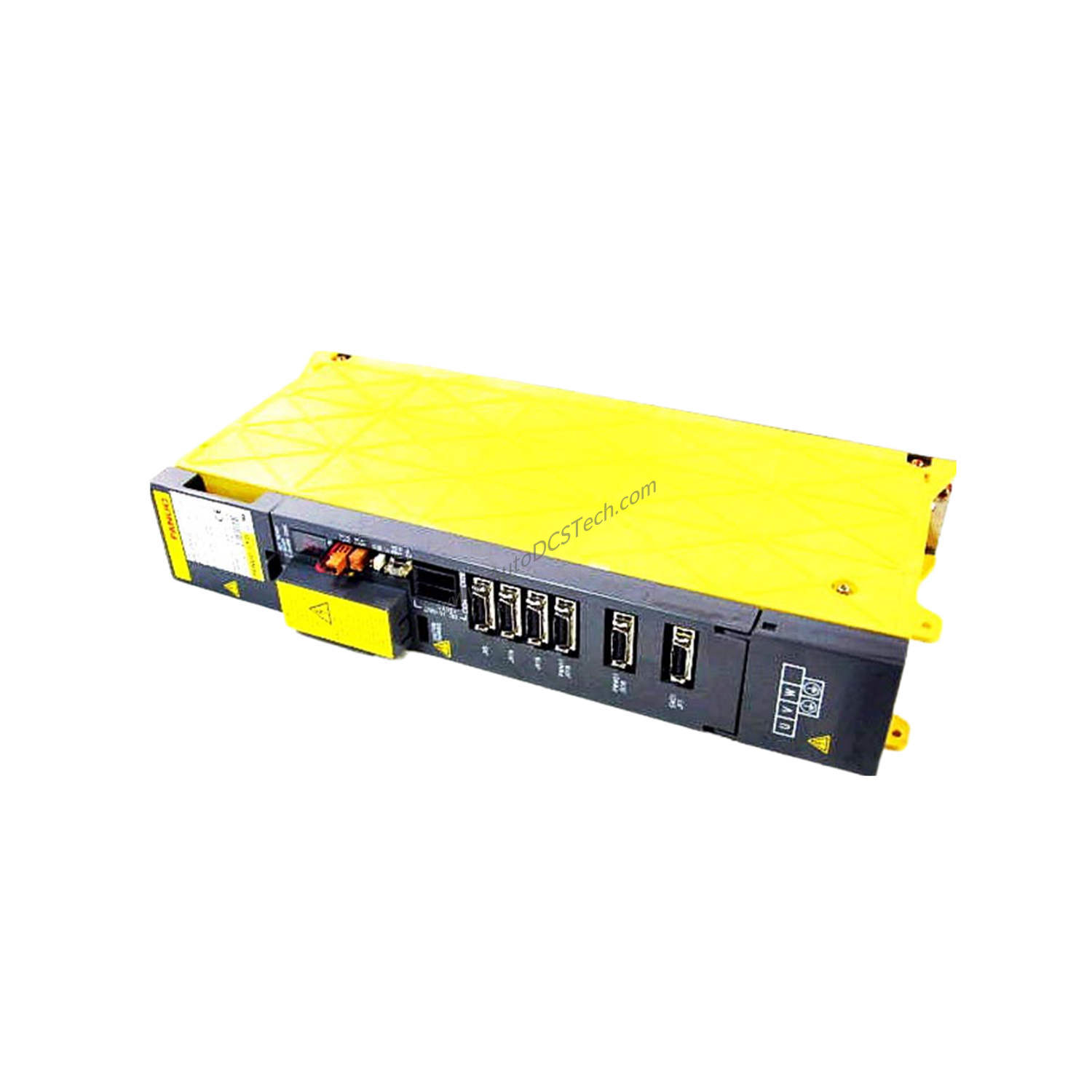

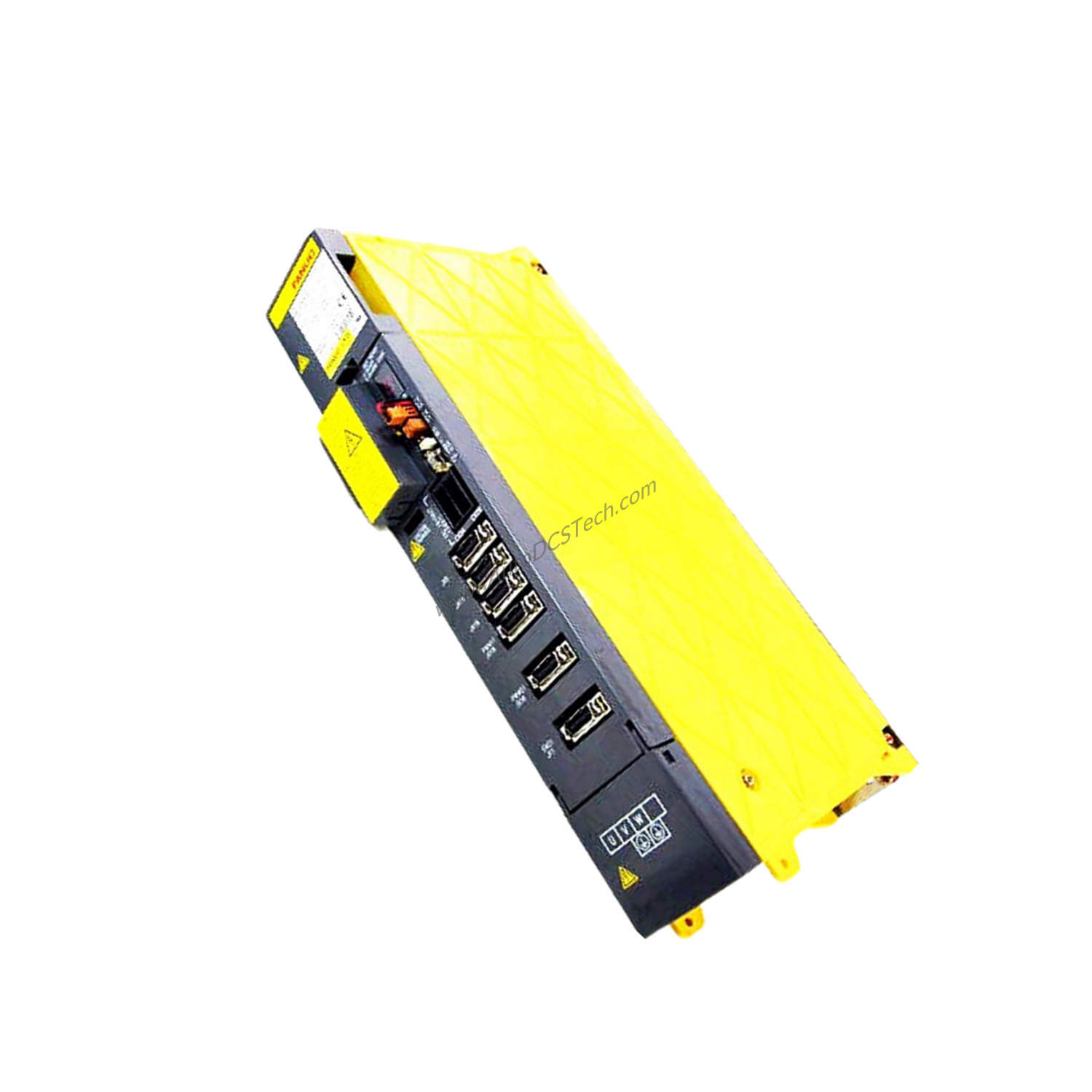

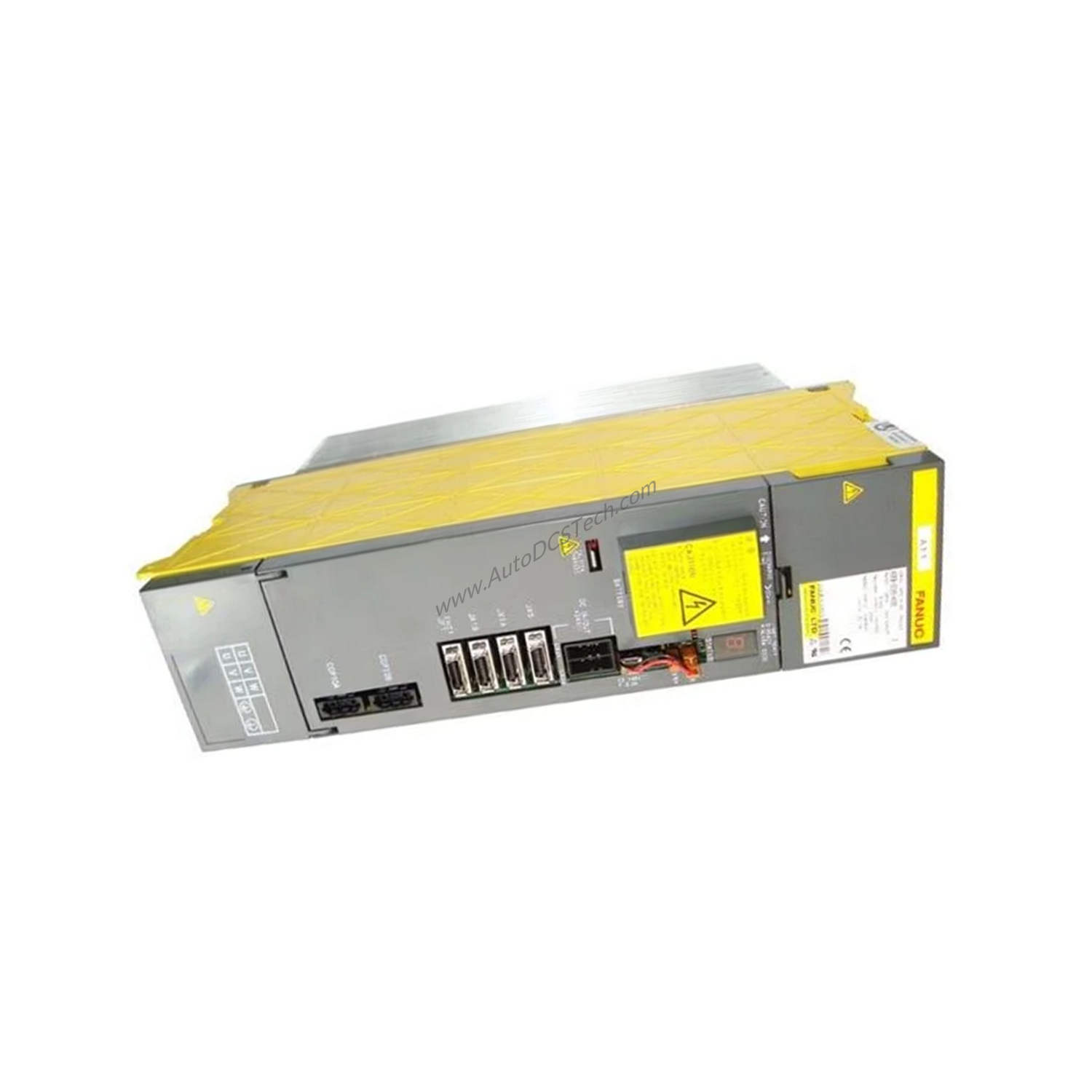

When your CNC machining center demands precise motion control and reliable power delivery, the FANUC A06B-6096-H116 Servo Amplifier provides a proven solution. This unit handles varied CNC applications with a robust 16 Amp output current and operates on a 200-240V DC power supply. Part of the trusted A06B product line, this amplifier is built to maintain uptime in demanding industrial environments.
Key Technical Specifications
- Output Current: 16 Amps – suitable for medium-duty servo motors in milling, turning, and grinding machines.
- Power Supply Voltage: 200-240V DC – ensure your system provides this exact DC voltage range.
- Feedback: Digital Servo Feedback – delivers accurate position and velocity data for closed-loop control.
- Protection: Overcurrent, Overvoltage, and Overheating protection are all supported, safeguarding the amplifier and connected equipment.
- Environmental Limits: Operating temperature 0 to 40 degrees Celsius, maximum vibration 5G, and maximum altitude 1000 meters above sea level.
- Weight: 15.00 lbs (6.80 kg) – plan for proper mounting and support.
Industry Applications
The A06B-6096-H116 is designed for CNC applications. Typical uses include:
- CNC Milling Centers: The 16 Amp output drives axis motors reliably, while digital feedback ensures precise positioning.
- CNC Lathes: Overcurrent and overvoltage protection help prevent damage during heavy cutting cycles.
- Automated Manufacturing Cells: Serial and Ethernet interfaces enable integration with higher-level controllers and monitoring systems.
Installation & Setup Guidance
Before installation, verify that your power supply delivers 200-240V DC and can support the amplifier's current draw. Mount the unit in a clean, dry enclosure with adequate airflow to stay within the 0 to 40 degrees Celsius operating range. Use shielded cables for the digital servo feedback connection to minimize electrical noise. The Ethernet interface simplifies network configuration for remote monitoring.
Maintenance & Reliability
To maximize service life, inspect the amplifier periodically for dust buildup on cooling surfaces. Ensure ambient temperature stays below 40 degrees Celsius and vibration levels remain under 5G. The built-in overcurrent, overvoltage, and overheating protection reduce the risk of unexpected failures. Regular verification of the power supply voltage within the 200-240V DC range helps maintain consistent performance.
Compatibility & Integration
This servo amplifier supports PWM control, serial interface, and Ethernet interface, making it compatible with many FANUC CNC controllers and automation networks. The digital servo feedback works with standard servo motors that accept encoder signals. Always confirm motor compatibility with your specific application before ordering.
Selection Guide & Purchasing Advice
When evaluating the A06B-6096-H116 for your system, confirm that your required output current does not exceed 16 Amps and that your DC bus voltage matches 200-240V DC. Verify the physical dimensions and weight (15.00 lbs) fit your cabinet layout. SpareTechPLC stocks this model and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the output current of the A06B-6096-H116?
A: The output current is 16 Amps, as specified in the technical data.
Q: What power supply voltage does this servo amplifier require?
A: It requires a 200-240V DC power supply. Do not connect to AC voltage.
Q: Does the A06B-6096-H116 include overcurrent protection?
A: Yes, overcurrent protection is supported, along with overvoltage and overheating protection.
Q: What communication interfaces are available?
A: The amplifier supports serial interface and Ethernet interface for flexible connectivity.
Q: What is the operating temperature range?
A: The unit operates from 0 to 40 degrees Celsius.
