Introduction

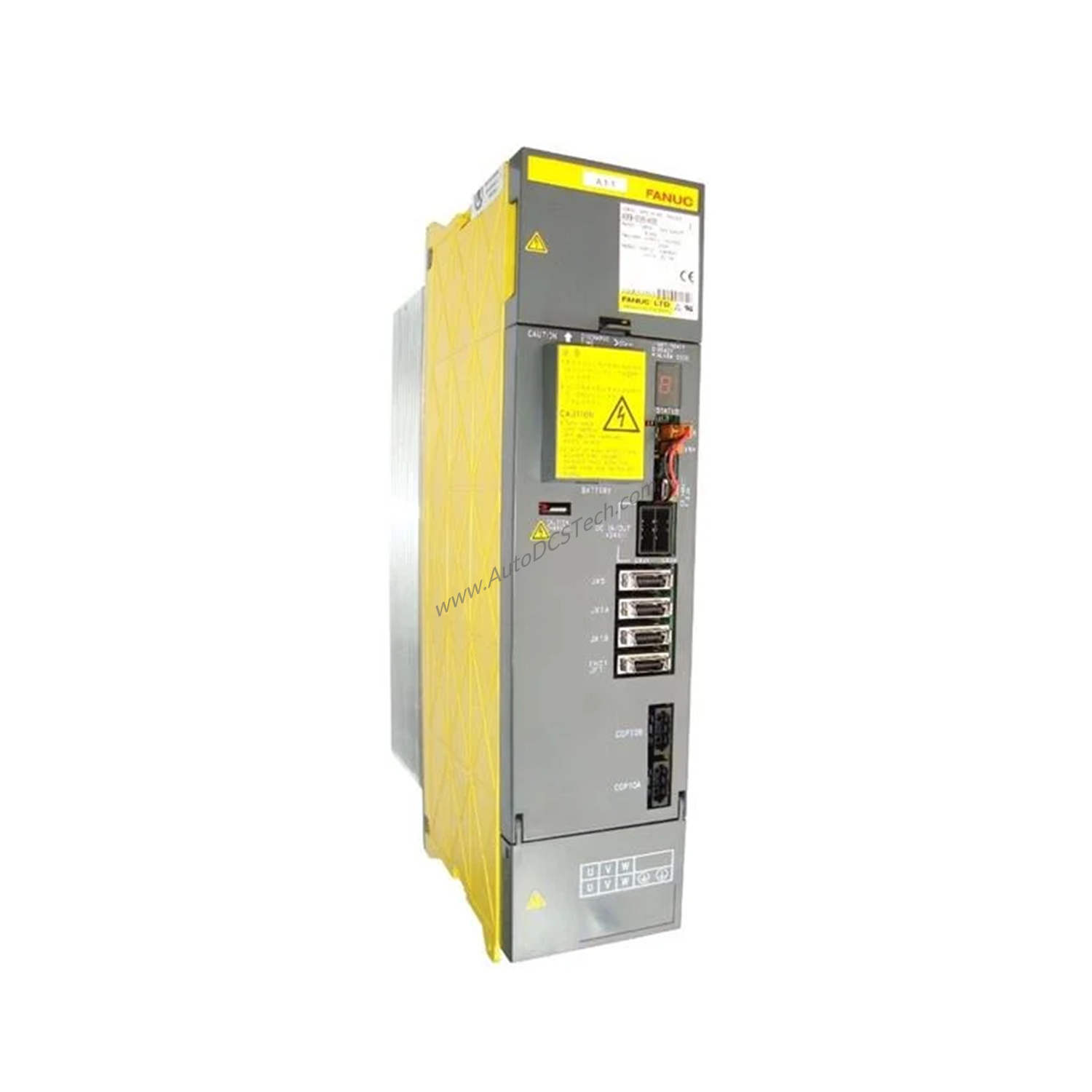

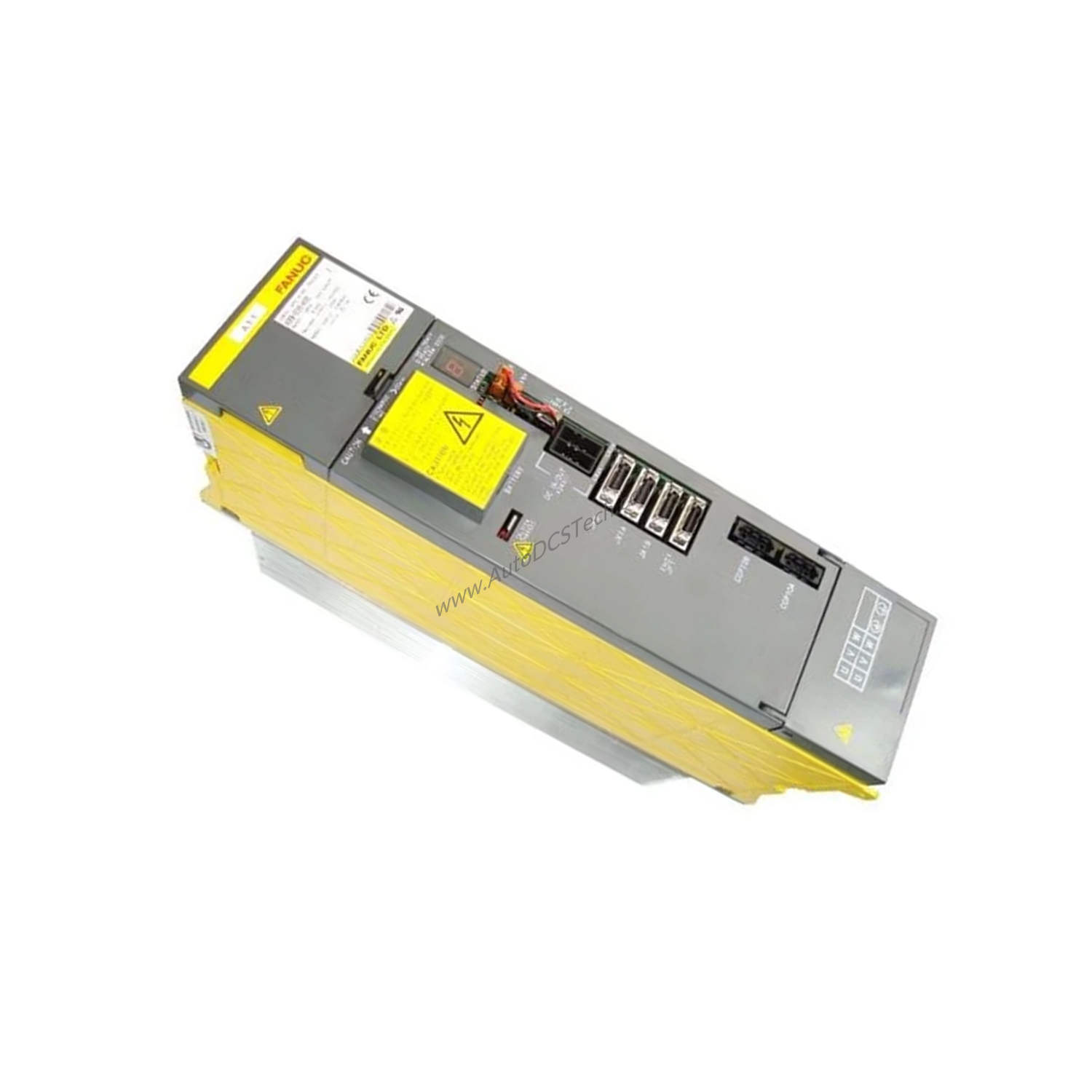

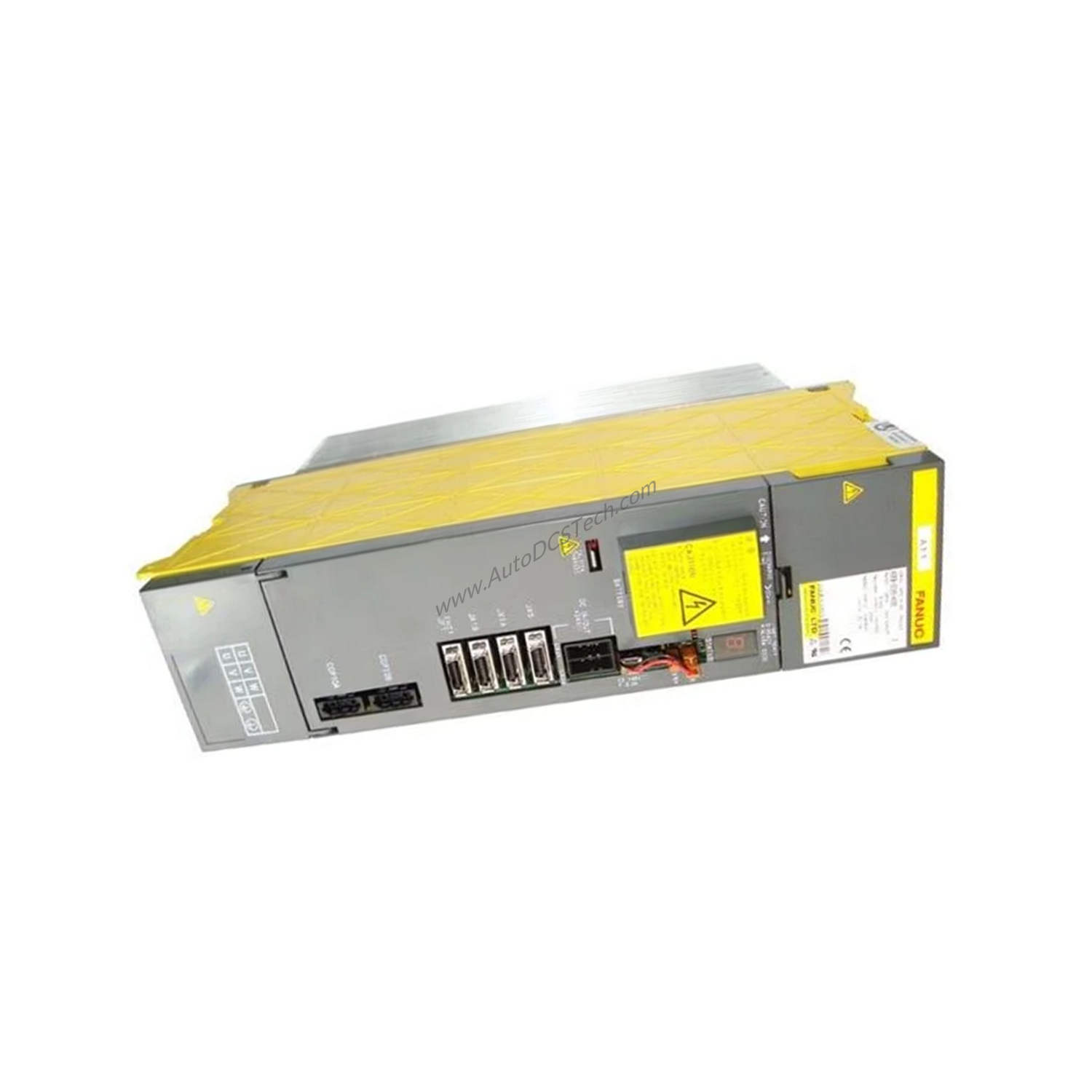

When CNC systems demand precise motor control and reliable operation, the FANUC A06B-6096-H101 AC Servo Amplifier (Servo Drive) delivers a robust solution. This module, part of the A06B product line, is engineered to support the ALPHA SERVO DRIVE MODEL SVM1-12, providing essential motion control capabilities. Overload and overcurrent protection features help prevent unexpected downtime, ensuring your machining processes stay productive.
Technical Specifications Breakdown
The A06B-6096-H101 operates at 50/60 Hz, adapting to various power systems commonly found in industrial environments. Its operating temperature range of 0°C to 55°C allows reliable performance in typical factory conditions. The unit weighs 11.00 lbs (4.99 kg), making it manageable for integration into existing setups. These specifications ensure the amplifier can handle demanding CNC applications without compromising stability.
Industry Applications
In CNC machining centers, the A06B-6096-H101 drives servo motors for precise axis movement. For example, in a 3-axis milling machine, this amplifier coordinates with the controller via the FSSB interface to maintain accurate positioning during high-speed cutting. The overload protection prevents motor damage when unexpected loads occur, reducing repair costs and production delays.
Installation & Setup Guidance
Mount the A06B-6096-H101 vertically or on a wall using the provided mounting points. Ensure adequate airflow around the unit to maintain the 0°C to 55°C operating temperature. Connect the FSSB interface cable securely to the CNC controller. Verify that the power supply matches the 50/60 Hz frequency requirement before energizing the system.
Maintenance & Reliability
Regularly inspect the amplifier for dust accumulation on cooling surfaces, as this can affect thermal performance within the 0°C to 55°C range. Check all cable connections for tightness to prevent intermittent faults. The overload and overcurrent protection features reduce the risk of component failure, extending the service life of your CNC system.
Compatibility & Integration
This servo amplifier integrates seamlessly with FANUC CNC systems using the FSSB interface. It is specifically designed for the ALPHA SERVO DRIVE MODEL SVM1-12, ensuring optimal communication and control. Verify that your controller supports FSSB before installation to guarantee compatibility.
Selection Guide & Purchasing Advice
Before purchasing the A06B-6096-H101, confirm that your CNC system requires an AC servo amplifier with FSSB interface and that the 50/60 Hz power supply is available. SpareTechPLC stocks this model and can assist with availability and shipping options. Contact our team to verify lifecycle status and ensure the unit meets your application needs.
Frequently Asked Questions
What is the weight of the FANUC A06B-6096-H101?
The A06B-6096-H101 weighs 11.00 lbs (4.99 kg), as specified in the product data.
What protection features does this servo amplifier include?
It includes overload and overcurrent protection to safeguard the drive and connected motors.
What interface does the A06B-6096-H101 use for communication?
It uses the FSSB interface for efficient communication with CNC controllers.
Can this amplifier be mounted in different orientations?
Yes, it supports vertical and wall-mounted installation options.
What is the operating temperature range for this unit?
The operating temperature range is 0°C to 55°C, suitable for typical industrial environments.
