Introduction

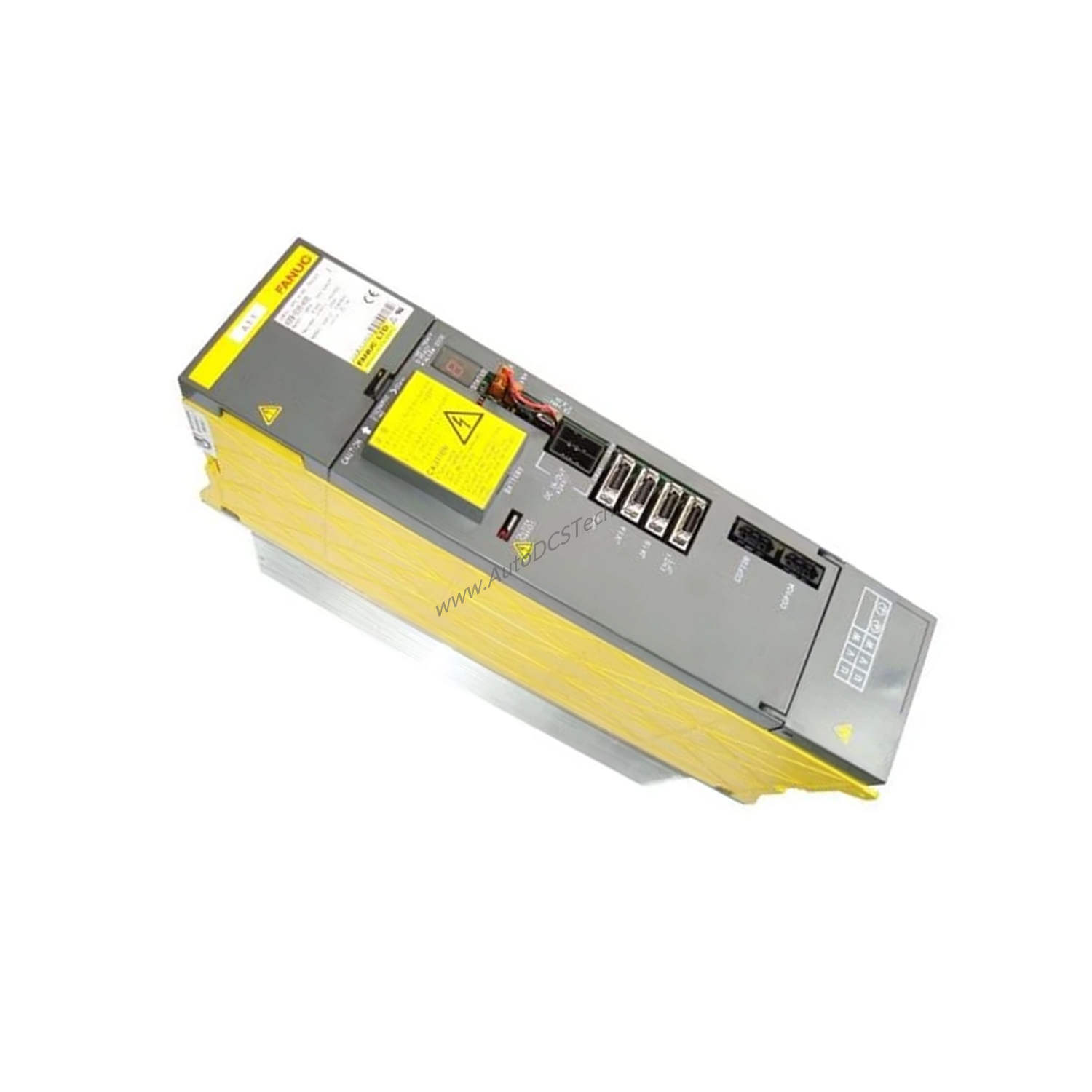

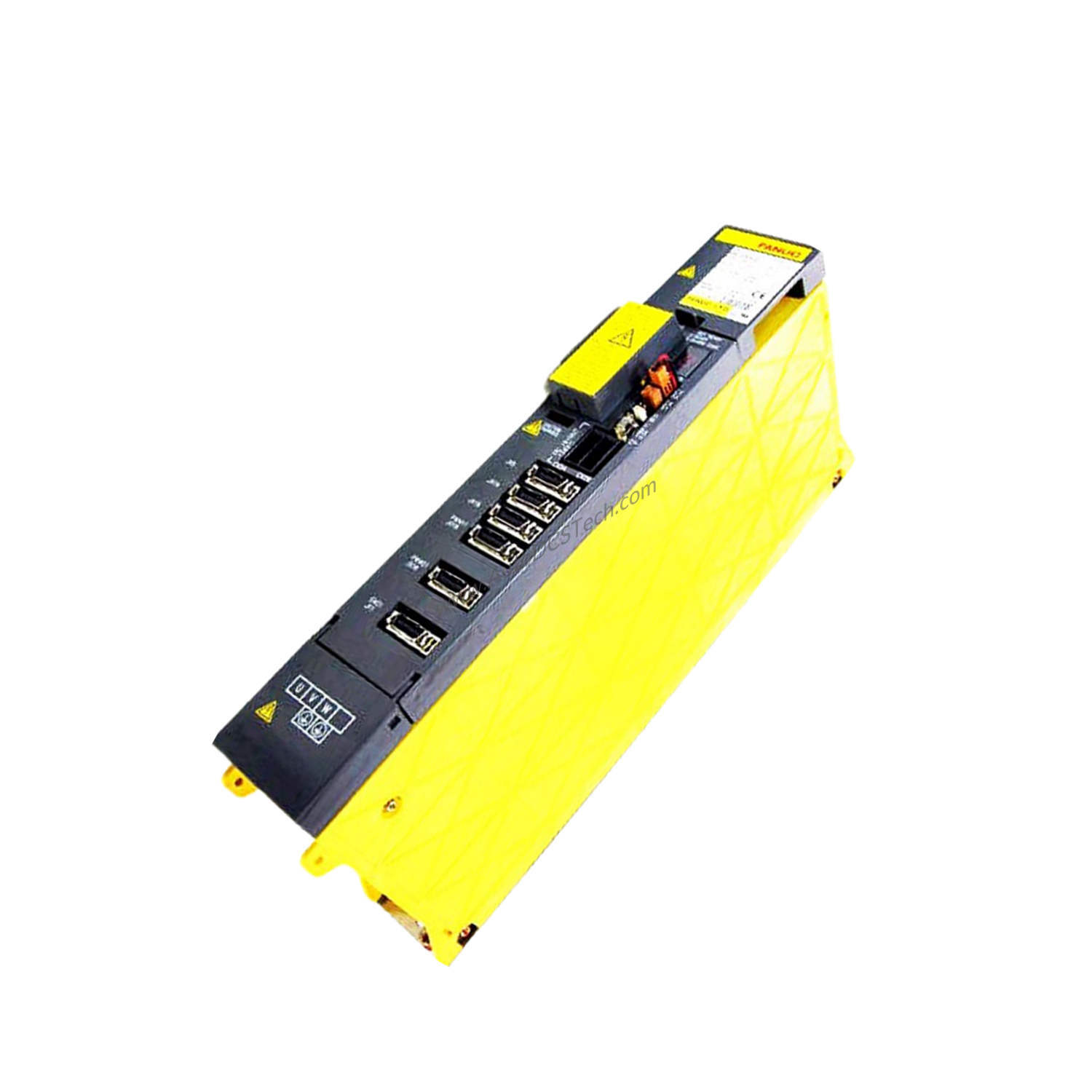

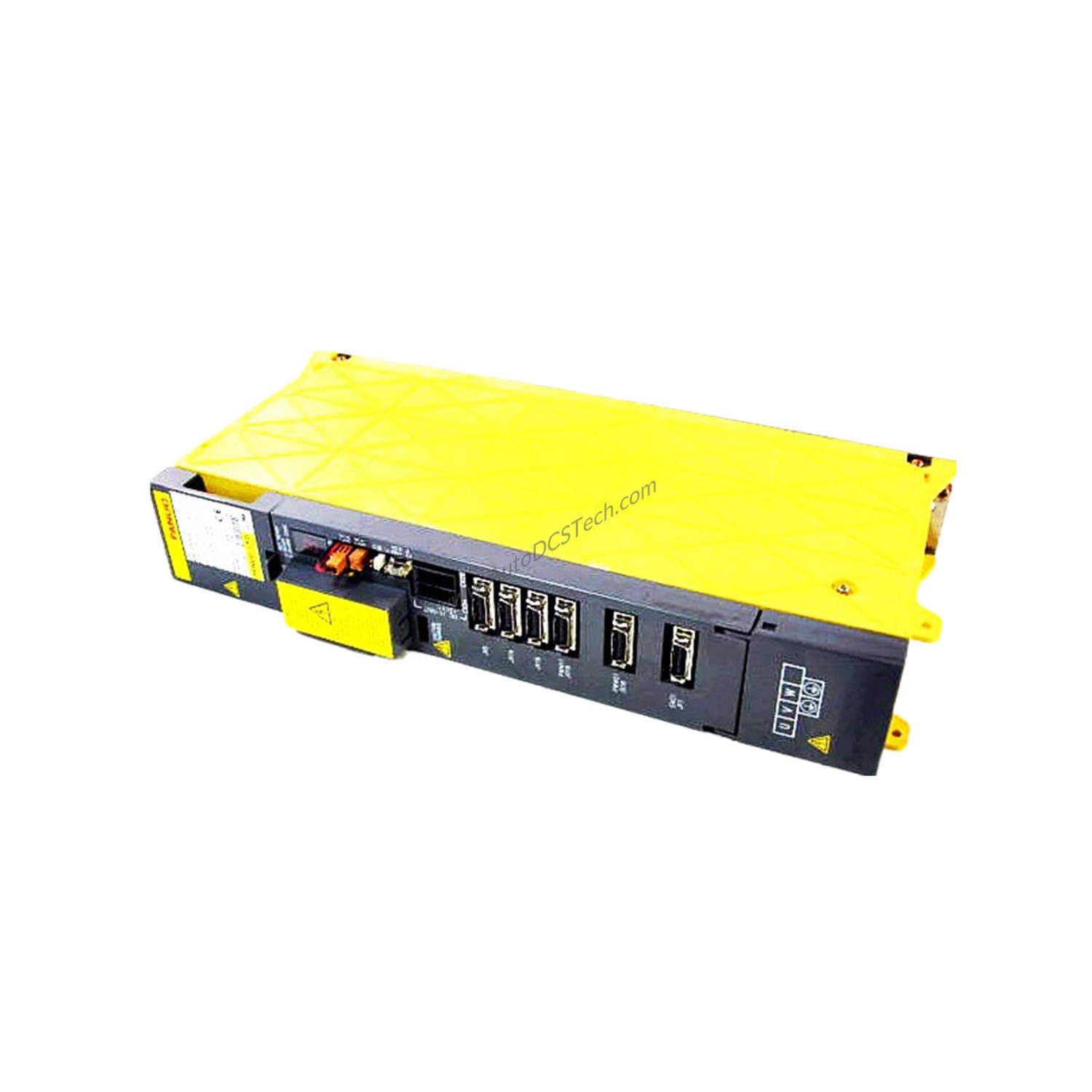

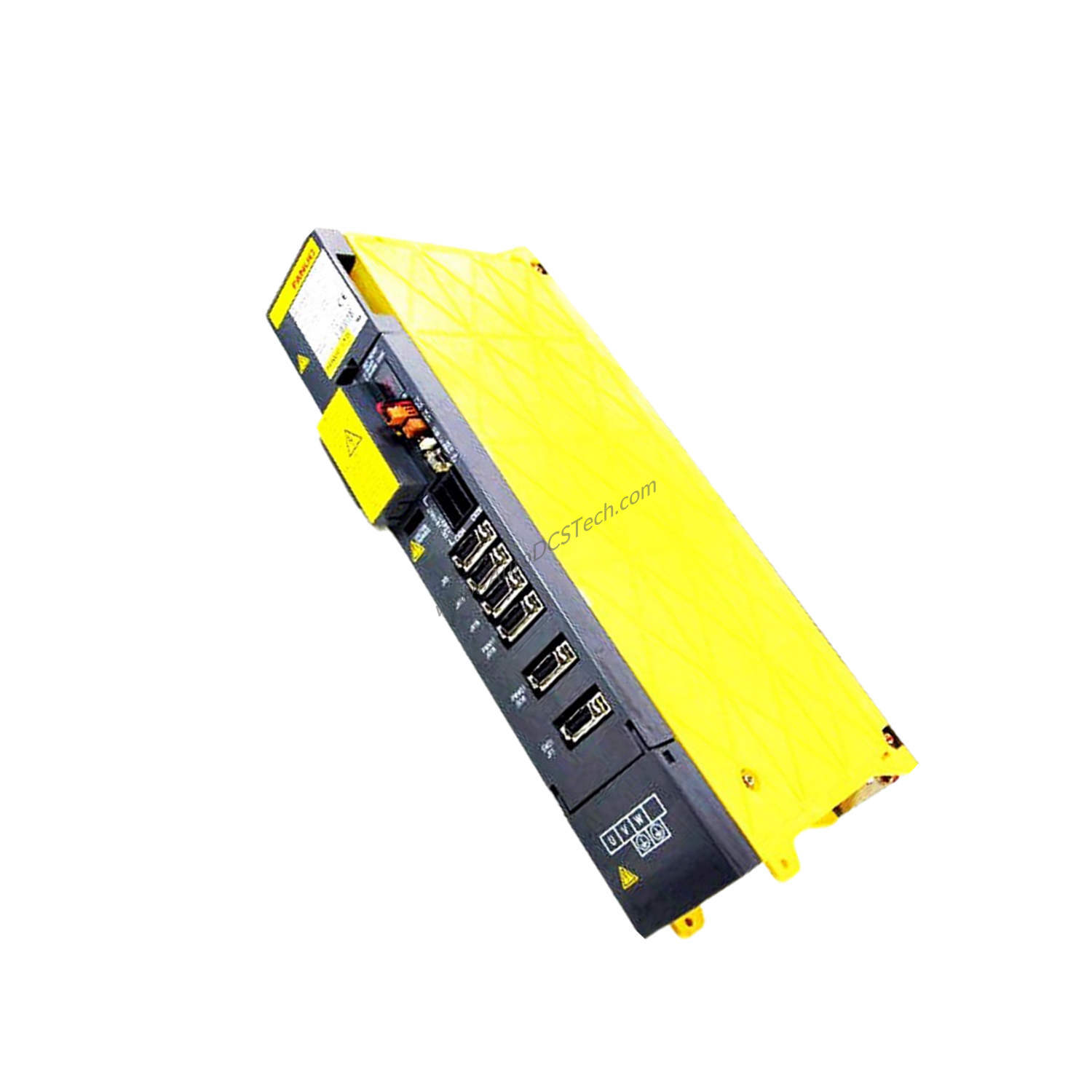

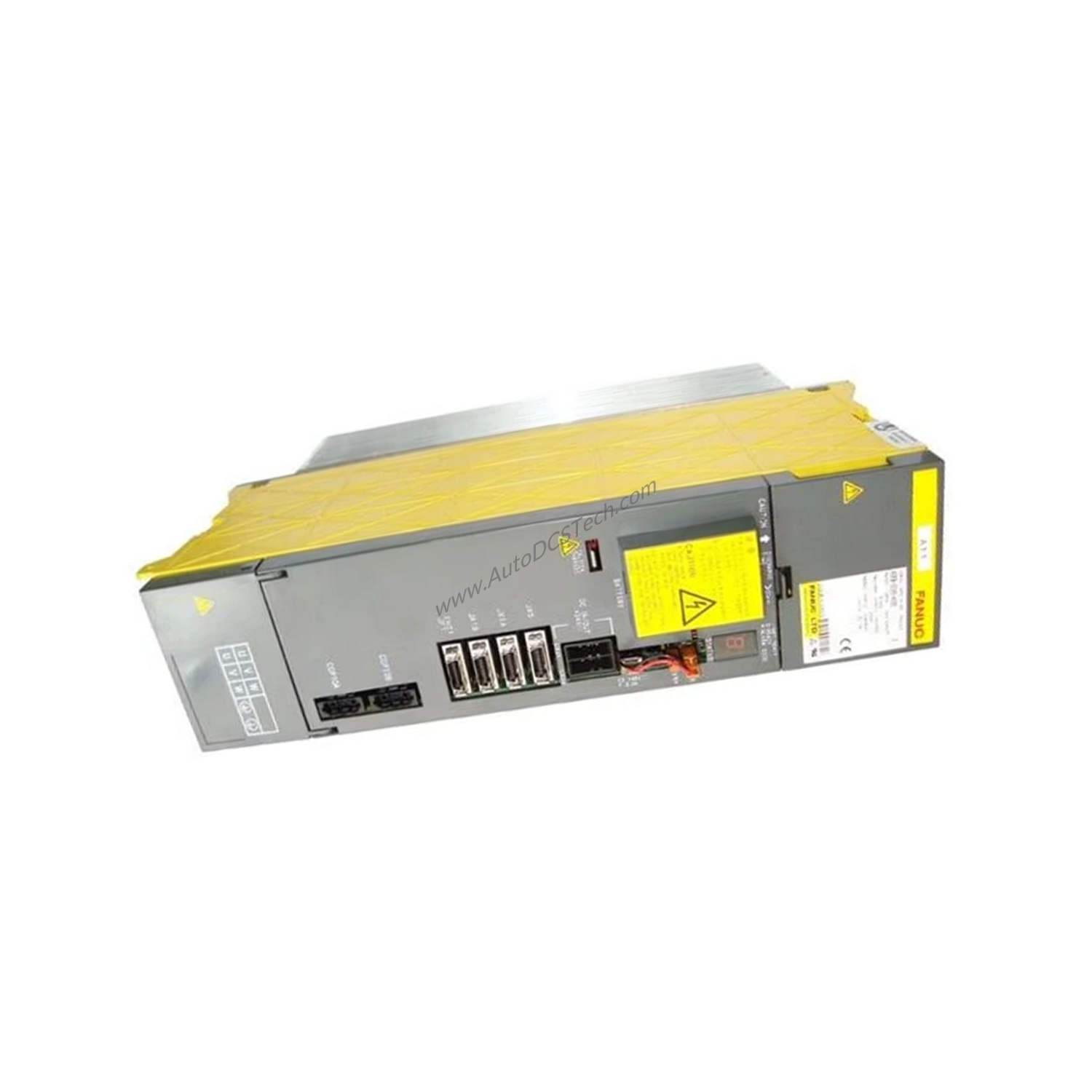

When CNC machining centers experience inconsistent motor control or thermal overload, the FANUC A06B-6096-H105 servo drive provides a robust solution. This servo drive from the A06B product line delivers reliable power conversion and precise motion control for demanding industrial environments.
Technical Specifications Breakdown
The FANUC A06B-6096-H105 operates with an input voltage range of 283-325 volts and supplies a steady 230V output. Its output power capacity of 4.75 kW enables it to drive medium-to-large servo motors efficiently. The L-axis output current rating of 18.7 Amps ensures the drive can handle substantial loads without performance degradation.
Environmental resilience is built into this unit. It operates within a temperature range of 0 to 40 degrees Celsius, making it suitable for typical factory floor conditions. The drive withstands vibrations up to 5G and functions reliably at altitudes up to 1000 meters above sea level. Weighing 11.00 lbs (4.99 kg), the A06B-6096-H105 is compact enough for panel mounting while remaining robust for industrial use.
Industry Applications
In CNC milling and turning centers, the A06B-6096-H105 servo drive controls axis movements with high precision. Its 18.7 Amps L-axis current capability supports heavy cutting operations where torque consistency is critical. For multi-axis machining systems, this drive integrates seamlessly into existing FANUC control architectures, reducing setup time and improving overall equipment effectiveness.
Installation & Setup Guidance
Mount the FANUC A06B-6096-H105 in a clean, dry enclosure with adequate ventilation to maintain the 0-40°C operating range. Ensure the input power source matches the 283-325V requirement. Use appropriately sized conductors for the 18.7 Amps L-axis output current. Verify all connections are secure before powering up the system. For optimal performance, avoid mounting near heat sources or in areas with excessive vibration beyond the 5G rating.
Maintenance & Reliability
Regular inspection of the A06B-6096-H105 servo drive helps maximize its service life. Check for dust accumulation on cooling surfaces and ensure airflow paths remain unobstructed. Periodically verify that input voltage stays within the 283-325V range and that ambient temperature does not exceed 40 degrees Celsius. The drive's 5G vibration tolerance reduces the risk of connection loosening in high-vibration environments, but periodic torque checks on terminal connections are recommended.
Selection Guide & Purchasing Advice
Before purchasing the FANUC A06B-6096-H105, confirm that your application requires a 4.75 kW servo drive with 230V output. Verify that the input power supply can deliver 283-325V and that the motor's current demand does not exceed 18.7 Amps. SpareTechPLC stocks this servo drive and can assist with availability and compatibility questions. Contact our team to confirm lifecycle status and ensure the unit meets your specific CNC system requirements.
Frequently Asked Questions
Q1: What is the output power of the FANUC A06B-6096-H105?
The output power is 4.75 kW, suitable for driving medium to large servo motors in CNC applications.
Q2: What input voltage range does this servo drive require?
It requires an input voltage between 283 and 325 volts.
Q3: What is the L-axis output current rating?
The L-axis output current is 18.7 Amps.
Q4: What is the operating temperature range?
The drive operates from 0 to 40 degrees Celsius.
Q5: Can this drive handle high vibration environments?
Yes, it withstands vibrations up to 5G and operates at altitudes up to 1000 meters above sea level.
