Product Introduction

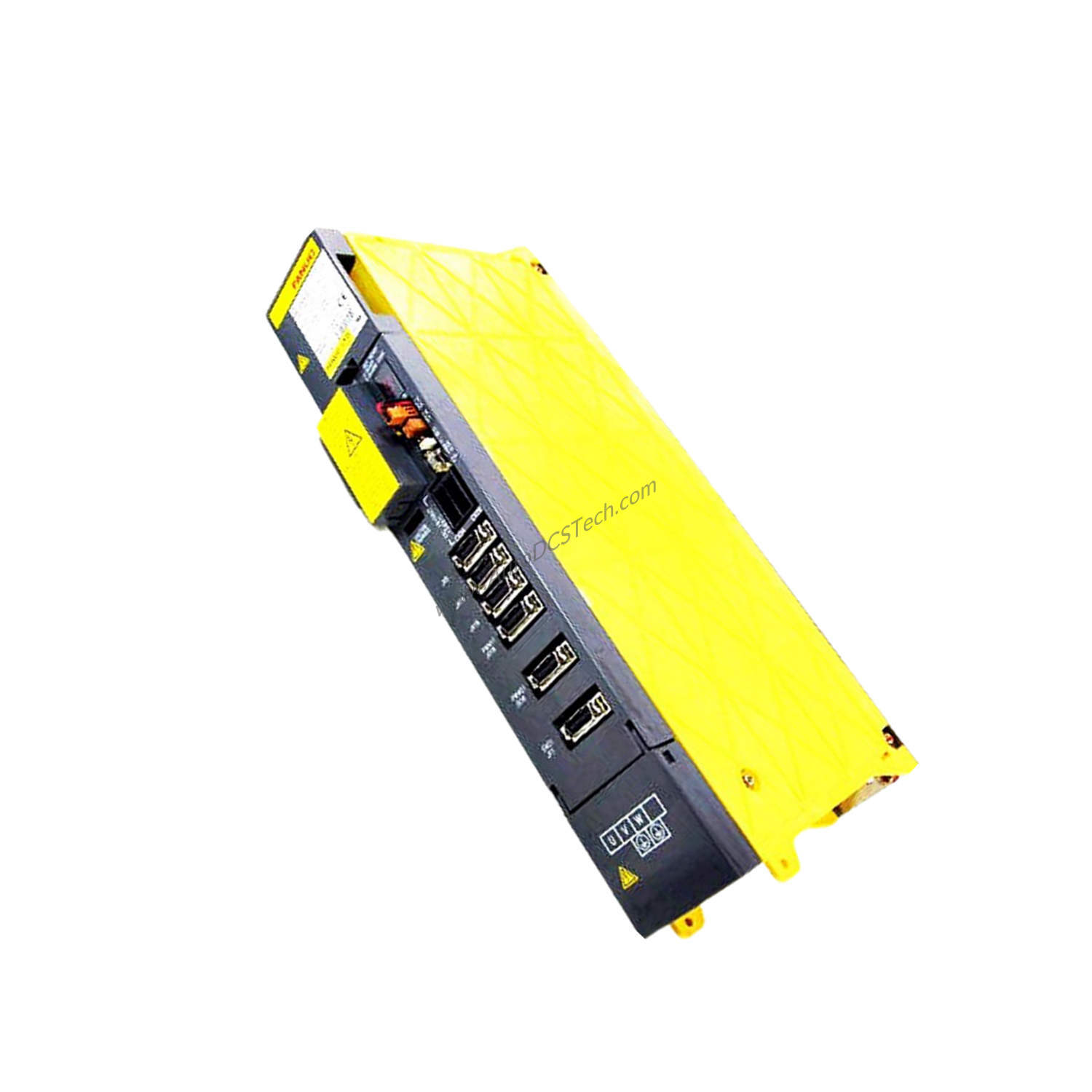

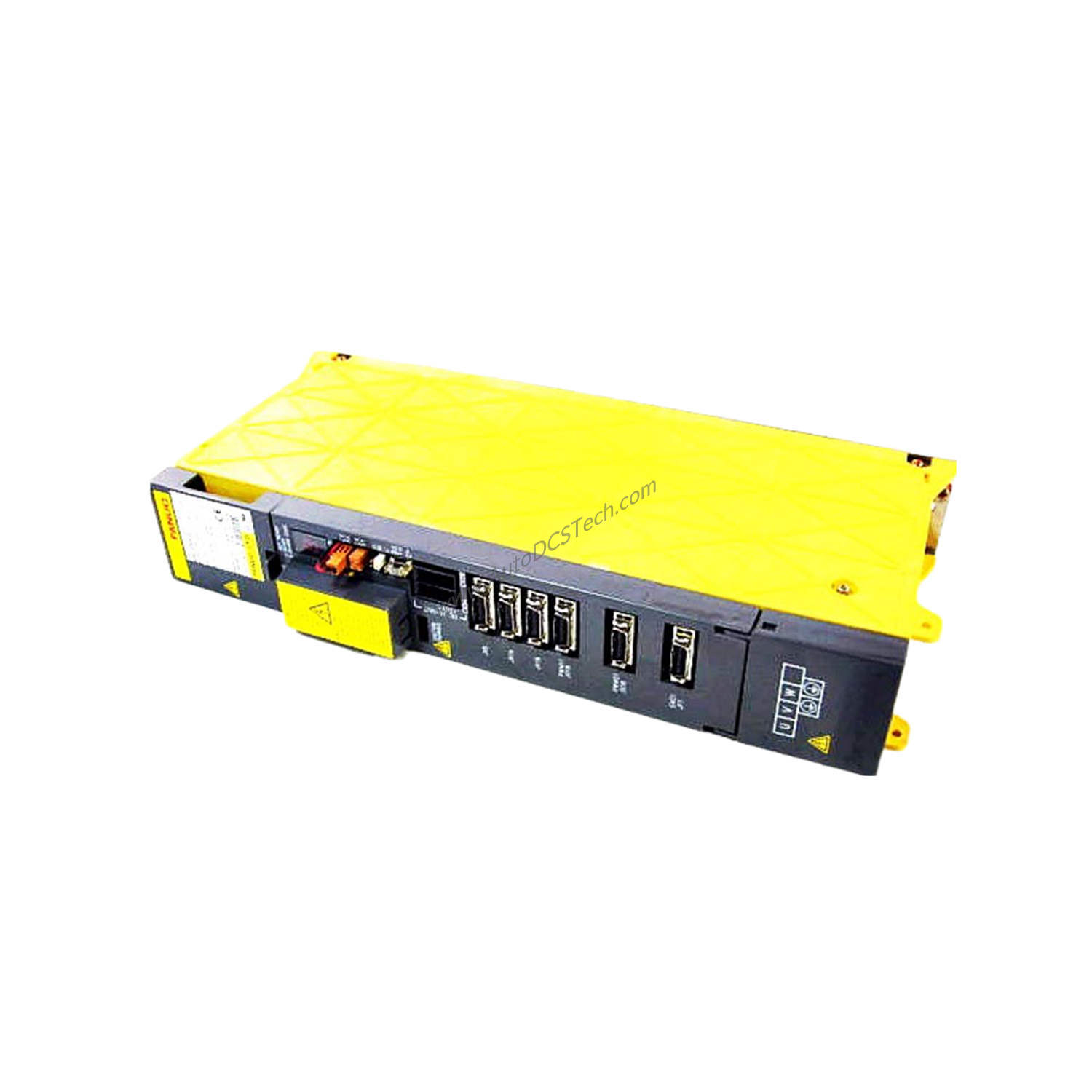

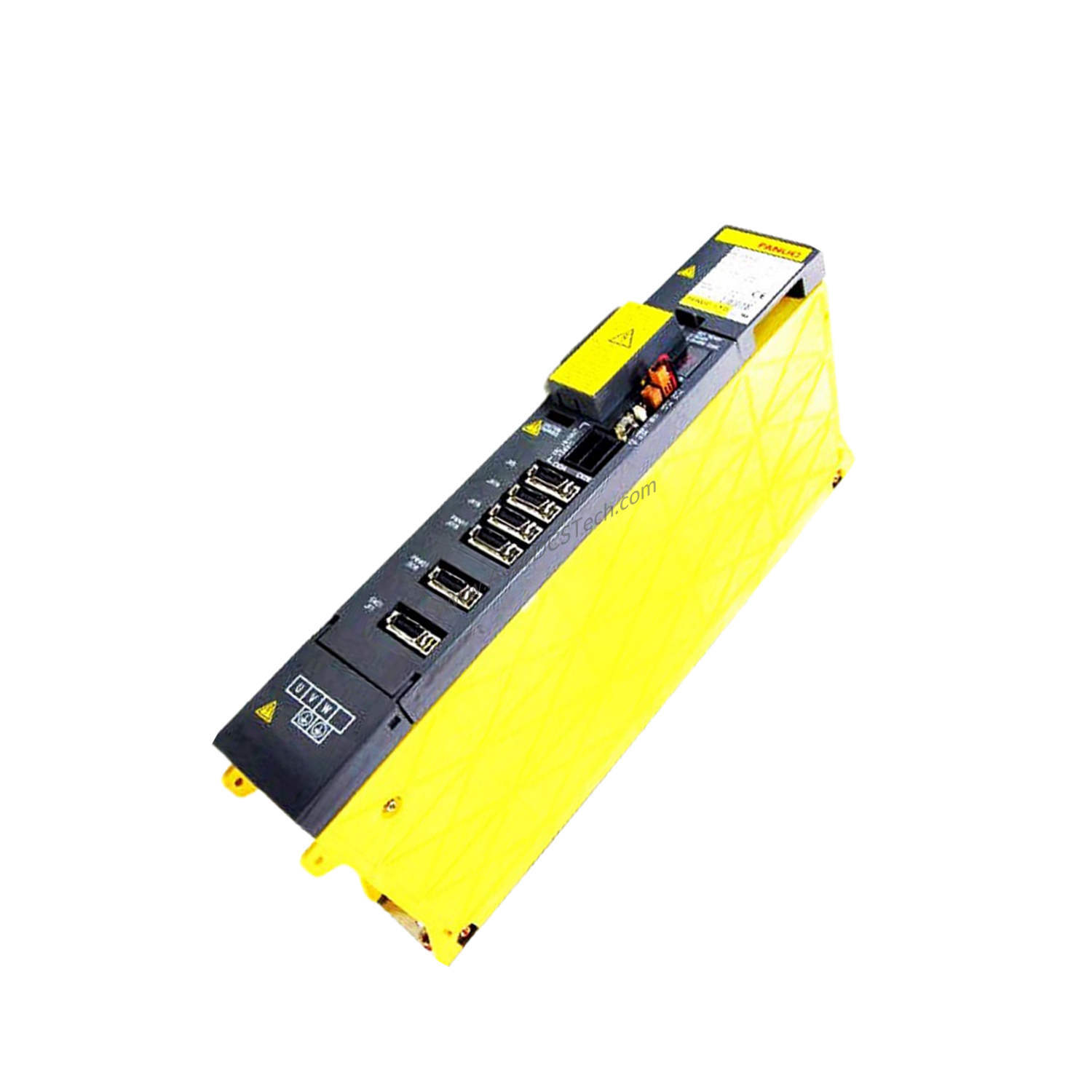

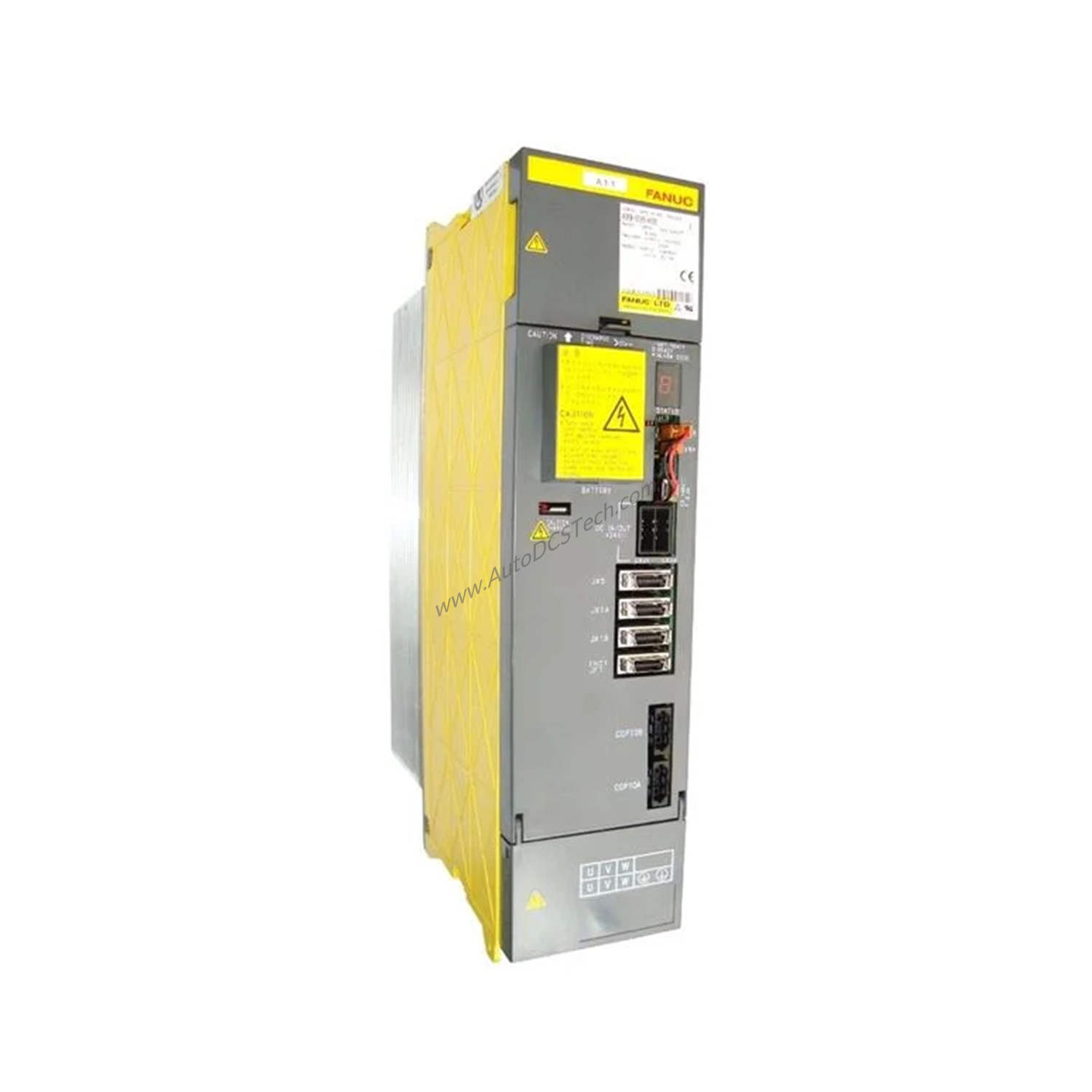

When CNC downtime drives up production costs, the FANUC A06B-6096-H102 Servo Amplifier (Servo Drive) provides a reliable, cost-effective solution. Designed for integration into CNC systems, this amplifier uses an FSSB interface to ensure efficient communication between components, reducing setup time and minimizing errors. With a frequency range of 50/60 Hz, it adapts to diverse machine requirements without expensive modifications, directly lowering operational expenses.
Technical Specifications Breakdown
The A06B-6096-H102 is built for long-term value. Key specs from the manufacturer include:
- Interface Type: FSSB Interface – ensures fast, reliable data exchange, reducing communication-related downtime and maintenance costs.
- Frequency: 50/60 Hz – compatible with global power standards, eliminating the need for costly frequency converters.
- Protection Features: Overload and Overcurrent Protection – prevents damage from electrical faults, extending service life and reducing replacement expenses.
- Cooling Method: Air Cooled – no additional cooling infrastructure required, lowering installation and energy costs.
- Operating Temperature: 0°C to 55°C – operates reliably in typical industrial environments without expensive climate control.
- Weight: 11.00 lbs (4.99 kg) – lightweight design reduces shipping and handling costs.
- Mounting: Vertical/Wall-mounted – saves floor space, maximizing facility utilization.
- Servo Unit Type: ALPHA SERVO DRIVE MODEL SVM1-20 – proven technology ensures consistent performance and low total cost of ownership.
Industry Applications
In high-volume CNC machining centers, the A06B-6096-H102 drives spindle and axis motors with precision, reducing scrap rates and rework costs. For automated milling operations, its overload protection minimizes unplanned stops, keeping production on schedule. In retrofit projects, the FSSB interface simplifies integration with existing FANUC controllers, avoiding costly system overhauls.
Installation & Setup Guidance
Mount the A06B-6096-H102 vertically or on a wall using the provided mounting points. Ensure adequate airflow around the air-cooled unit to maintain optimal thermal performance. Connect the FSSB cable to the CNC controller and verify the 50/60 Hz power supply matches local mains. Secure all wiring to prevent loose connections that could trigger overload protection and cause downtime.
Maintenance & Reliability
Regular inspection of the air intake and cooling fins prevents dust buildup, maintaining efficient heat dissipation and prolonging component life. Check for signs of overload or overcurrent events in the system logs to identify potential issues early. Following these simple steps reduces the risk of unexpected failures and keeps maintenance costs low.
Selection Guide & Purchasing Advice
Before purchasing, verify that your CNC system supports the FSSB interface and that the 50/60 Hz frequency matches your facility's power supply. The A06B-6096-H102 is suitable for new installations or as a direct replacement for compatible ALPHA SERVO DRIVE MODEL SVM1-20 units. Contact SpareTechPLC for current availability and lifecycle status to ensure a smooth procurement process.
Frequently Asked Questions (FAQs)
1. What is the weight of the A06B-6096-H102, and how does it affect shipping costs?
The amplifier weighs 11.00 lbs (4.99 kg), which keeps shipping costs low compared to heavier drives.
2. Can the A06B-6096-H102 operate in high-temperature environments?
Yes, it operates from 0°C to 55°C, making it suitable for typical industrial floors without additional cooling.
3. Does the FSSB interface reduce installation time?
Yes, the FSSB interface simplifies wiring and configuration, reducing setup labor costs.
4. How does overload protection save money?
Overload protection prevents motor and drive damage, avoiding costly repairs and unplanned downtime.
5. Is the A06B-6096-H102 compatible with older FANUC controllers?
It works with CNC systems that support the FSSB interface; verify compatibility with your controller model.
